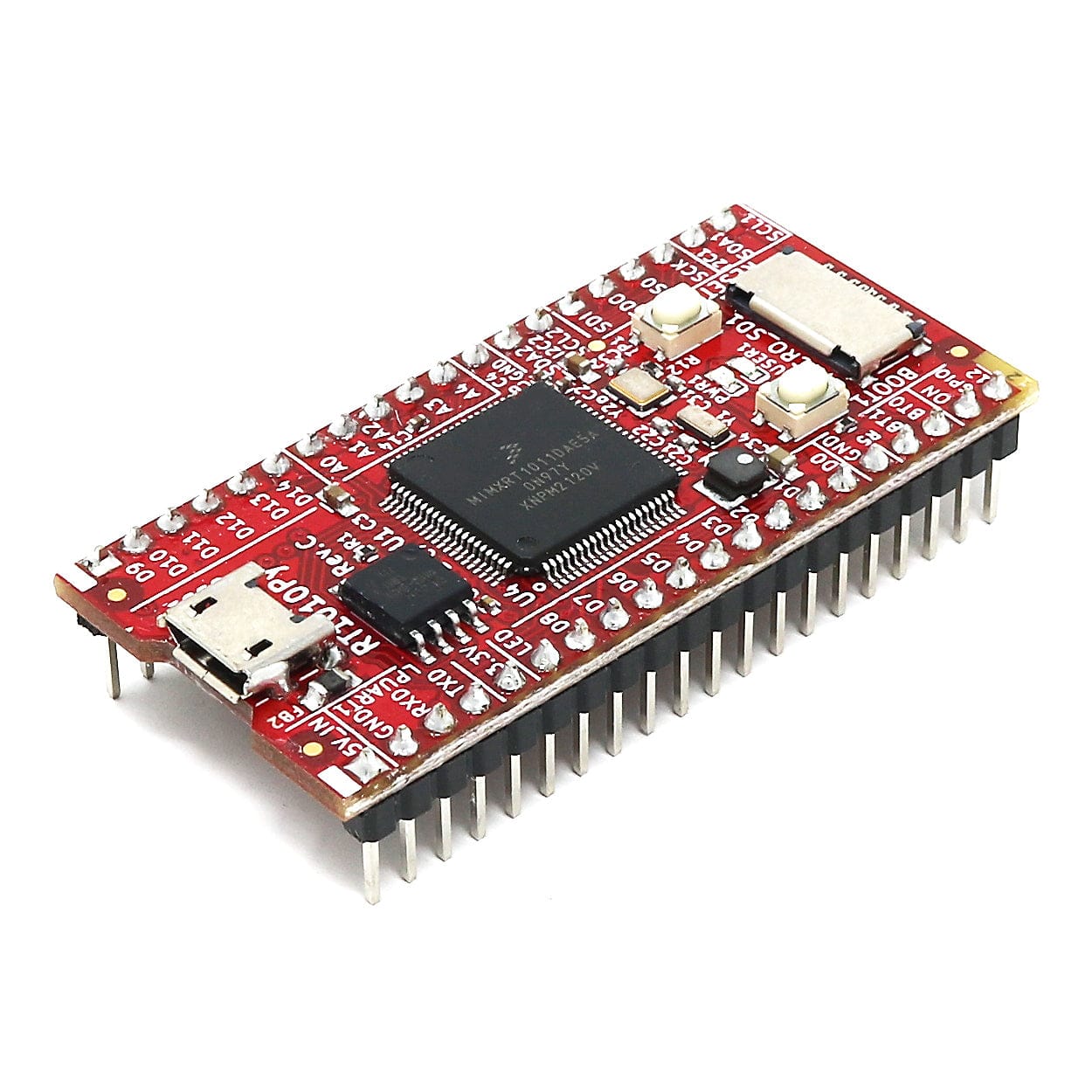

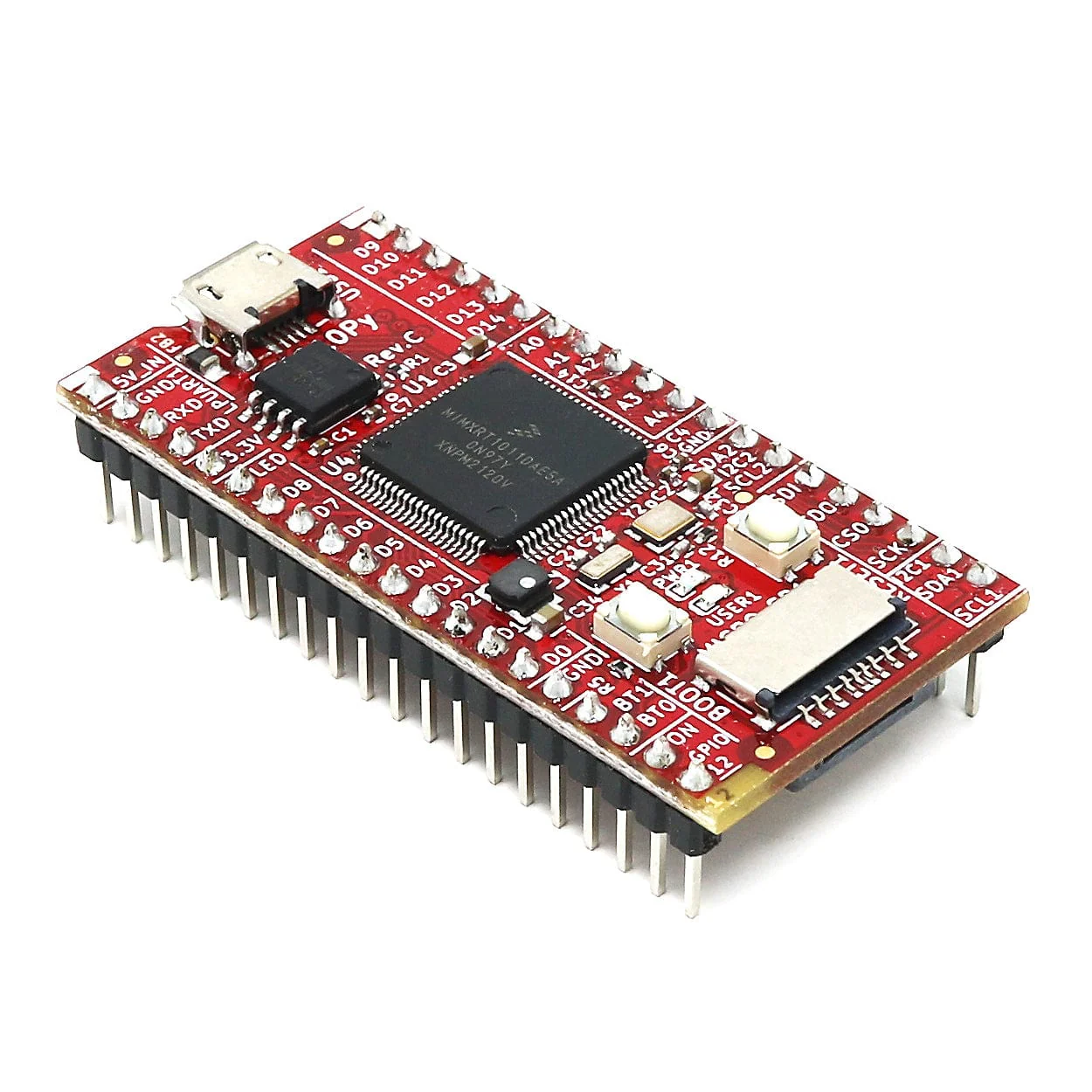

This is the Olimex RT1010Py - a development board with an NXP MIMXRT1011DAE5A Cortex-M7 processor running at 500Mhz - four times faster than the RP2040!

If you use an RP2040 but need more speed, this board might be the perfect solution for you!

The board offers 128KB on board RAM, 2MB SPI Flash and a microSD port. You'll also find a RESET and BOOT buttons. A micro-USB connection handles power and programming (be sure to grab a micro-USB cable as one isn't included).

The RT1010-Py runs MicroPython thanks to Robert Hammelrath, who has recently added the usbtinyuf2 bootloader to it, so now you can replace the Micropython firmware by simple drag-and-drop, like you do on a Pico!

Features

MIMXRT1011DAE5A running at 500Mhz
128KB on board RAM
2MB SPI Flash
Three UARTs
Two SPIs
Two I2Cs
I2S
Four PWM units with complementary outputs for push pull drivers
USB 2.0 OTG
Micro SD card connector
RTC with 32.768 kHz crystal
RESET button
BOOT button
UEXT connector with 3.3V, GND, I2C, SPI, and UART
Two GPIOs headers spaced at 22.86 mm (0.9”)
Dimensions: 53.34 x 25.4 mm ( 2.1 x 1”)

Resources

Documents

Hardware

Software

MicroPython
PlatformIO
Arduino (link TBC)

Package Contents

1x Olimex RT1010-Py board

Olimex Products

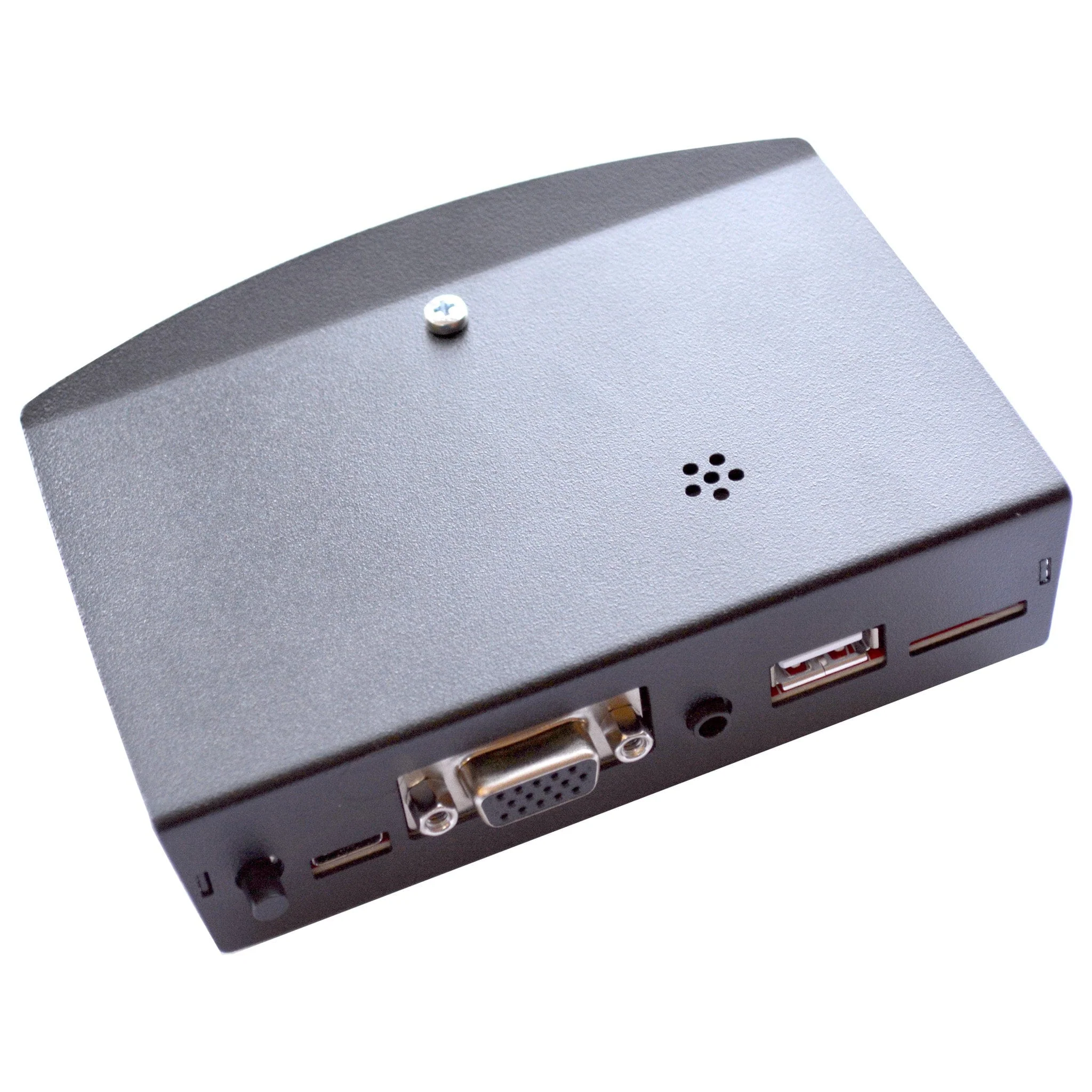

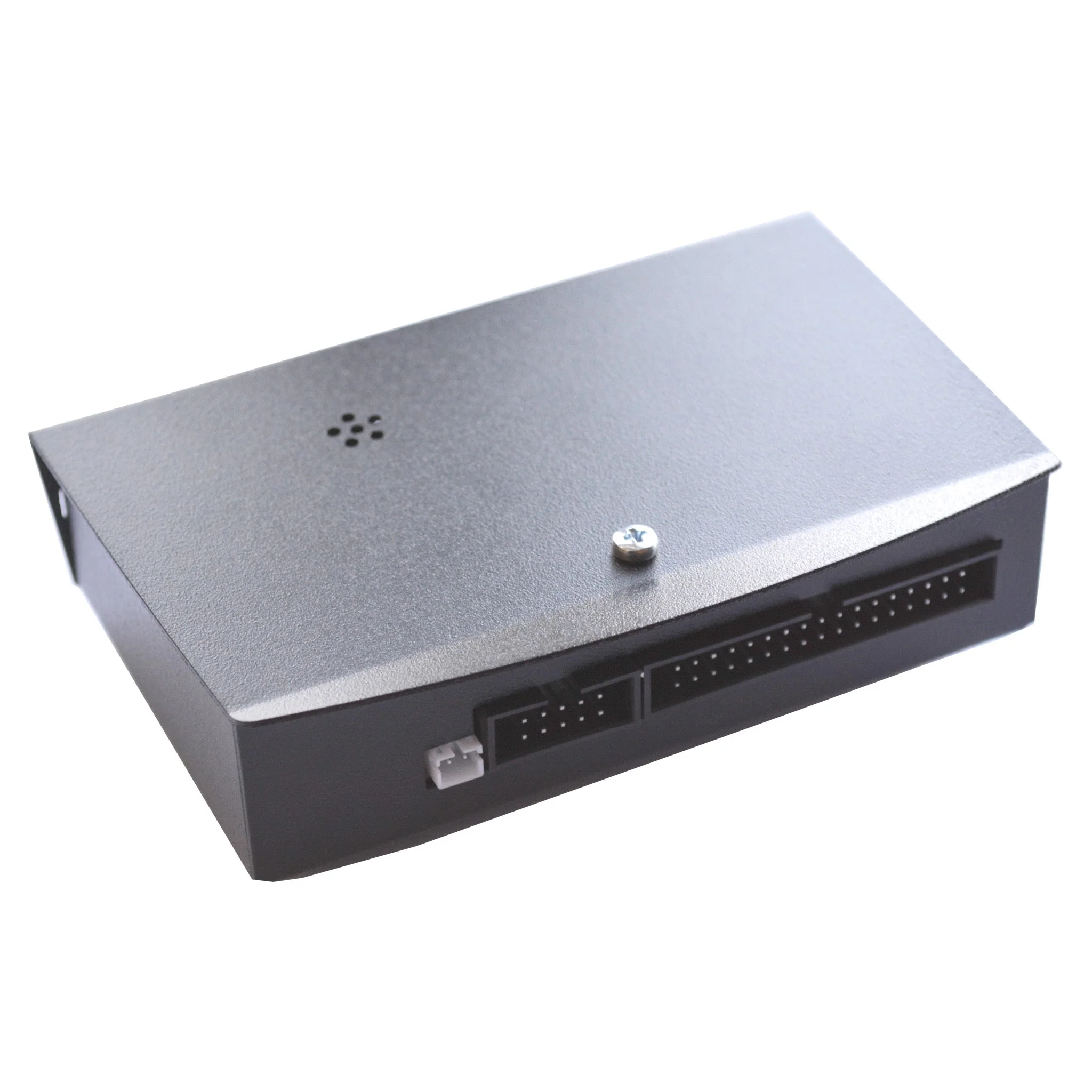

Metal Enclosure for AgonLight2

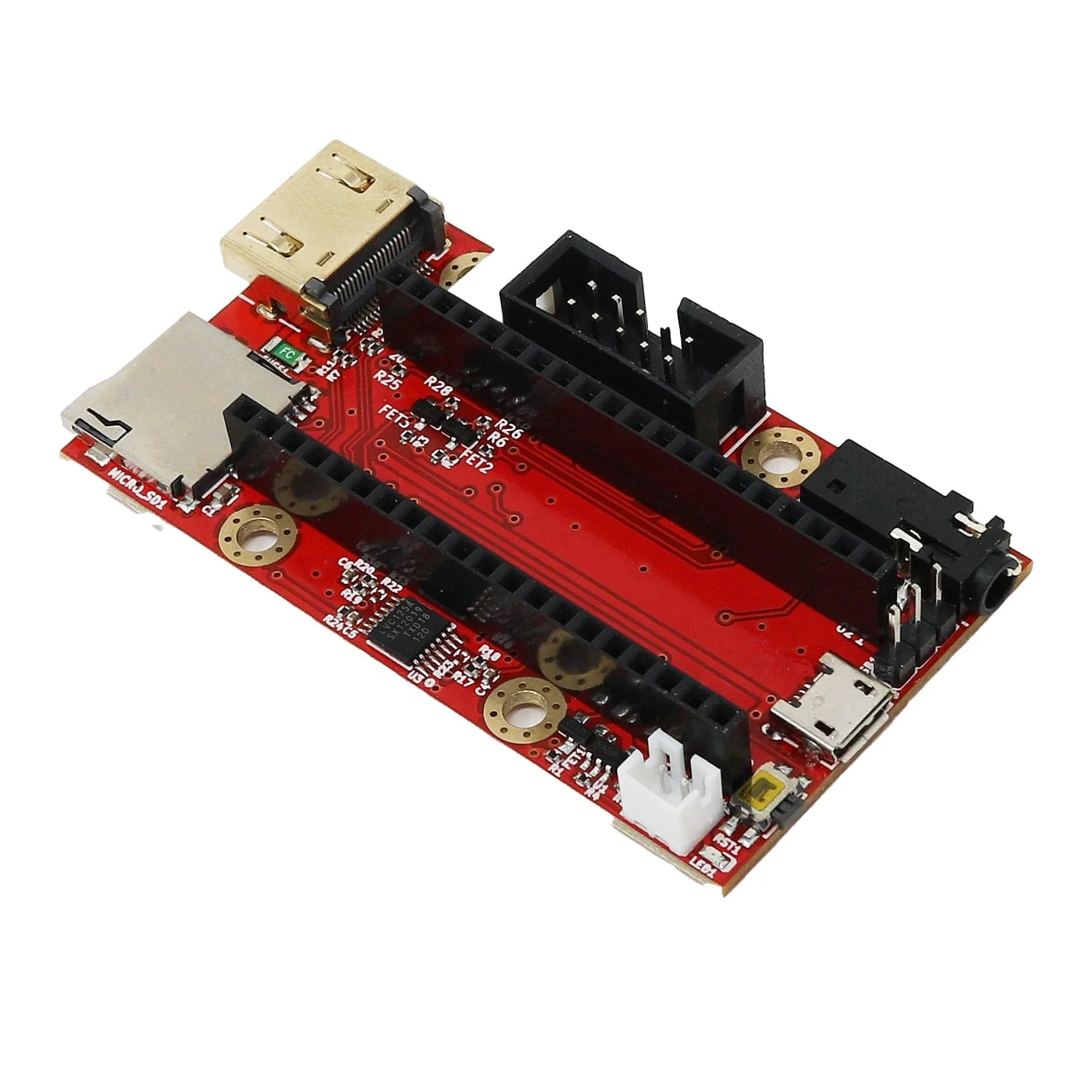

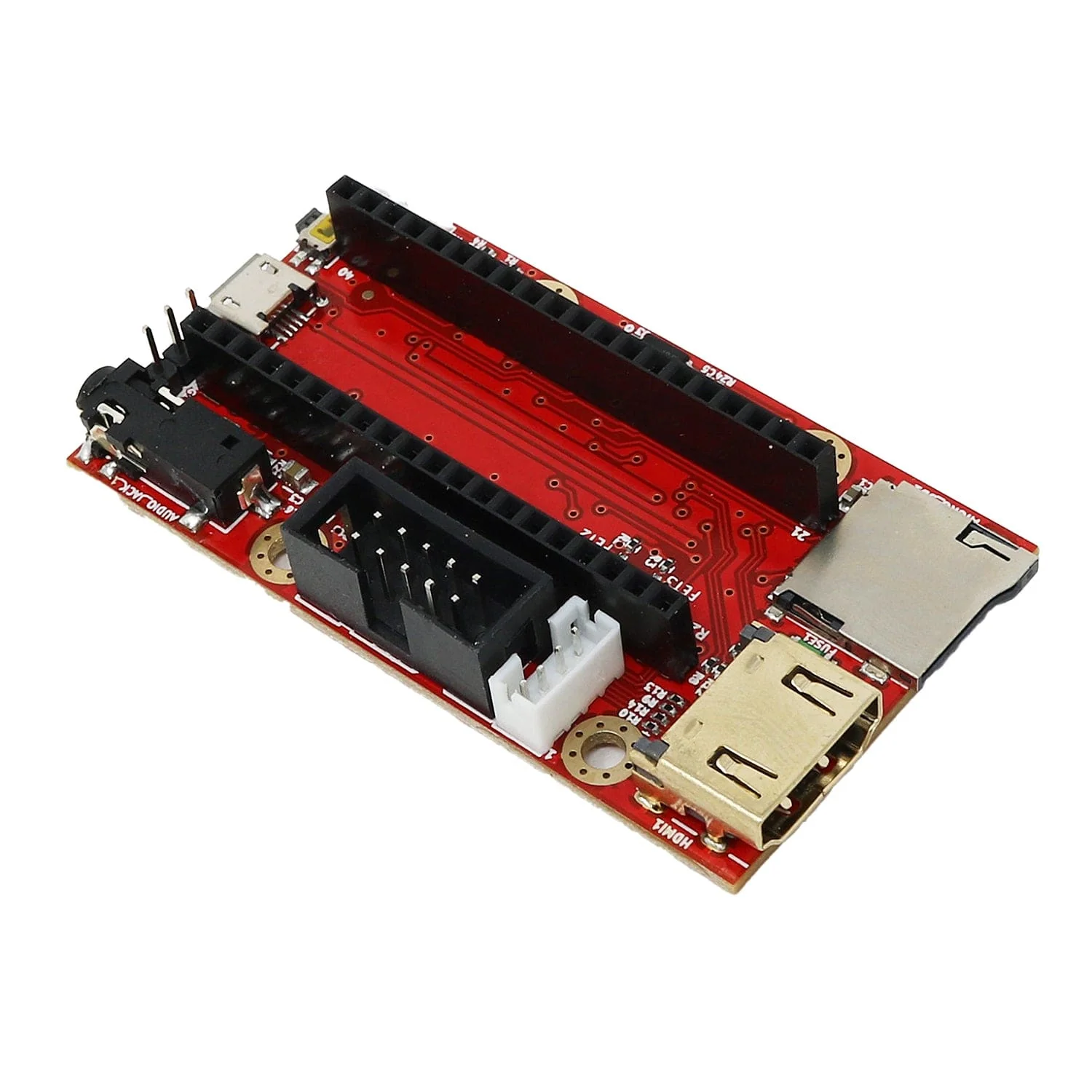

Olimex RP2040-PICO-PC for Raspberry Pi Pico

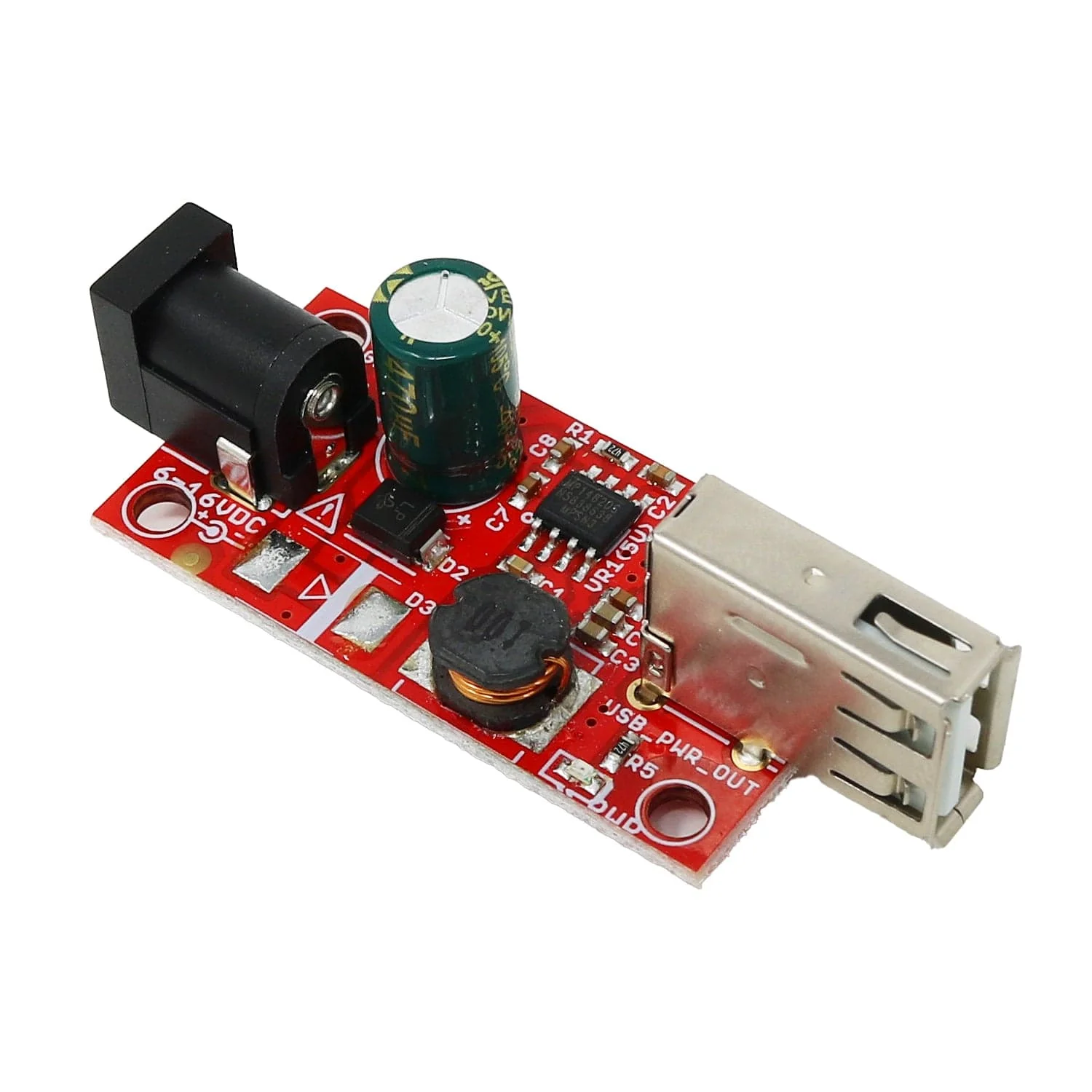

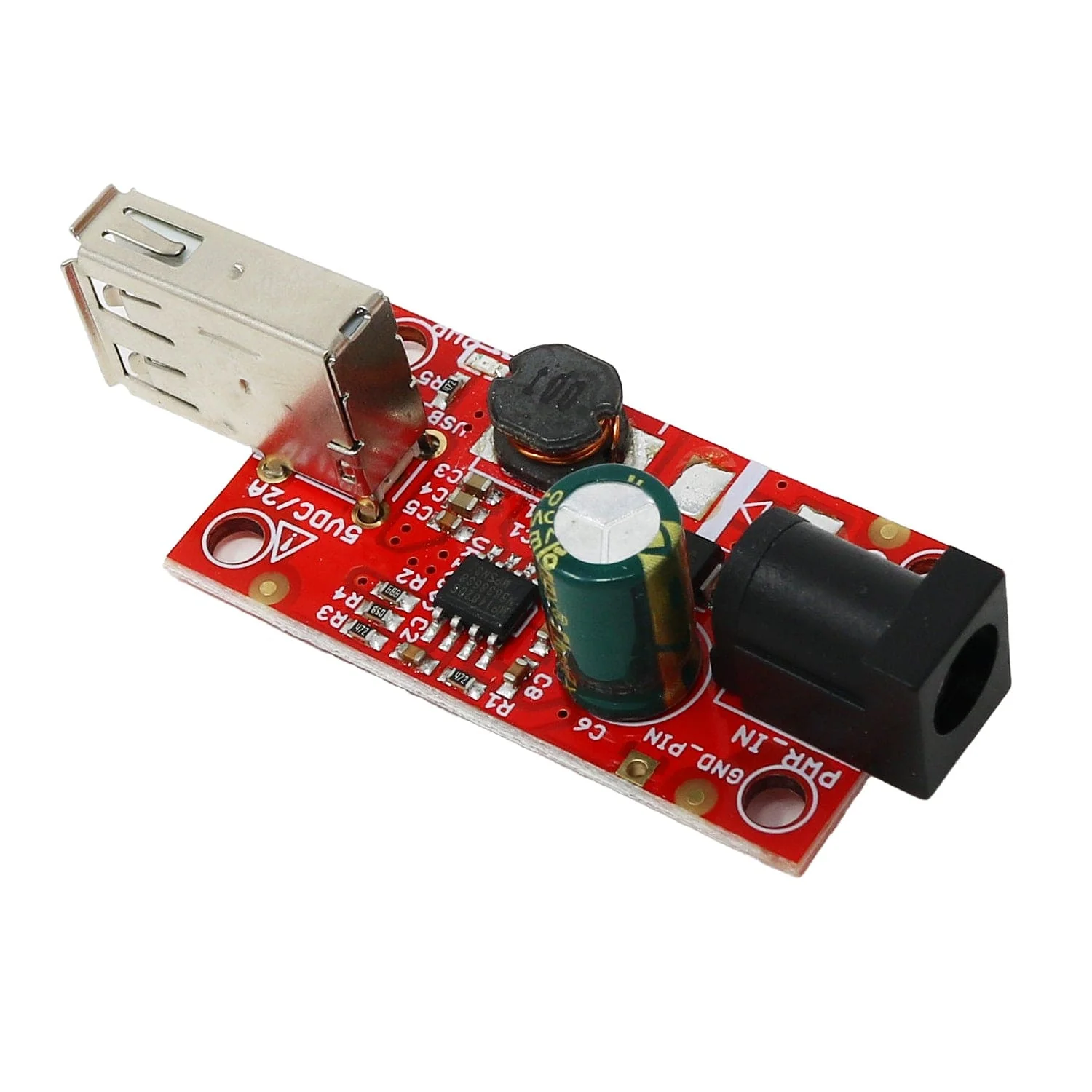

Olimex DCDC6-16-TO5 Power Converter (6-16V to 5V/2A)

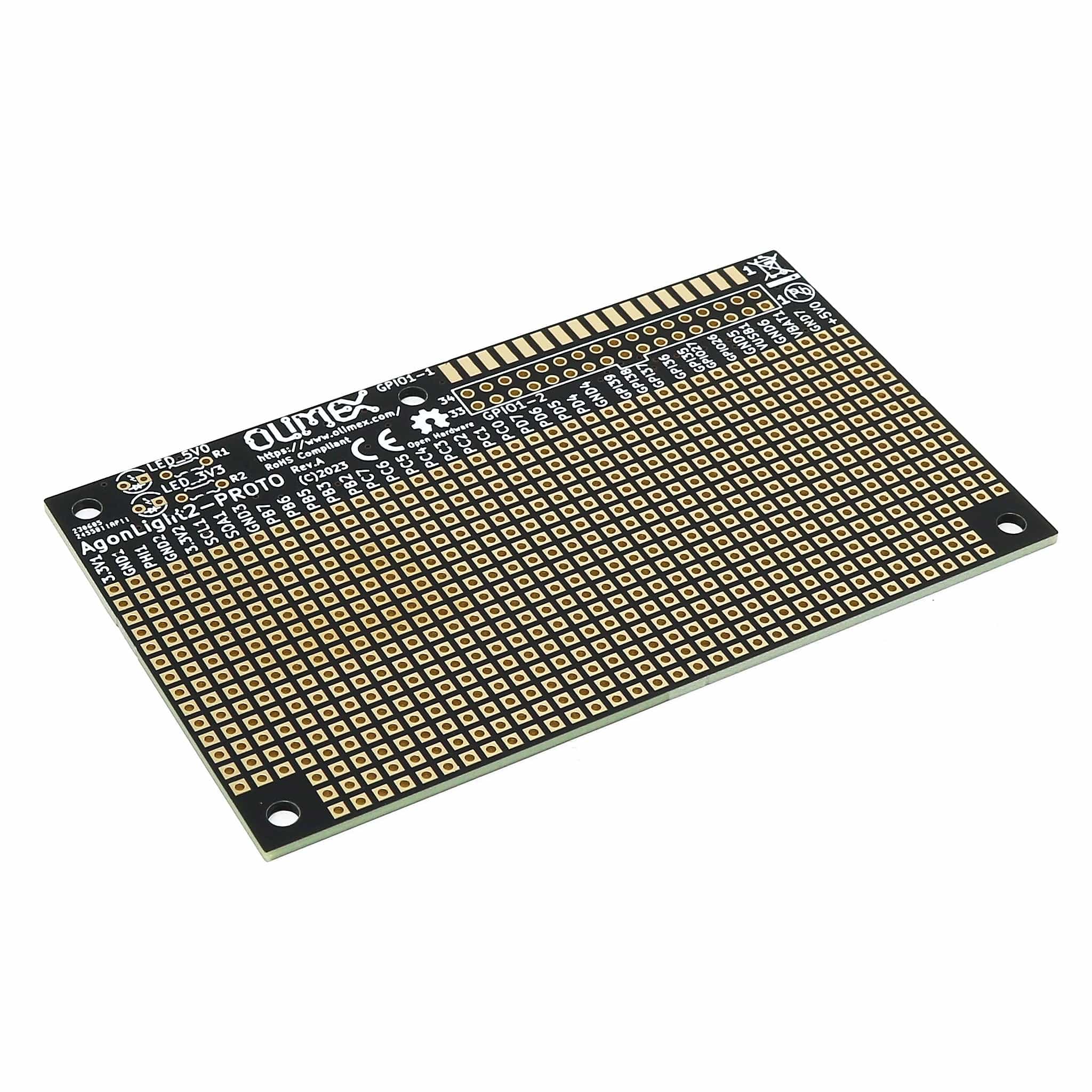

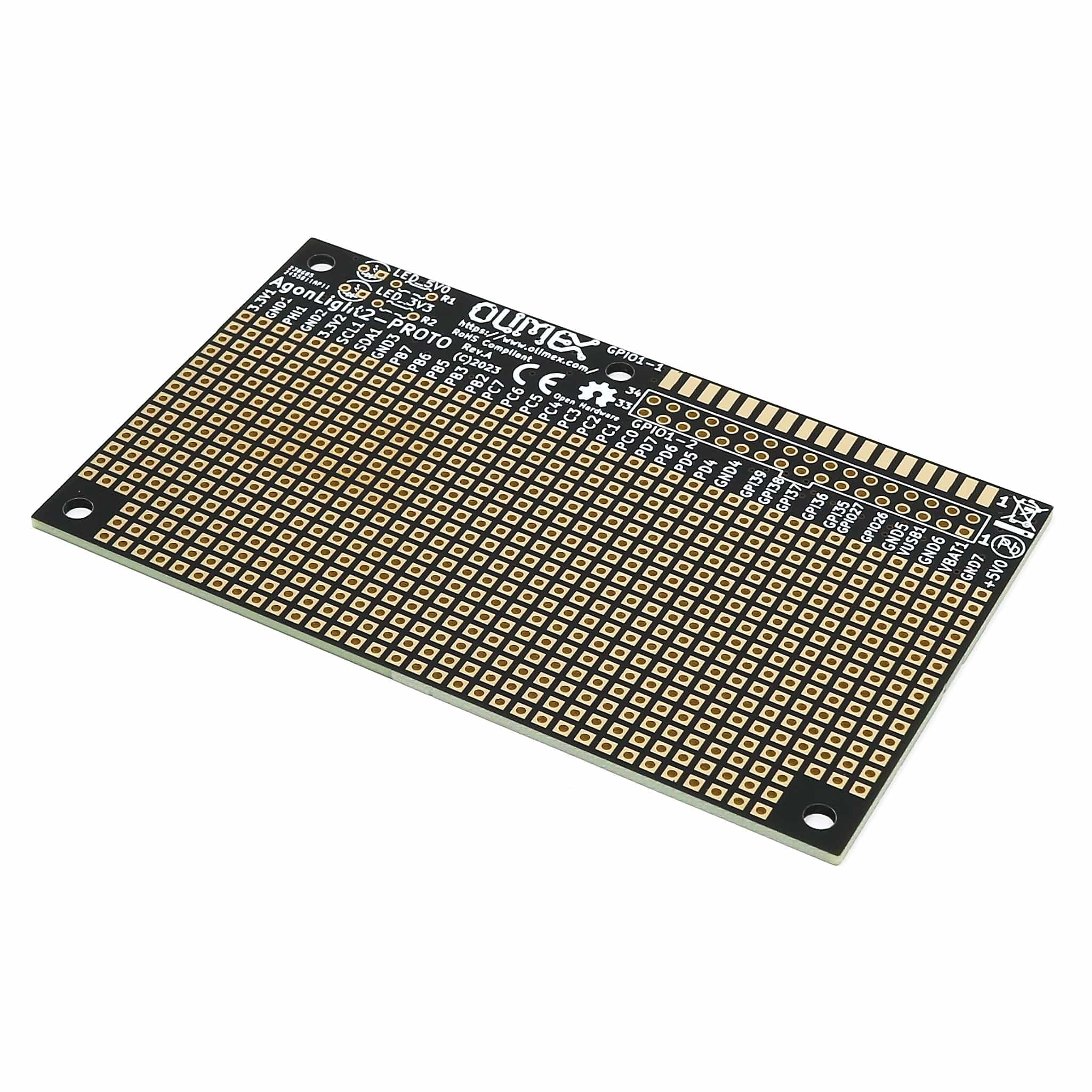

Olimex AGONLIGHT2-PROTO
