1x4 Tactile Button Breakout - Narrow

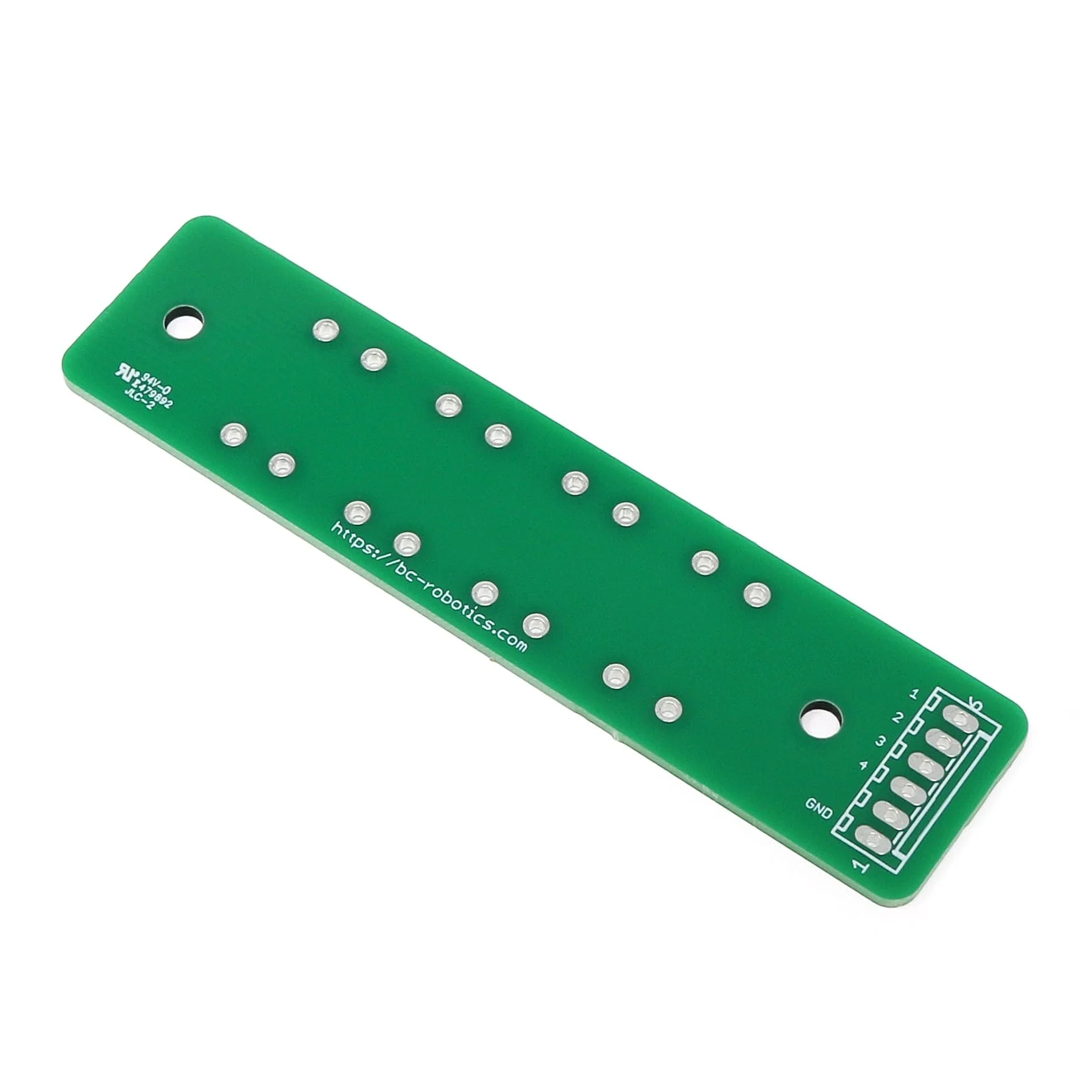

Need to add a few buttons to your project? This simple 84x21mm breakout board is the perfect solution! The board hosts 4 12mm square buttons (buttons not included) in a narrow configuration and is the easiest way to add a strip of buttons to your project. The PCB has two M3 mounting holes and a 6-way 2.54mm pitch header pads on one end for adding a header strip or a terminal block to (or even just solder wires directly). The buttons are spaced at 2.54mm (1") centre to centre.

We think these work great for navigating an on-screen menu or as a part of a larger control panel. Any standard 12mm tactile button will fit, though some variants with plastic alignment pins may need to have the pins trimmed (easily done with flush cutters).

We also stock a wide version for more spaced-out buttons.

Tactile buttons sold separately

Features

• Breakout board for adding four tactile buttons to your project
• Compatible with 12mm square tactile buttons (not included)
• 6-way 2.54mm header pad
• M3 mounting holes
• 1.6mm FR4 PCB
• Dimensions: 84 x 21mm

Package Contents

• 1x 1x4 Tactile Button Breakout - Narrow

Tactile buttons sold separately
