2.4GHz Rod Antenna for XIAO ESP32C3
This 2.4GHz antenna has a gain of 2.81dBi which provides a strong and stable signal reception and transmission, making it great for a wide range of projects, including IoT devices, home automation, and wireless sensor networks.
It is compact and lightweight, with a design that easily integrates with your XIAO ESP32C3 setup. Its flexible connector allows for easy installation and positioning, making sure you get the best possible signal in any environment. Whether you're looking to improve your device's range or enhance its connectivity, this 2.4GHz antenna is an excellent addition to your next project.
Features
- Mini Antenna for Tiny Seeed Studio XIAO ESP32C3: Attach everything you need to enhance the tiny MCU board wireless capability in 2.4GHz
- Omnidirectional Function Design: Effective hardware, which gains up to 2.81dBi
- Material Substance Compliance: REACH, RoHS
- Product number: Seeed 103990623
Specifications
| Frequency Bands, MHz | 2400-2500 |
| VSWR (Max) | 3.0:1 |
| Peak Gain, dBi (Typ) | Up to 2.81 |
| Nominal Impedance | 50 Ω |
| Max Power (ambient temp of 25°C) | 10 Watts |
| Azimuth Beam Width (deg) | Omnidirectional |
| Polarisation | Linear, Omnidirectional |
| Radome PC | White |
| Storage Temperature Range (°C) | -40° C to +85° C |
| Operational Temperature Range (°C) | -30° C to +80° C |
| Material Substance Compliance | REACH/RoHS Compliant |
Resources
Package Contents

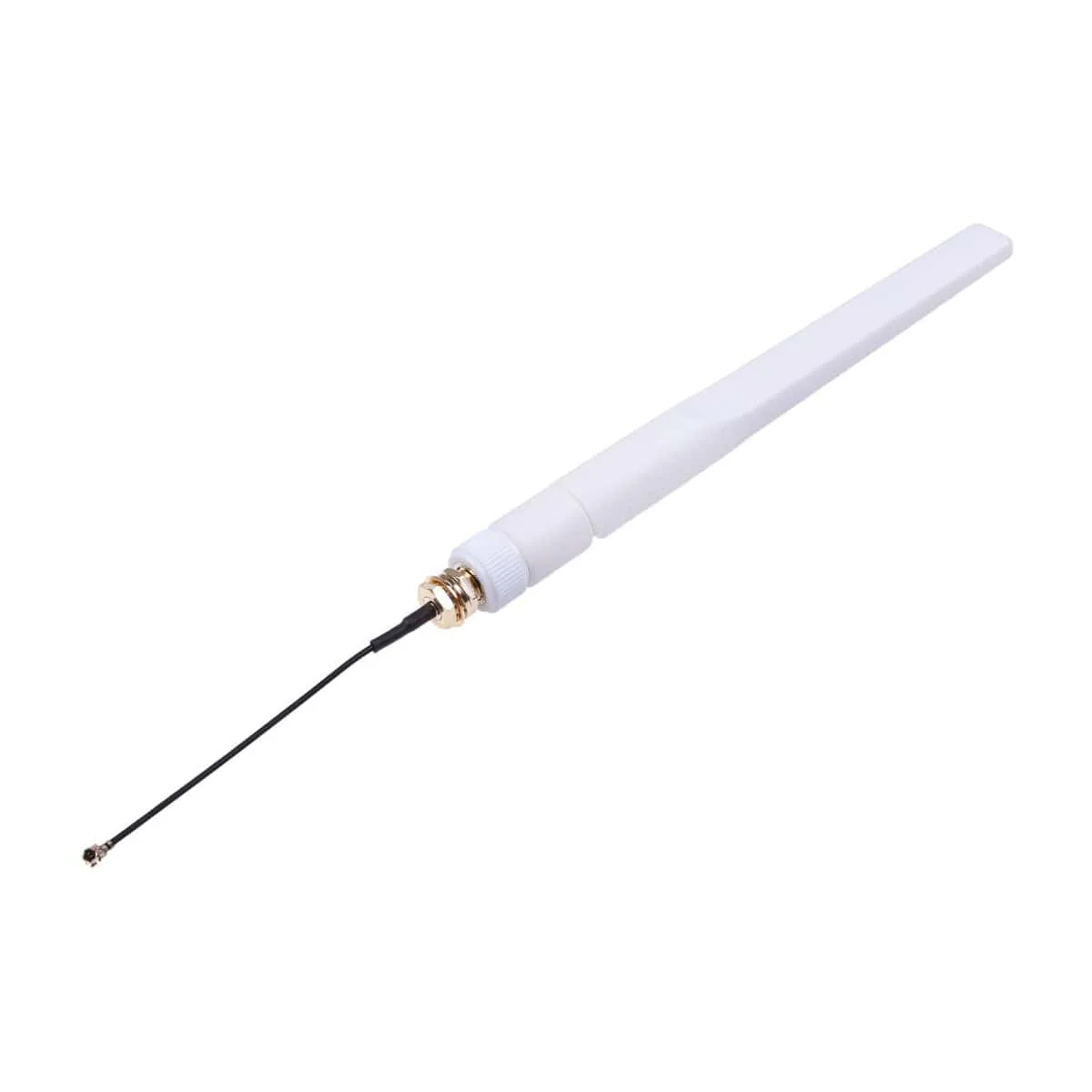

- 1x SMA to I-PEX Antenna Cable
- 1x White Rubber Duck Antenna
Original: $2.20
-55%$2.20
$1.00Product Information
