Circuit Playground Proto Gizmo - Bolt-on Perma-Proto

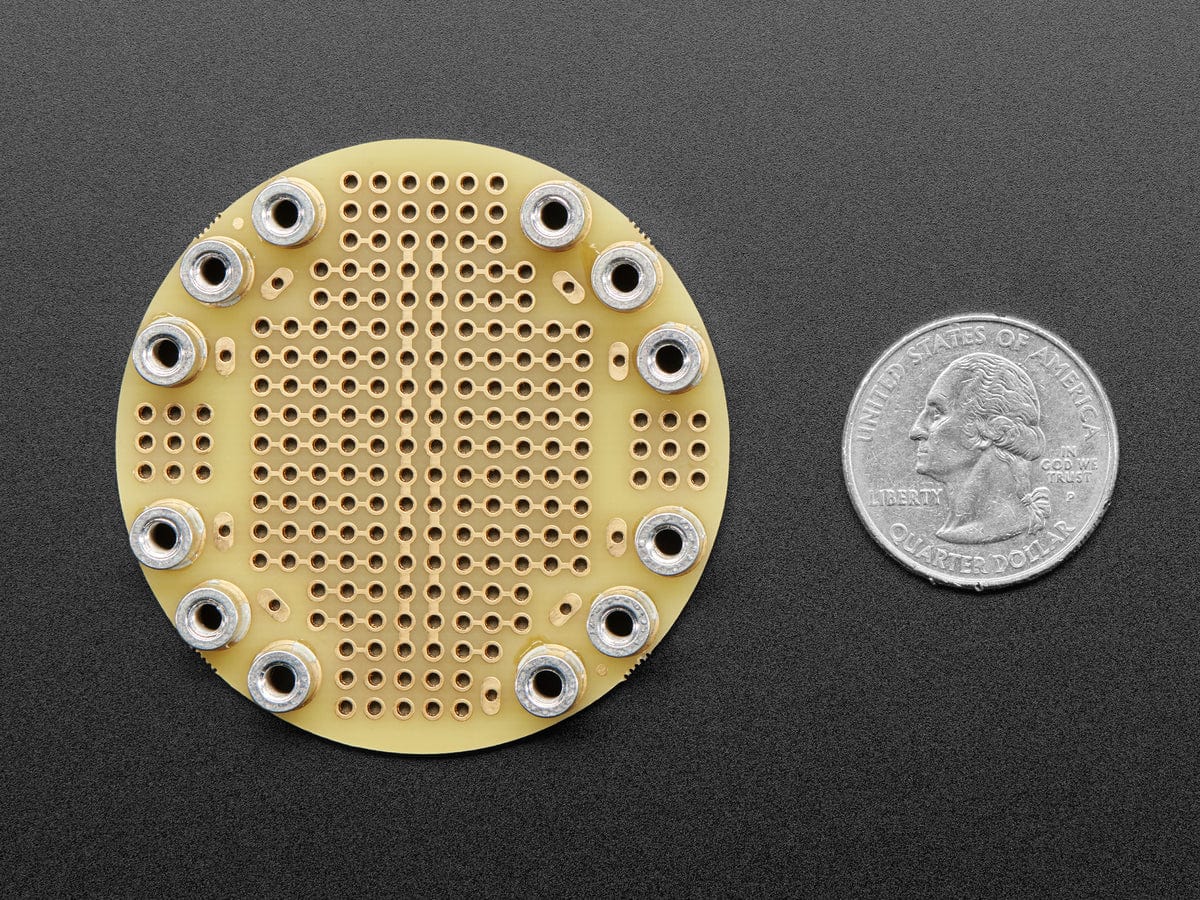

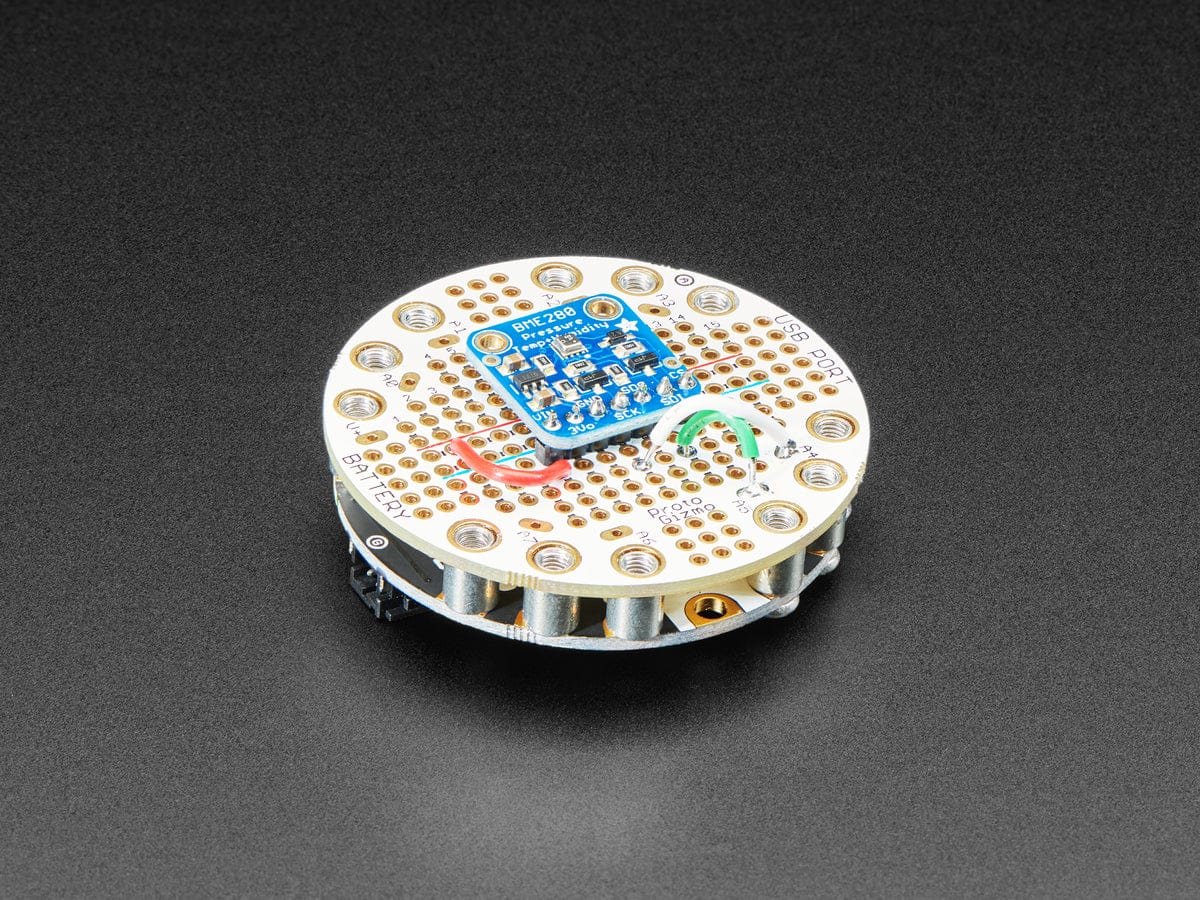

Extend and expand your Circuit Playground projects with a bolt on Perma-Proto that lets you connect solderable circuits in a sturdy and reliable fashion. This PCB looks just like a solderless breadboard but has permanently affixed M3 standoffs that act as mechanical and electrical connections. Solder to the gold-plated traces to create your custom invention!
Each pad of the Circuit Playground has a large oval pad you can connect to, and in the center is a blue-marked Ground rail and red-marked 3.3V rail. The center has side-connected groups, they're marked in black on top. Once you're done you can screw on/off the Gizmo as many times as you like.

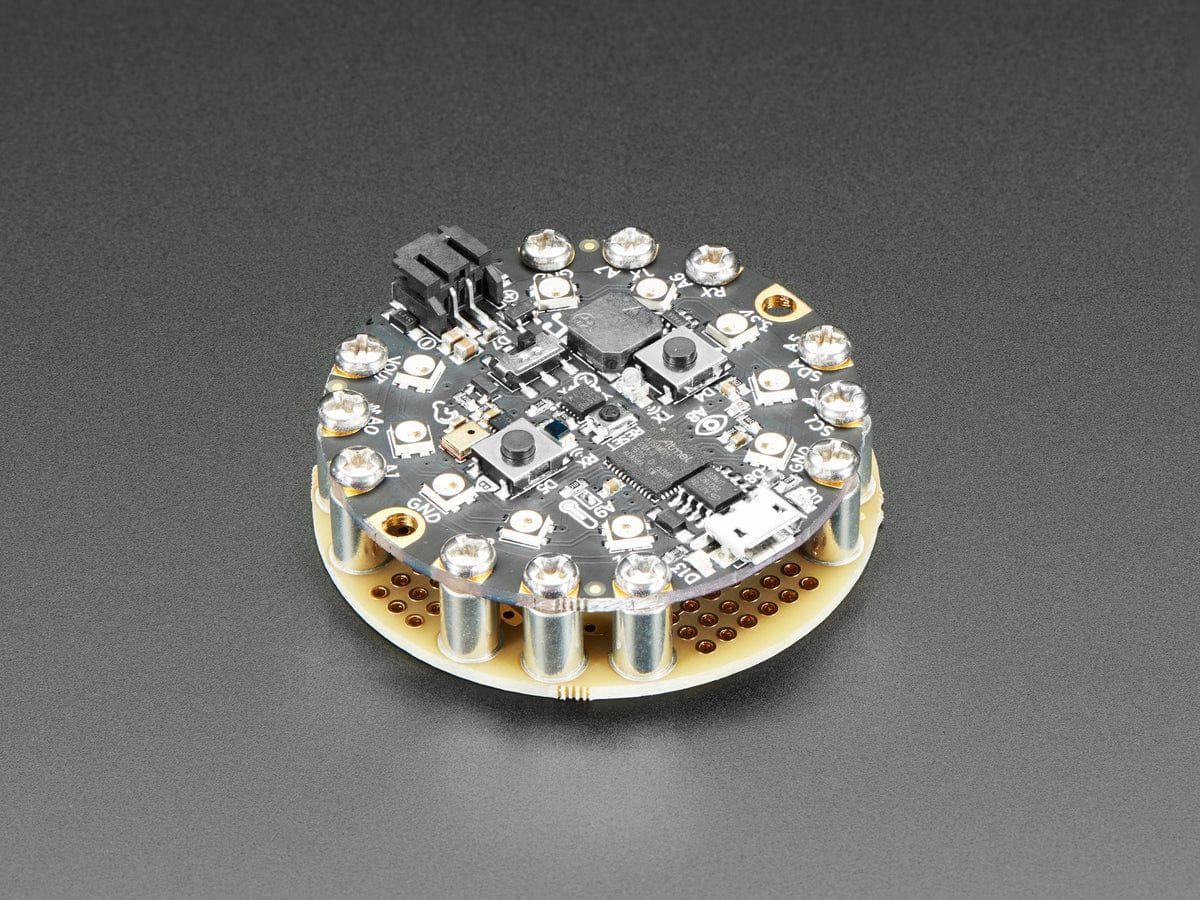

Comes with a PCB that has pre-soldered standoffs attached, and 12x M3 screws for attachment. Fits Classic, Bluetooth and Express Circuit Playgrounds, but the oval pad markings match the Express/Bluefruit pad naming.
Technical Details
- Outer Diameter: ~50.6mm / ~2.0"
- Weight: 17.8g
Revision History:
- As of Nov 8, 2019, this Gizmo comes with 8mm standoffs instead of 6mm, so you have more room for a battery or circuit in between the Playground.
