Arduino Nano Matter

Nano Matter merges Arduino’s signature ease of use with the powerful Silicon Labs® MGM240S, wrapping the best of two worlds into one of the smallest form factors currently on the market. Experimenting with Matter-compatible devices has never been easier!

With Nano Matter, makers – at all levels of expertise – can leverage the popular Matter IoT connectivity standard to build interactive solutions, upgrade previous Nano-based projects to fully function as smart home devices, and even experiment with protocols like Zigbee® and OpenThread.

Features

• Matter® Ready - Create, connect, and communicate with Matter® compatible devices using Arduino as the software layer for rapid prototyping.
• OpenThread - Nano Matter uses Thread for IoT mesh networking communication in a highly compact form factor.
• MGM240SD22VNA 32-bit Arm® Cortex®-M33 -  The Nano Matter integrates MGM240SD22VNA, boasting a 32-bit Arm® Cortex®-M33 processor optimized for complex calculations and signal processing in power-sensitive IoT applications.
• Bluetooth® connectivity - Leverage dual-mode connectivity, integrating both IEEE 802.15.4 (Thread) for mesh networking and Bluetooth® Low Energy for short-range communication.
• Debugging over USB - No external debugging device is needed. Connect the board to the computer over USB and have access to a SWD interface.
• Low power consumption - The Nano Matter has been designed as an ultra-low power board, being the perfect solution for IoT battery-powered applications.
• Tiny footprint - With a length of 45 mm and a width of 18 mm, the Nano Matter maintains a tiny footprint of the well-known Nano family, allowing easy upgrades for existing projects.
• Secure Vault technology-enabled - Protect your project with the industry-leading suite of security features from Silicon Labs escalating Internet of Things (IoT) threats.
• Arduino IoT Cloud Compatible - Use your board on Arduino's IoT Cloud, a simple and fast way to ensure secure communication for all of your connected Things. Try the Arduino Cloud for free!

Specifications

Microprocessor	MGM240SD22VNA (32-bit Arm® Cortex®-M33 with DSP instruction and FPU)
Connectivity	802.15.4 (Thread), Bluetooth® Low Energy 5.3, Bluetooth® Mesh, Matter-ready Smart Home Connectivity
Memory	1536 kB Flash, 256 kB RAM
USB Connector	USB-C®
Security	Secure Vault™ High
Debugging	Over USB
UART	2
I2C	2
SPI	2
Digital I/O	22
Analog Inputs	20 (12 bits resolution)
DAC	4 (8-12 bits resolution)
PWM pins	22 (A maximum of 5 pins simultaneously)
External interrupts	Available within all Digital pins
User Interface	On-board RGB LED, User pushbutton
Circuit operating voltage	3.3 V
Input Voltage (VIN)	5 V
Source Current per I/O Pin	40 mA
Sink Current per I/O Pin	28 mA
Clock Speed	78 MHz
Antenna On-board	2.4 GHz
Dimensions	18x45 mm
Environmental Temperature	-40 °C to + 85 °

Resources

• User manual
• Pinout
• Datasheet
• Schematics
• STEP Files
• Project Hub
• Arduino GitHub Repository
• Arduino Forum
• Product numbers:
  • Board + Loose headers:Arduino ABX00112

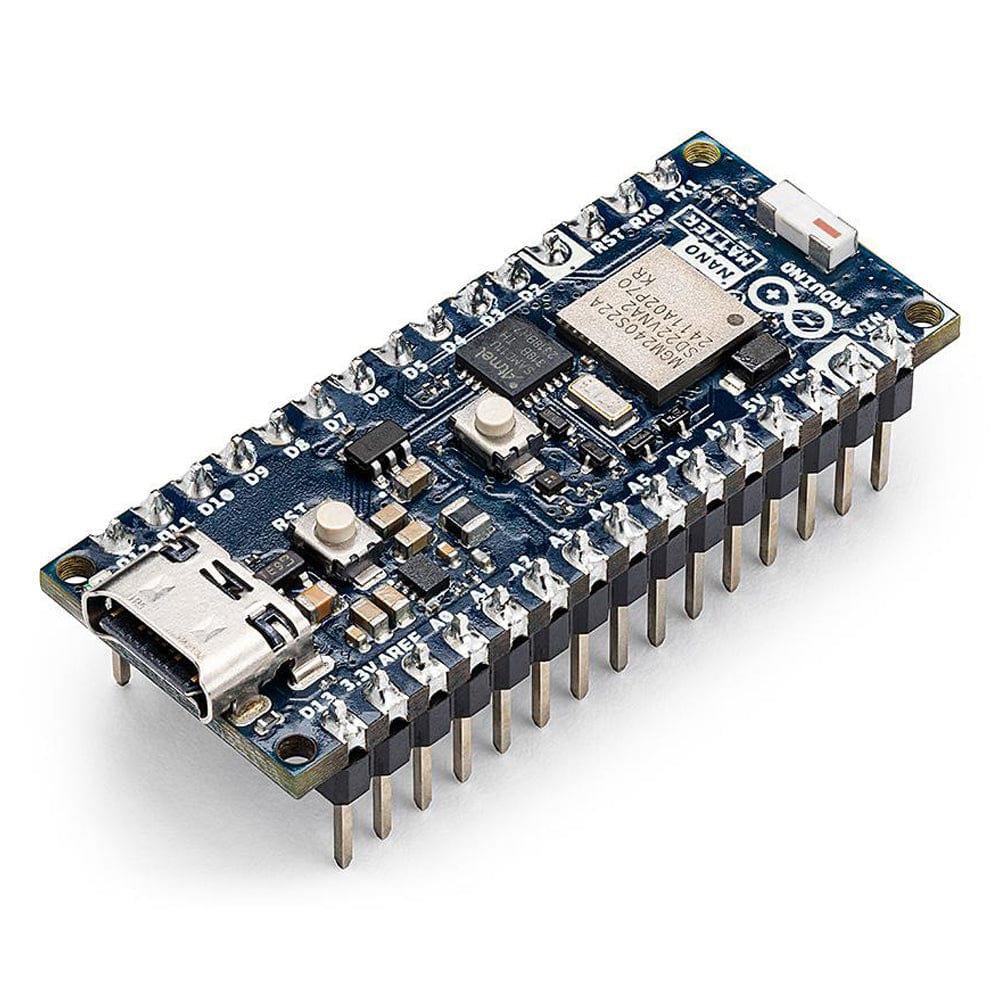

  • Pre-soldered Board: Arduino ABX00137
• EAN:
  • Board + Loose headers: 7630049204867
  • Pre-soldered Board: 7630049205291

Software/Libraries

• Arduino IDE
• Arduino IoT Cloud
• Arduino CLI
• Silicon Labs Arduino Core
• Cloud Editor

Tutorials

• Matter Smart Fan with the Arduino Nano Matter
• Matter Smart Relay with the Arduino Nano Matter
• Matter RGB Light with the Arduino Nano Matter
• Matter Temperature Sensor with the Arduino Nano Matter
• Open Thread Border Router with Nano Matter & ESP32

Package Contents

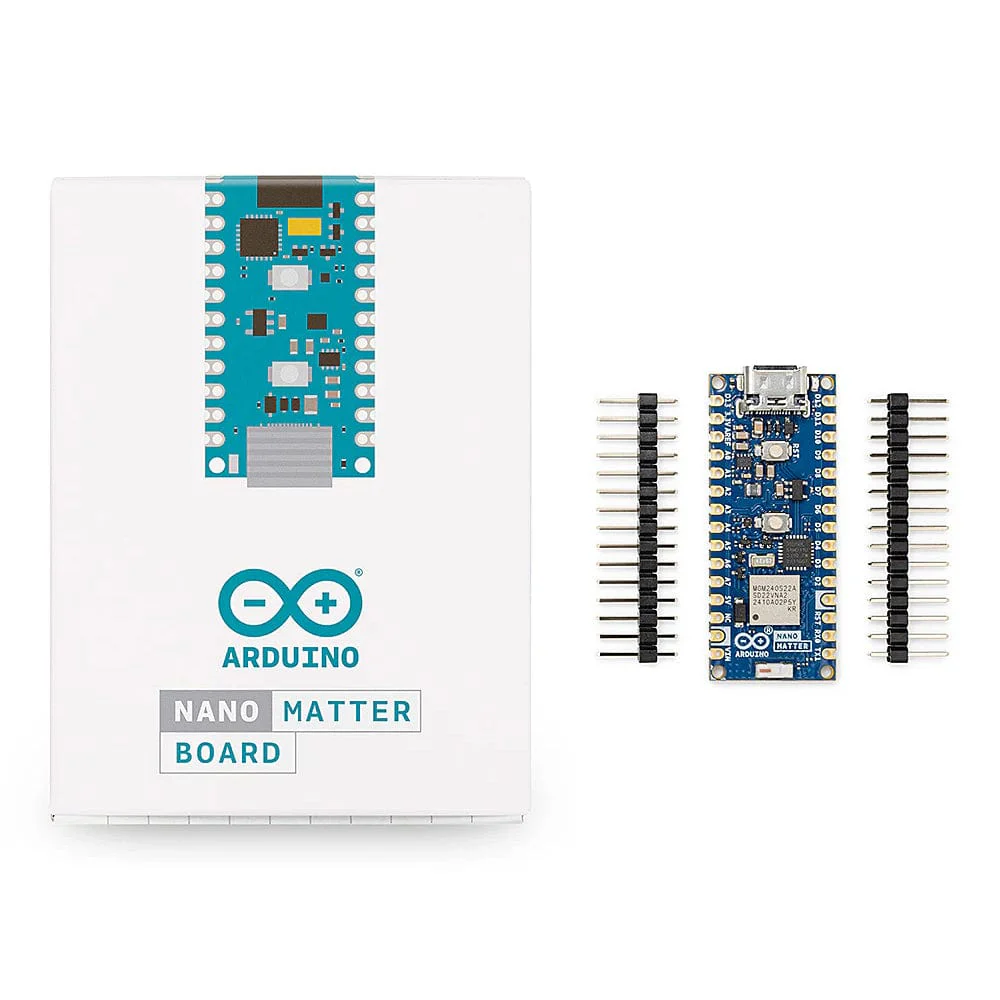

• 1x Arduino Nano Matter board (with loose headers or pre-soldered - select before adding to your cart)


USB-C cable not included
