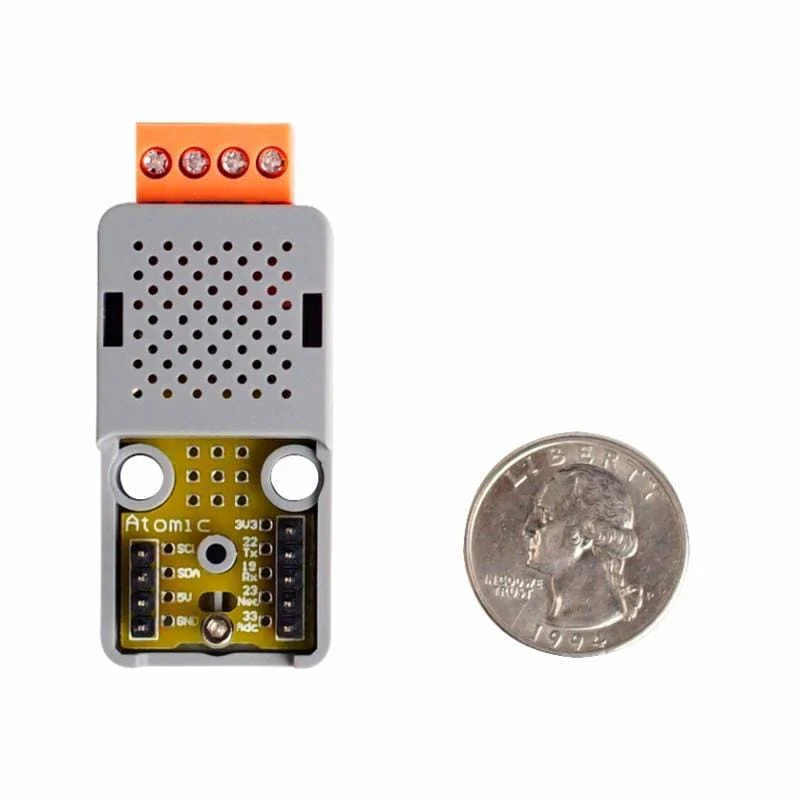

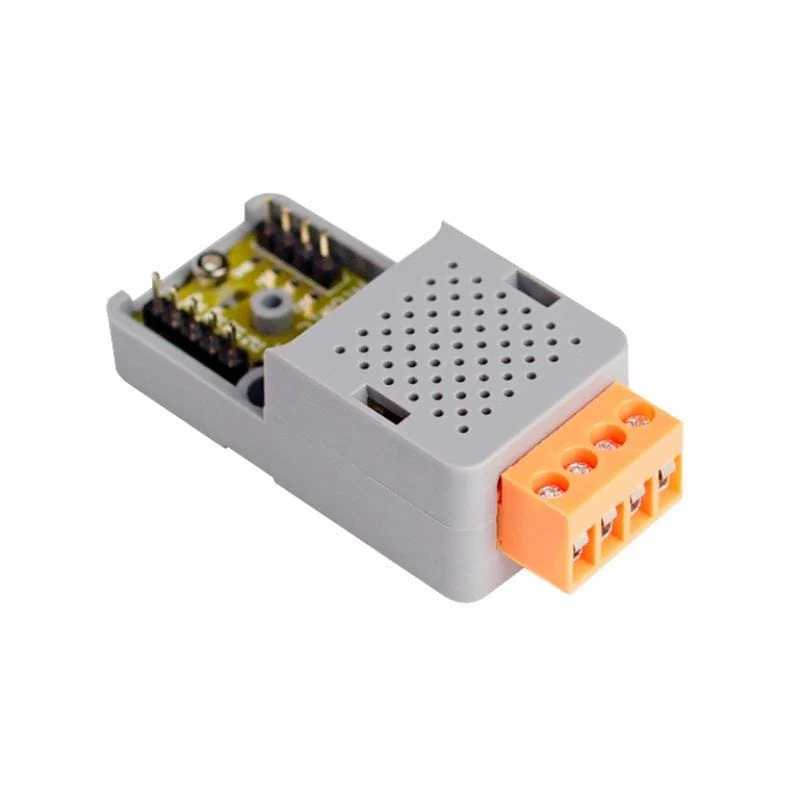

M5Stack ATOMIC Proto Kit
A prototyping kit for use with the ATOM development kits, perfect for connecting custom circuits or external hardware.
It can be stacked with ATOM boards directly via the 9 pins on the base. Two blank proto boards with over 60 connections are included, along with a pair of 3.96 4 pin connectors for adding an external power connection.

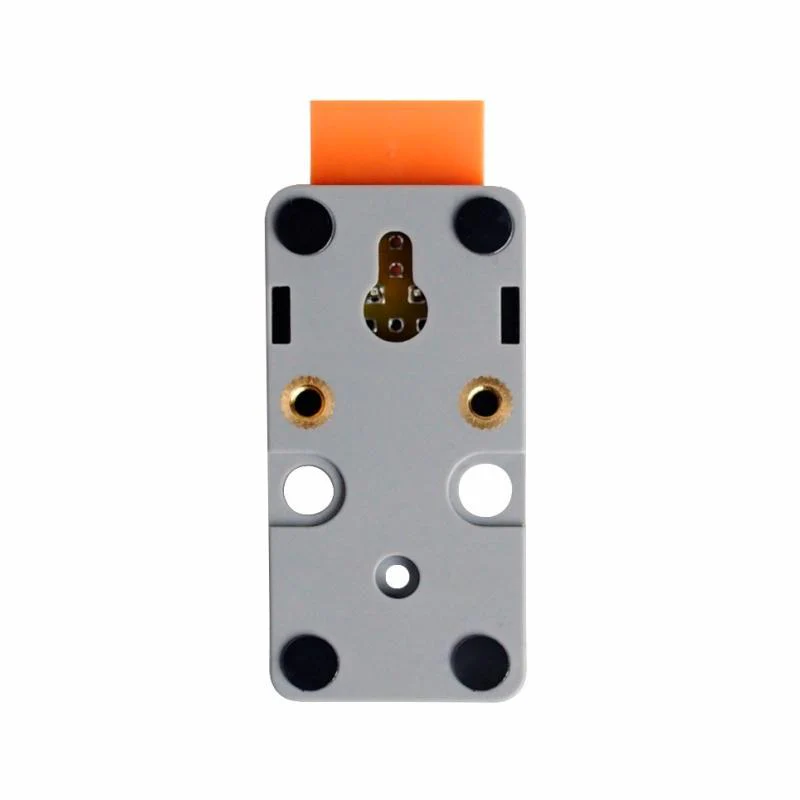

The case has ventilation holes for heat dissipation and to allow for more accurate readings from sensors, it also allows for a variety of mounting options (including building brick compatible holes!) - great for constructing a mini controller.
For more information and for help getting started, click here
Features
- Compatible with ATOM
- Compact form factor
- DIY Style
- Built-in Infra-red
- Open design

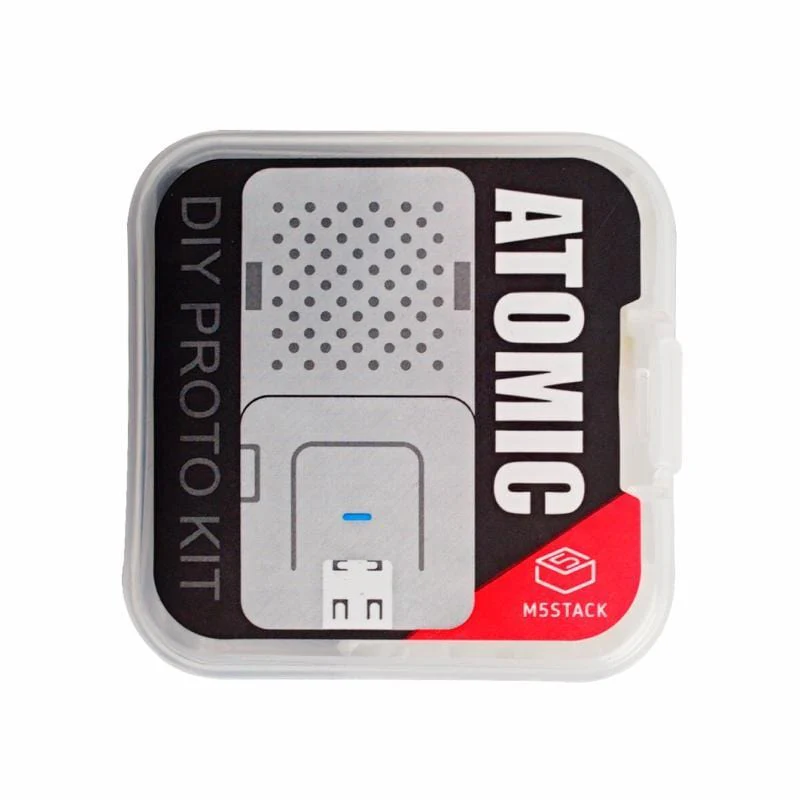

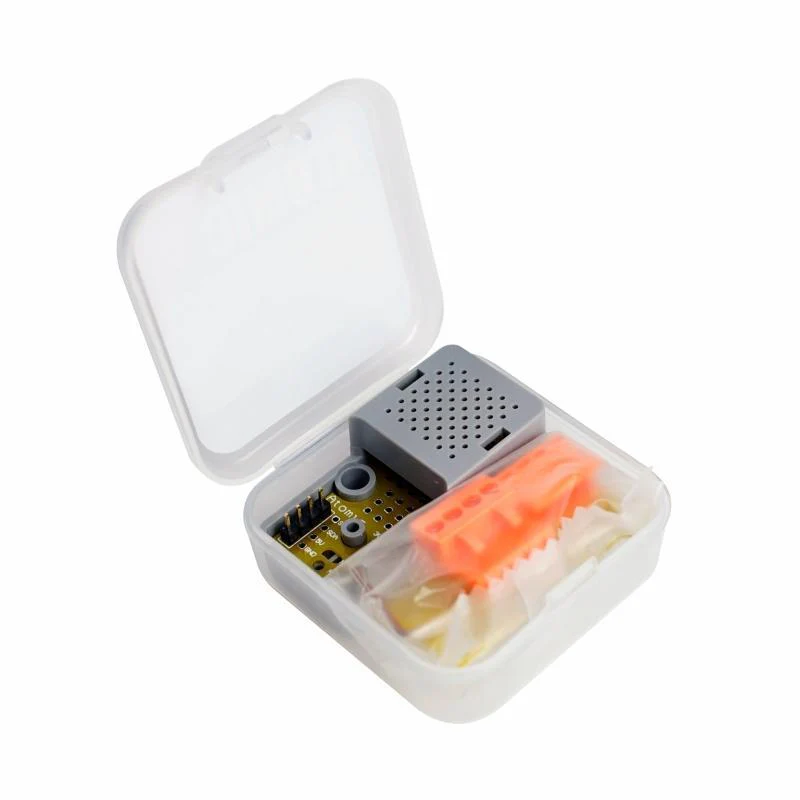

Package Contents
- 1x Proto Board
- 1x Proto Board(soldered pin/finished product)
- 1x 4P VH-3.96 Plug + Plug Base
- 1x 4P 2.0 Pins
- 1x 5P 2.0 Pins
- 1x ATOMIC Case
- 1x M2*3mm Self tapping screw
- 1x M2*8mm Screw
Specifications
| Specification | Parameter |
|---|---|
| External port | VH-3.96 4P |
| Size | 47 x 34 x 18mm |
| Weight | 42g |
| Case material | Plastic ( PC ) |
Original: $3.40
-65%$3.40
$1.19Product Information
