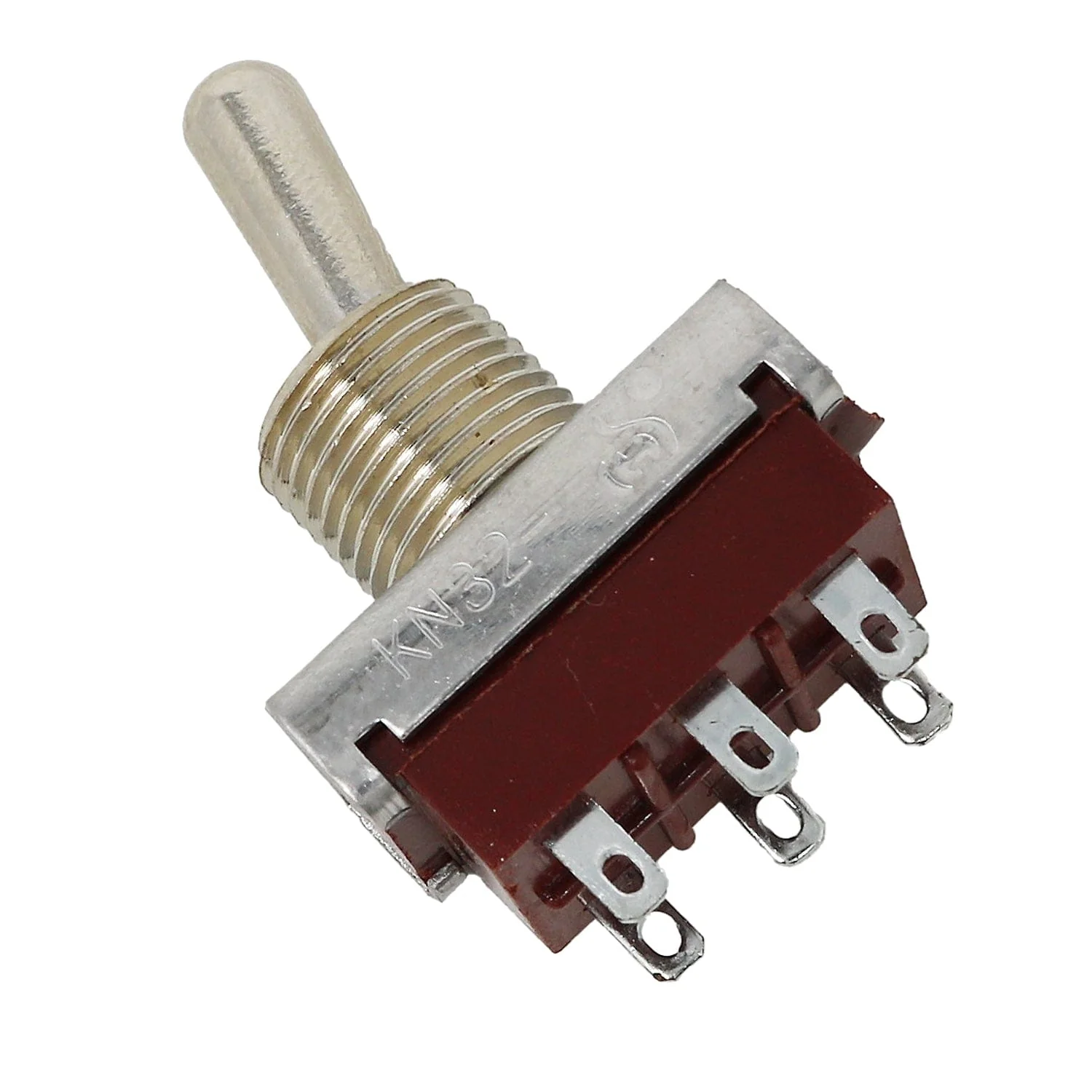

DPDT ON-ON Latching Toggle Switch
This is a Latching DPDT ON-ON toggle switch with 6 pins, rated to AC 5A/250V.
The switch has 6 pins allowing double pole, double throw use. The thread shaft requires a 12mm hole and has enough length to mount it to a panel/enclosure around 7mm thick (when using the included nuts/washers).
The switch comes with a washer and nut to mount to your panel/enclosure.
Do not use these switches with mains voltages!
Features
- Toggle switch
- DPDT (double pole, double throw)
- Latching action
- ON-ON switch
- Rated to AC 5A/250V
- 6 contacts/pins
- Body colour: Red
- Washer and nut included
- Model number: KN32
- Thread hole size: 12mm
- Maximum mounting panel thickness: 7mm
Resources
- Datasheet coming soon
