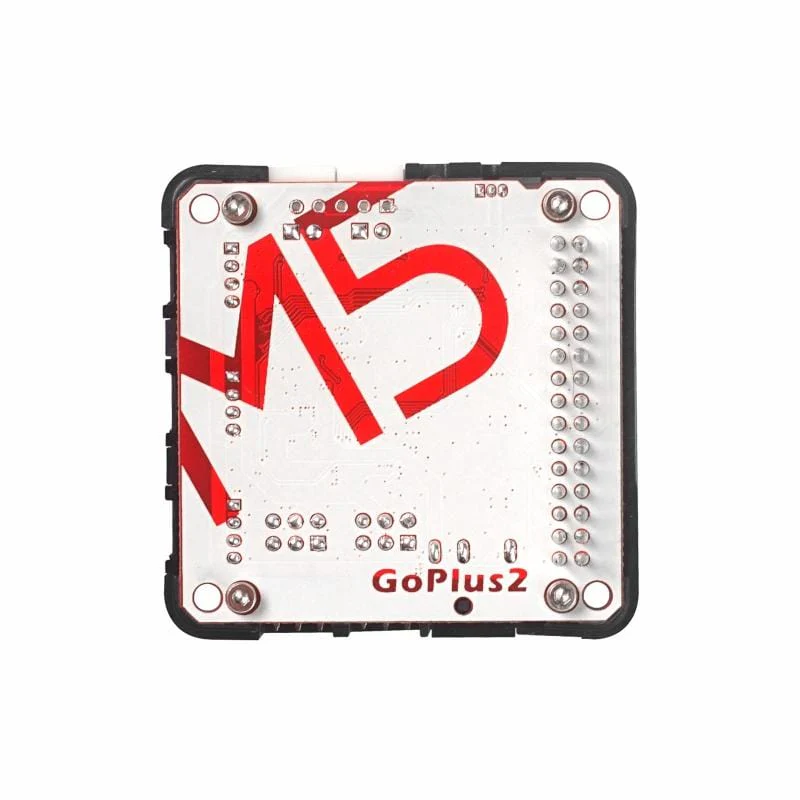

M5Stack Goplus2 DC Motor and Servo Driver Module (STM32F0)

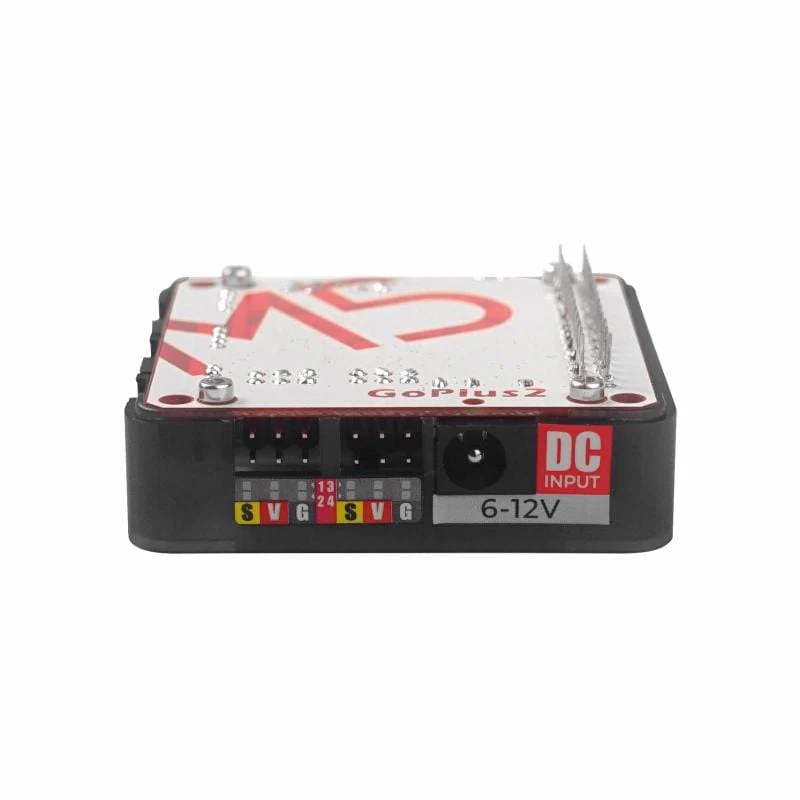

The GoPlus2 is a stackable multi-functional motor and servo control module. The master control integrates the STM32F030C8T6 chipset. The module is equipped with a 2-way DC motor drive interface and a 4-way servo drive interface. The three PORT-B interfaces (Analog Input, Digital Output, Digital Input) can be expanded. Included is a built-in 500mAh battery and support infrared (IR) transmission and receiver. In order to meet the requirements of the multi-channel interface power supply at the same time, a DC power interface is provided for an external power supply. The battery can be charged through the M5Core with a USB-C cable.

Communication protocol: I2C(0x38)

Note: This module has an I2C address conflict with the touch screen of the CORE2, so they cannot be used together.

---

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?

---

Features

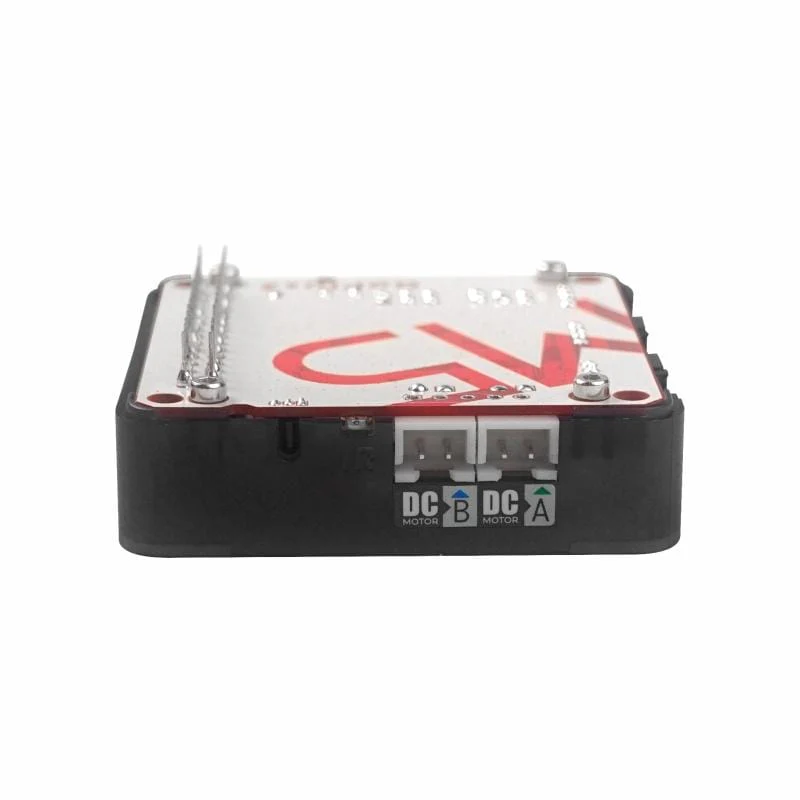

• 2x DC motor interface
• 4x Servo interface
• IR transmit & receive

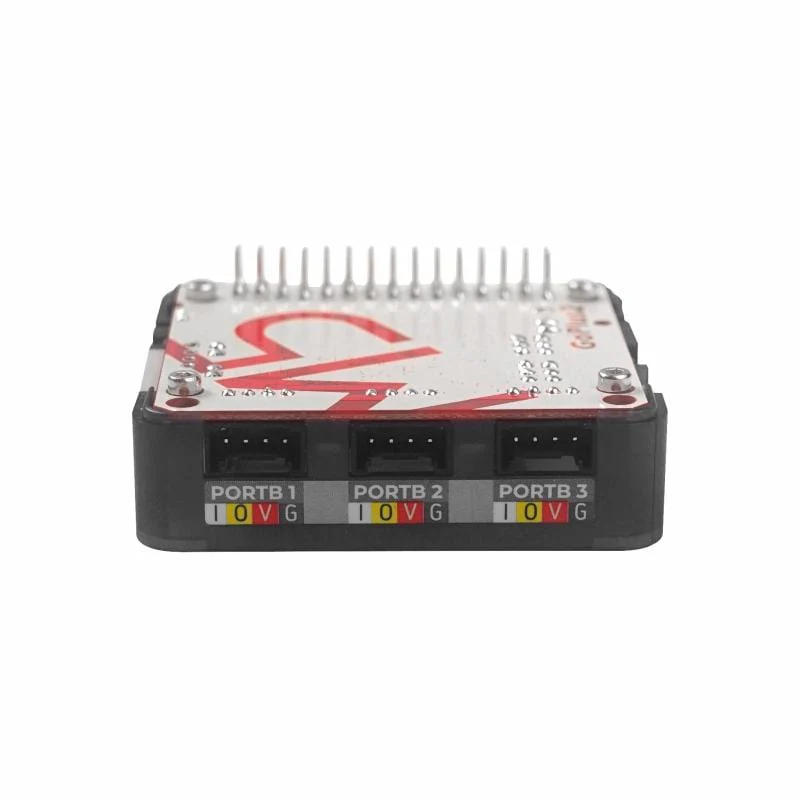

• 3x expand PORT B
• STM32F030C8T6

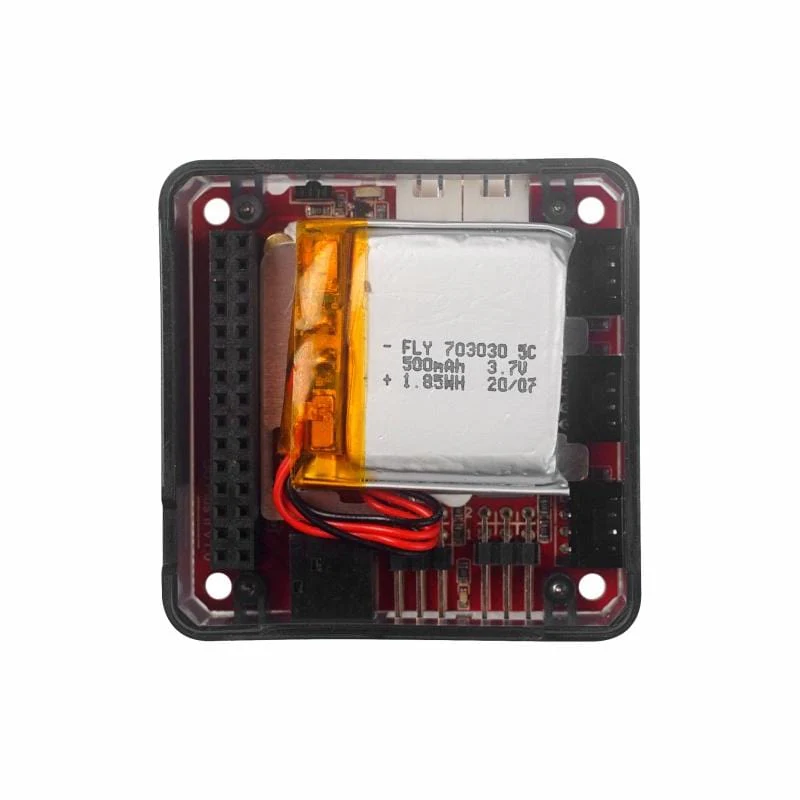

• Built in 500mAh battery

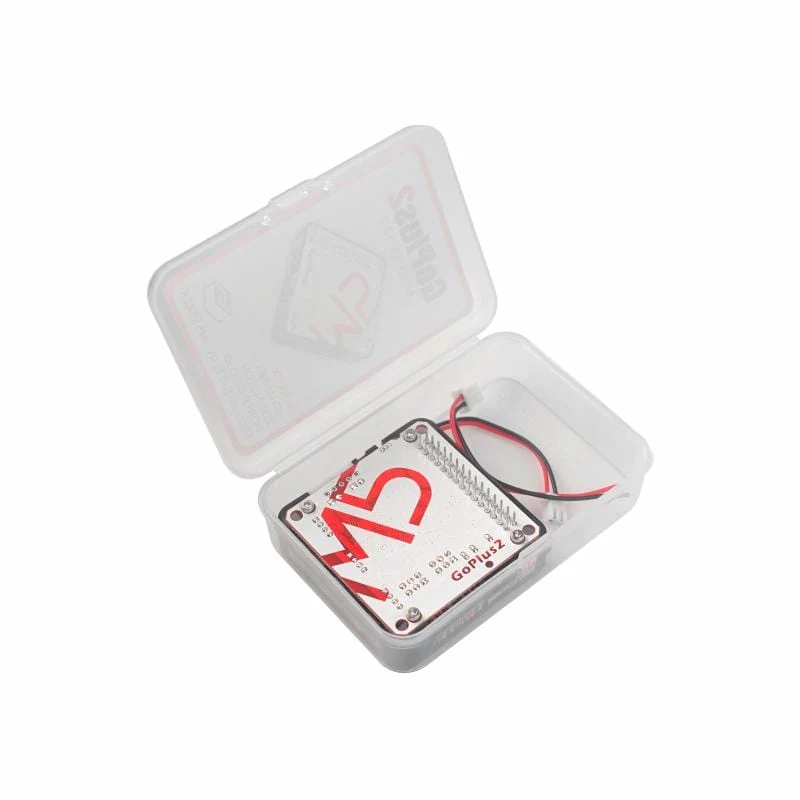

Package Contents

• 1x GoPlus2 Module
• 2x DC Motor Cable

Specifications

Resources	Parameter
Main control chip	STM32F030C8T6
Expand interface	DC Motor x 2,PORT-B x 3, Servo x 4
motor drive	DRV8833
IR	Transmit and Receive
Battery	500mAh
Communication protocol	I2C：0x38
Net Weight	38g
Gross Weight	58g
Product Size	54 x 54 x 13mm
Package Size	95 x 65 x 25mm

Resources
