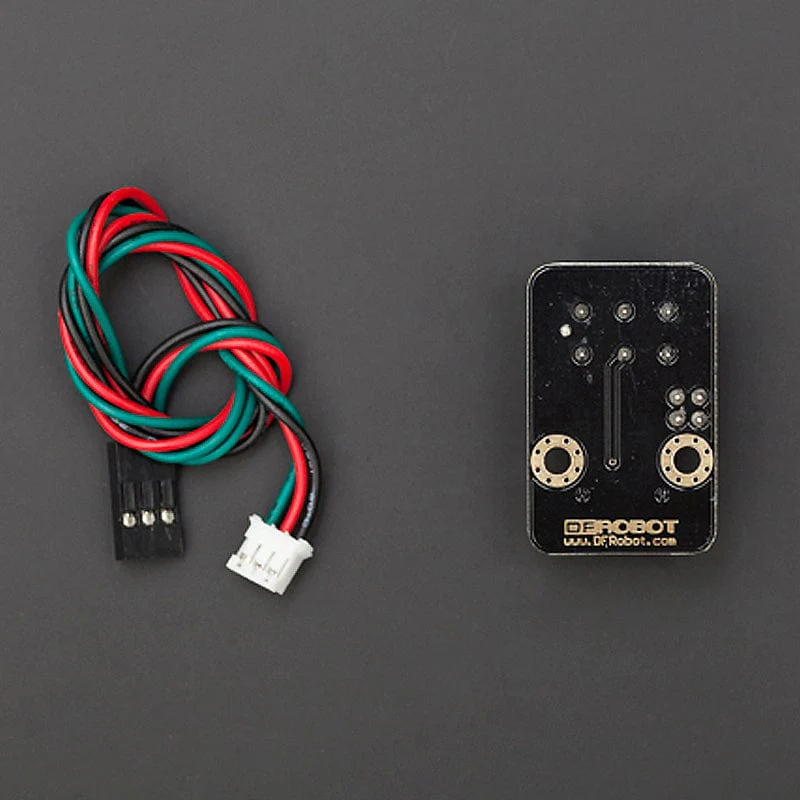

Gravity: Terminal Sensor Adapter V2.0
This is a universal sensor adapter that can be used by digital and analog input modules, converting sensors and other modules to the Gravity standard for easy connection to your projects.
In this latest version, DFRobot has added a 10K resistor between A & B and A & C respectively, so that you don't need to wire an additional resistor if your chosen sensor requires a pull-up or pull-down resistor.
This terminal provides a much easier way to connect a switch or any modules that require a pull-up/down resistor prior to connection with your microcontroller.
Connection Example - DFRduino UNO R3
Specifications
- Voltage: +5 V
- Current: <1000mA
- Size: 22 x 34mm
Resources
Package Contents
- 1x Terminal Sensor Adapter V2.0
