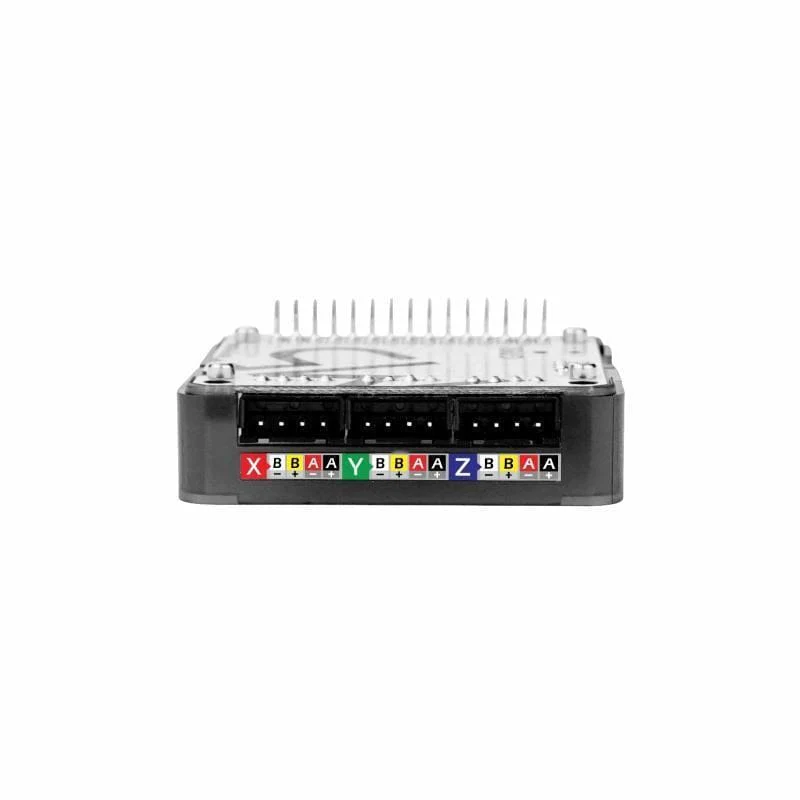

M5Stack GRBL Module 13.2 Stepmotor Driver (DRV8825)

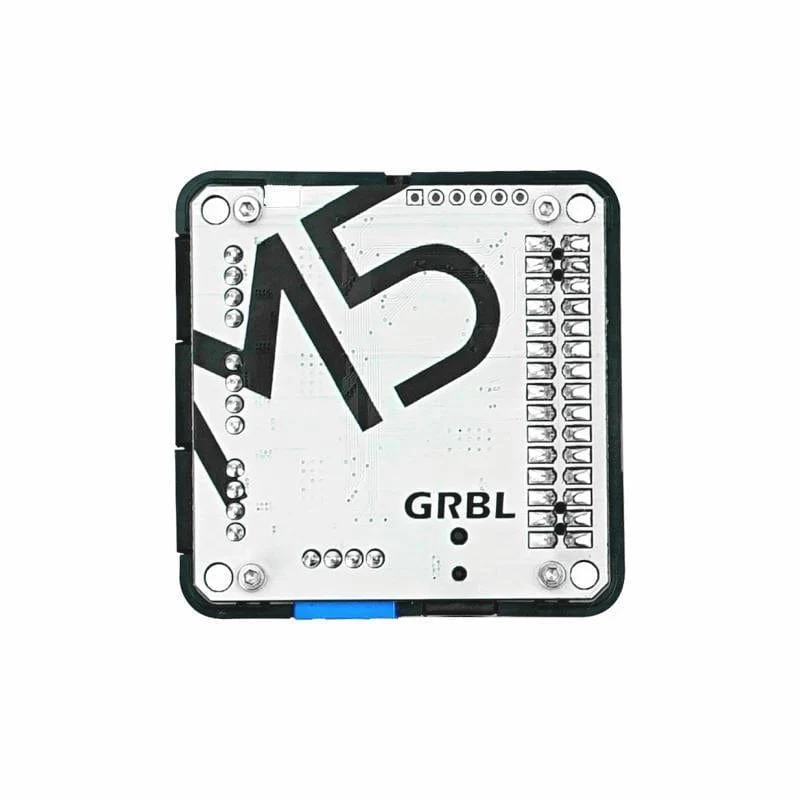

Drive up to three bipolar stepper motors simultaneously with this three-axis stepper motor driver module, stackable with other M5Stack modules.

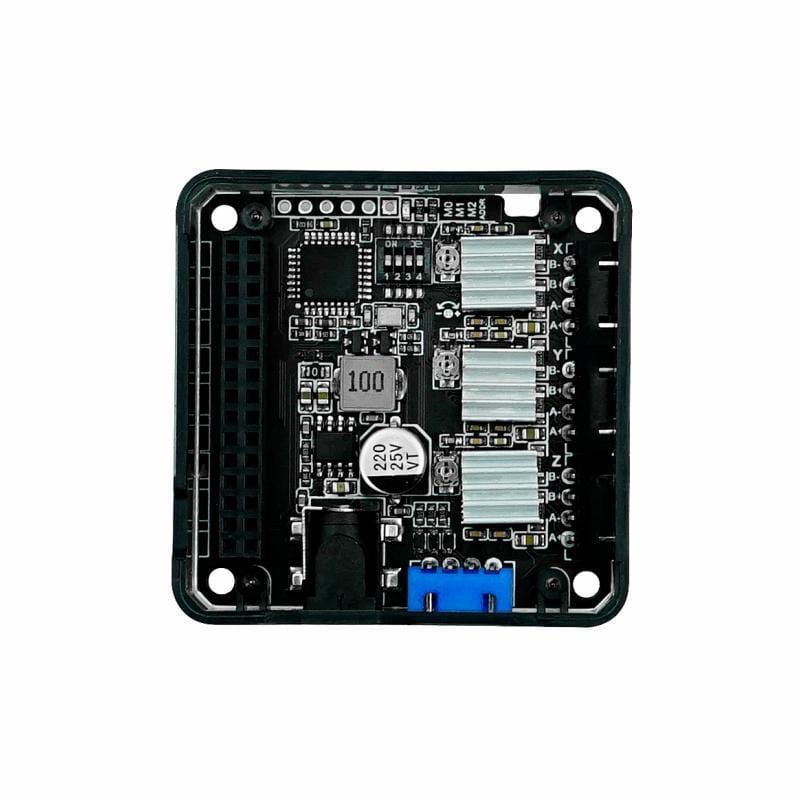

It uses an ATmega328P-AU controller with three sets of DRV8825PWPR stepper motor driver chips, so it can drive three bipolar steppers at the same time.

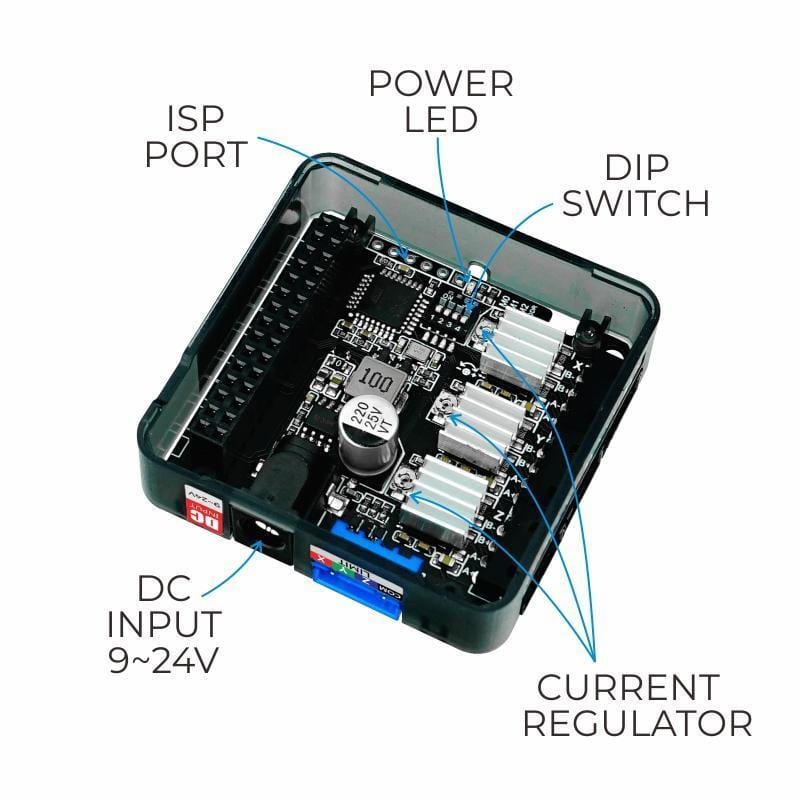

This module uses I2C to communicate with other M5Stack modules and integrated DIP switches to adjust motor step subdivision (maximum support of 1/32 step subdivision) and I2C address adjustment (the default address is 0x70 but you can change it to 0x71). You can achieve six-axis control by stacking two GRBL 13.2 modules together!

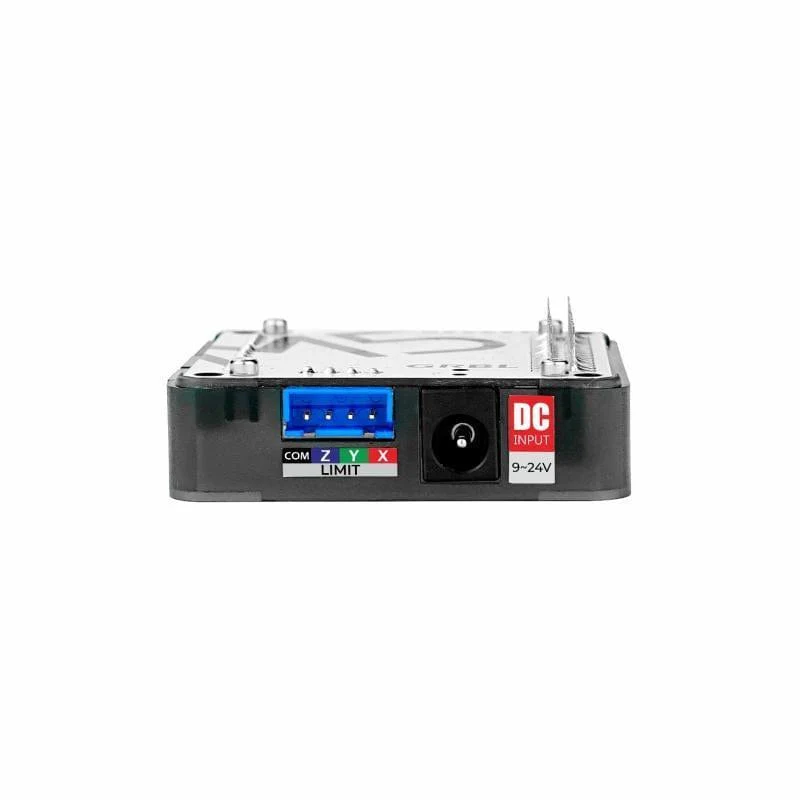

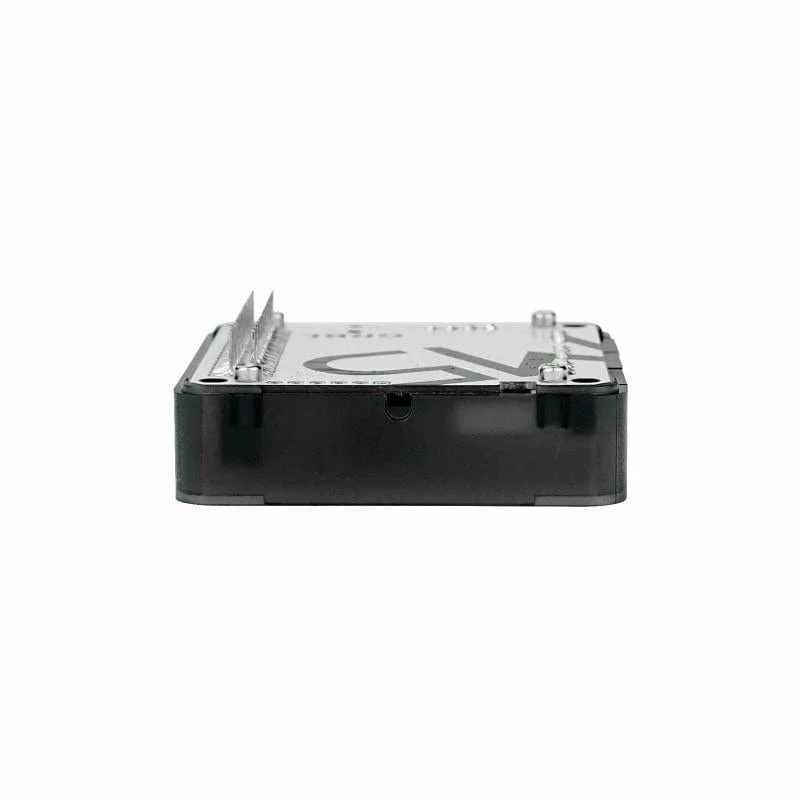

The power input interface is DC/9-24V, the motor drive current can reach 1.5A, and three sets of limit switch signal interfaces are open so you can connect an external limit switch to reverse the motors. Suitable for many different stepper motor uses such as 3D printers, robotics, etc.

Features

• ATmega328P-AU controller
• Three-axis DRV8825PWPR stepper motor driver
• Drive current up to 1.5A
• Drive bipolar stepper motor
• Maximum 1/32 mode STEP subdivision

Specification

Specifications	Parameters
Motor driver chip	DRV8825PWPR
Controller chip	ATmega328P-AU
Maximum drive current of single-channel	1.5A
Support maximum step subdivision	1/32
Interface	XT2.54-4P
Net weight	22.5g
Gross weight	42.3g

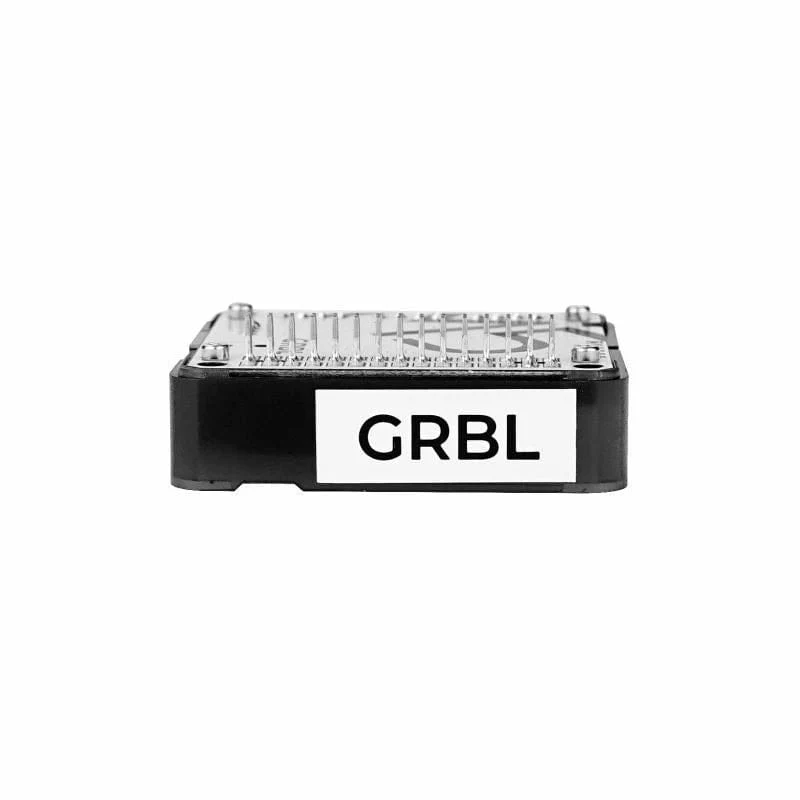

Product size	54.2*54.2*13.2mm
Package size	95*65*25mm

Documents

• Easyloader
• Related-link
• Pinmap
• Schematic
• Step-subdivision-adjustment
• I2C-address-adjustment
• Example
