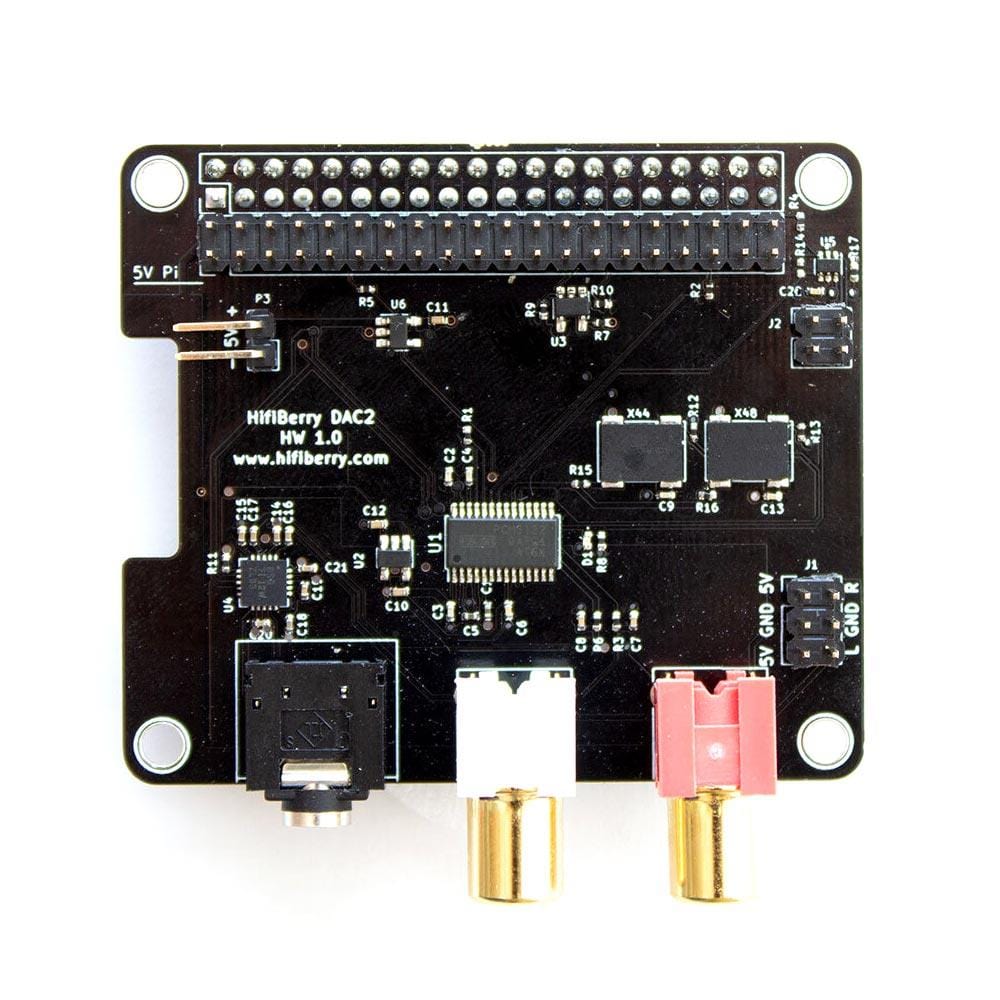

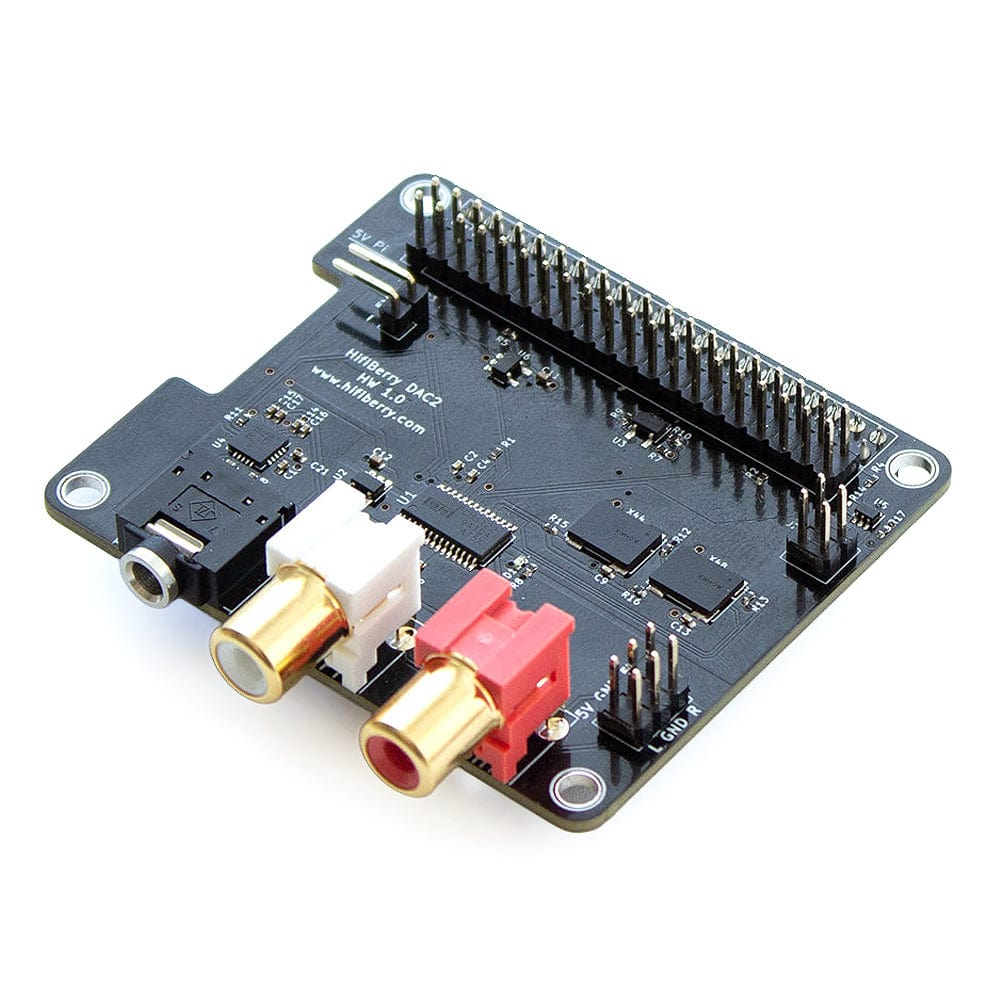

HiFiBerry DAC2 Pro
The HiFiBerry DAC2 Pro is a high-resolution digital-to-analogue and analogue-to-digital converter for the Raspberry Pi (newer models with a 40-pin GPIO connector).
This is a special sound card for the Raspberry Pi, optimised for one specific use case: affordable high-quality audio playback.
Note: This board will not fit inside the HighPi case range due to the headphone connector.
DAC2 Pro or DAC2 HD? If youâre just looking for the best audio quality â the answer is easy: the DAC2 HD. It offers lower distortions, higher signal-to-noise-range and higher dynamic range than the DAC2 Pro.
If youâre on a budget, but still want a high-quality DAC, this DAC2 Pro might be your choice - the DAC2 Pro is a new and improved version of the popular DAC+ Pro, adding a headphone connection as well as the ability to attach a DSP add-on board (coming soon!)
DSP Add-on for the DAC2HD now available!
Features
- Stereo output
- Integrated headphone amplifier
- Can be equipped with an additional Digital Signal Processor (DSP) for flexible audio processing
- Dedicated 192kHz/24bit high-quality Burr-Brown DAC
- Hardware volume control for DAC. You can control the input and output parameters using âalsamixerâ or any application that supports ALSA mixer controls
- Supports HiFiBerry DSP add-on module
- Connects directly to the Raspberry Pi, no additional cables required
- No soldering - comes as a pre-fabricated kit
- Conforms to hardware-attached-on-top (HAT) specification with EEPROM for automatic configuration
- Compatible with all Raspberry Pi models with a 40-pin GPIO connector
- Directly powered from the Raspberry Pi, no additional power supply
- Two ultra-low-noise linear voltage regulators for optimal audio performance
- Low-jitter dual-domain clock for optimised clock decoupling from the Raspberry Pi
- Gold plated RCA output connectors
- Comes with all components required to mount it. We include 4 M2.5x12mm spacers to fix the board onto the Raspberry Pi
- Audio connector to connect the analogue audio amplifier
Specifications
| Maximum Output Voltage | 2.1Vrms |
| DAC Signal-to-Noise Ratio | 112dB (typical) |
| DAC THD+N | -93dB (typical) |
| Frequency Response | 10Hzâ70kHz (-3dB) |
| Power Consumption | <0.3W |
| Sample Rates | 44.1â192kHz |
Resources
