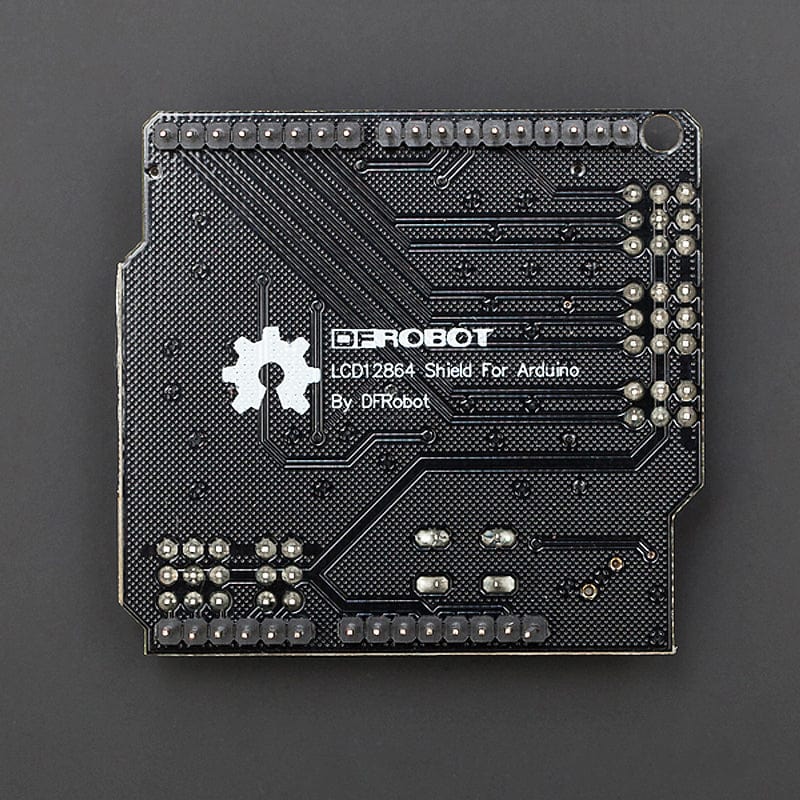

Gravity: LCD12864 Shield

This framed LCD12864 Shield with LED backlight is compatible with most Arduino Uno compatible controllers and supports English/Chinese and image display.

With 5 analog extension pins and 8 digital pins, the LCD12864 Shield also integrates a 5-key joystick for controlling additional functions, making it an ideal module for prototyping and interactive projects.

Specifications

• Power supply: 3.3V
• Pin used: D7, D8, D9, D10, D11, D13, A0
• Reset button
• 5-degree joystick (using Arduino Analog Pin 0)
• Backlit control (using Arduino Digital Pin 7)
• Extra 5 Analog pins & 8 Digital pins
• Size: 60 x 55 x 20mm

Resources

• Wiki Doc
• Schematic
• U8glib library For Arduino
• Sample Code

Tools

• Bitmap Converter

Package Contents

• 1x LCD12864 Shield
