Lithium Battery Charger

Battery Chargers
If you need to charge LiPo batteries, this simple charger will do just that, and do it fast! The Lithium Battery Charger can charge 3.7V LiPo battery at a rate of 500mA per hour. It is designed to charge single-cell Li-Ion or Li-Polymer batteries. Check the datasheet below to see if it will work with your battery.

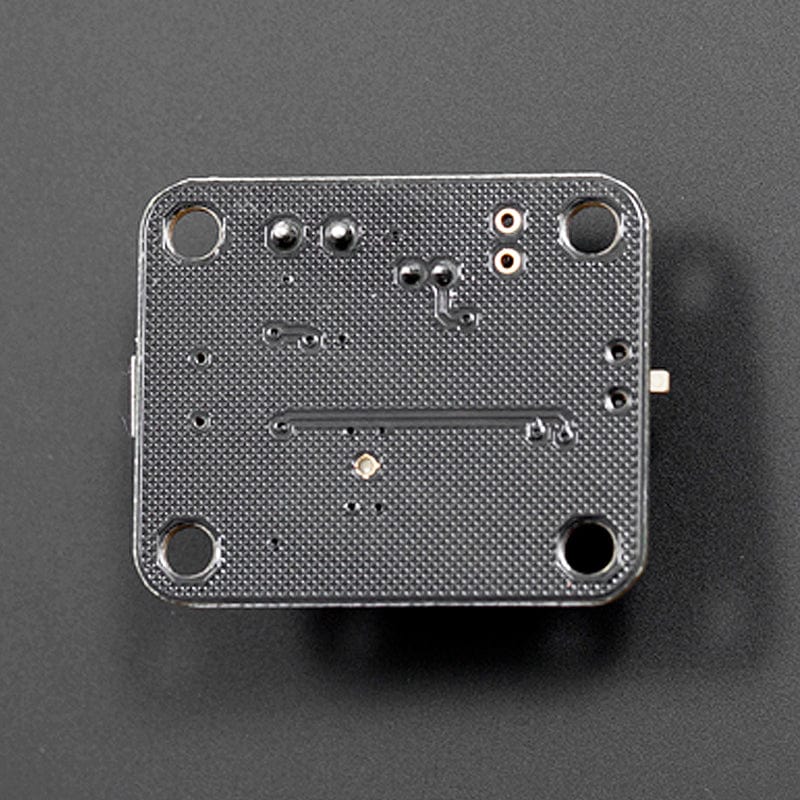

The board incorporates a charging circuit, status LED, connector for your battery (JST-type used in the batteries we carry), and a micro-USB connector. Four small mounting holes allows this charger to be easily embedded into a project.

Specifications

  • Programmable Charge Current:Up to 1000mA
  • Constant-Current/Constant-Voltage
  • Types of battery: Single-cell Li-Ion or Li-Polymer batteries
  • Interface
    • Charge from Micro USB
    • JST-type or terminal connect to battey
  • With ON/OFF switch,3 status LEDs
  • Accuracy:1.5% @ Preset 4.2V Charge Voltage
  • C/10 Charge Termination
  • Operating Ambient Temperature：-40°C～85°C
  • Size: 3.2 x 2.7 x 1cm

Optional Parts

Resources

Package Contents

  • 1x Lithium Battery Charge
