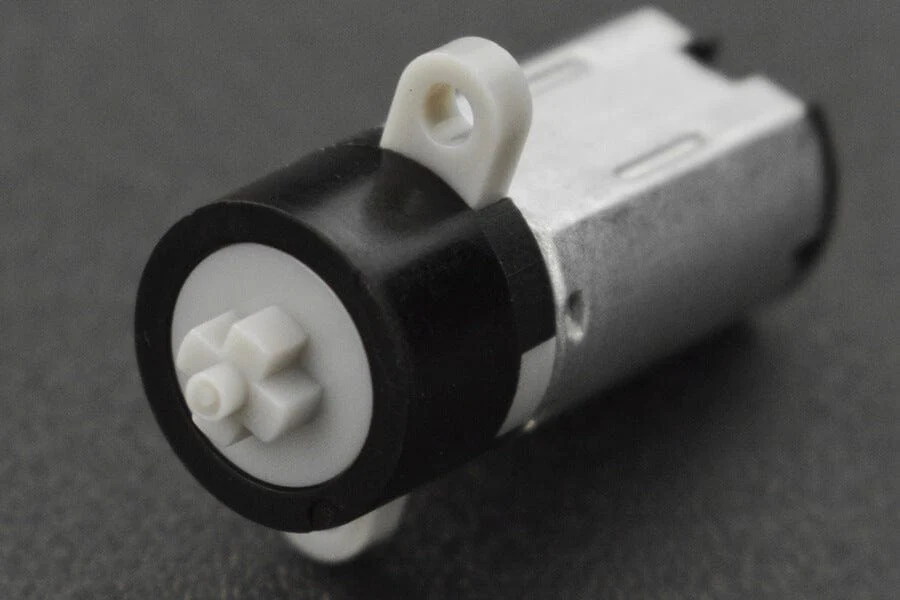

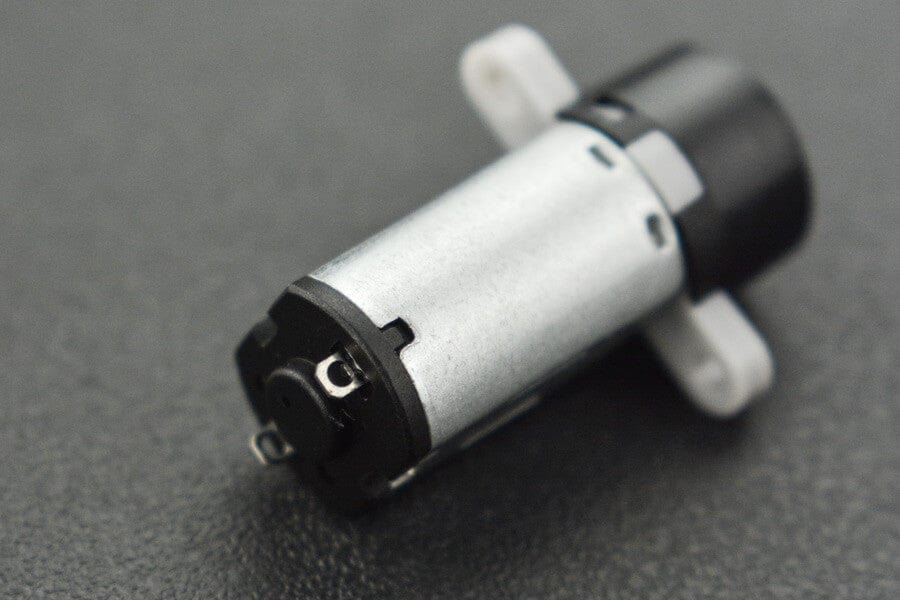

Micro DC Geared Motor 6V 112RPM

Motors
This is a new micro DC geared motor, using a planetary gear mechanism, applicable to the various types of DIY project. Especially a project which has certain requirements for size.

Specification

  • Rated voltage: 6V
  • Gear ratio: 1∶171
  • No-load current: ≤ 45mA
  • Starting torque: 550g·cm（MIN）
  • Output shaft length: 3±0.5mm
  • Insulation resistance: 100V/DC/ 1.0MΩ
  • No-load speed: 110±11RPM
  • Waveform: Sinusoidal waveform
  • Noise：＜60db（Ambient noise 30db）
  • Direction：CW

Shipping List

  • Micro DC Geared Motor x1
