micro:GamePad V4 for micro:bit

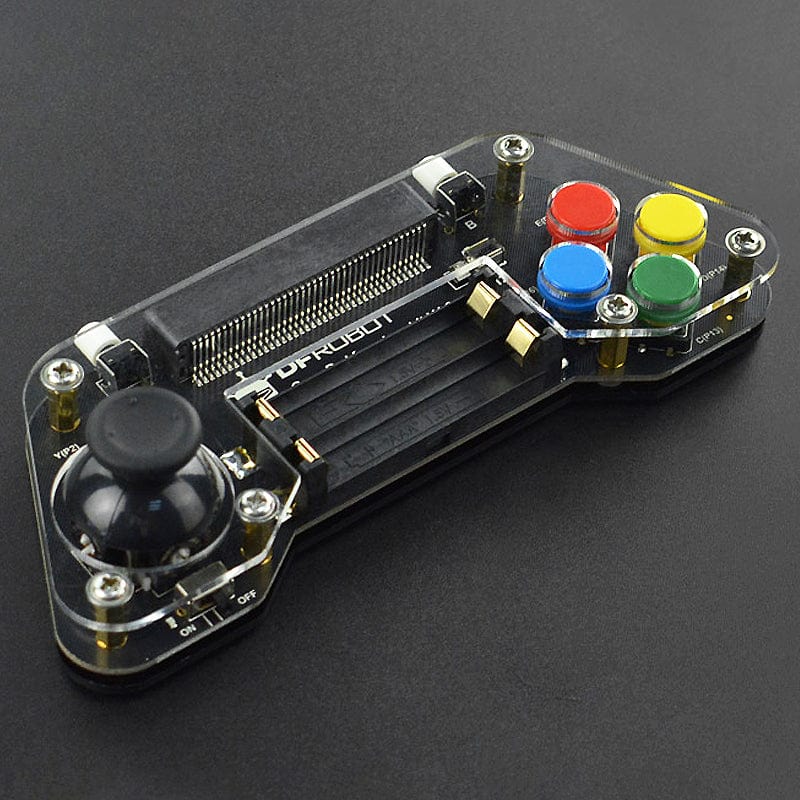

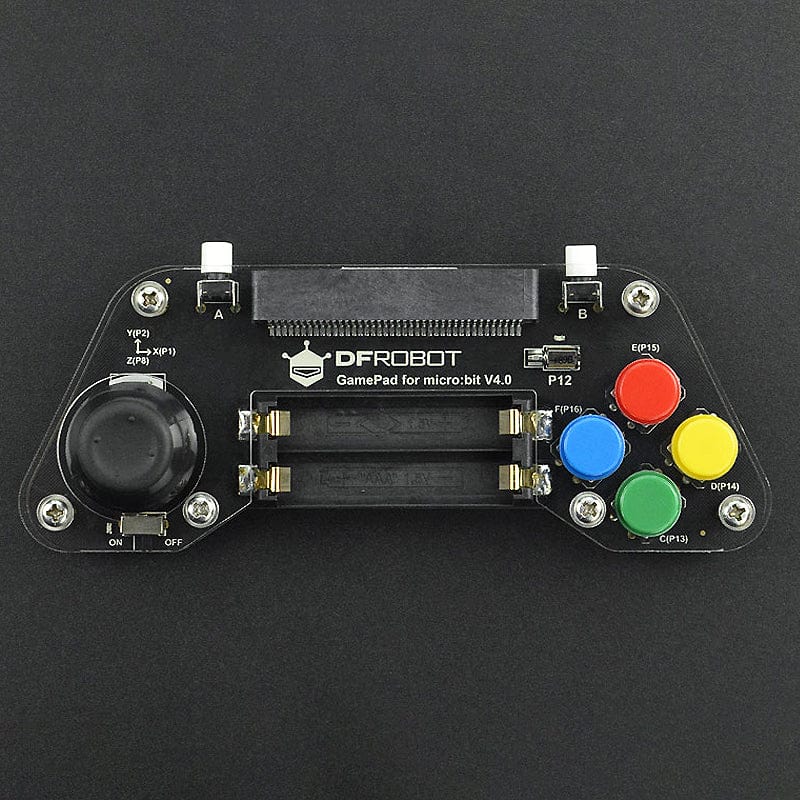

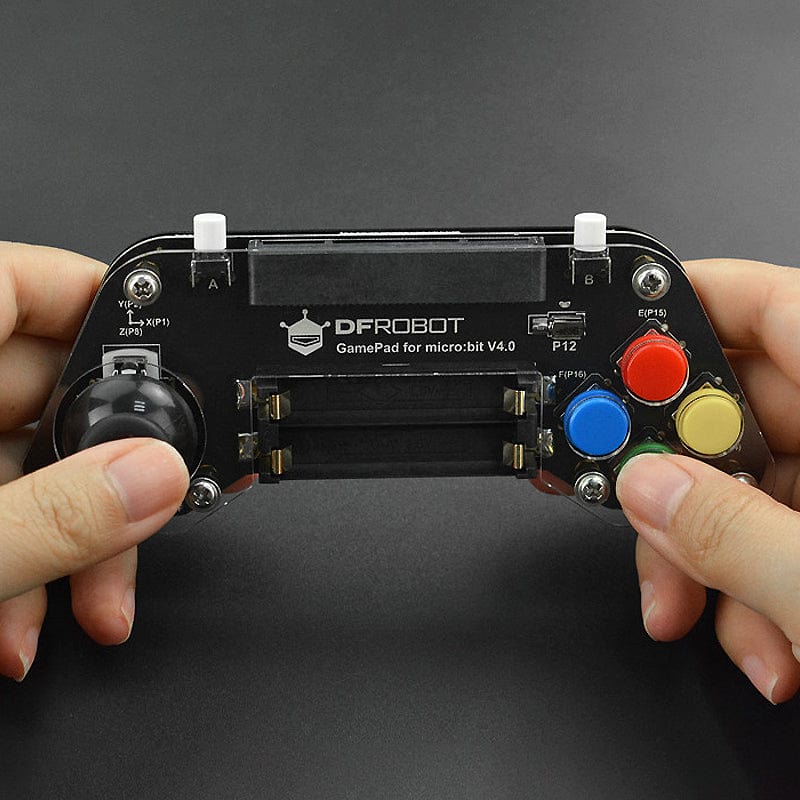

GamePad V4.0 for micro:bit is a programmable gamepad for the BBC micro:bit (not included) featuring a high-precision three-axis analog amount joystick.

The GamePad is fully user-programmable, allowing you to fit it into your project where you like - control robots, make games and more!

The combination of joystick and gamepad allows you to control a DFRobot Maqueen robot direction and speed at the same time. You can also use the 7 programmable buttons for your own projects, coding them with MakeCode as you see fit.

The board requires 2x AAA 1.5V batteries.

micro:bit and batteries not included.

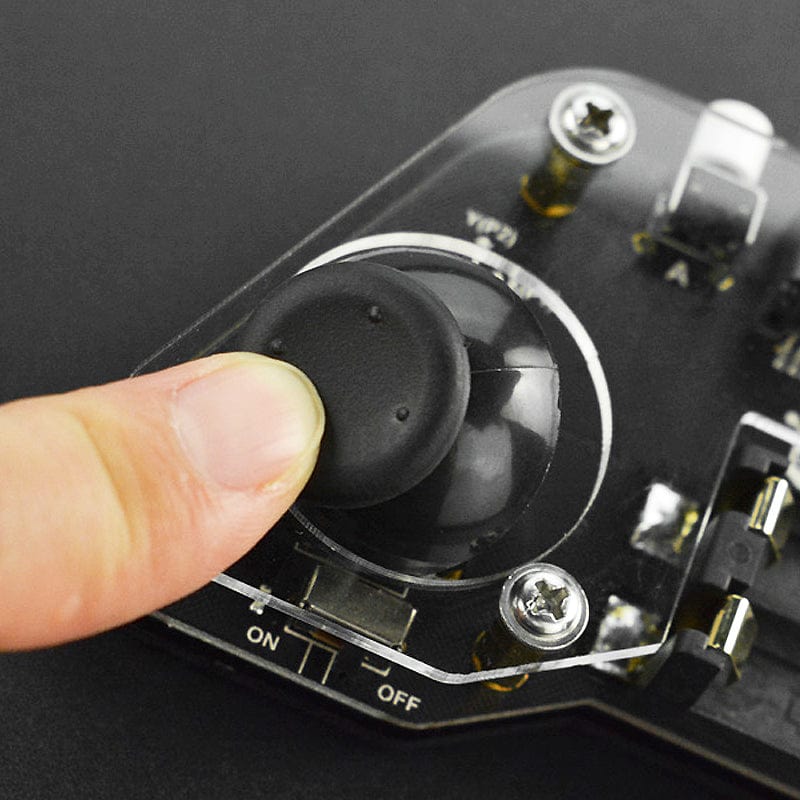

• Two axis (X-Y) programmable analog joystick
• Up to 7 programmable keys
• Vibrating motor

• LED output

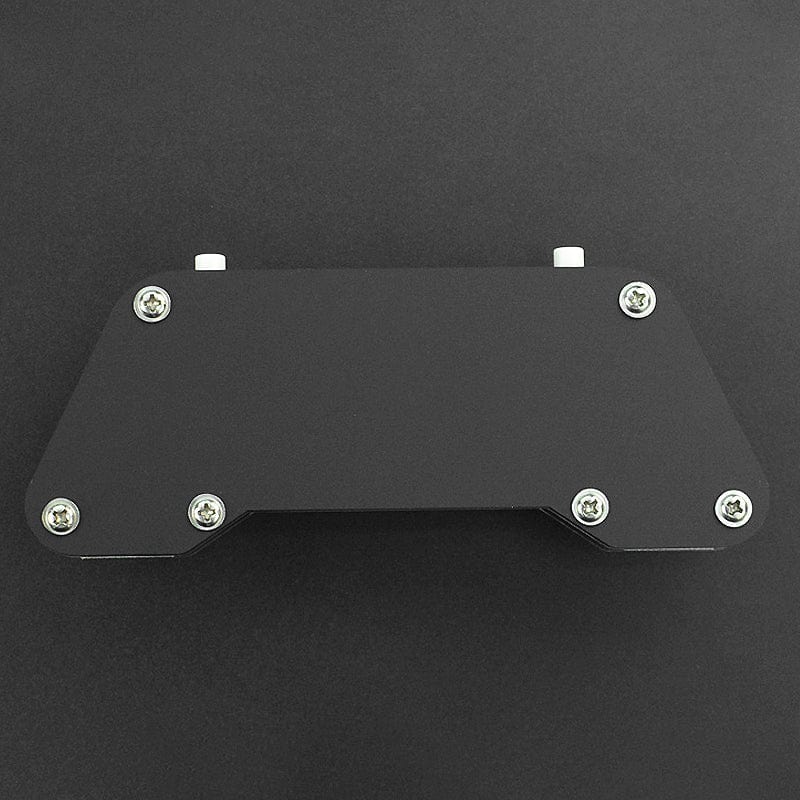

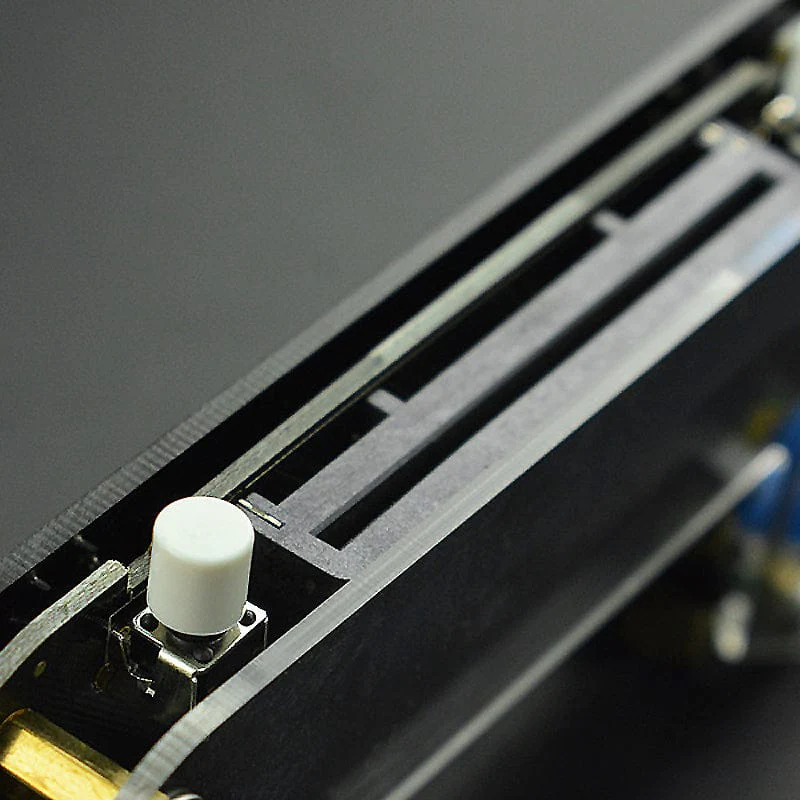

• Acrylic protection, safe to use and comfortable to handle

• Power: 3V DC (2 x 1.5V AAA batteries)
• Joystick: 2 axis analog (X: P1 Y: P2) 1 axis digital (Z: P8)
• Onboard LED and vibration motor: P12

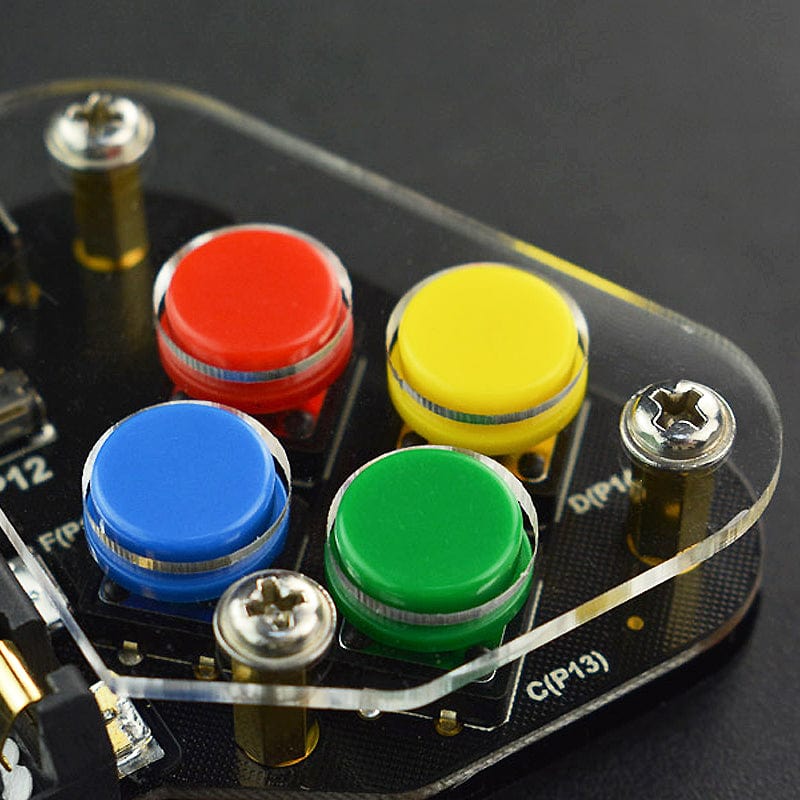

• Keys: A(A), B(B), C(P13), D(P14), E(P15), F(P16), Z(P8)

• Dimension: 148 x 57 mm

• Product Wiki for GamePad V4.0
• GitHub PDF

• 1x GamePad for micro:bit

micro:bit board and batteries not included

Revision History

• As of 25/05/2022, we are now stocking the V4 model which no longer includes an onboard buzzer
