Monk Makes Amplified Speaker 2
Crank up the volume with the Monk Makes Amplified Speaker! This compact, easy-to-use speaker is mounted on a circuit board and requires a 3.3 to 6V power supply, which can be provided by a Raspberry Pi or Arduino Board. It features a 3.5mm stereo audio jack socket for audio input, which is converted to a mono signal. Additionally, it includes a separate input with a low-pass filter for use with PWM/PCM audio.
Note: Raspberry Pi and Arduino boards are NOT included
Specifications

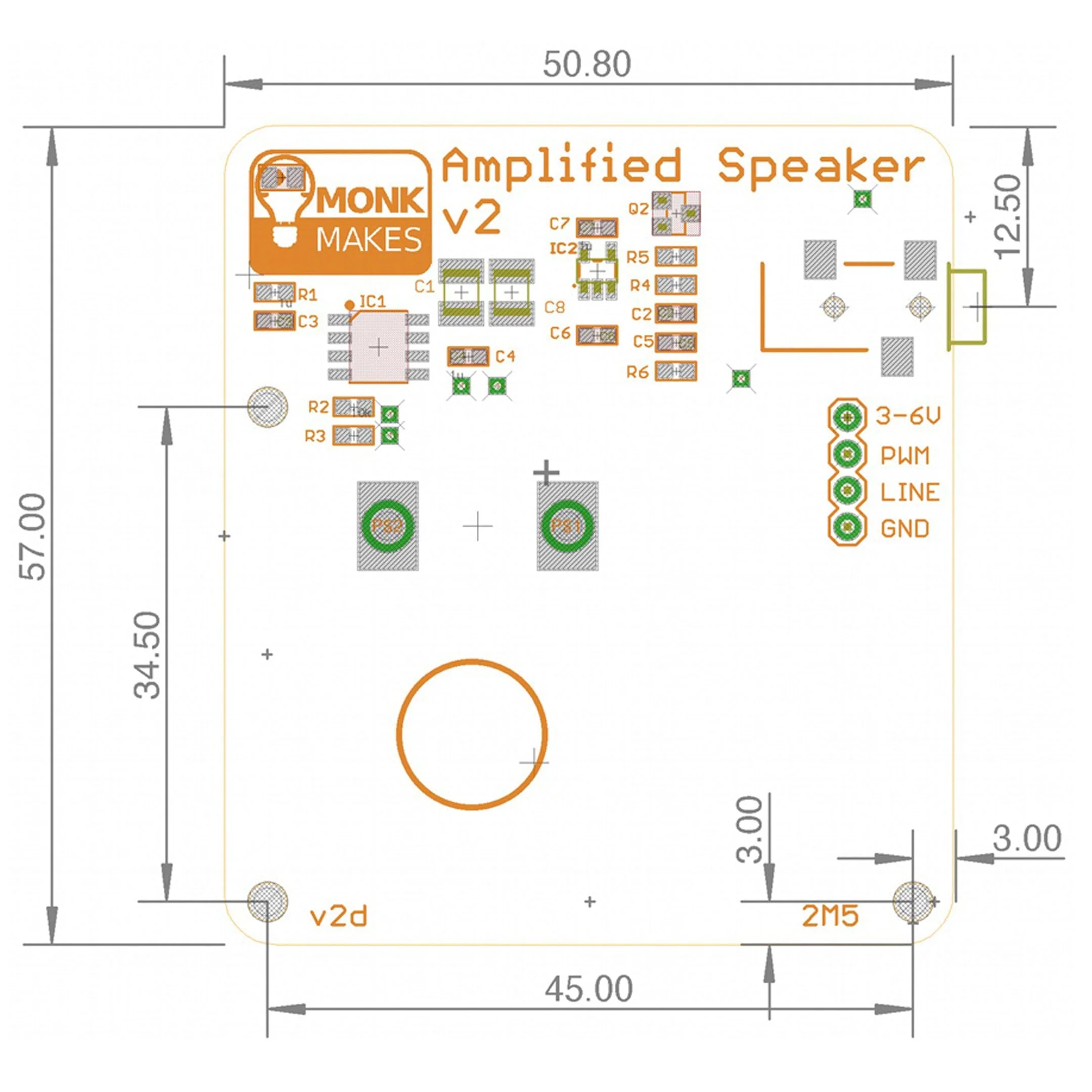

- Dimensions: (L x W x H) 50.80 x 57 x 60 mm
- Supply Voltage Range: 3.3 to 6 V
- Speaker Impedance: 8 Ω
- Speaker Nominal Max Power: 500 mW
- LP Filter F0: 23.6 kHz
- Maximum Current Consumption: 300 mA
Resources
Package Contents
- 1x MonkMakes Amplified Speaker 2
Original: $8.10
-65%$8.10
$2.83Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Crank up the volume with the Monk Makes Amplified Speaker! This compact, easy-to-use speaker is mounted on a circuit board and requires a 3.3 to 6V power supply, which can be provided by a Raspberry Pi or Arduino Board. It features a 3.5mm stereo audio jack socket for audio input, which is converted to a mono signal. Additionally, it includes a separate input with a low-pass filter for use with PWM/PCM audio.
Note: Raspberry Pi and Arduino boards are NOT included
Specifications
- Dimensions: (L x W x H) 50.80 x 57 x 60 mm
- Supply Voltage Range: 3.3 to 6 V
- Speaker Impedance: 8 Ω
- Speaker Nominal Max Power: 500 mW
- LP Filter F0: 23.6 kHz
- Maximum Current Consumption: 300 mA
Resources
Package Contents
- 1x MonkMakes Amplified Speaker 2
