DFRobot Track Map

This 120 cm × 90 cm line-tracking map is designed for robot navigation training and testing. Printed on durable 120 g paper, it features 2 cm black tracks — a simple “figure 8” layout on one side for beginners and a complex point-to-point route on the reverse for advanced users. It also includes a sensor calibration area for easy setup with Maqueen Lite (V4.1+) and Maqueen Plus, allowing one-key calibration. Ideal for both classroom and robotics lab environments.

---

This multi-functional map with a size of 120cm×90cm is specially designed for line-tracking applications.

There are black lines with a width of 2cm printed on the 120g Map paper, which is high quality and not easy to damage.

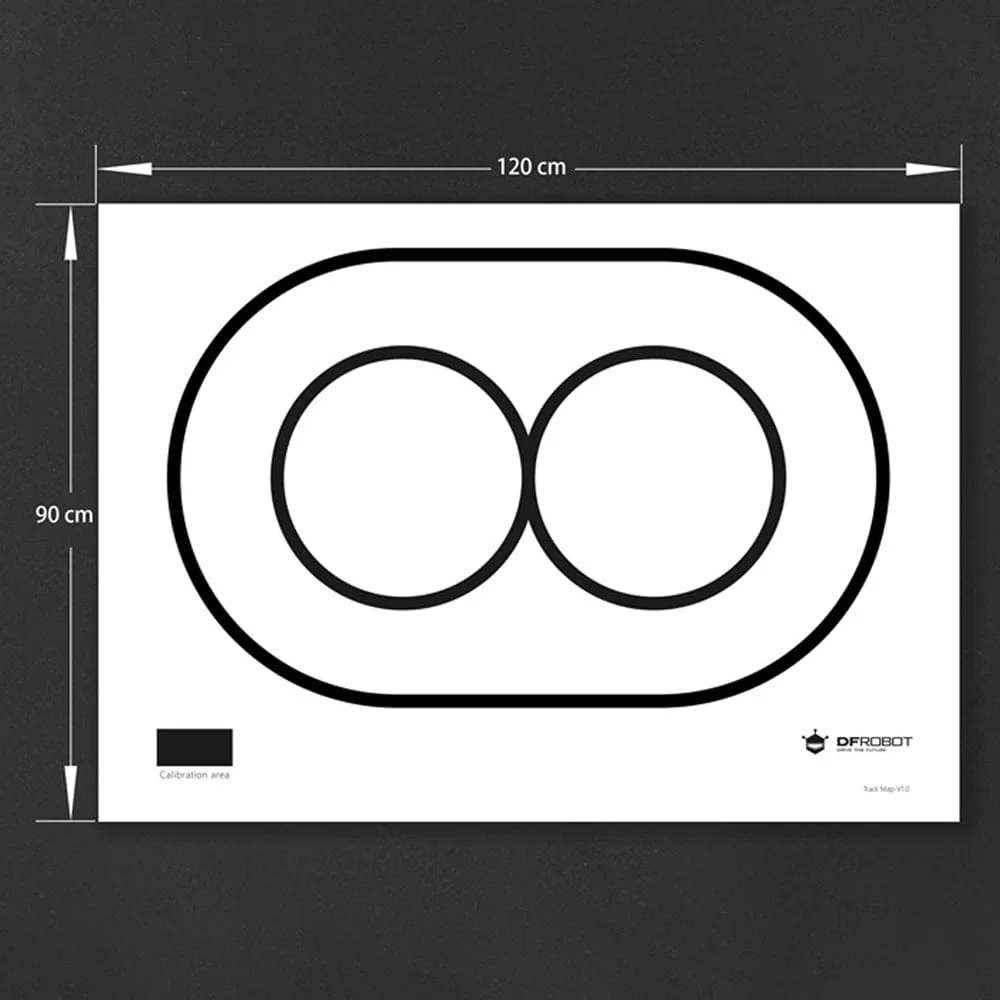

The front side of this map has a figure “8” elliptical pattern that is suitable for basic robot line-tracking learning. On the backside, we designed a complex point-to-point pattern for meeting the requirements of advanced learning.

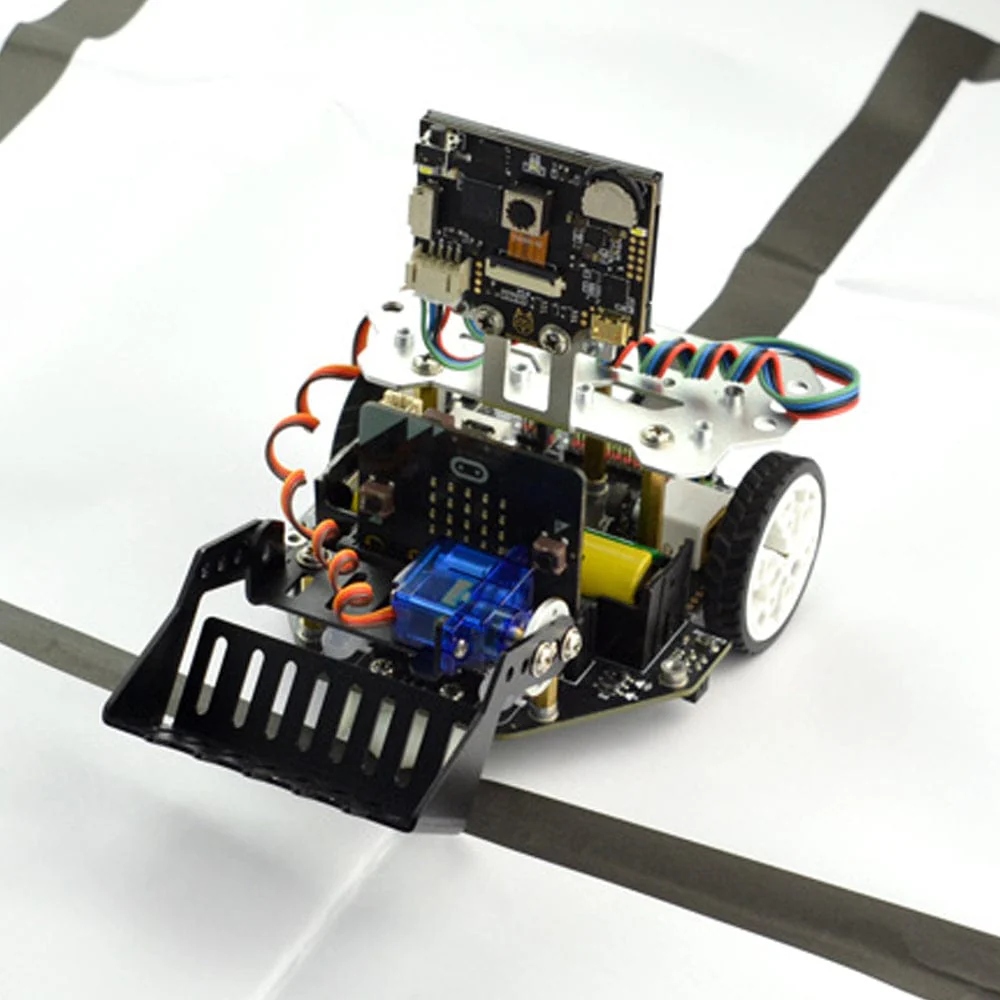

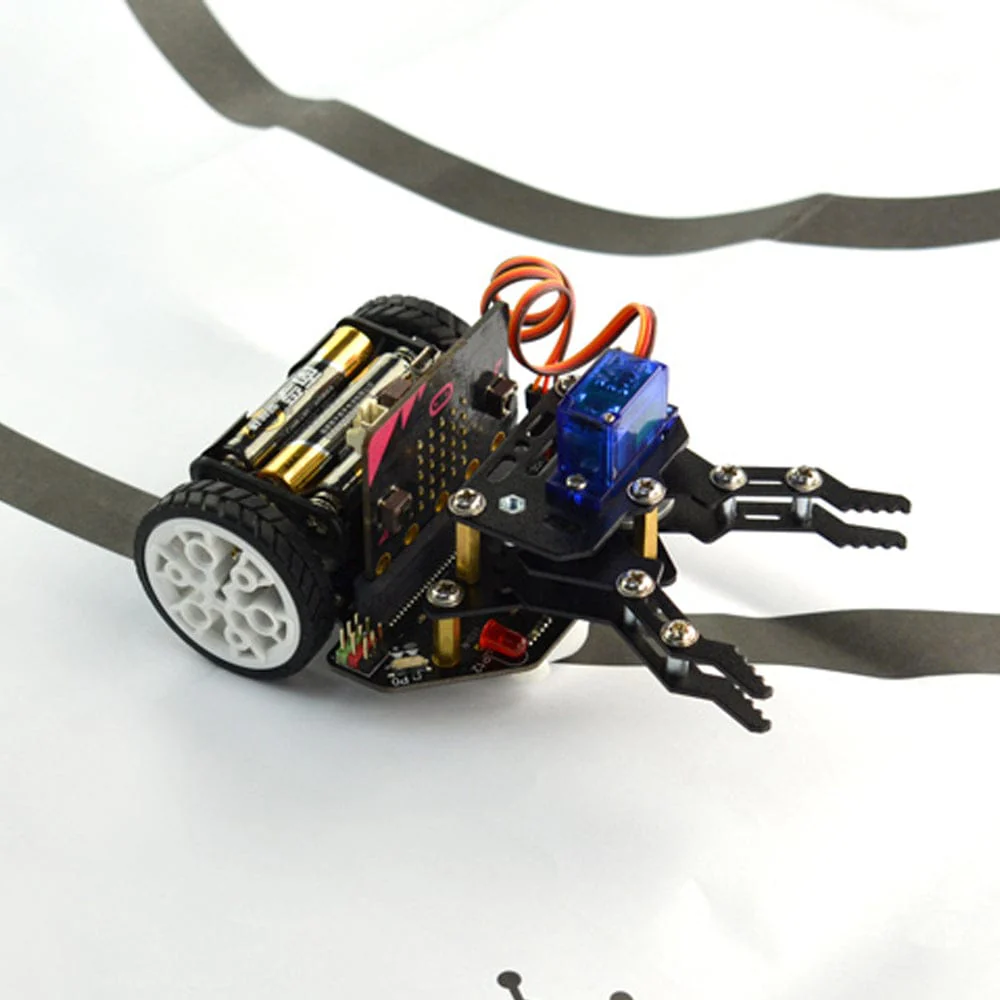

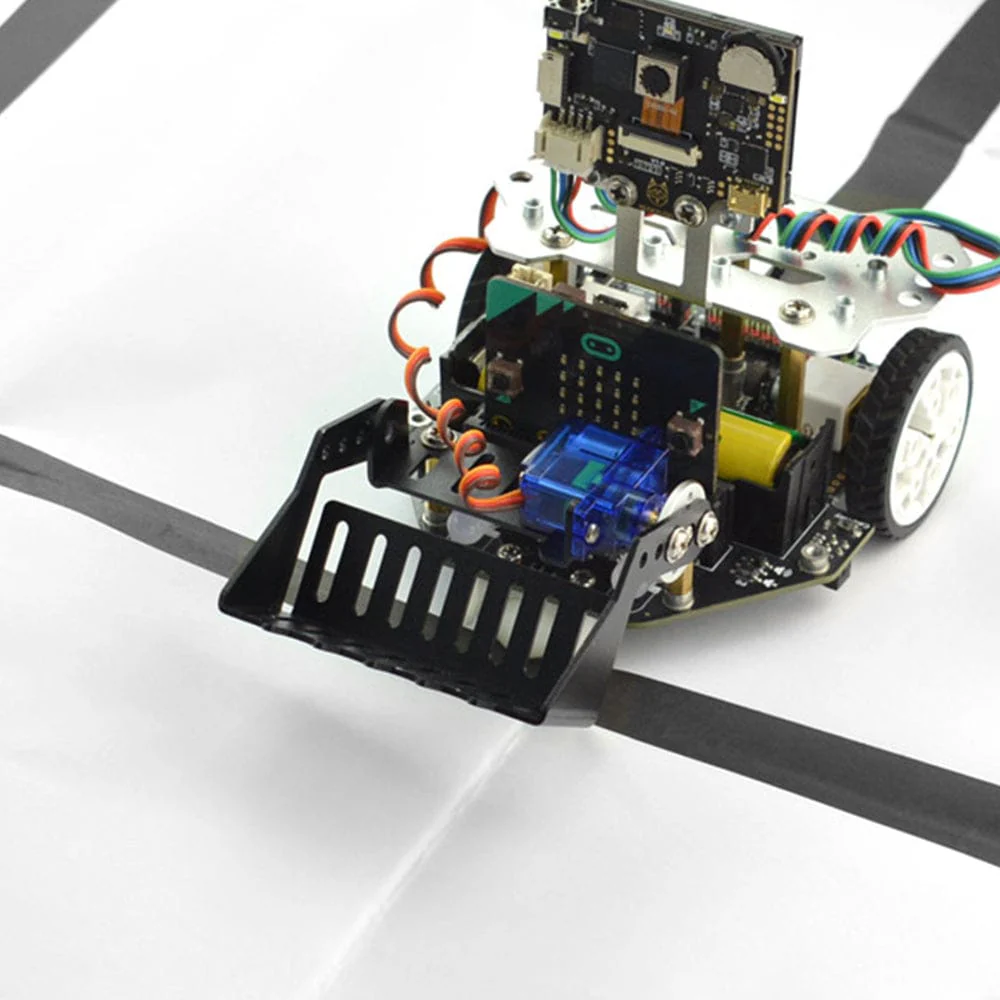

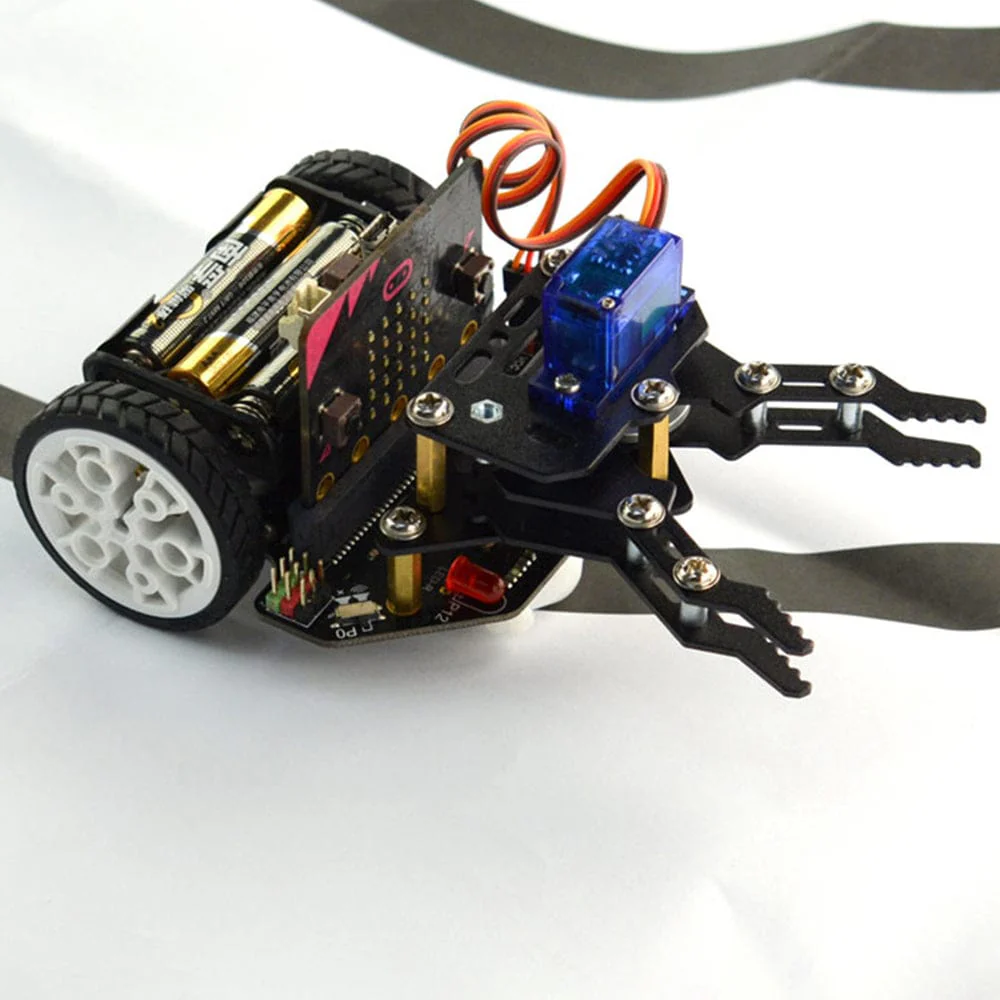

The map has a calibration area for line-tracking sensors. Users can easily calibrate Maqueen Lite (V4.1 and above) or Maqueen Plus on this map only by one key.

• Size: 120cm×90cm
• Line track width: 2cm
• Paper specifications: 120g Copper plate paper

Resources

• Robotics Tutorials

Package Contents

• 1x Track Map
