On-Off Power/Push Button Toggle Switch

Product image 1
Product image 2
Product image 3

On-Off Power/Push Button Toggle Switch

Buttons & Switches

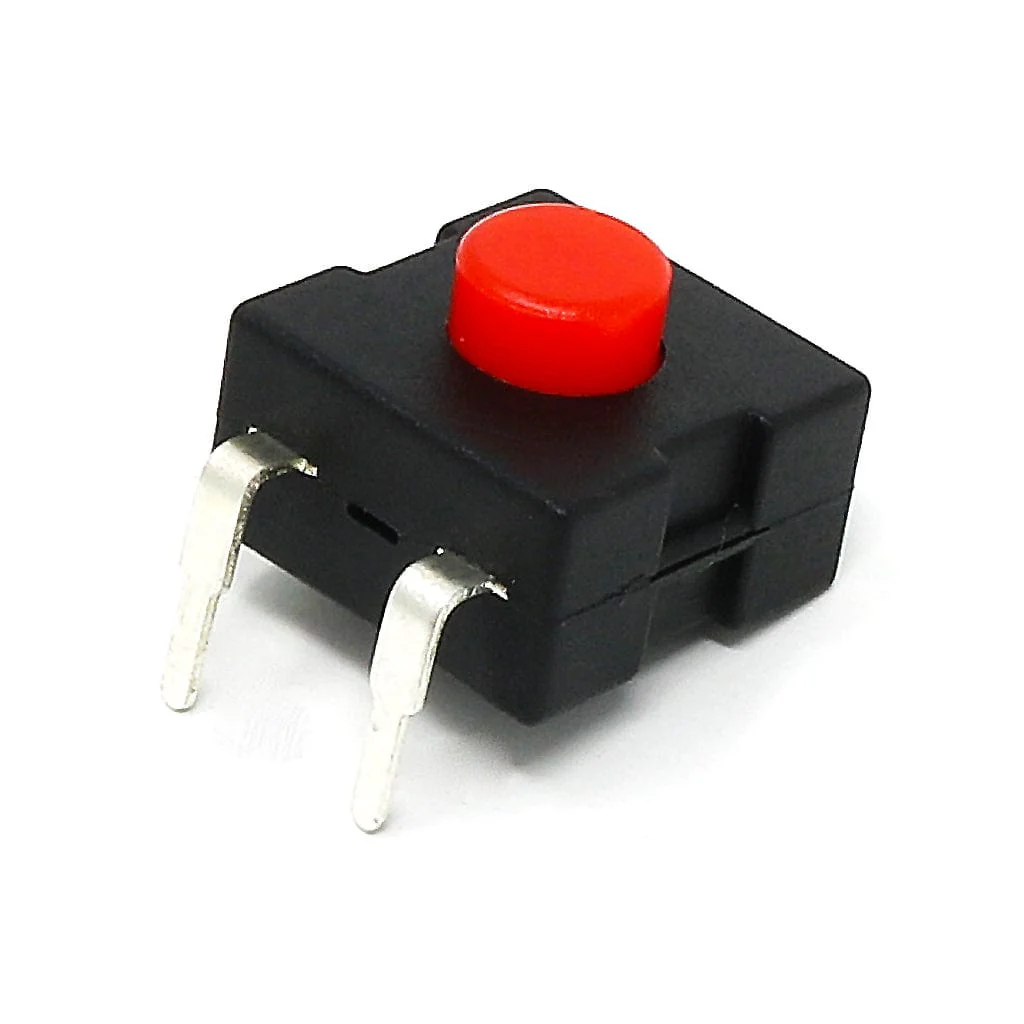

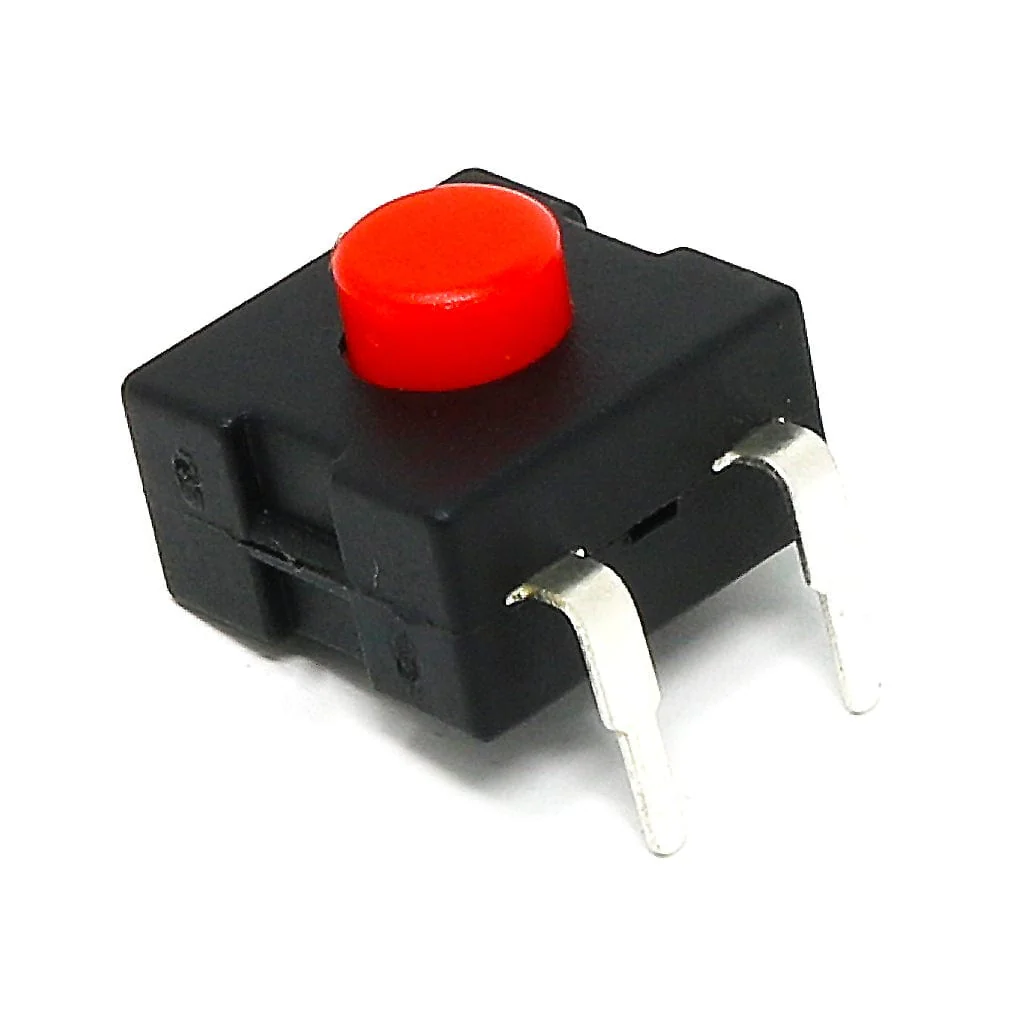

This is a handy ON/OFF toggle switch ideal as a power switch or as a way to switch between modes on your project.

It's breadboard-friendly (almost - you may need to bend the legs slightly as they aren't a perfect 2.54mm pitch) and can handle up to ~500mA at 50V. It's also ideal for use on your own PCB projects.

The switch has a black body and a bright red button. "Click click click" - so satisfying!

Specifications

  • Ambient Temperature: -25ºC to 70ºC
  • Rated Load: 50V @ 0.5A
  • Contact Resistance: ≤50mΩ
  • Operating force: 5N ~ 12N
  • 12mm x 12mm x 7mm
  • Length of Pins: 4mm
  • Distance Between Pins: 7mm
  • Weight: 1.2g
    $1.00

    Original: $1.70

    -41%
    On-Off Power/Push Button Toggle Switch—

    $1.70

    $1.00

    Product Information

    Shipping & Returns

    Description

    This is a handy ON/OFF toggle switch ideal as a power switch or as a way to switch between modes on your project.

    It's breadboard-friendly (almost - you may need to bend the legs slightly as they aren't a perfect 2.54mm pitch) and can handle up to ~500mA at 50V. It's also ideal for use on your own PCB projects.

    The switch has a black body and a bright red button. "Click click click" - so satisfying!

    Specifications

    • Ambient Temperature: -25ºC to 70ºC
    • Rated Load: 50V @ 0.5A
    • Contact Resistance: ≤50mΩ
    • Operating force: 5N ~ 12N
    • 12mm x 12mm x 7mm
    • Length of Pins: 4mm
    • Distance Between Pins: 7mm
    • Weight: 1.2g
