Particulate Matter Sensor Breakout (for PMS5003)
A handy-dandy breakout that converts between the picoblade connector cable on the PMS5003 particulate matter sensor and a standard male 2.54mm pitch header.
Use this breakout to connect a PMS5003 particulate matter sensor straight to your Raspberry Pi (or other microcontroller) with some female-to-female jumper wires using our PMS5003 Python library to read data from the sensor.

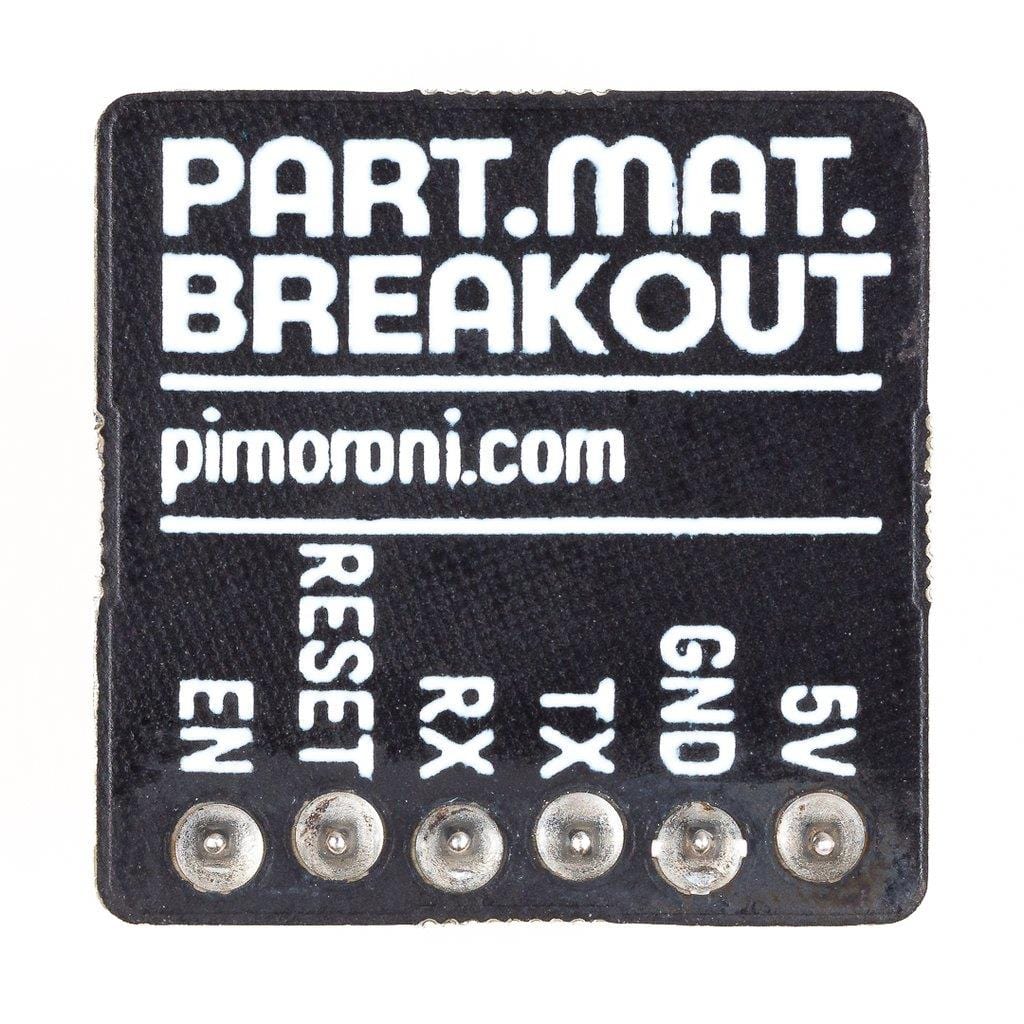

Connect the pins on the breakout to the following pins on your Raspberry Pi:
- 5V to 5V
- GND to ground
- TX to BCM 14
- RX to BCM 15
- RESET to BCM 27
- EN to BCM 22
Dimensions: 17.7x17.75mm
