Photo Interrupter Sensor

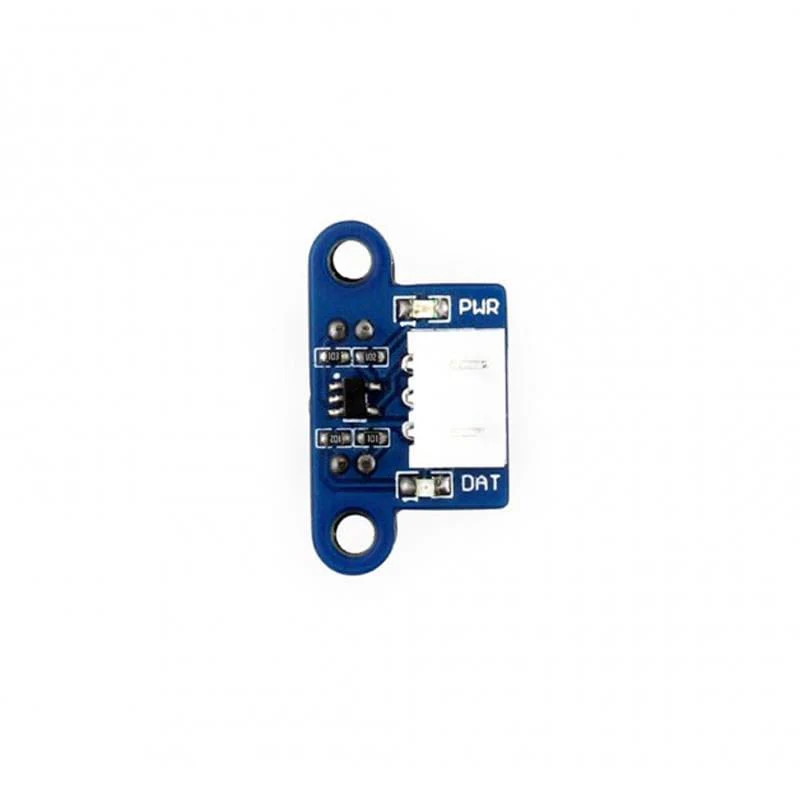

A photo-interrupter sensor detects when something blocks the light between the infrared emitter and receiver elements. They're great for robot projects, item dispensing, object detection and more - use them however you like!

This sensor features an indicator LED to show you when the beam has detected an object - great for debugging.

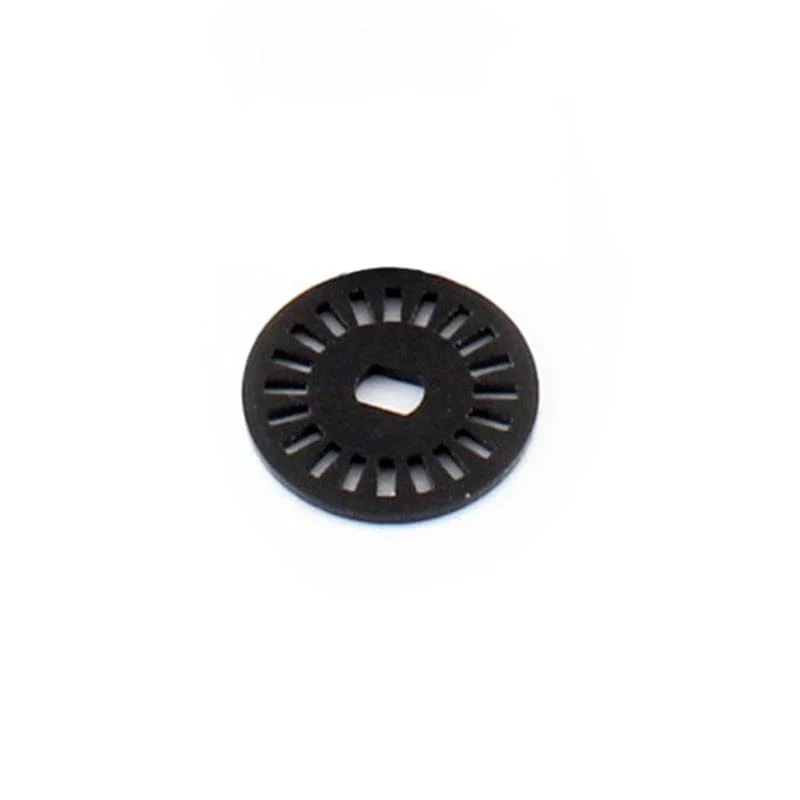

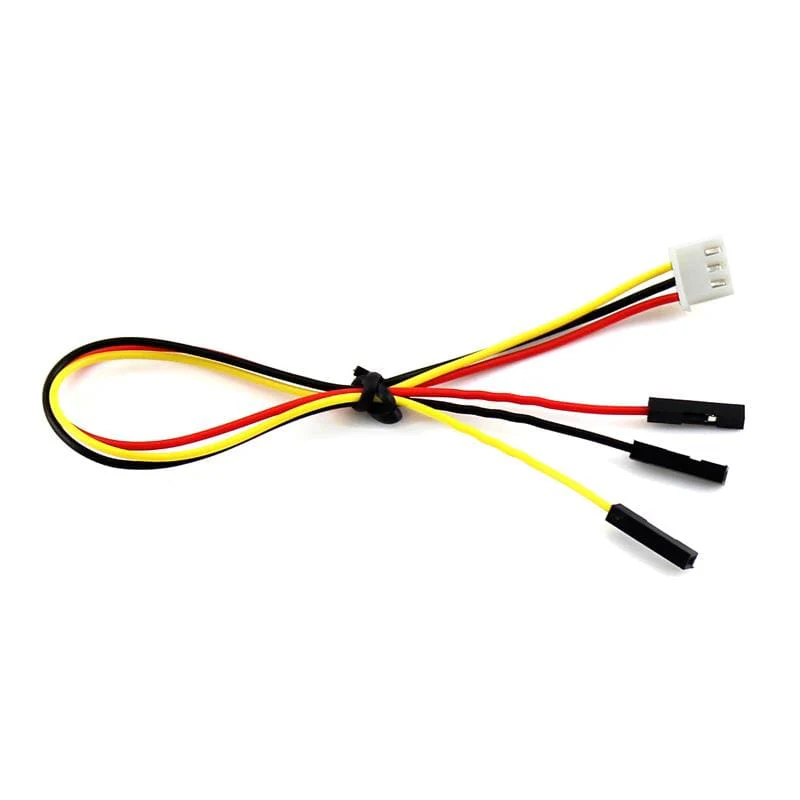

The sensor also comes with a 20-slot encoder disk and a 3-pin XH2.54 cable.

Features

• Infrared detection, eliminating the interferences of external stray light
• Schmitt trigger - stable waveform and signals
• Signal output indicator (while breaking the beam the sensor outputs a low level and the indicator LED lights up)

Package Contents

• 1x Photo Interrupter Sensor
• 1x 20-slot encoder disk
• 1x XH2.54 3-pin wire

Specifications

• Power: 3.3V ~ 5V
• Dimension: 26.8mm × 15mm × 18.7mm
• Mounting holes size: 3mm
• Gap width: 6mm

Applications

• Motor speed detection
• Pulse counter

How to Use

• Product Wiki

In the case of working with a microcontroller:

• VCC ↔ 3.3V ~ 5V
• GND ↔ GND
• DOUT ↔ MCU.IO (digital output)

Dimensions
