Raspberry Pi Pico 2

Raspberry Pi Pico 2 is the latest microcontroller from Raspberry Pi built on the RP2350 - their new high-performance, secure microcontroller chip, now available with or without headers pre-soldered.

Compared to the original Raspberry Pi Pico, Raspberry Pi Pico 2 offers a higher core clock speed, double the on-chip SRAM, double the on-board flash memory, more powerful Arm cores, optional RISC-V cores, new security features, and upgraded interfacing capabilities!

These significant performance and feature improvements are delivered with the same form factor and are software-compatible with the original Raspberry Pi Pico series boards, with the same GPIO pinout and micro-USB connector for power and programming, allowing you to easily upgrade your projects and re-use your collection of Raspberry Pi Pico add-ons, cables and accessories.

Programmable in C / C++ and Python, and with detailed documentation, Raspberry Pi Pico 2 is the ideal microcontroller board for enthusiasts and professional developers alike.

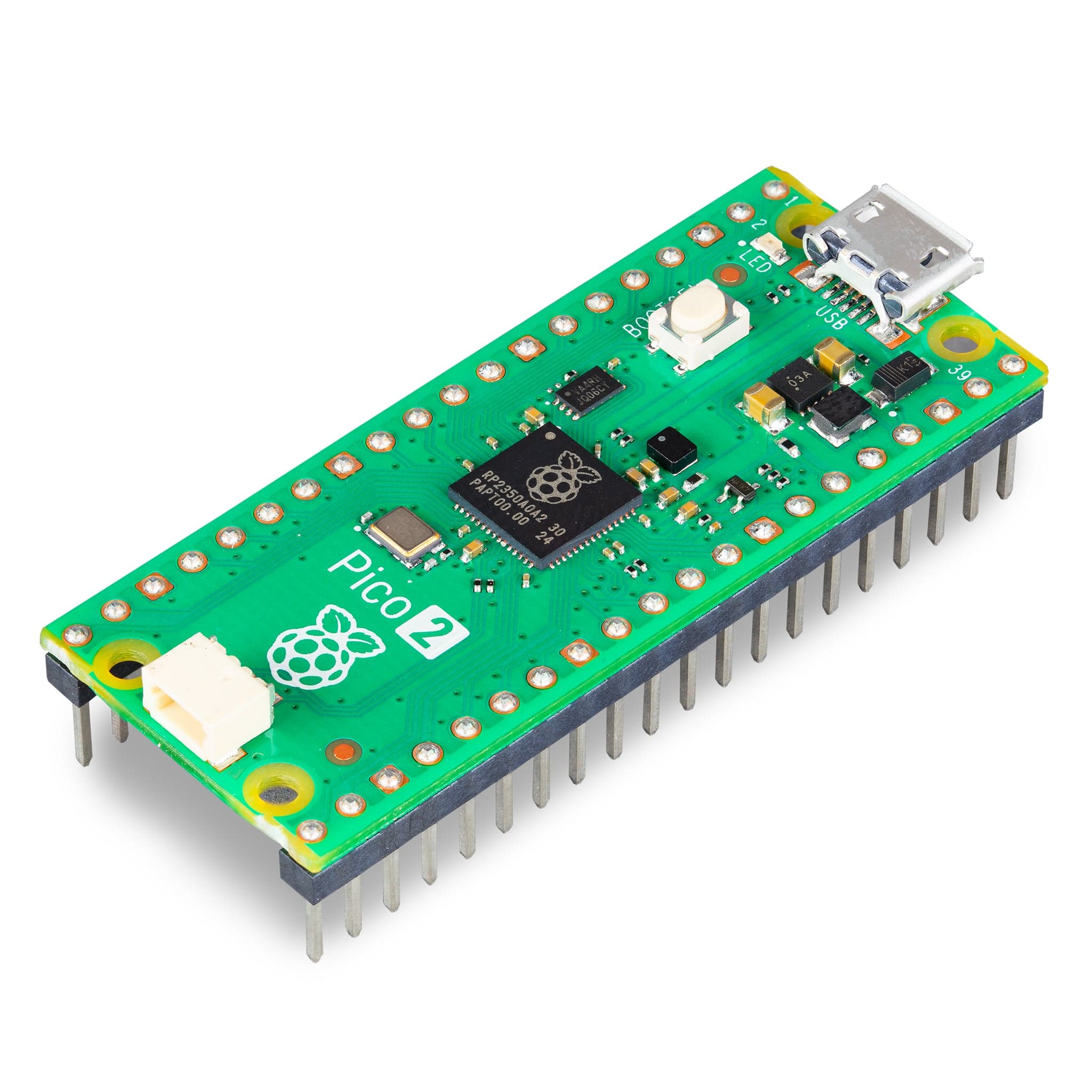

We now offer the Raspberry Pi Pico 2 with headers pre-soldered! Select an option before adding to cart.

Please note: Raspberry Pi Pico 2 does NOT have any wireless capability - you'll need to grab the Pico 2 W for that!

RP2350 Onboard

The RP2350 microcontroller follows the huge success of the Raspberry Pi RP2040.

The unique dual-core, dual-architecture capability of RP2350 allows users to choose between a pair of industry-standard Arm Cortex-M33 cores, and a pair of open-hardware Hazard3 RISC-V cores.

The RP2350 provides a comprehensive security architecture, built around Arm TrustZone for Cortex-M, and incorporating signed boot, 8KB of antifuse OTP for key storage, SHA256 acceleration, a hardware TRNG, and fast glitch detectors.

These features, including the secure boot ROM, are extensively documented and available to all users without restriction: this transparent approach, which contrasts with the “security through obscurity” offered by legacy vendors, allows professional users to integrate RP2350, and Raspberry Pi Pico 2, into projects and products with confidence.

Essential Raspberry Pi Pico 2 Accessories

To make the most of your new board, here is a list of essential Raspberry Pi Pico 2 accessories (or head to our Pico accessories section and have a rummage!):

• Micro-USB cable - To provide power from your computer and program the board
  • Laptop only has USB-C ports? Grab one of these USB-C to Micro-USB cables instead!
• Colour-coded headers (for the non-header version) - Allowing you to use the board with a solderless breadboard and/or jumper wires with easy pin navigation
  • We also offer a standard set, stacking set, female set and some unique coloured versions!
• Breadboard for Pico - A special breadboard with printed Raspberry Pi Pico pinout to make projects easier!

New users may want to check out our Essential Raspberry Pi Pico Accessories Kit which includes all the bits you need to get started.

Raspberry Pi Pico 2 Specifications

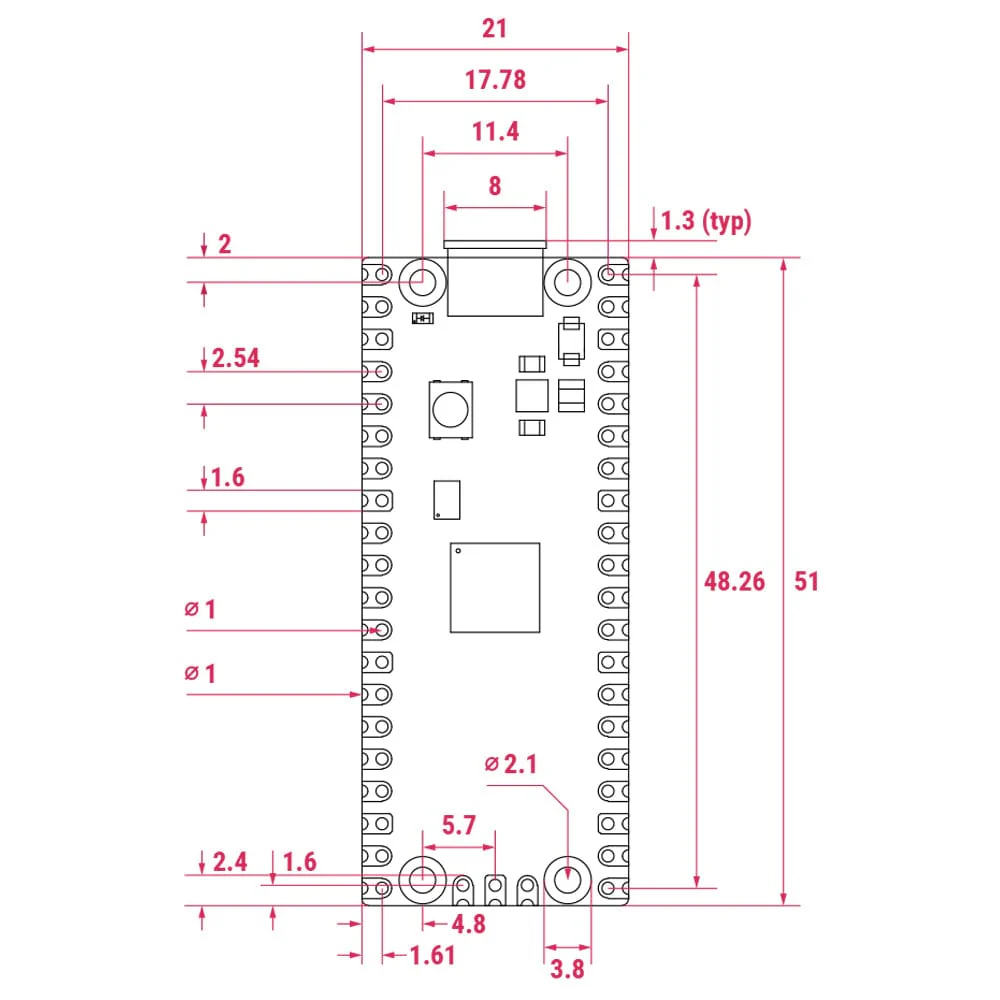

Form factor	21 mm × 51 mm
CPU	Dual Arm Cortex-M33 or dual RISC-V Hazard3 processors @ 150MHz
Memory	520 KB on-chip SRAM; 4 MB on-board QSPI flash
Interfacing	26 multi-purpose GPIO pins, including 3 that can be used for ADC
Peripherals	2 × UART
	2 × SPI controllers
	2 × I2C controllers
	24 × PWM channels
	1 × USB 1.1 controller and PHY, with host and device support
	12 × PIO state machines
Wireless	No
Input power	1.8–5.5V DC
Operating temperature	-20°C to +85°C
Production lifetime	Raspberry Pi Pico 2 will remain in production until at least January 2040
Compliance	Please visit pip.raspberrypi.com

Raspberry Pi Pico 2 Resources

• Raspberry Pi Pico 2 announcement blog post
• Raspberry Pi Pico 2 product brief
• Raspberry Pi Pico 2 Pinout
• Raspberry Pi Pico 2 MicroPython SDK
• Raspberry Pi Pico 2 C/C++ SDK

• Raspberry Pi Product Information Portal (PIP)

• RP2350 Information
• Our Raspberry Pi Pico Tutorials
• Micropython website
• Raspberry Pi Pico 2 STEP file
• Raspberry Pi Pico 2 Fritzing part
• Raspberry Pi Pico 2 design files (Cadence Allegro)
• Product numbers:
  • Without headers: Raspberry Pi SC1631
  • With Headers: Raspberry Pi SC1632
• EAN:
  • Without Headers: 5056561803951
  • With headers: 5056561803968

Package Contents

• 1x Raspberry Pi Pico 2 board

Micro-USB cable and other accessories not included
