Robo Base Mini

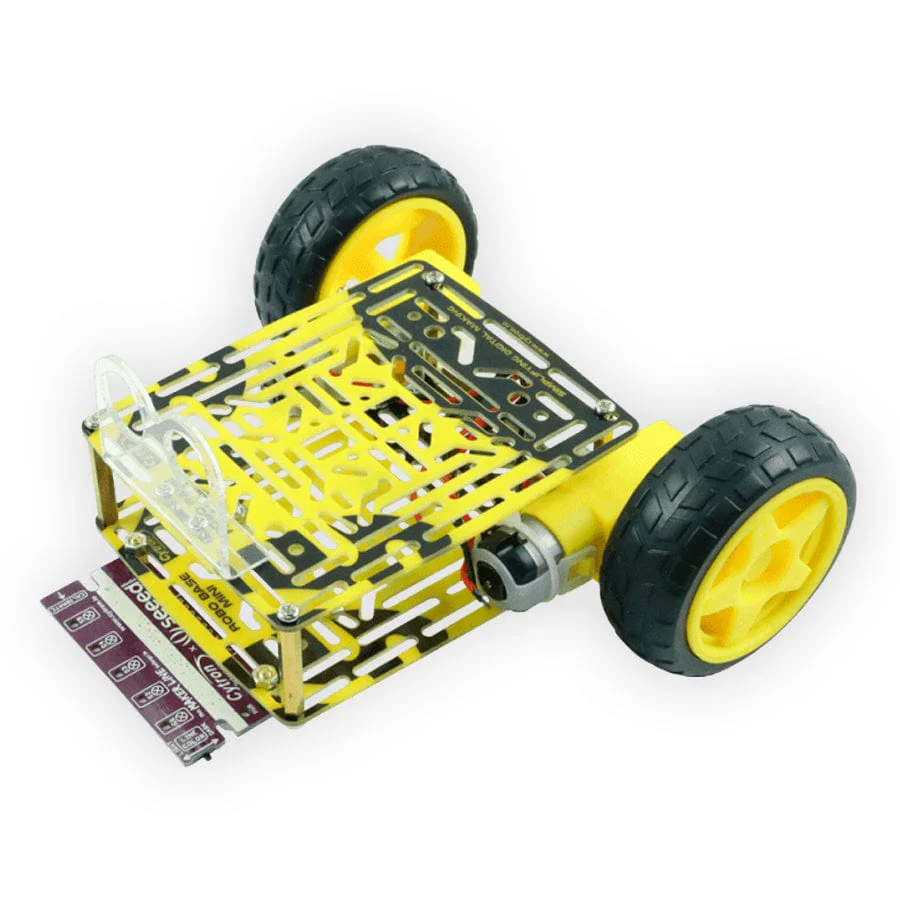

The Cytron Robo Base Mini is a compact and flexible robotics chassis platform designed for building small mobile robots or adapting your microcontroller board to other robot chassis. Made from durable 1.6 mm PCB material, it offers a cost-effective alternative to metal or acrylic-based frames.

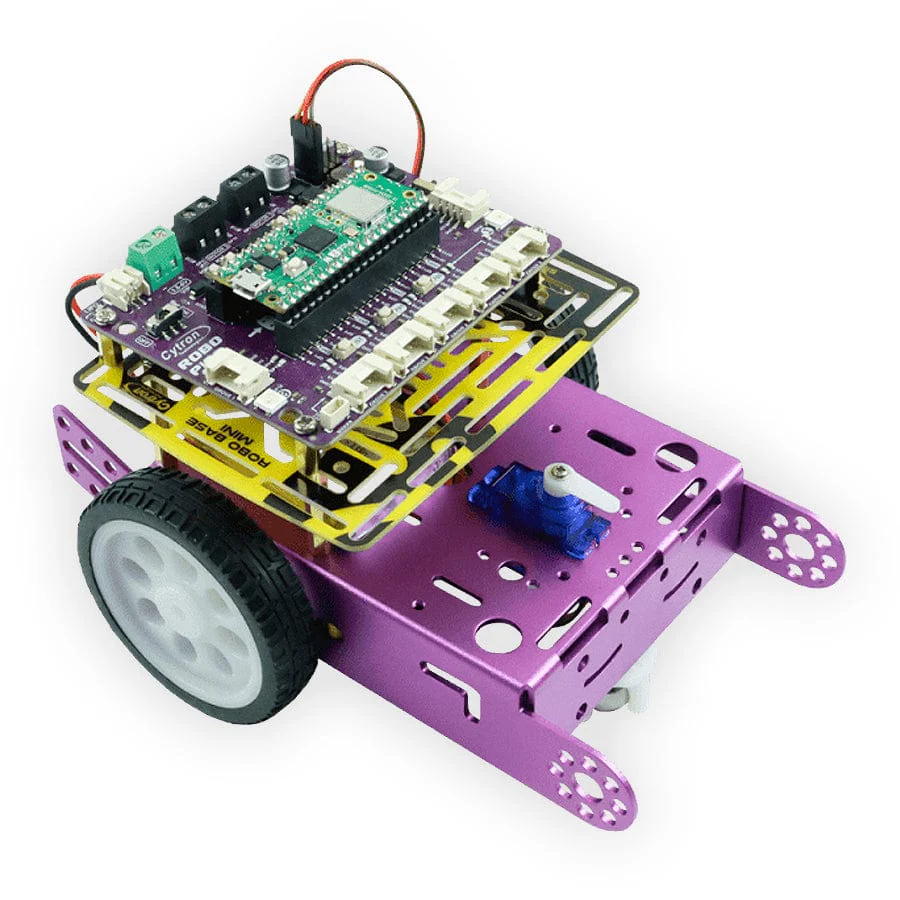

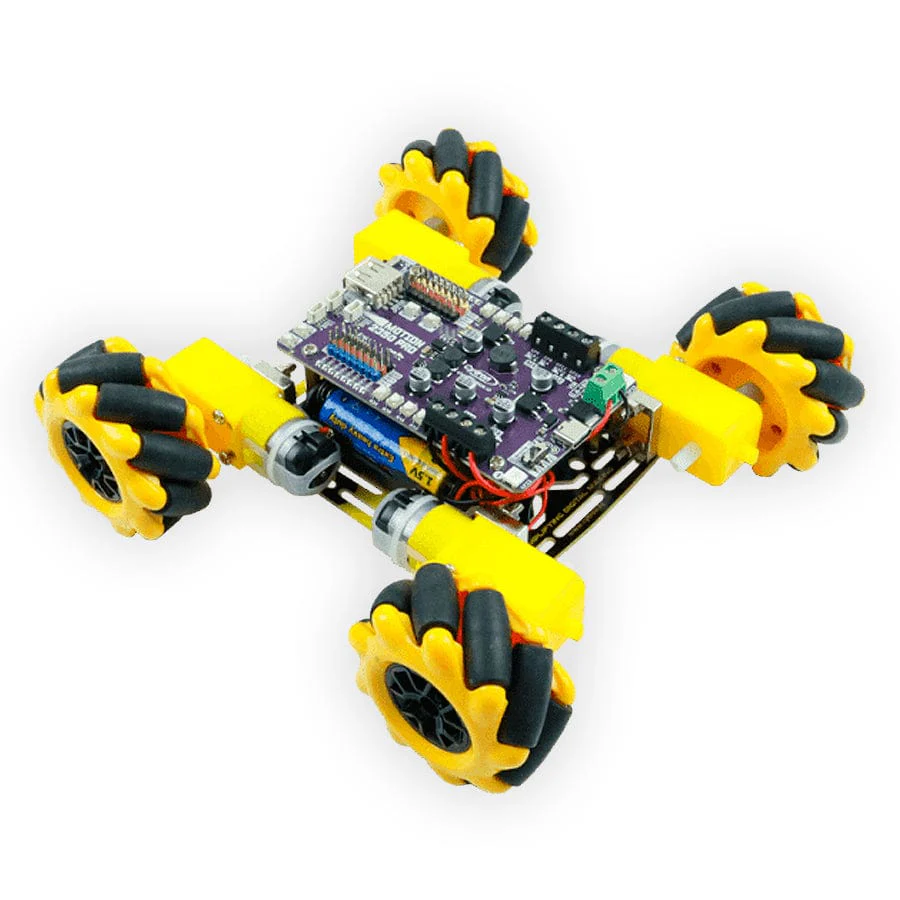

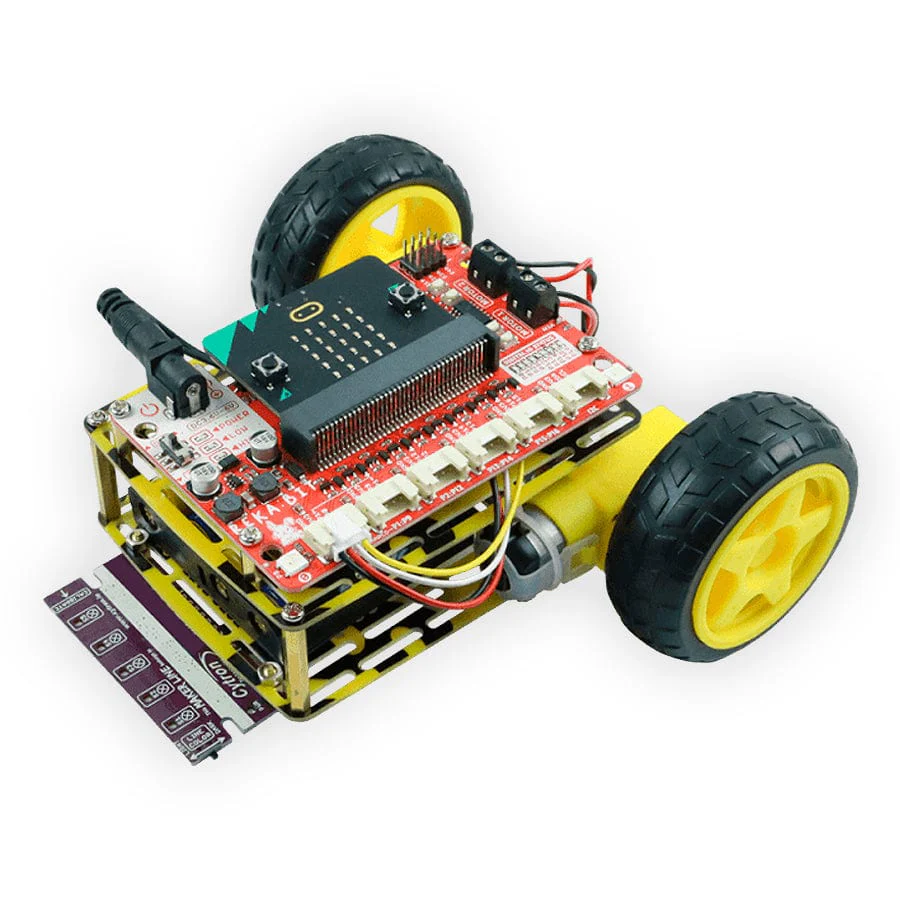

Packed with pre-cut holes and slots, the Robo Base Mini allows easy mounting of sensors, ball castors, DC motors, servo motors, and various microcontroller boards. It can also serve as an adapter plate for mounting boards onto other robot car chassis with minimal effort.

Assembly is straightforward using standard M3 hardware. Step-by-step guides are available for board mounting and installation.

Available as a single base only, or a double base pack complete with standoffs and fixings - select an option before adding to cart.

Features

• Compact base made from 1.6mm non-copper PCB
• Compatible with DC motors, servo motors, sensors, and ball castors
• Acts as a mounting adapter for Cytron controller boards
• Includes mounting holes and slots for flexibility
• Supports standard M3 screws, nuts, and standoffs
• Assembly guides available for various configurations

Resources

• Getting Started with Robo Base Mini & Main Controller Boards

Package Contents

Single Base Only

• 1x Robo Base Mini

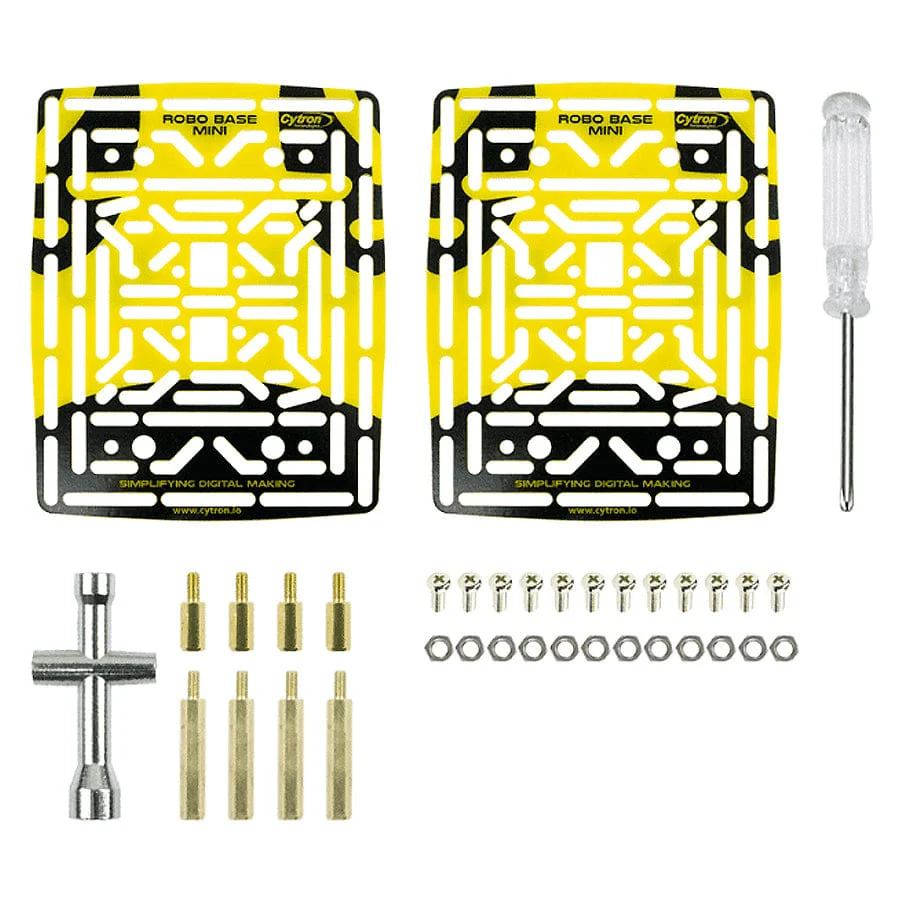

Double Base + Accessories

• 2x Robo Base Mini
• 4x M3 PCB Stand (25 mm, screw + nut)
• 4x M3 PCB Stand (10 mm, screw + nut)
• 12x M3 Bolt (6 mm)
• 12x M3 Nut
• 1x Transparent Philips Screwdriver
• 1x Mini Cross Wrench
