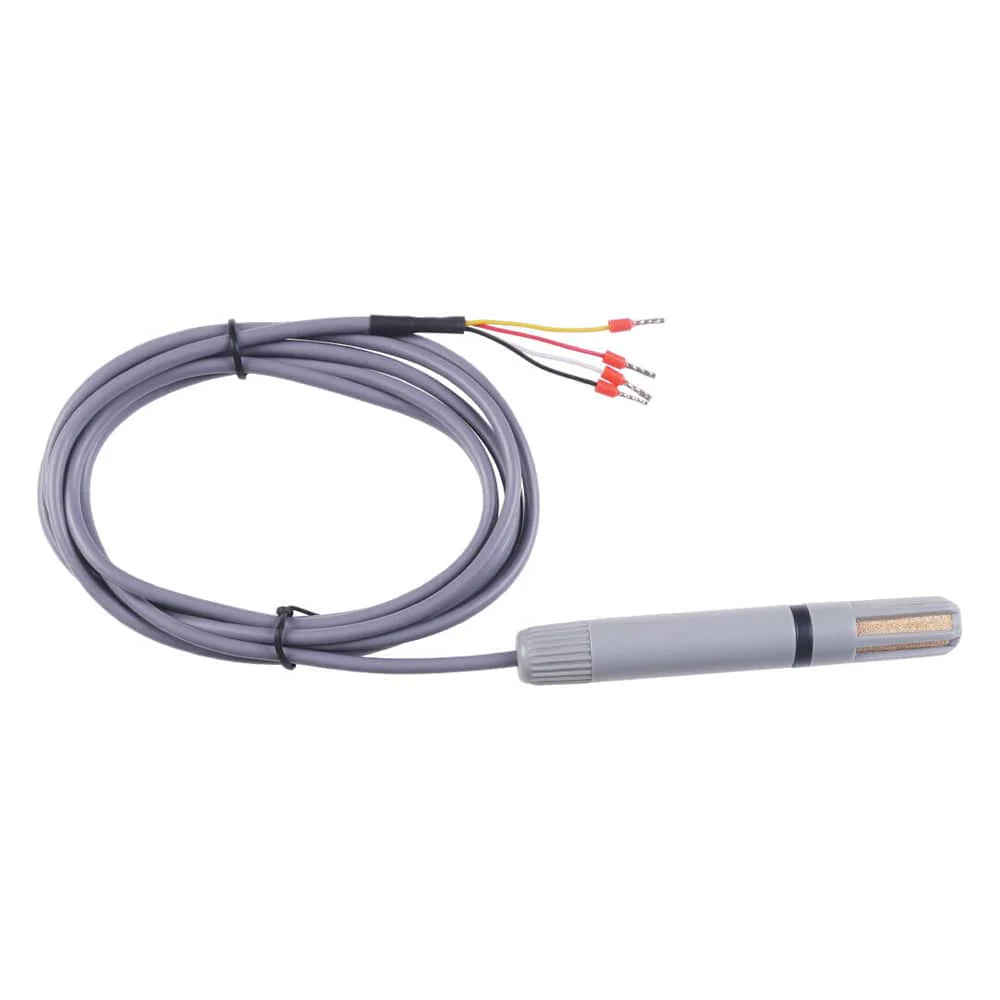

RS485 Air Temperature, Humidity and Barometric Pressure Sensor (S-THP-01A)
RS485 Air Temperature, Humidity and Barometric Pressure Sensor (S-THP-01A)
The Seeed IP56 RS485 Air Temp, Humidity & Pressure Sensor delivers accurate environmental readings from –40 to 125°C, 0–100% RH and 300–1100 hPa, with RS485 output and low power use — ideal for weather and agriculture monitoring.
The Seeed IP56 RS485 Air Temperature, Humidity and Barometric Pressure Sensor covers a wide measuring range — 0–100% RH, –40 to 125°C, and 300–1100 hPa. It’s a practical choice for smart agriculture, weather stations, evapotranspiration tracking, mould prevention and general environmental monitoring. When used with the SenseCAP S2100 Data Logger, it offers straightforward data collection and management.

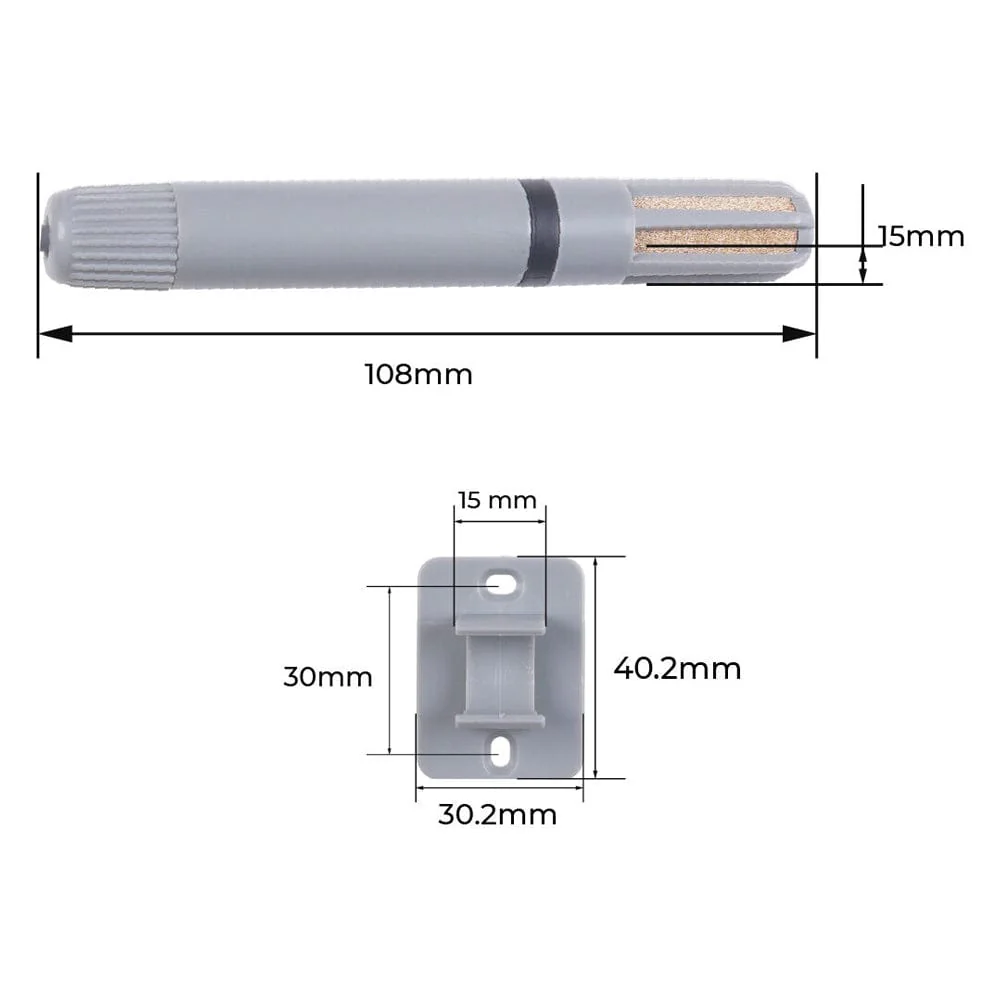

This 3-in-1 design uses a SENSIRION® temperature and humidity sensor together with a BOSCH® barometric MEMS chip, giving accurate readings with a quick response. The sensing components are built onto a small PCB at the tip of the probe, measuring just 108mm × 16mm, which makes installation simple and allows it to slot easily into existing systems. Each sensor is factory-calibrated before it ships.
By combining temperature, humidity and pressure readings, the sensor can also produce useful calculated values such as vapour pressure, dew point, frost point, absolute humidity, vapour density, cloud base height and altitude. It communicates over RS485 and includes surge protection for stable, reliable operation. Mounting options include wall mounting or using a flange for duct installations.
Its low power draw makes it suitable for battery-powered setups, and built-in reverse-power and lightning protection help it stand up to demanding environments. With its compact size, individual calibration and flexible mounting options, it’s a solid choice for adding accurate atmospheric measurements to new or existing monitoring systems.
Features
- High Performance: High accuracy, fast response, good repeatability
- 3 in one sensor: Humidity/Temperature sensor and BOSH barometric sensor
- Based on the data directly measured by the sensor, relevant common meteorological parameters can be calculated including vapour pressure, dew point, frost point, absolute humidity, vapour density, cloud base height and altitude.
- Universal Protocol: RS485 communication interface with surge protection
- Reverse power protection and Built-in TVS/ESD protection
Specifications
| Signal Output | RS485 Modbus Protocol |
| Power Supply | 4.5-18V/DC |
| Encapsulation | Standard（ABS+ Copper sintering filter） |
| Humidity Measurement Range | 0-100%RH, Resolution 0.01% Accuracy: ±1.0%RH |
| Temperature Measurement Range | -40~+125℃, Resolution: 0.01℃, Accuracy: ±0.1℃ |
| Barometric Pressure Measurement Range | 300-1100 hPa, Resolution: 0.1hPa, Accuracy: ±0.15hPa (Relative Accuracy), ±0.1hPa (Absolute Accuracy) |
| IP Rating | IP56 |
| Operating Temperature | -40~80℃ |
| Installation Methods | Wall mounting or Pipe flange insertion |
| Cable Length | 2M |
| Supplier Code | 101991101 |
Resources
Package Contents
- 1x Tube Installation Equipment
- 1x Wall-mounted Installation Equipment
- 2x Plastic Screw
- 2x Metal Screw
