Seeed Screw Shield [Discontinued]

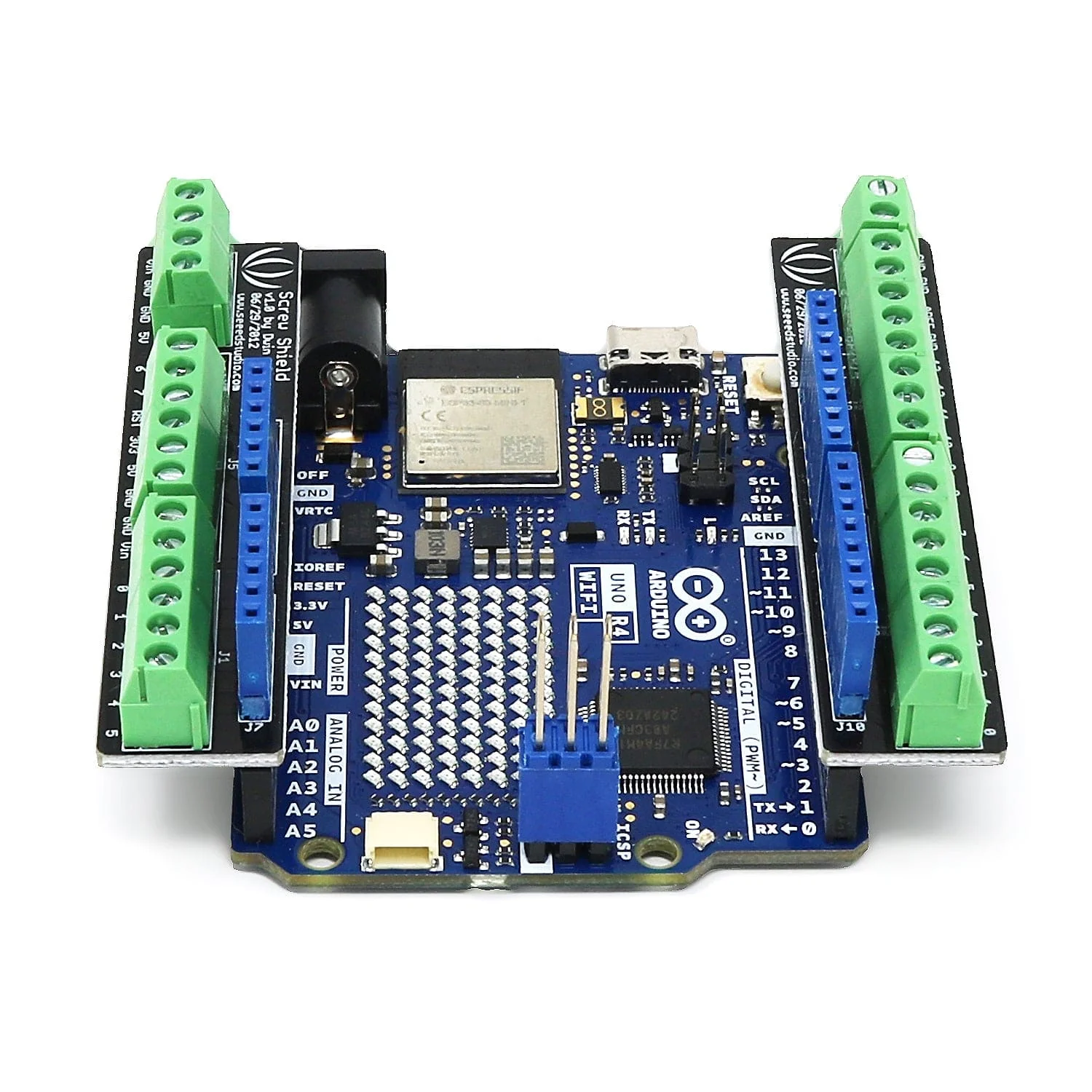

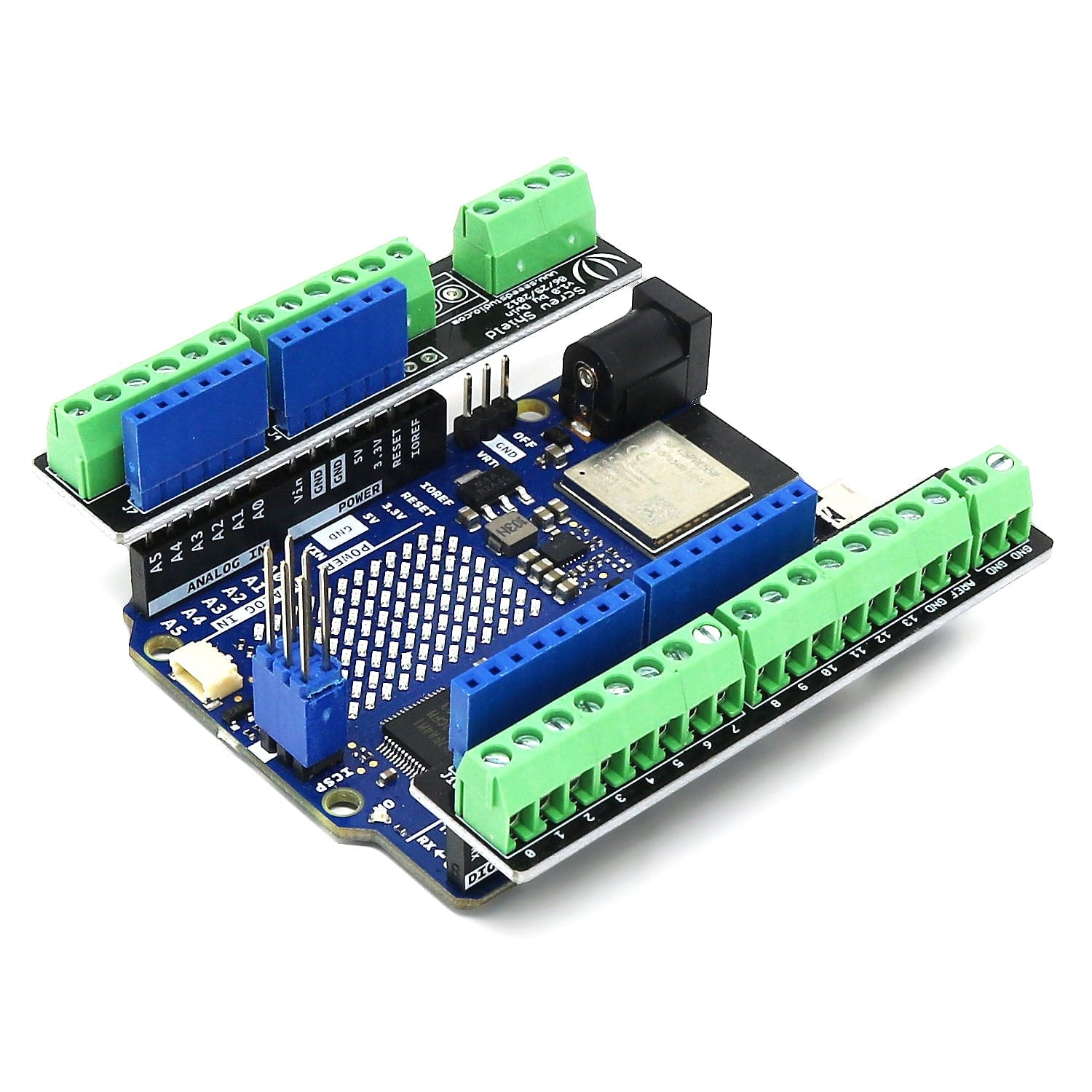

The Seeed Screw Shield is a wing-like shield that extends both sides of your Arduino (or Arduino UNO compatible boards) into sturdy and reliable screw terminal blocks.
On the digital pins side, it contains 18 terminals: 16 normal terminals and 2 extra GND. As to the Analog pins side, there are 16 terminals (12 normal terminals, 4 extra terminals for Vin, 2xGND and 5V) and 2 breakout through holes for 2 additional ADC pins.
A special extension block for the SPI interface is included in this product to make it a truly stackable shield for other shields.
Arduino board not included
Features
- Arduino UNO, UNO-compatibles and Seeeduino compatible
- Extra ADC though holes and SPI extension interface
- Truly stackable
- Product number: Seeed 103030006
Package Contents
- 1x Seeed Screw Sheild (three parts)
Arduino board not included
Original: $7.90
-65%$7.90
$2.77Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Seeed Screw Shield is a wing-like shield that extends both sides of your Arduino (or Arduino UNO compatible boards) into sturdy and reliable screw terminal blocks.
On the digital pins side, it contains 18 terminals: 16 normal terminals and 2 extra GND. As to the Analog pins side, there are 16 terminals (12 normal terminals, 4 extra terminals for Vin, 2xGND and 5V) and 2 breakout through holes for 2 additional ADC pins.
A special extension block for the SPI interface is included in this product to make it a truly stackable shield for other shields.
Arduino board not included
Features
- Arduino UNO, UNO-compatibles and Seeeduino compatible
- Extra ADC though holes and SPI extension interface
- Truly stackable
- Product number: Seeed 103030006
Package Contents
- 1x Seeed Screw Sheild (three parts)
Arduino board not included
