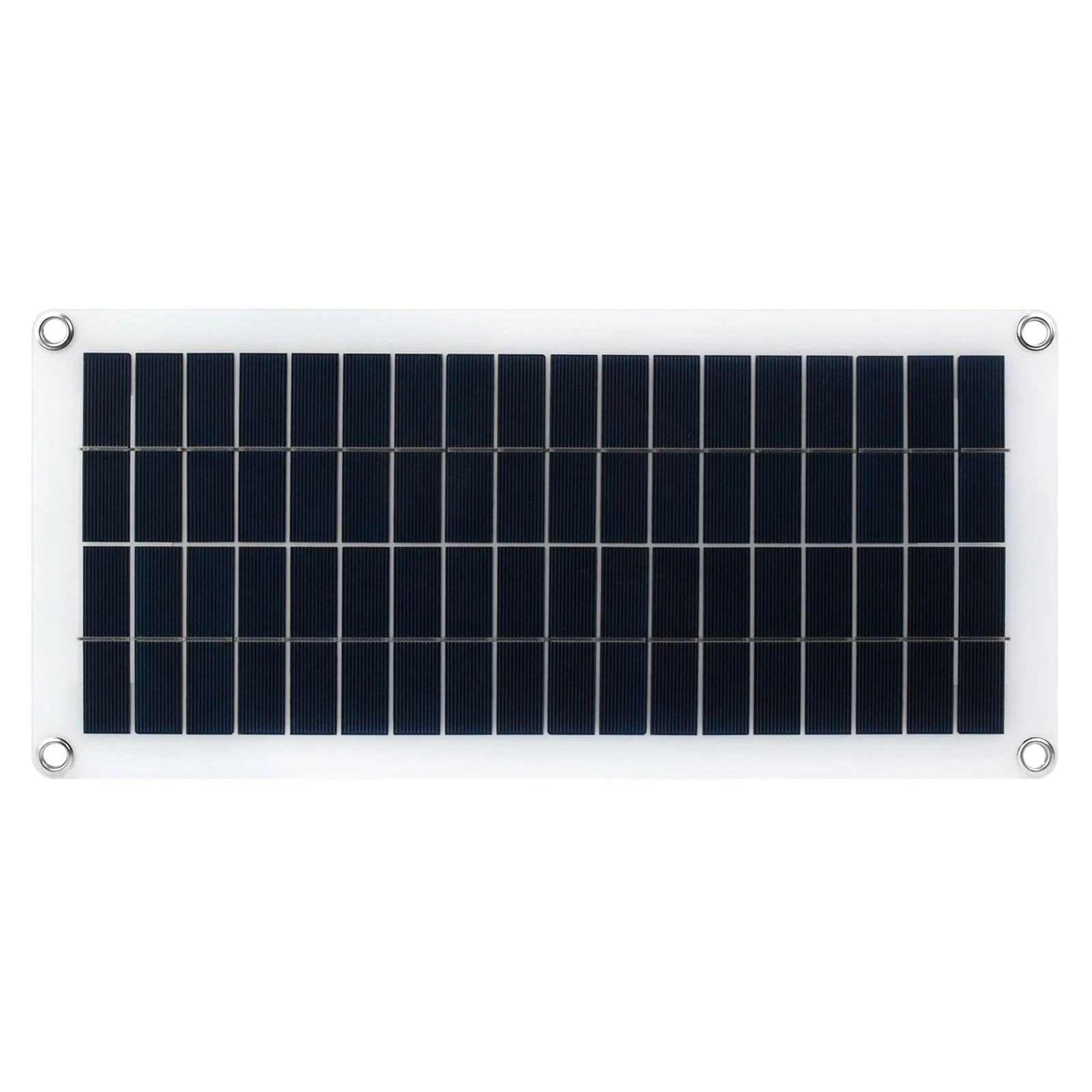

Semi-flexible Polycrystalline Silicon Solar Panel (18V 10W)

This Solar Panel consists of several crystals of silicon in a single PV cell that gives a high degree of energy transfer efficiency, with bypass diodes to minimize the effects of shadows. On top of that, it also has a high power density, high-temperature coefficient, and eco-friendly production due to less waste being produced, and the manufacturing process requires very few fossil fuels.

With its thin and portable design, different outputs and a host of accessories, this really is a great addition to your next outdoor project!

These are compatible for use with our 3 solar power managers, A, B and C

Features

• Adopts semi-flexible polycrystalline silicon solar panel, thin and portable, convenient for outdoor use

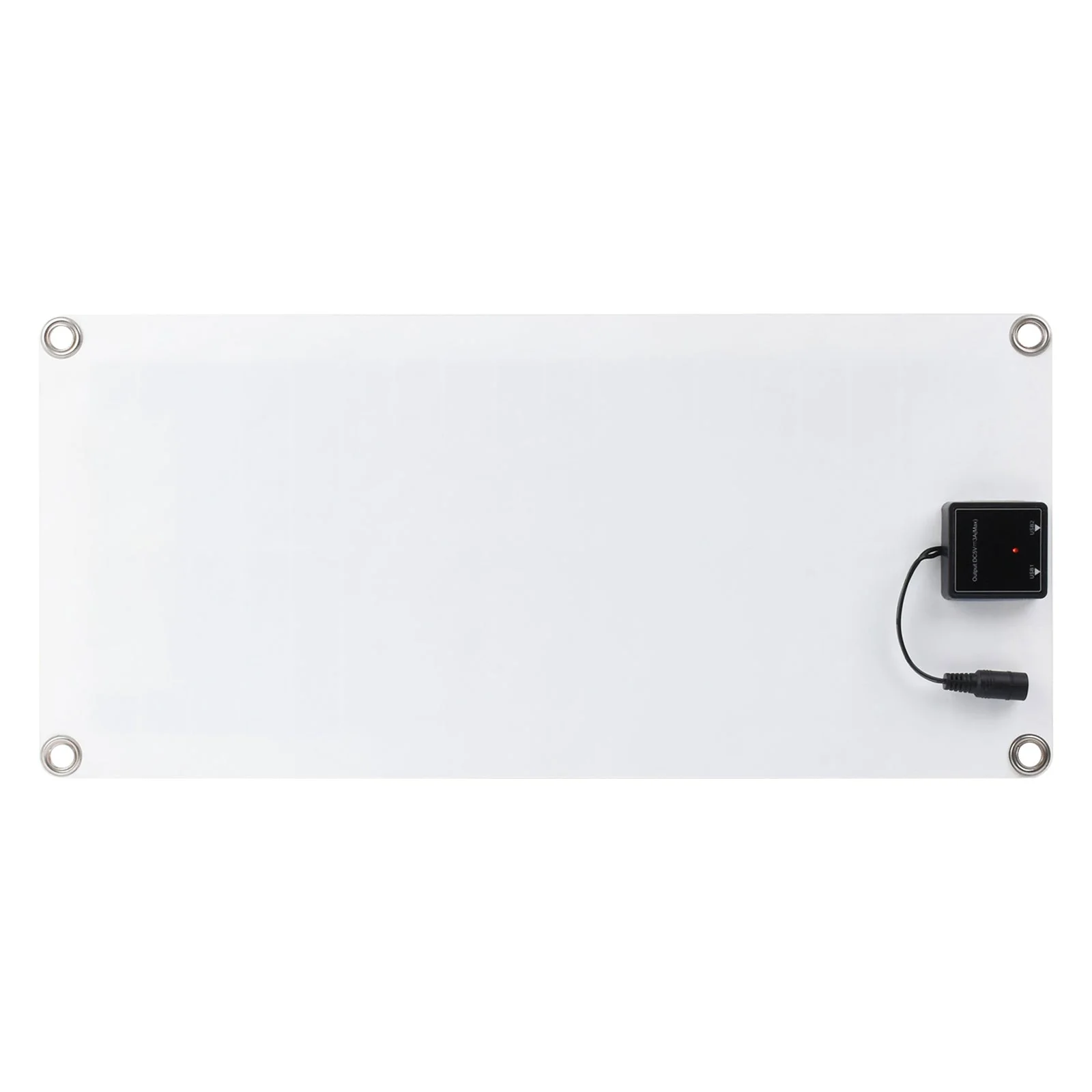

• Integrated with 5V voltage regulator circuit, 2x USB power outputs for external 5V devices, onboard working status indicator
• Reserved DC5521 power output port for connecting to power manager module or other controllers which support 18V solar panel
• Comes with multiple accessories and adapter cables

What's on Board

Specifications

SOLAR CELL TYPE	Polycrystalline silicon
MATERIAL	Semi-flexible laminate (not capable of excessive bending)
SOLAR PANEL POWER	10W
DC5521 FEMALE PORT	Directly power output from the solar panel without conversion
	Operating voltage: 18V ± 5%
	Operating current: 600mA ± 5% (Max)
	Open circuit voltage: 21.6V ± 5%
2× USB 5V PORT	Power output after 5V regulator circuit
	Operating voltage: 5V (Requires good sunlight for stable 5V output, it is not recommended for use in sunless or weak light conditions)
	Output current: 1.5A (total output of the two USB ports)

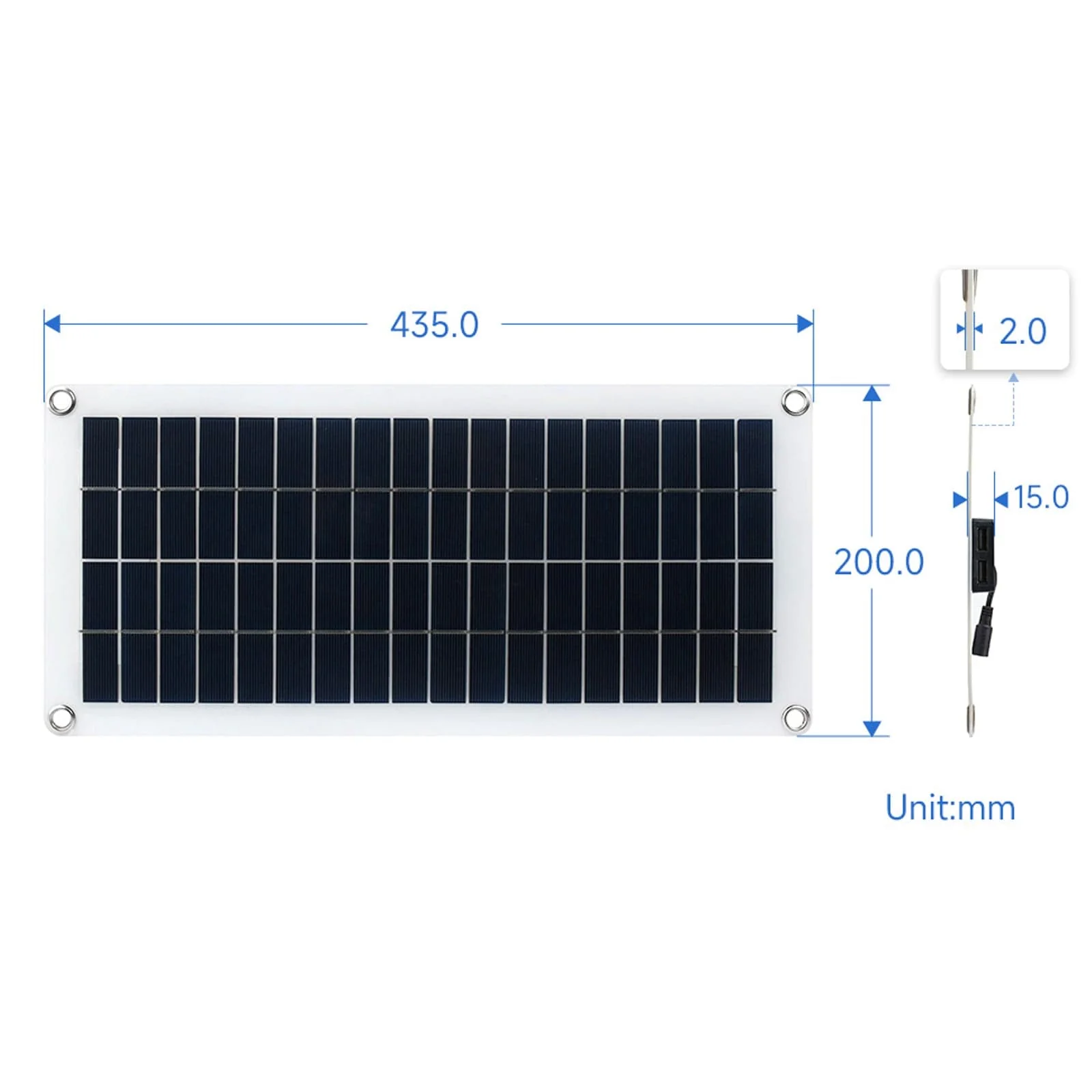

DIMENSIONS	435 × 200mm



Package Contents

• 1x Semi-flexible Polycrystalline silicon Solar Panel
• 1x Alligator Clip
• 4x Suction Cup
• 2x Spring Snap Hooks
• 1x USB Cable
