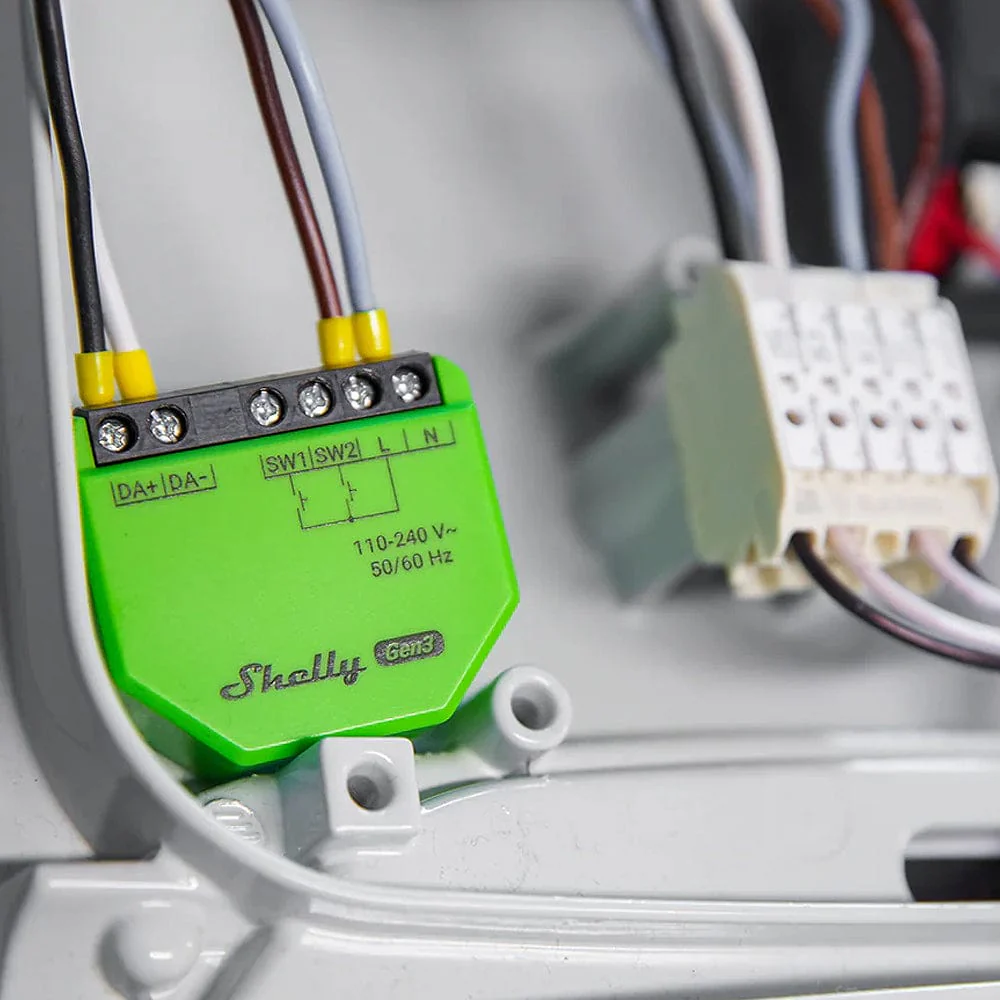

Shelly DALI Dimmer Gen3
The Shelly DALI Dimmer Gen3 is a gateway device between your Shelly ecosystem/APIs and a DALI network of lights. It can control DALI-capable light sources that contain DALI control gear.
In terms of DALI, it is a single-master application controller, supporting LED control gear (Part 207), which does not share the bus with other DALI control devices. The Shelly DALI Dimmer controls all connected DALI control gear as a single group with broadcast messages.
It contains a bus power supply with the possibility to control up to 5 non-powered bus units. The DALI Dimmer can be accessed, controlled, and monitored remotely from anywhere you have internet connectivity, as long as it is connected to a Wi-Fi router and the Internet. It has an embedded web interface which can be used to monitor and control the device, as well as adjust its settings.
As it's a Gen3 device, it has WiFi and Bluetooth and the latest Shelly Chip, and can be used as a Bluetooth gateway for all Shelly BLU sensors and devices!
Different types of actions, scenarios, and schedules can be set to sync your environment to your daily activities or business needs, via the Shelly smart home ecosystem, including the Shelly Smart Control app - or link it with a popular home automation software such as Home Assistant via a Raspberry Pi!
Note: You may require a neutral wire to use this product. Please research the device and your home wiring (safely, see below) before purchasing.
⚠️Caution - Read Before Buying⚠️
- Before beginning the installation, please read this guide and any other documents accompanying the device carefully and completely
- Danger of electrocution. The mounting/installation of the device should be performed by a qualified person (electrician)
- Failure to follow the installation procedures could lead to malfunction, danger to your health and life, violation of the law or refusal of legal and/or commercial guarantee (if any)
- Allterco Robotics (makers of Shelly products) and Mann Enterprises LTD are not responsible for any loss or damage in case of incorrect installation or improper operation of this device due to failure to follow the user and safety instructions in the printed guide accompanying this product (also available in the resources section below)
- Do not connect the device to appliances exceeding the given max load.
- Use the device only with a power grid and appliances which comply with all applicable regulations. Short circuit in the power grid or any appliance connected to the device may damage the device.
- Before starting, wire check that the breakers are turned off and there is no voltage on their terminals. This can be done with a phase meter or multimeter. When you are sure that there is no voltage, you can start wiring the cables.
Features
- Wi-Fi and Bluetooth connectivity (BLE gateway and Wi-Fi range extender)
- DALI single master application controller
- Supports LED control gear (DALI Part 207 gear)
- Bus power supply guaranteed 10mA (up to 5 DALI control gear units)
- Smart schedules
- Night mode: Enables setting a specific brightness of lights during nighttime
- Min/Max brightness: Reframes the range of the dimming signal to get more precise brightness control
- Button fade rate: Controls how quickly the brightness changes while holding the button(s)
- Transition duration: Controls the time for dimming from 0 to 100%
- Supports scripting, webhooks, MQTT and local actions
- Supports KNXnet / IP communication
- No HUB required! Easy control through Shelly Smart Control app, various home automation protocols, platforms, as well as voice assistants
Specifications
| Size (HxWxD) | 42x37x17mm |
| Weight | 18g |
| Screw terminal max torque | 0.4 Nm / 3.5 lbin |
| Conductor cross-section | 0.5 to 1.5 mm² / 20 to 16 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length | 5 to 6mm |
| Mounting | In-wall, suspended ceilings |
| Shell material | Plastic |
| Shell colour | Green |
| Ambient working temperature | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | -20 °C to 40 °C / -5 °F to 105 °F |
| Max. altitude | 2000 m / 6562 ft |
| Power supply | 110 - 240 VAC ±10% 50/60Hz |
| Power consumption | < 2 W |
| Neutral not needed | No |
| Bus power supply | Guaranteed 10mA (up to 5 DALI control gear units) Short circuit current < 35 mA |
| Bus voltage | 16V nominal |
| Internal-temperature sensor | Yes |
| Wi-Fi | |
| Protocol | 802.11 b/g/n |
| RF band | 2401 - 2495 МHz |
| Max. RF power | < 20 dBm |
| Range | Up to 30 m / 100 ft indoors Up to 50 m / 160 ft outdoors (Depends on local conditions) |
| Bluetooth | |
| Protocol | 4.2 |
| RF band | 2400 - 2483.5 MHz |
| Max. RF power | < 4 dBm |
| Range | Up to 10 m / 33 ft indoors Up to 30 m / 100 ft outdoors (Depends on local conditions) |
| Microcontroller unit | |
| CPU | ESP32-C3 Shelly |
| Flash | 8 MB |
| Schedules | 20 |
| Webhooks (URL actions) | 20 with 5 URLs per hook |
| Scripting | Yes |
| MQTT | Yes |
| Encryption | Yes, TLS 1.2 |
Resources
- Shelly Product Documentation
- Printed User Guide (as found within the package)
- Components and APIs
- Declaration of Conformity
- Device Identification
- Device name: Shelly DALI Dimmer Gen3
- Device model: S3DM-0A1WW
- Device SSID: ShellyDDimmerG3-XXXXXXXXXXXX
- BLE model ID: 0x1071
- EAN: TBC
Handy Shelly Resources
- Shelly Cloud
- Shelly App
- Home Assistant Shelly Integration
- Shelly Community Forum
- Shelly Facebook Support Group
- Shelly Knowledgebase
- Shelly Device Finder (easy-to-use software to find Shelly devices in the local network)
- Shelly Developer API
Package Contents
- 1x Shelly DALI Dimmer Gen3
- 1x User Guide
