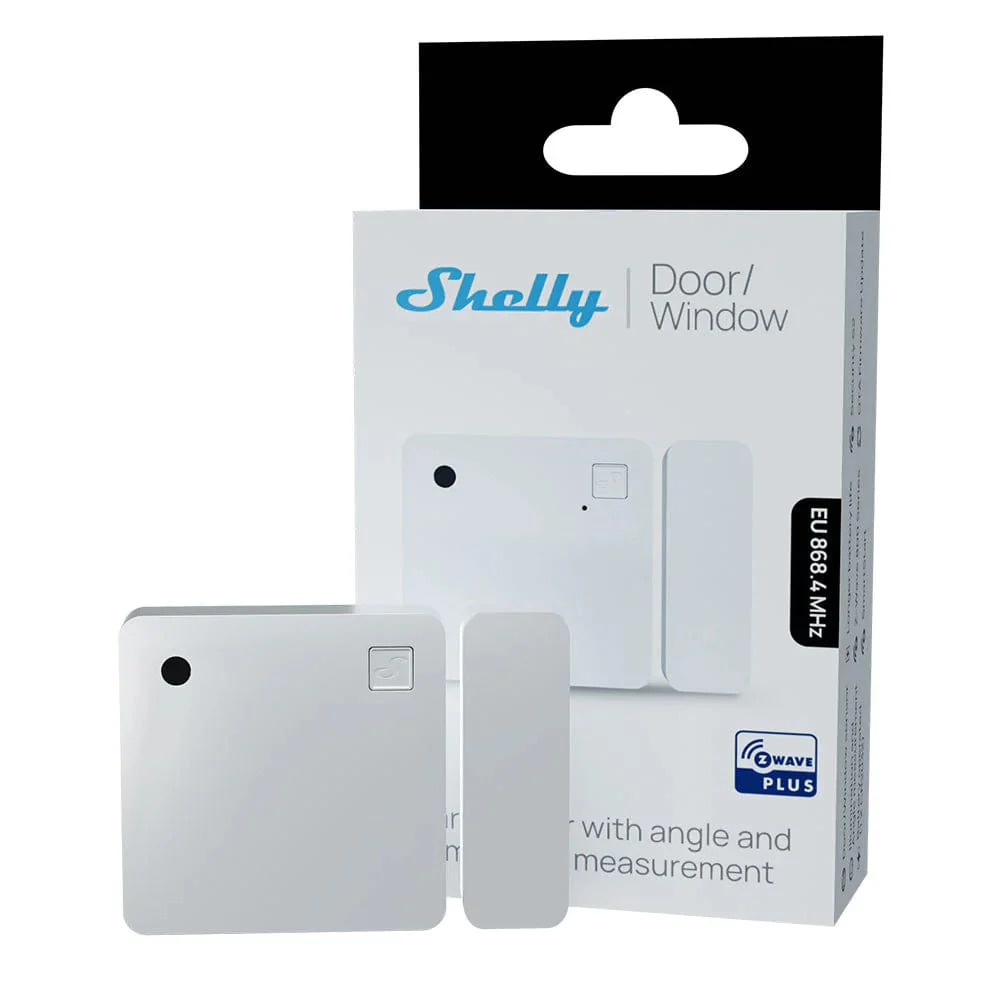

Shelly Wave Door/Window

Important: This version does not offer Z-Wave LR (Long Range). A new version is incoming with LR functionality, hence we have placed this version on sale to clear. Grab a bargain if you don't need LR functionality!

---

The Shelly Wave Door/Window sensor, with LUX and tilt angle measurement, is a Z-Wave sensor designed to detect openings and report them immediately, triggering home automation scenarios accordingly.

Whether you want to enhance home security, automate lighting, or monitor access, the Shelly Wave Door/Window sensor adapts to your unique needs. Its compact and stylish design allows for easy installation on doors, windows, safety gates, garage doors, and more.

The sensor is powered by a single CR2032 lithium battery, which is included in the package.

Works with all certified Z-Wave Gateways

Shelly Wave devices work with over 4000 Z-Wave-certified devices and gateways. Once installed, include it in your Z-Wave network (Z-Wave gateway is required) and control connected appliances from anywhere using your smartphone or tablet.

By using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or platform, thanks to a centralised smart hub! Shelly devices work on the latest Z-Wave chip generation (S800), one of the most popular standardised technologies for smart homes in the world.

Z-Wave devices have specific requirements in order to function correctly, such as the necessity to use a supported Z-Wave hub. For more information, please visit the official Z-Wave website: www. z-wavealliance.org

---

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?

---

Features

• Detects and reports opening or closing of doors/windows
• Open/close, angle and illumination measurement
• Battery 1x CR2032 (included)
• Battery life - up to two years
• Z-Wave frequency band: 868.4 MHz (CEPT countries)
• Latest technology: Z-Wave 800 Series
• Automatic set-up with SmartStart
• Security 2 Authenticated for the highest level of security
• Over-the-air firmware updates
• Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices

Specifications

Battery life	Up to 2 years
Reed switch	Yes
G-sensor	Yes
Light sensor	Yes
Distance	Up to 40 m indoors (131 ft.) (depends on local conditions)
Z-Wave® repeater	No
CPU	Z-Wave® S800
Z-Wave® frequency bands	868.4 MHz
Maximum radio frequency power transmitted in frequency band(s)	< 25 mW
Size (H x W x D)	35x35x7 mm ±0.5 mm (Sensor unit) 35x12x7 ±0.5 mm (Magnet)
Weight	10 g ±1 g (Device with the battery) 8 g ±1 g (Magnet)
Shell material	Plastic
Colour	White
Ambient temperature	-20°C to 40°C / -5°F to 105°F
Humidity	30% to 70% RH
Max. altitude	N/A

Resources

• Shelly Product Documentation
• Printed User Guide (as found within the package)
• Declaration of Conformity
• Device Identification
  • Device: Shelly Wave Door/Window (EU)
  • EU Part number/Ordering Code: QNDW-002CEU
  • Z-Wave Product type ID: 0x0100
  • Z-Wave Product ID: 0x0081
  • Z-Wave Manufacturer: Shelly Europe
  • Z-Wave Manufacturer ID: 0x0460
• EAN: 3800235268742

Handy Shelly Resources

• Shelly Cloud
• Shelly App
  • Apple App Store
  • Google Play
  • Huawei AppGallery
• Home Assistant Shelly Integration
• Shelly Community Forum
• Shelly Facebook Support Group
• Shelly Knowledgebase
• Shelly Device Finder (easy-to-use software to find Shelly devices in the local network)
• Shelly Developer API

Package Contents

• 1 x Shelly Wave Door/Window
• 1 x CR2032 Battery (installed)
• 1 x Installation Guide
