Small Black T-Bar Hall Effect Fader - 5V [Discontinued]

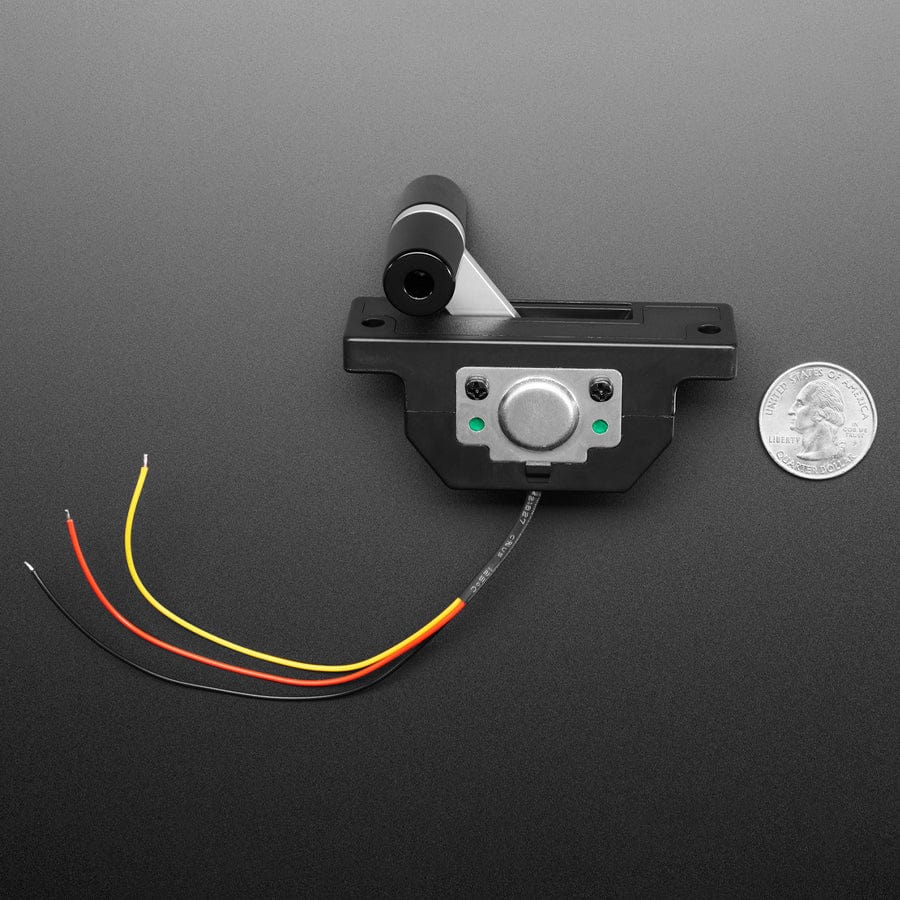

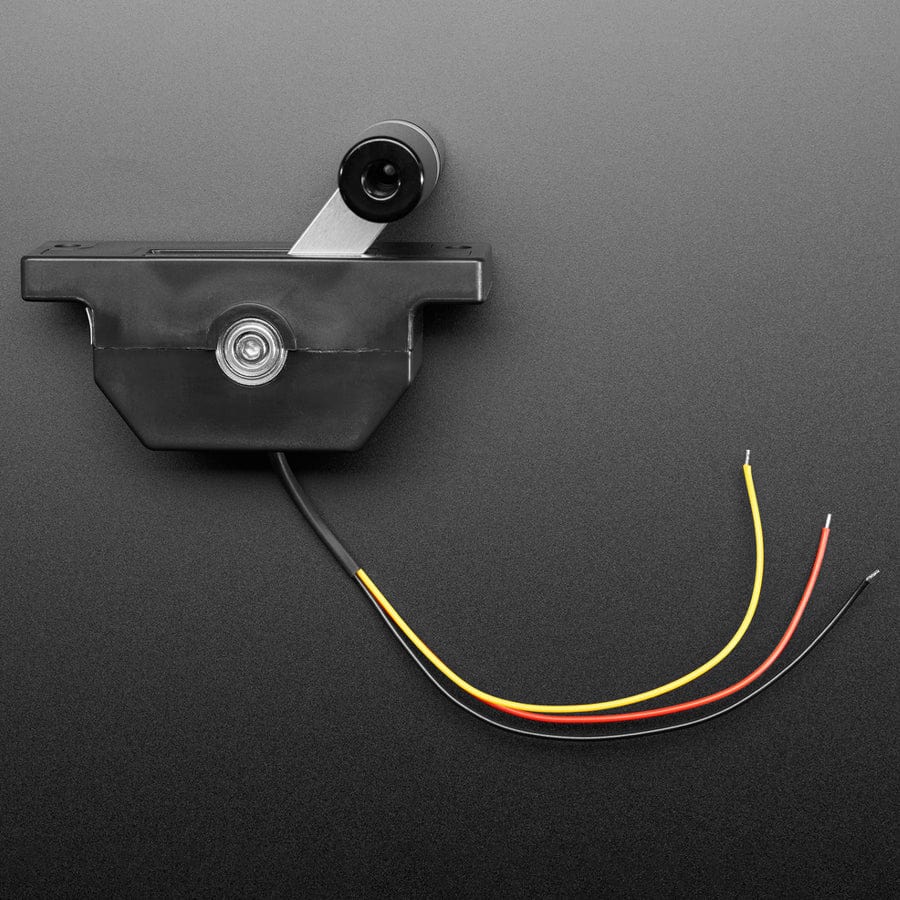

You might recognize this interesting new component from behind-the-scenes studio clips of audio recording equipment or even music videos. A fader is a control device for fading or changing the sound volume, light intensity, or simply the gain on an audio or video signal.
Here is a small, black handheld-size DIY version for your next audio or music (maybe even with a NeoTrellis?) project. Connect the red wire to 5V, black wire to ground, and the yellow wire to your input to get a smooth-to-operate control with a pro quality feel. This isn't a potentiometer, instead, it uses a hall effect sensor: this means no scratchy, jumpy or worn-out knobs after years of use.
Specifications
- Single axis
- Hall effect sensor
- Operating angle: 76 degrees (+/- 38 degrees)
- Input: 5VDC
- Output: 0.5V / 0.3-4.7V / 0.5-4.5V
- Waterproof rating: IP54
- Wire length: ~30cm
- Diagram
Original: $97.33
-65%$97.33
$34.07Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
You might recognize this interesting new component from behind-the-scenes studio clips of audio recording equipment or even music videos. A fader is a control device for fading or changing the sound volume, light intensity, or simply the gain on an audio or video signal.
Here is a small, black handheld-size DIY version for your next audio or music (maybe even with a NeoTrellis?) project. Connect the red wire to 5V, black wire to ground, and the yellow wire to your input to get a smooth-to-operate control with a pro quality feel. This isn't a potentiometer, instead, it uses a hall effect sensor: this means no scratchy, jumpy or worn-out knobs after years of use.
Specifications
- Single axis
- Hall effect sensor
- Operating angle: 76 degrees (+/- 38 degrees)
- Input: 5VDC
- Output: 0.5V / 0.3-4.7V / 0.5-4.5V
- Waterproof rating: IP54
- Wire length: ~30cm
- Diagram
