SMD Grove Headers with Locating Pins - 20-Pack

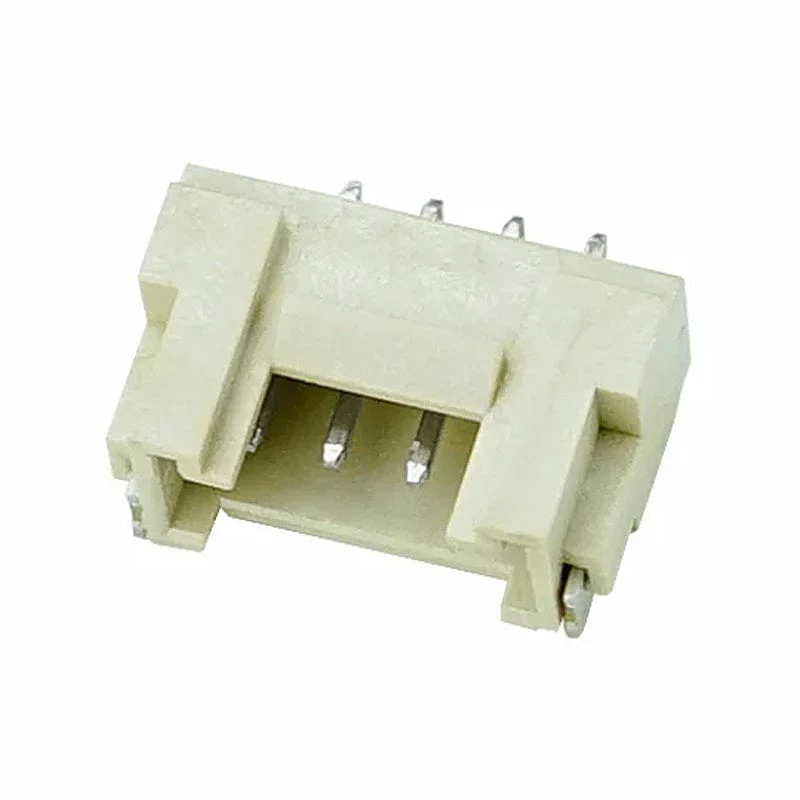

This is a pack of 20 SMD Grove connectors with a locating pin. You can easily apply it to your PCB design to create an easier and quicker connection to the M5Stack Unit system, which will help expand functionality.
Note: This product differs from the terminal shape specifications used with M5Stack connectors in design and specifications, thus recommended for DIY use only. It seems odd that M5Stack would offer these, considering the above note and lack of detail around the differences, however a customer asked us to stock them, so here they are!
Features
- Grove SMD connectors
- SMD type for compact PCB mounting
- Locating pins for easy alignment
- Grove-compatible for modular connections
- Non-standard to the usual M5Stack design – DIY use only
- Ideal for prototyping and custom builds
Specifications
| Pitch | 2.0mm |
| Number of pins | 4P |
| Form Factor | R-90° (with pins) |
| Operating Temperature | -25 ~ 105°C |
| Insulation Resistance | ≥1000MΩ |
Resources
Package Contents

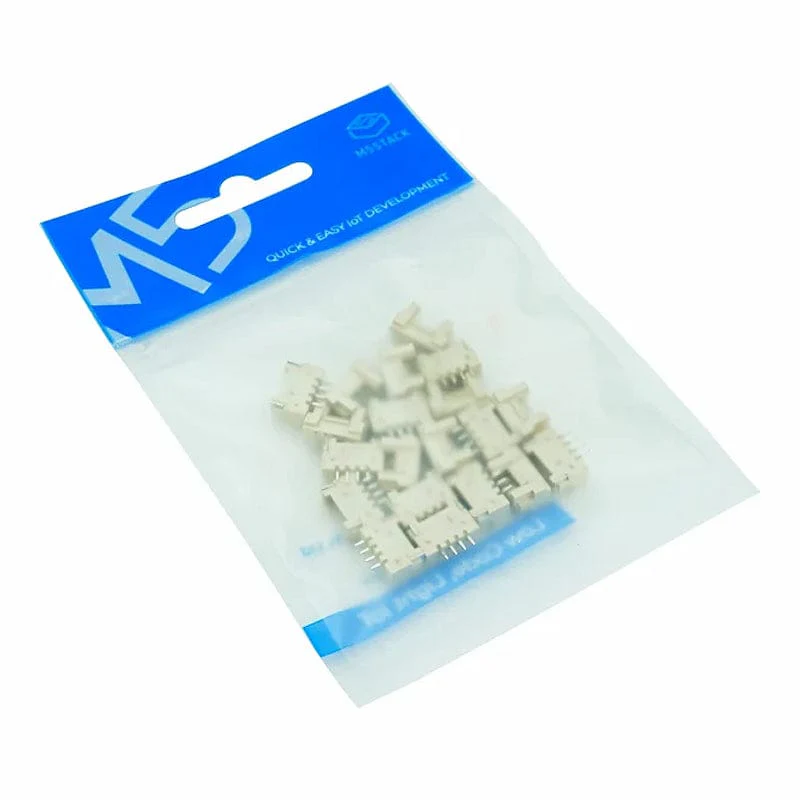

- 20x Grove SMD socket headers
