Solar Panel (9v 600mA)
Need a clean energy source for your project? Check out this compact, high-quality, high-output, endurable solar panel.
The peak power output is around 9V at 600mA. It can also be used in series to recharge 12V batteries.

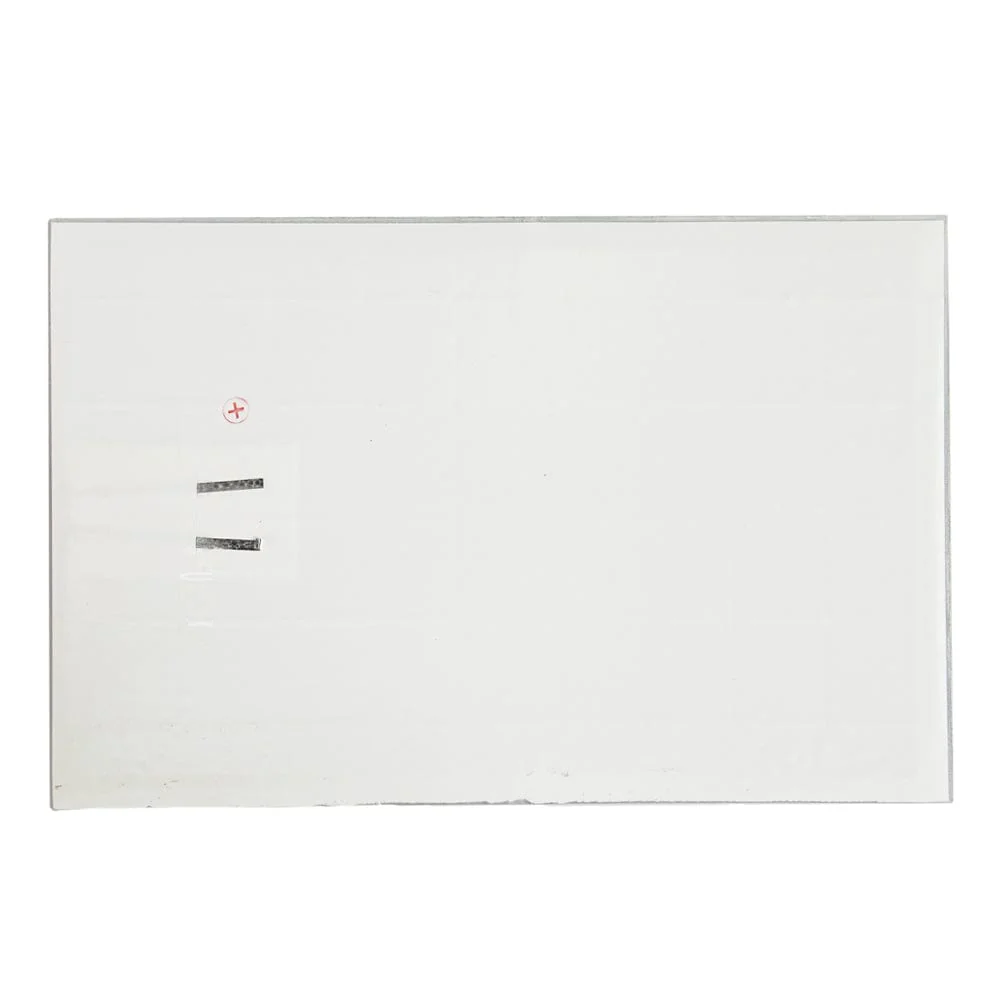

The ultra-white glass lamination process provides an efficient and waterproof surface for the panel. The back of the panel has separate aluminium wires.
Note: The above refers to the electrical performance parameters measured under standard test conditions, namely: light intensity 1000W/㎡, spectrum AM1.5, cell temperature 25°C.
Specifications
- Working Voltage: 9V
- Maximum Working Current: 0.6A
- Open Circuit Voltage: 10.8V
- Short Circuit Current: 0.825A
- Power: 5.4W
- Storage Temperature: -20°C~60°C

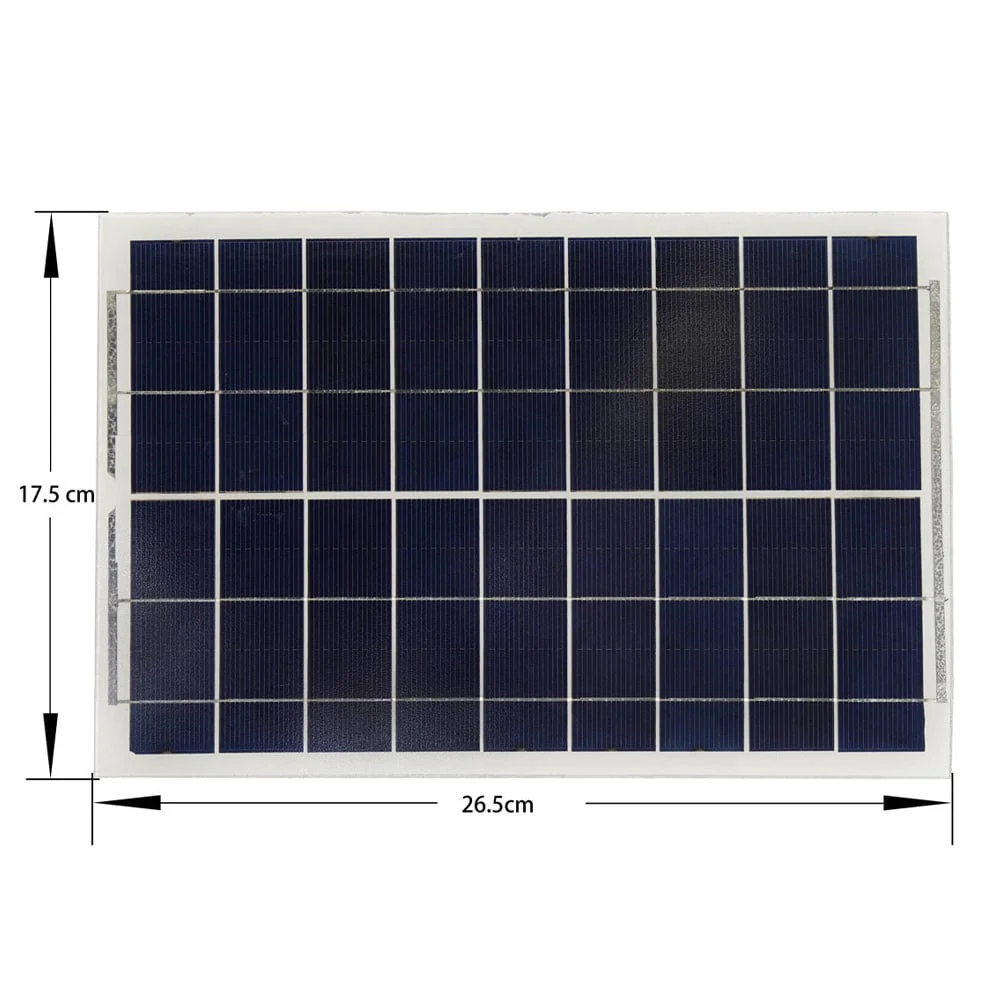

- Size: 265*175mm
Package Contents
- 1x Solar Panel (9v 600mA)
Revision History
- As of 14/05/2025 we are stocking an updated version from DFRobot with a greater peak output.
