SparkFun Digital Temperature Sensor Breakout - AS6212 (Qwiic)

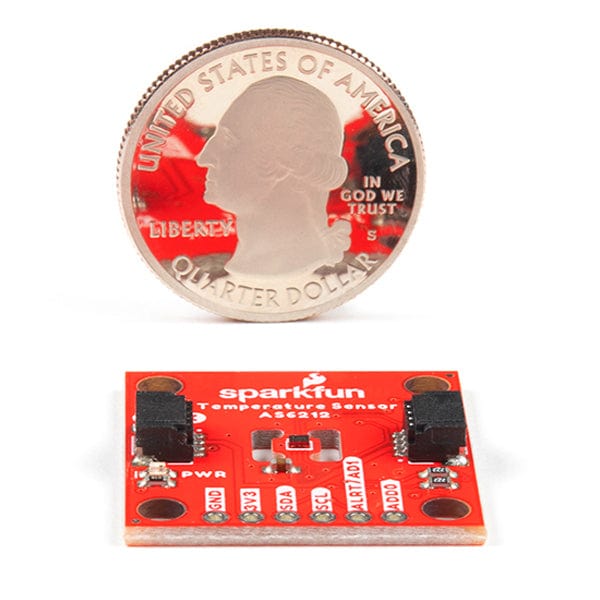

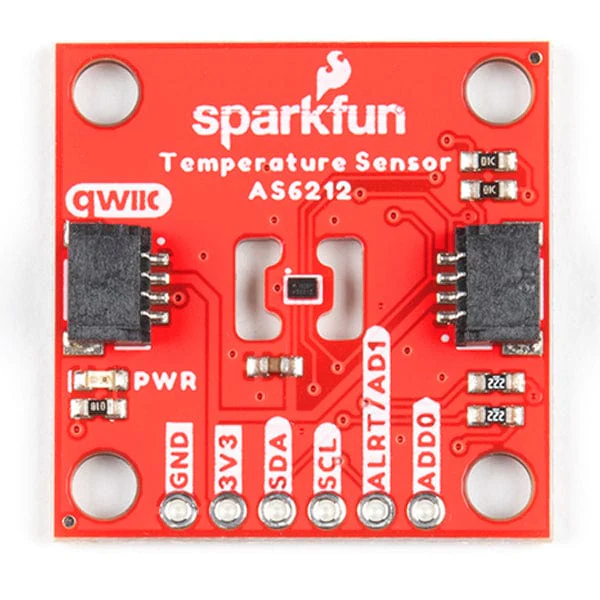

This SparkFun Qwiic Digital Temperature Sensor Breakout provides a combination of high temperature accuracy with excellent low power consumption using the AS6212 digital temperature sensor from ams AG. The sensor measures temperature data up to ±0.2&degC; accuracy over a wide range (-40&degC; to +125&degC;) and consumes an average of 6µA in normal operation (0.1µA in standby). The AS6212 communicates via I²C and has eight available I²C addresses selected by a pair of solder jumpers on the board. The breakout routes the I²C interface to a pair of Qwiic connectors to work with our plug-and-play Qwiic Ecosystem but also routes the bus and other pins to a standard 0.1"-spaced PTH header for users who prefer a soldered connection.

The AS6212 features an alert output to trigger when recorded temperature data crosses user-designated thresholds. The low and high values make it perfect to monitor systems that must remain in a specific temperature range. Along with the alert pin, the AS6212's sleep mode works with a single-shot temperature measurement to wake the device, take a single reading and then return to sleep mode for extreme low-power/battery-powered temperature measurement projects.

Get Started with the AS6212 Digital Temperature Sensor Guide

• Communicates via I²C (Qwiic enabled)
• Eight selectable I²C addresses (0x48 Default)
• Operating Temperature Range: -10°C to 125°C
• High Temperature Accuracy:
  • ±0.2°C from -10°C to 65°C
  • ±0.3°C from -40°C to -10°C and 65°C to 85°C
  • ±0.5°C from 85°C to 125°C
• Operating Voltage Range: 1.7V - 3.6V
• Low Power Consumption
  • 6µA typical
  • 0.1µA standby
