ThirdReality Motion Sensor R1

Important - whilst this sensor uses an mmWave sensor, this is a motion sensor, not a presence sensor. Read on to find out why!

---

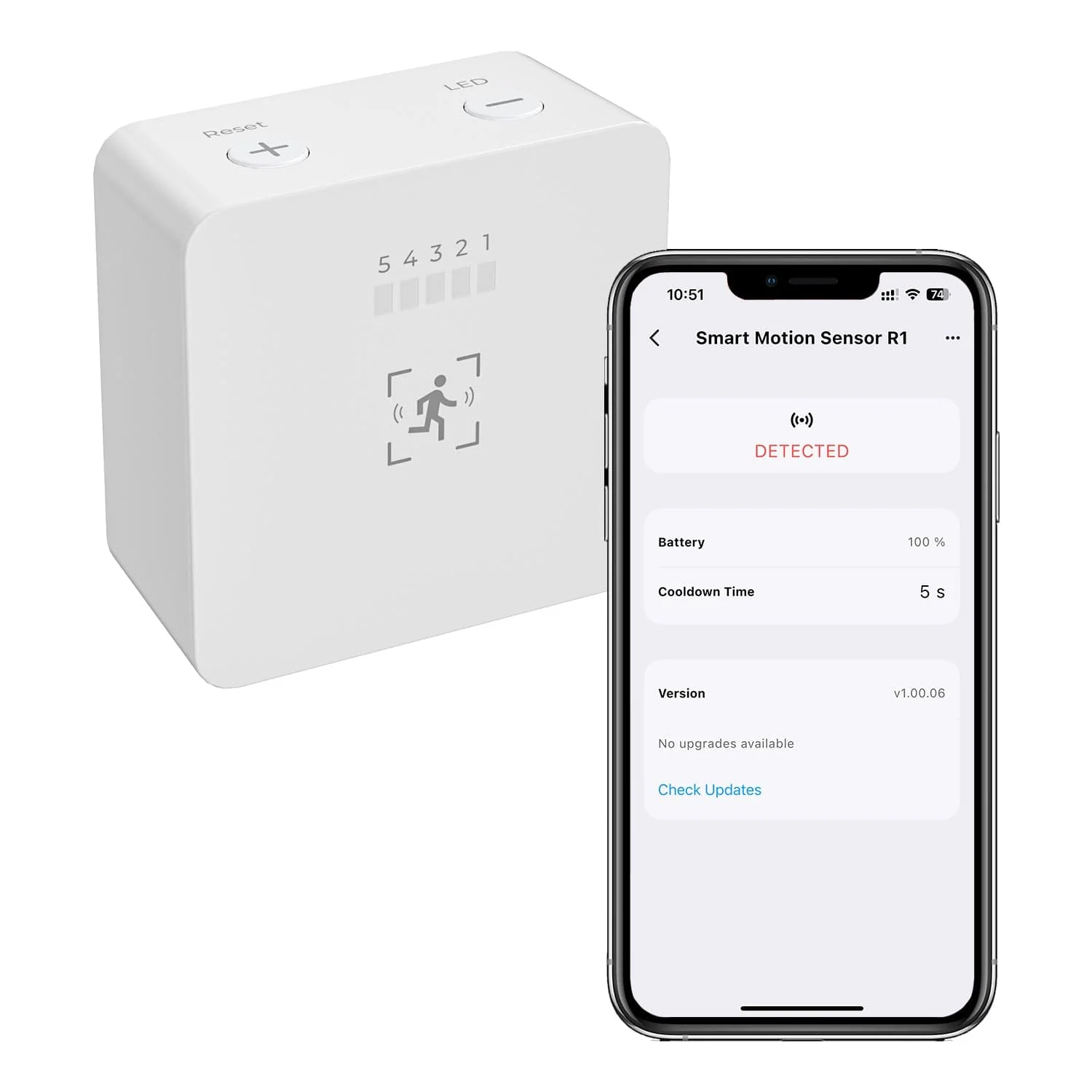

The ThirdReality Zigbee Motion Sensor R1 is a Zigbee 3.0 motion sensor designed for reliable, real-time motion detection. It requires a compatible Zigbee hub and works with a wide range of platforms, including Home Assistant, SmartThings, Hubitat, Homey and other Zigbee-compatible smart home hubs. This is a motion sensor, not a presence sensor.

Motion is detected using mmWave technology, so detection is not affected by heat or sunlight. Sensitivity and detection range can be adjusted directly on the device using physical buttons, without opening an app. The range can be manually set between 1.5 and 9.5 metres, making it easy to adapt to different room sizes and layouts. When paired with a compatible (Zigbee-enabled) hub, the sensor can trigger automations for your smart home, such as switching lights on or off or sending notifications when motion is detected.

The Motion Sensor R1 is powered by three AA batteries (included) and requires no wiring, allowing flexible placement. Battery life is rated at up to three years under typical use. Additional features include adjustable cool-down time and over-the-air software updates.

mmWave - but not as we know it!

Wait - an mmWave motion sensor, but without zones, presence sensing and the usual mmWave features? Yes that's right, weird eh? It's a unique alternative to the common PIR sensor, with the mmWave undertaking simple motion sensing only. The benefits being:

• Slightly better range
• Able to detect though surfaces/hide inside cupboards etc (if that's a good thing for your scenario)
• Detection not impacted by heat or sunlight
• Fine adjustment ability
• Low power consumption
• Battery powered (using readily-available AAA batteries)

There is also some discussion about this sensor over on Reddit, which is worth a read before purchasing so that you understand how the sensor works, and some views on use cases.

Community Video

Features

• Zigbee 3.0 motion sensor requires a compatible Zigbee hub
• Wide hub compatibility includes Home Assistant
• mmWave-based detection not affected by heat or sunlight
  • Motion detection only, not a presence sensor
• Real-time motion detection for alerts and automations via a compatible hub

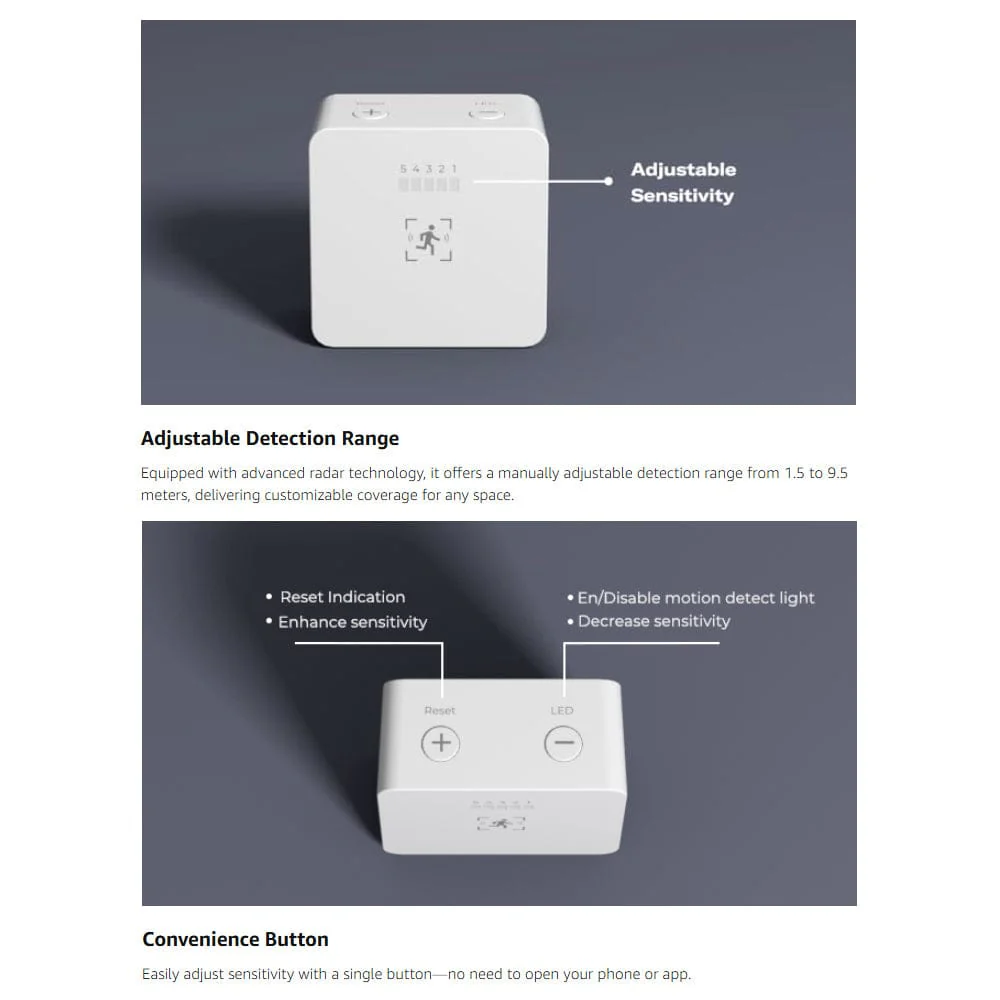

• Adjustable sensitivity and range set on-device with buttons
• Detection range manually adjustable from 1.5 to 9.5 metres
• Battery powered runs on three AA batteries (included) with up to three years typical battery life
• No wiring needed flexible placement
• Extra settings and updates adjustable cool-down time and over-the-air software updates

Specifications

Power source	Battery powered
Maximum range	10 metres
Mount type	Casual placement
Batteries required	3 × AA batteries (included)
Item weight	136g
Dimensions (D × W × H)	3.0 × 6.5 × 6.5 cm
Colour	White
EAN	0850001595865

Resources

• User manual
• ThirdReality forum
• ThirdReality app
  • Android
  • iOS

Package Contents

• 1x ThirdReality Motion Sensor R1
• 1x User manual
• 3x AA Battery
