USB CDC Serial Adaptor (5v) [Discontinued]

This is a USB Serial Adaptor. Using jumper wires it can be used for Arduino programming (using RTS for reset) or similar boards.

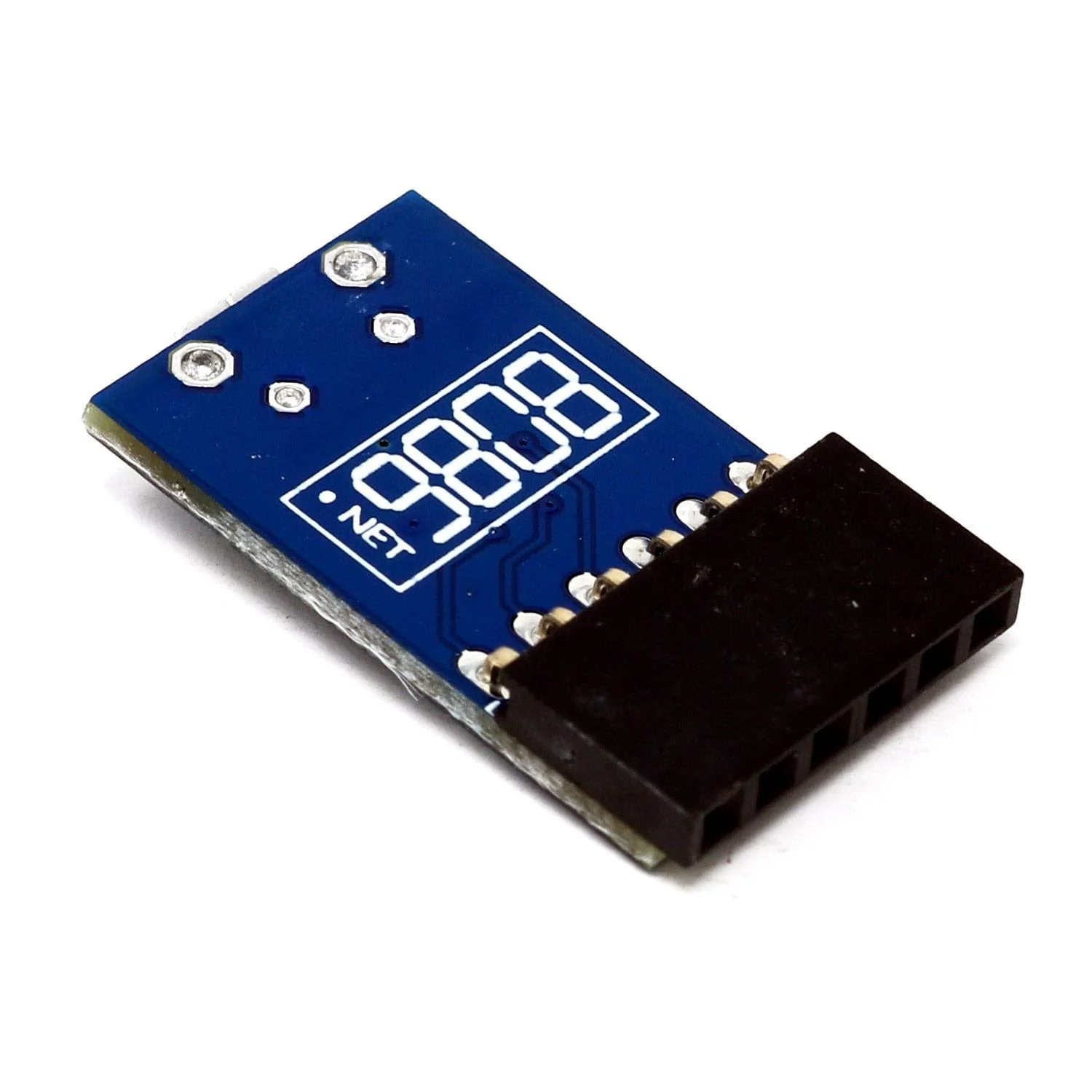

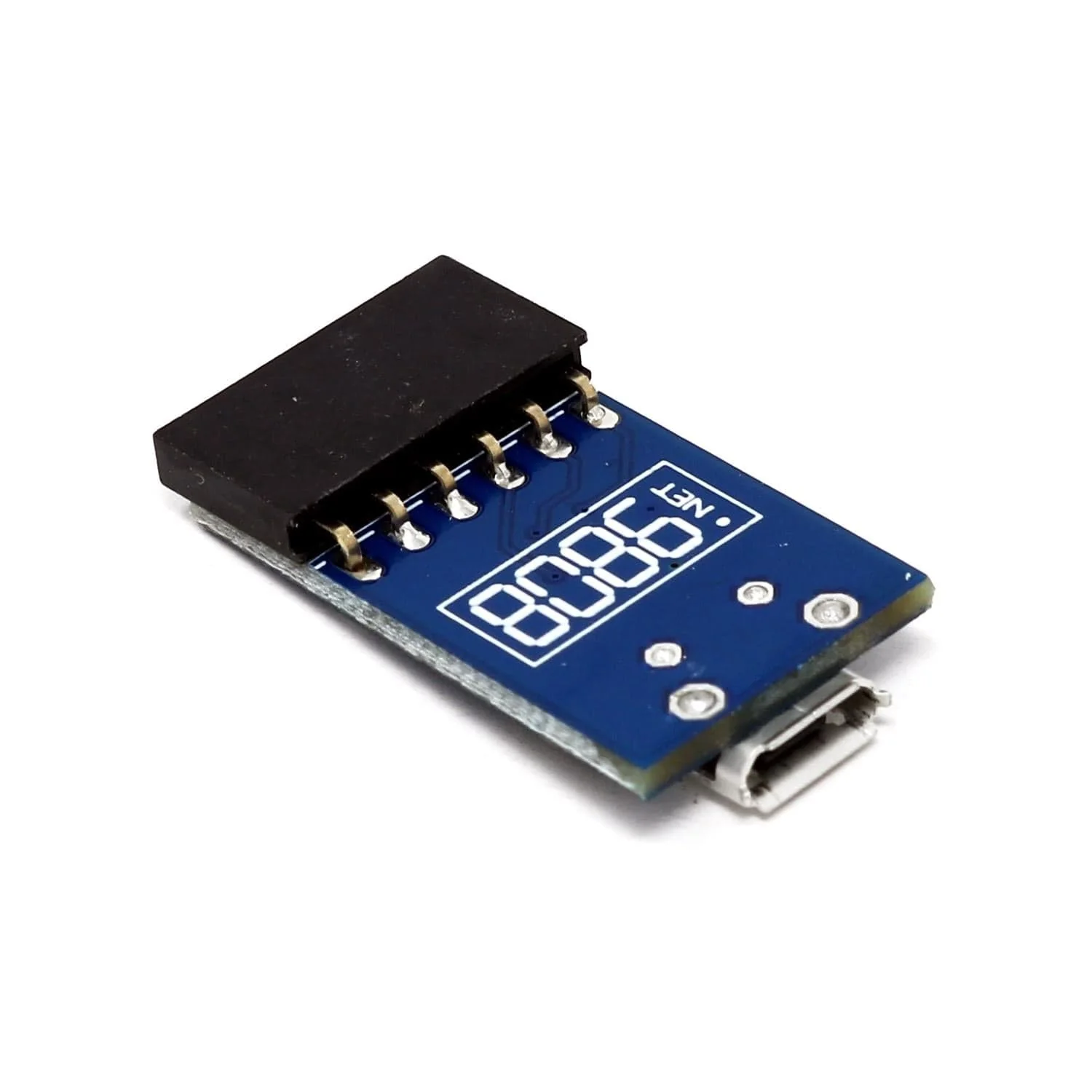

The board uses through-hole connections on both the micro-USB and 6-way 0.1" header socket for a more robust product over the surface mount alone.

This module can only be used with systems using 5V, connecting to those using higher/lower voltages may result in damage. Click here for a 3.3V version.

The IC used in the module enumerates as a Communication Device Class (CDC) device which modern (Win10/Linux/Mac OS X) operating systems have built-in drivers for.

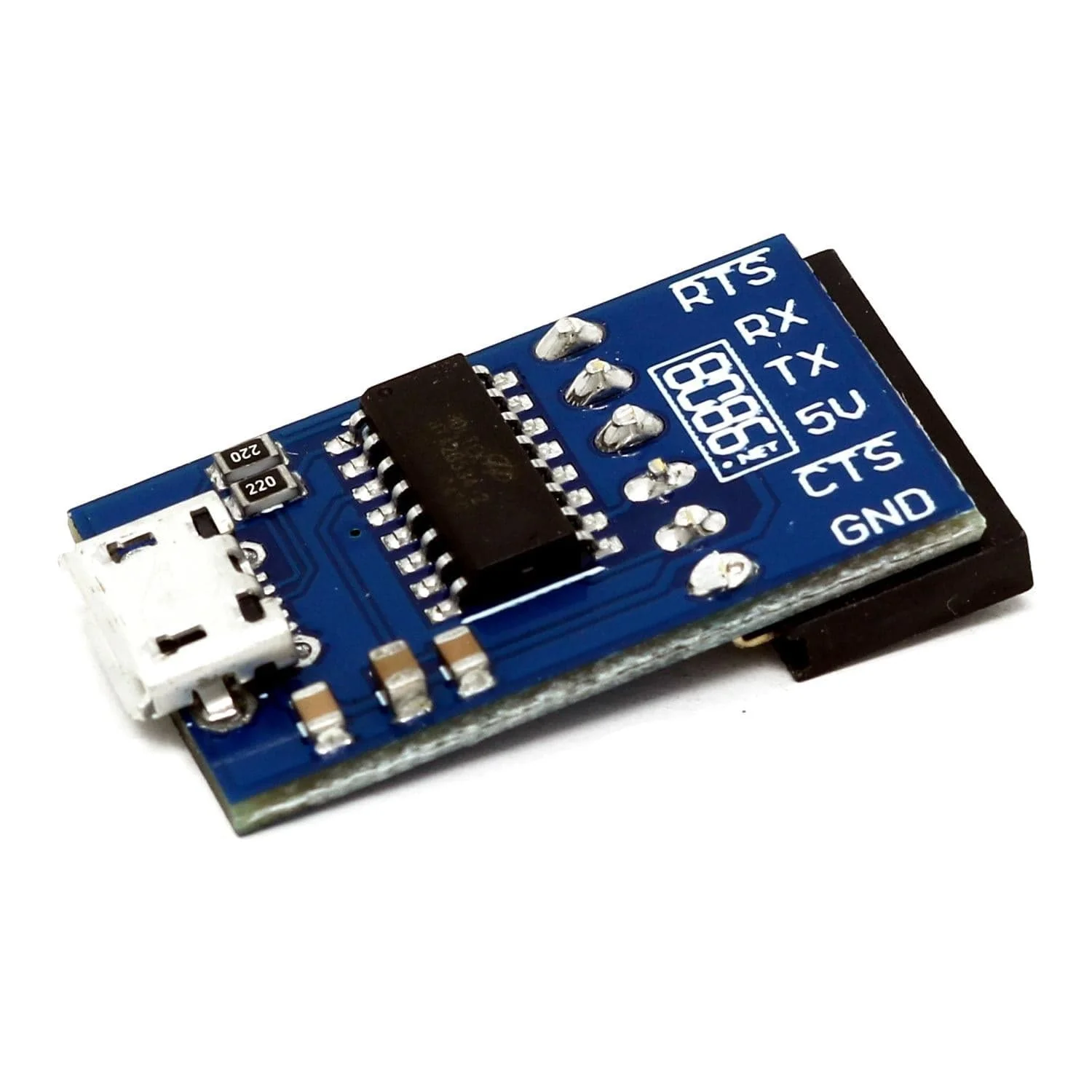

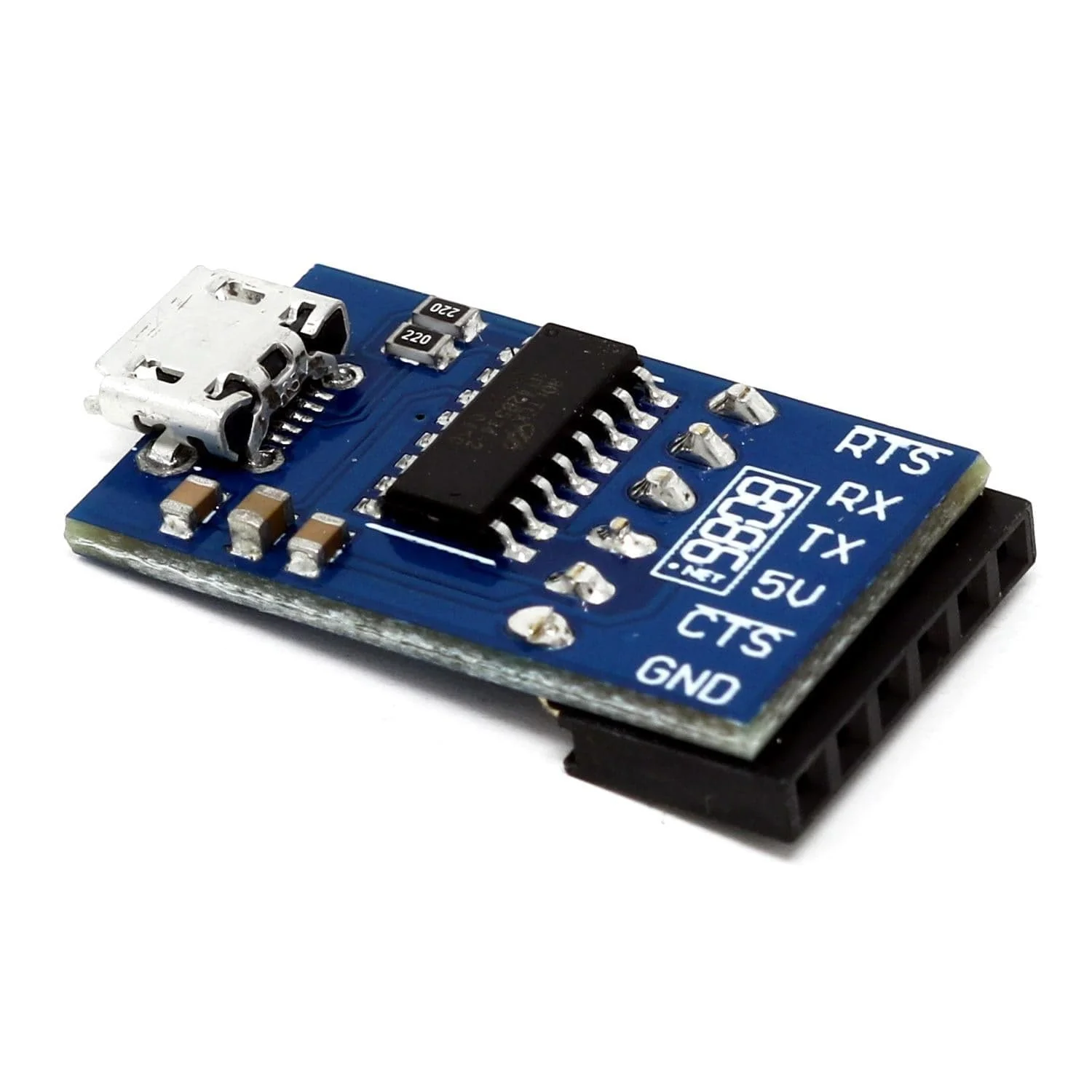

Pinout

Pinout	Description
RTS	Request to send
RX	Receive (connect to remote TX)
TX	Transmit (connect to remote RX)
5V	5V supply
CTS	Clear to send
GND	Ground

Baud Rates

The following baud rates are supported

Baud rate	Miss rate (%)
2,400	0.16
4,800	0.16
9,600	0.04
19,200	0.04
38,400	0.16
57,600	0.16
115,200	0.16
230,400	0.16
460,800	0.79
1,700,000	0.84
2,300,000	0.62
3,400,000	0.84
