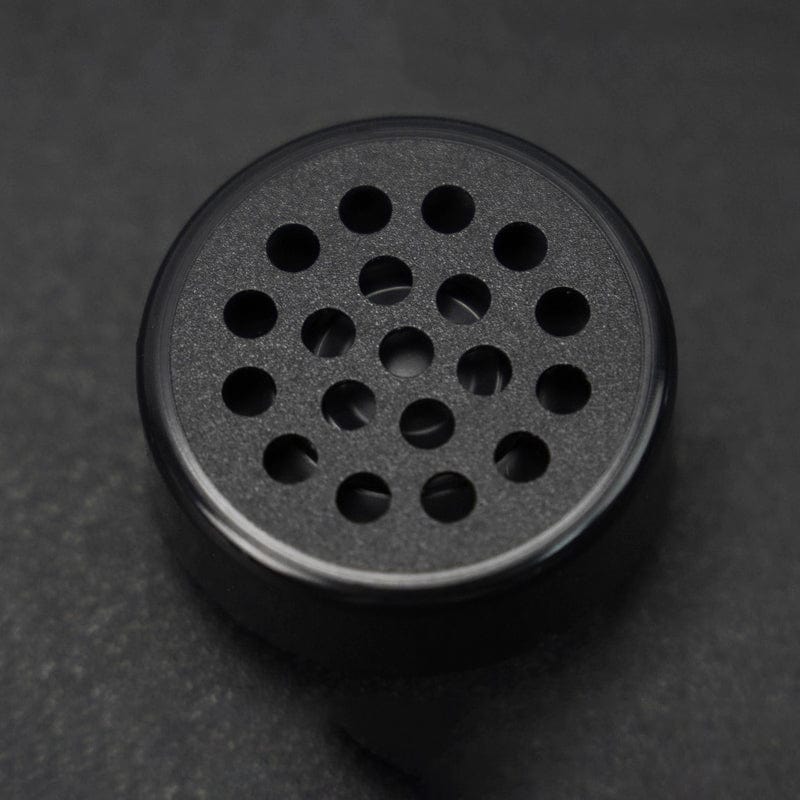

Voice Prompt Module with MP3 Player and Speaker

This voice prompt module combines an MP3 playback chip with a built-in speaker, allowing it to operate independently with just a power supply, battery, and buttons, or be controlled via serial commands. Supporting MP3, WAV, and WMA formats, it has playback with clear sound quality, thanks to a high-quality DAC output. You can connect this to a Raspberry Pi, computer, or other microcontrollers!

With 16MB of internal storage, it can hold plenty of MP3 files, and it operates effectively across temperatures from -20℃ to +70℃, making it suitable for various environments. The module’s design gives easy control through basic buttons or serial commands, and its TTL-level serial communication connector makes putting it into your project much easier without complex programming.

Features

• Compact Design
• High-Quality Audio Playback
• Decent Storage and Operation
• Easy Integration and Control
• Can be used with many different voice projects

Specifications

• Power supply voltage: DC 5V
• Output power: 1W
• Speaker impedance: 4Ω
• Trigger mode: TTL level serial communication/1-channel switch
• Trigger functions for P1 interface:
  • Short press: Next track
  • Double press: Previous track
  • Long press: Pause/Play
• Storage capacity: 16M
• Operating temperature: -20℃ to +70℃

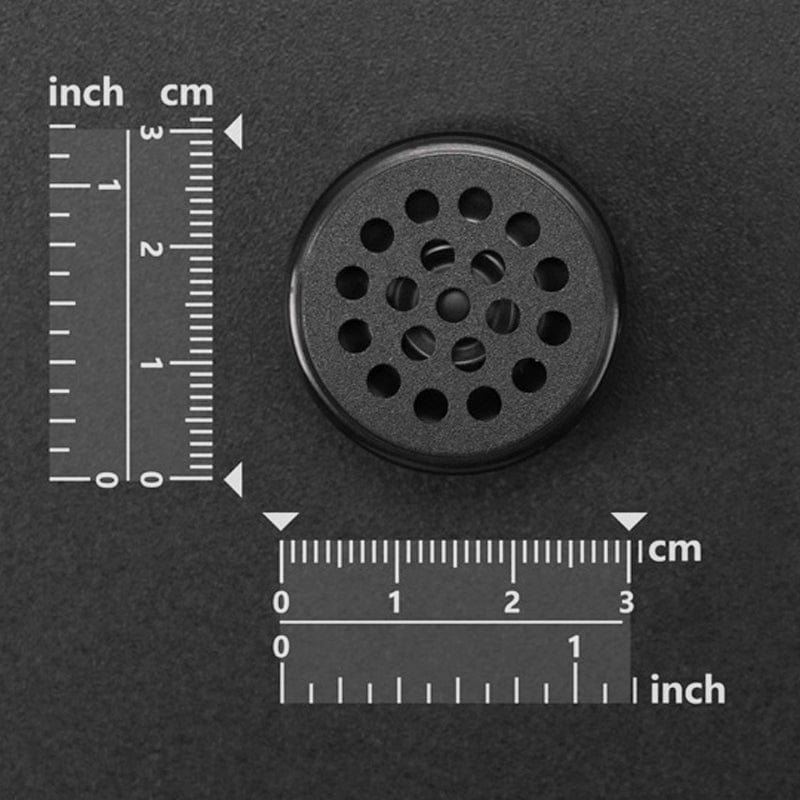

• Dimensions: 30 x 11mm

Resources

• Product Manual

Pinout

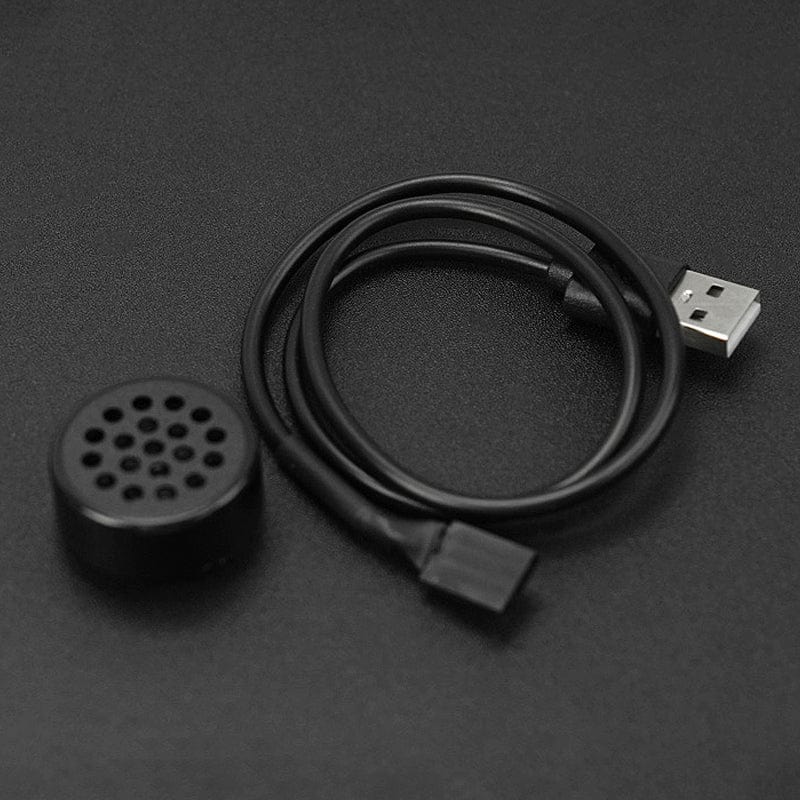

Package Contents

• 1x MP3 Voice Prompt Module
• 1x USB to 4-pin DuPont cable
