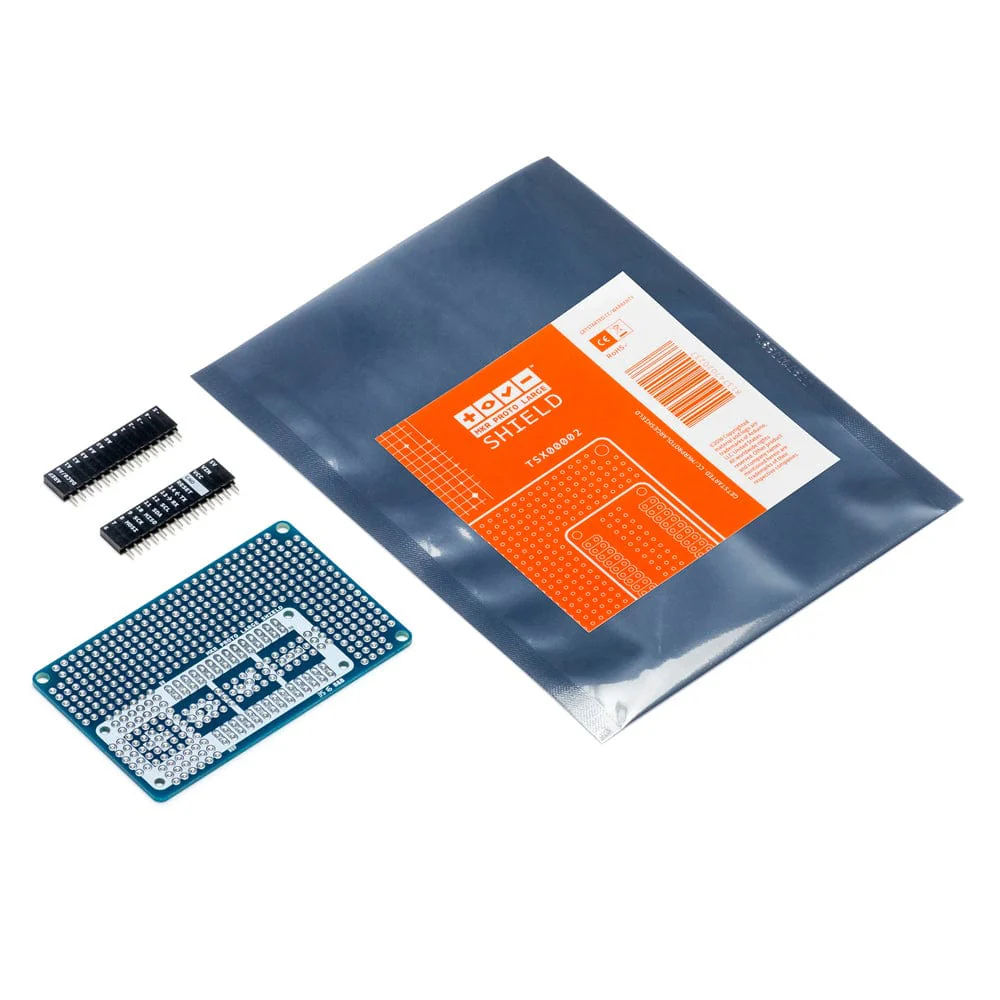

Arduino MKR Proto Large Shield

The MKR Proto Large Shield fits onto your MKR board using its provided female/male headers and enables you to fix it wherever you want with the mounting holes.

This shield features a larger prototyping area with more than 300 solder points and makes connecting components to your board super simple, thanks to the silk that indicates the MKR board pins location.

You can find a smaller version of this board here

Note: MKR board not included

Specifications

Digital I/O Pins	21
PWM Digital I/O Pins	Depending on the board
Analog Input Pins	7
Analog Output Pins	Depending on the board
DC Current per I/O Pin	Depending on the board
DC Current for 3.3V Pin	Depending on the board
DC Current for 5V Pin	Depending on the board
Length	80 mm
Width	50 mm
Weight	19g

Resources

• Schematics
• Eagle Files
