Arduino MKR Proto Shield

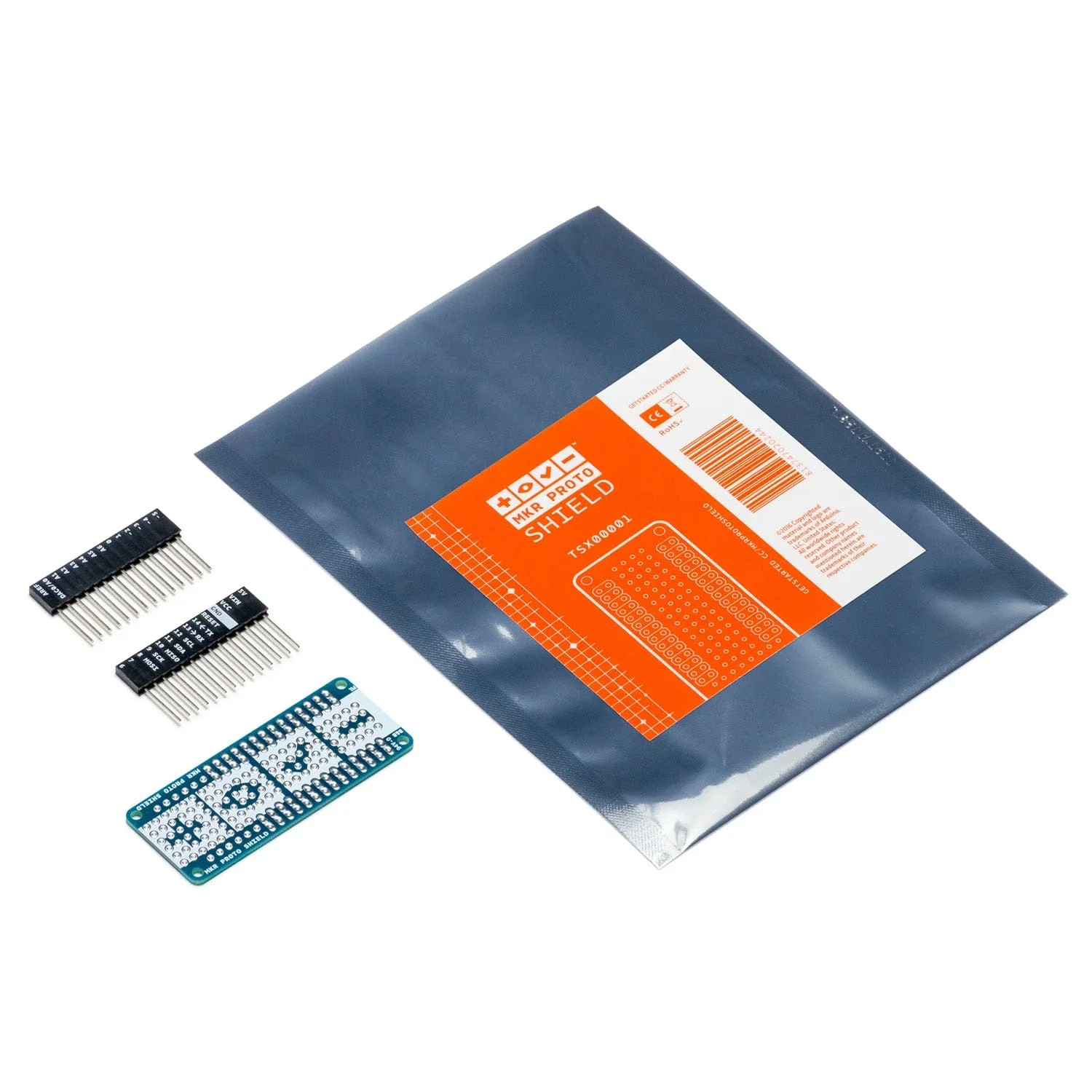

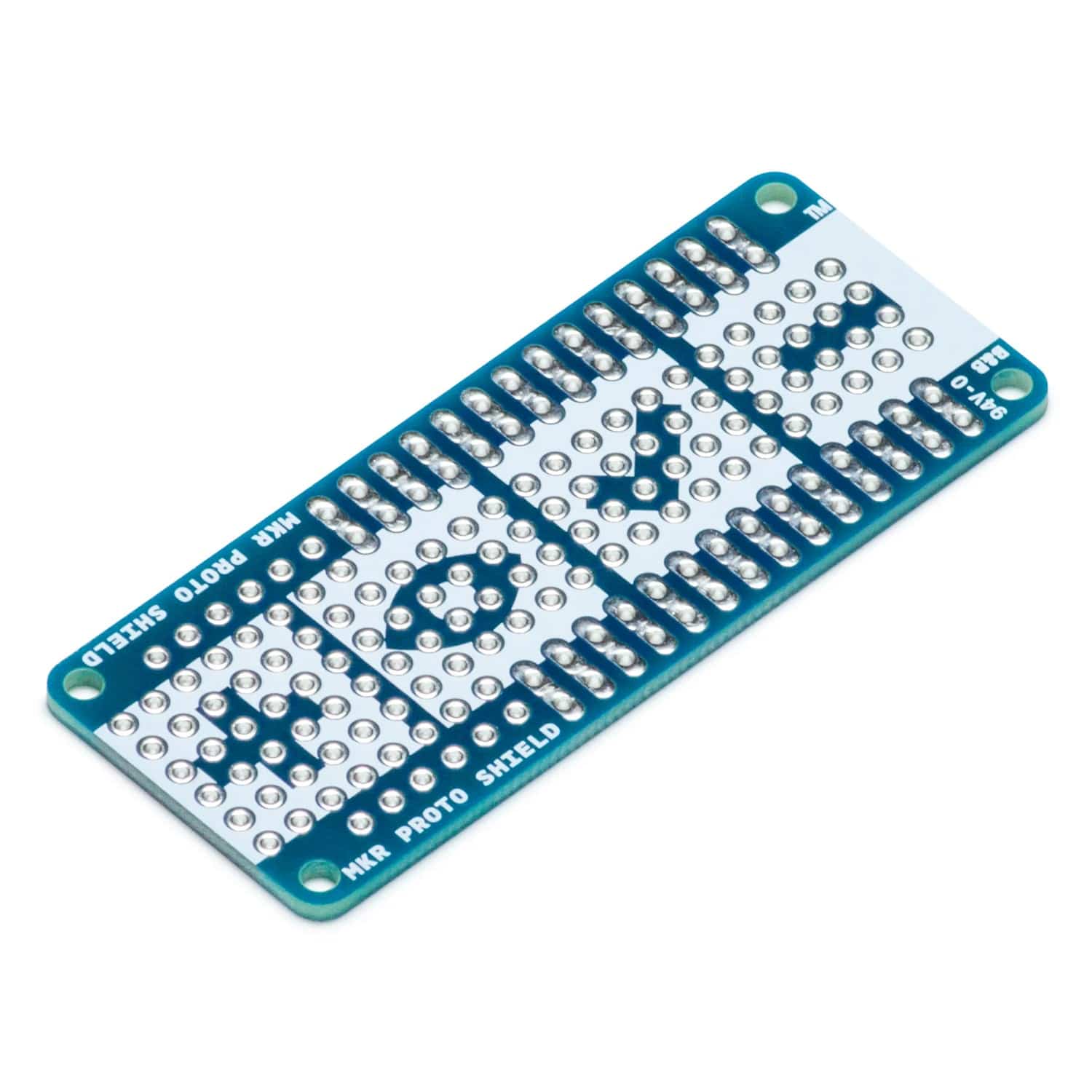

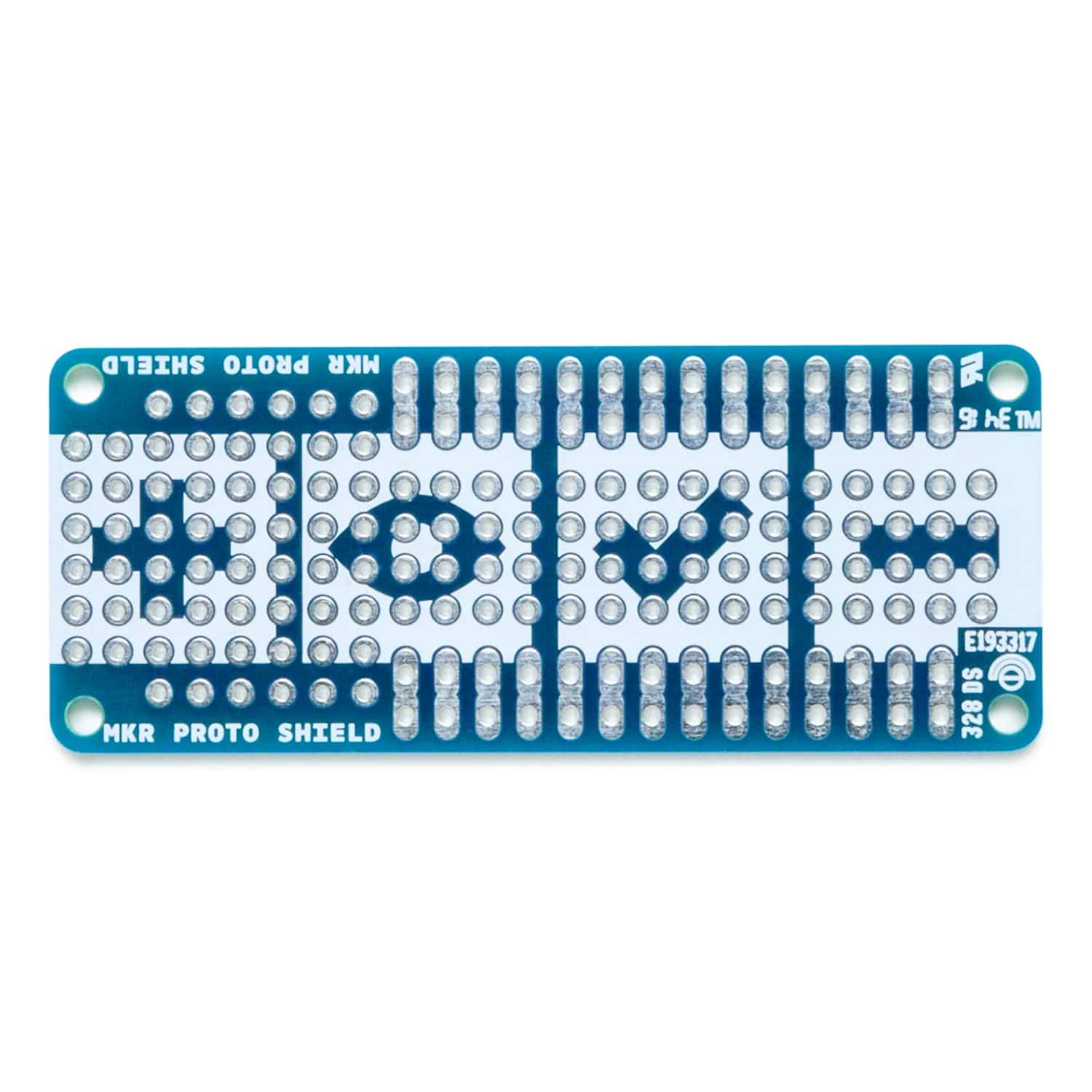

The MKR Proto Shield is a prototyping shield designed for your MKR board. This shield easily plugs onto your MKR using its provided female/male headers, and offers a duplicate breakout for each pin on the board along with many solderable through-holes on a standard 0.1” grid (2.54mm).

Specifications

Digital I/O Pins	21
PWM Digital I/O Pins	Depending on the board
Analog Input Pins	7
Analog Output Pins	Depending on the board
DC Current per I/O Pin	Depending on the board
DC Current for 3.3V Pin	Depending on the board
DC Current for 5V Pin	Depending on the board
Length	61.5 mm
Width	25 mm
Weight	13

Resources

• Schematics
• Eagle Files
