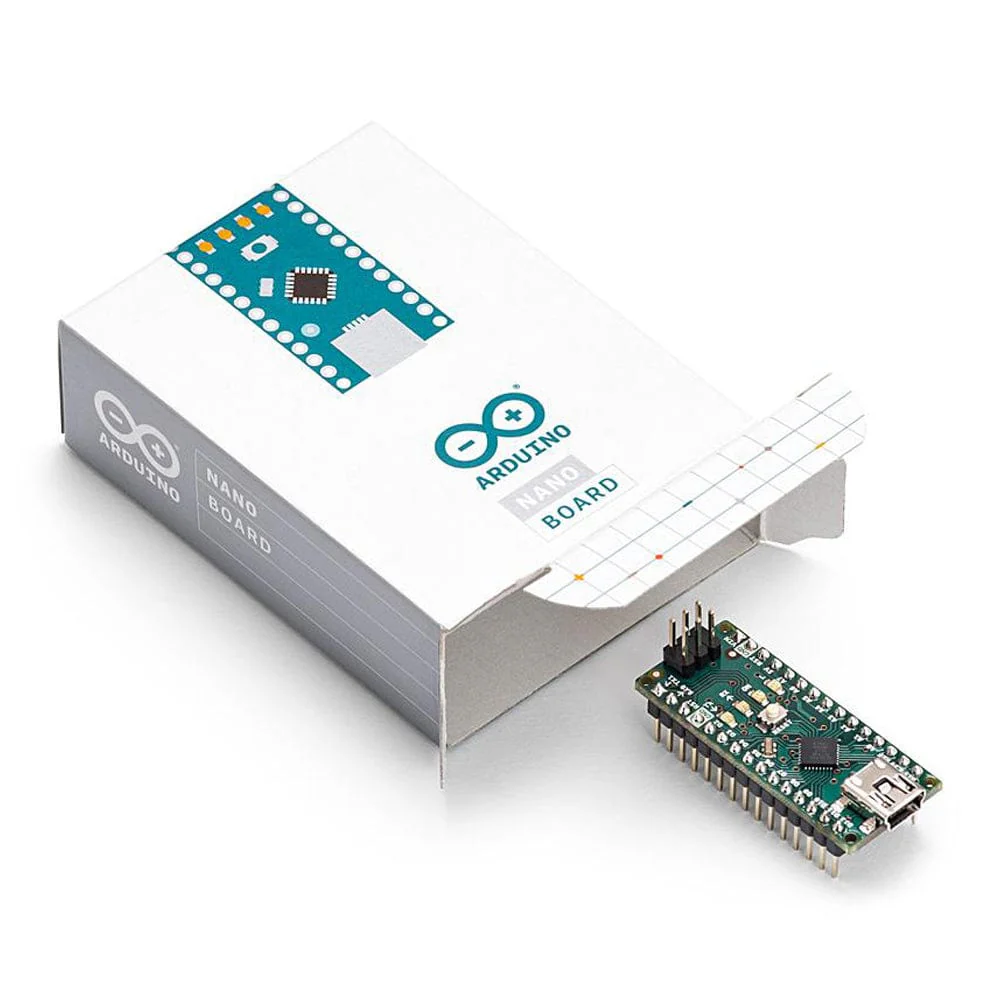

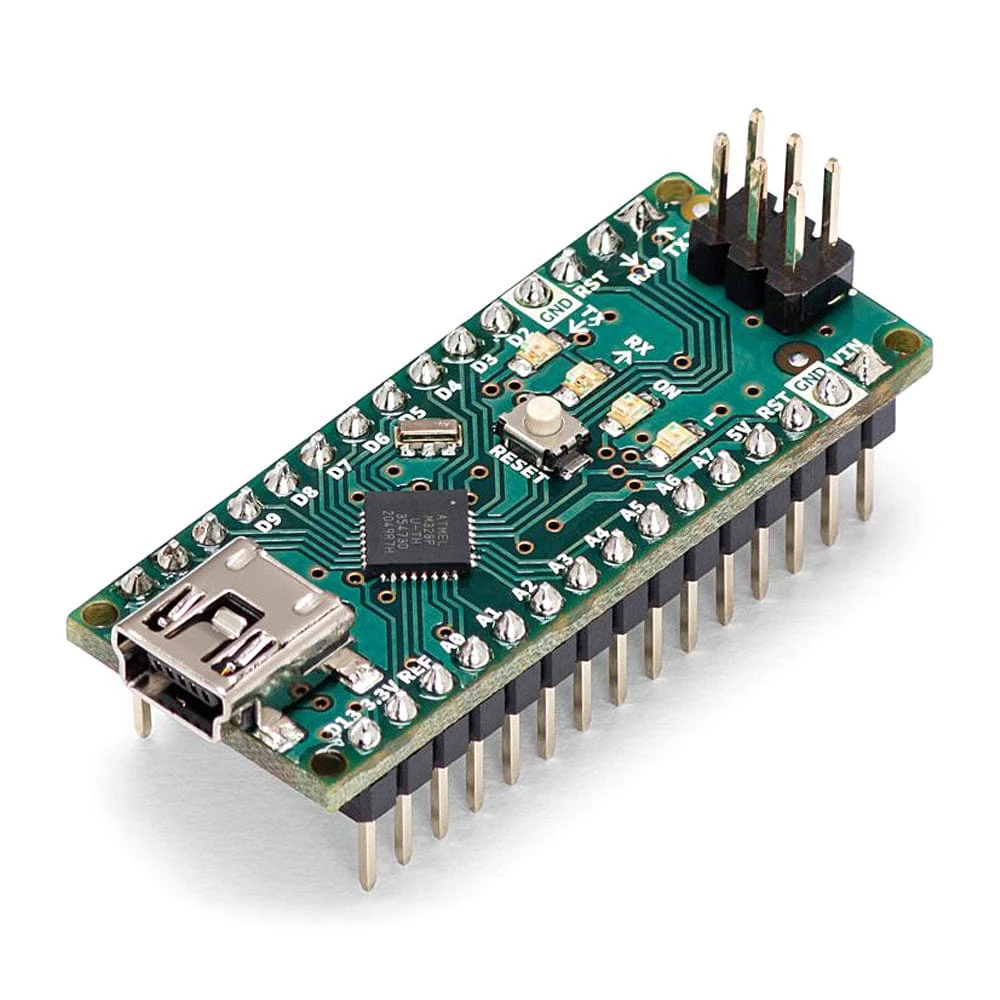

Arduino Nano (with headers)

The classic Arduino Nano is the smallest Arduino board to build your projects with.

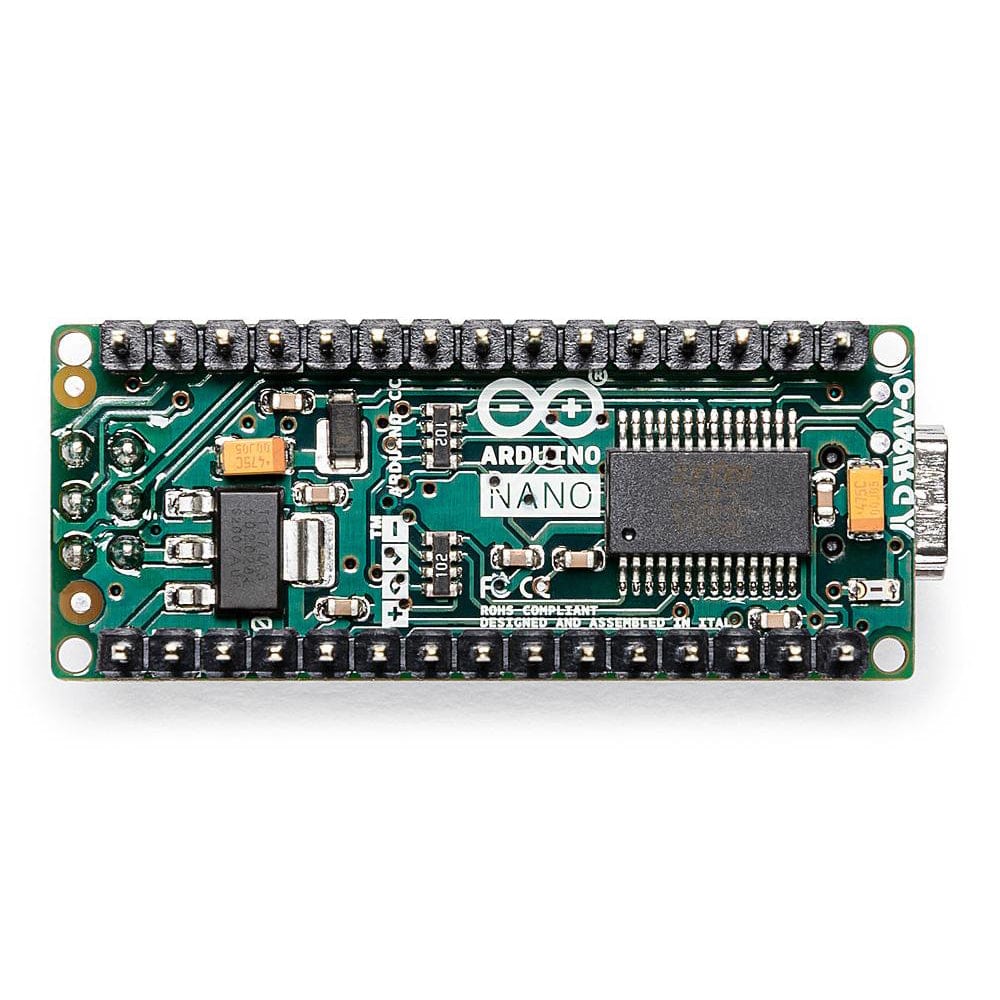

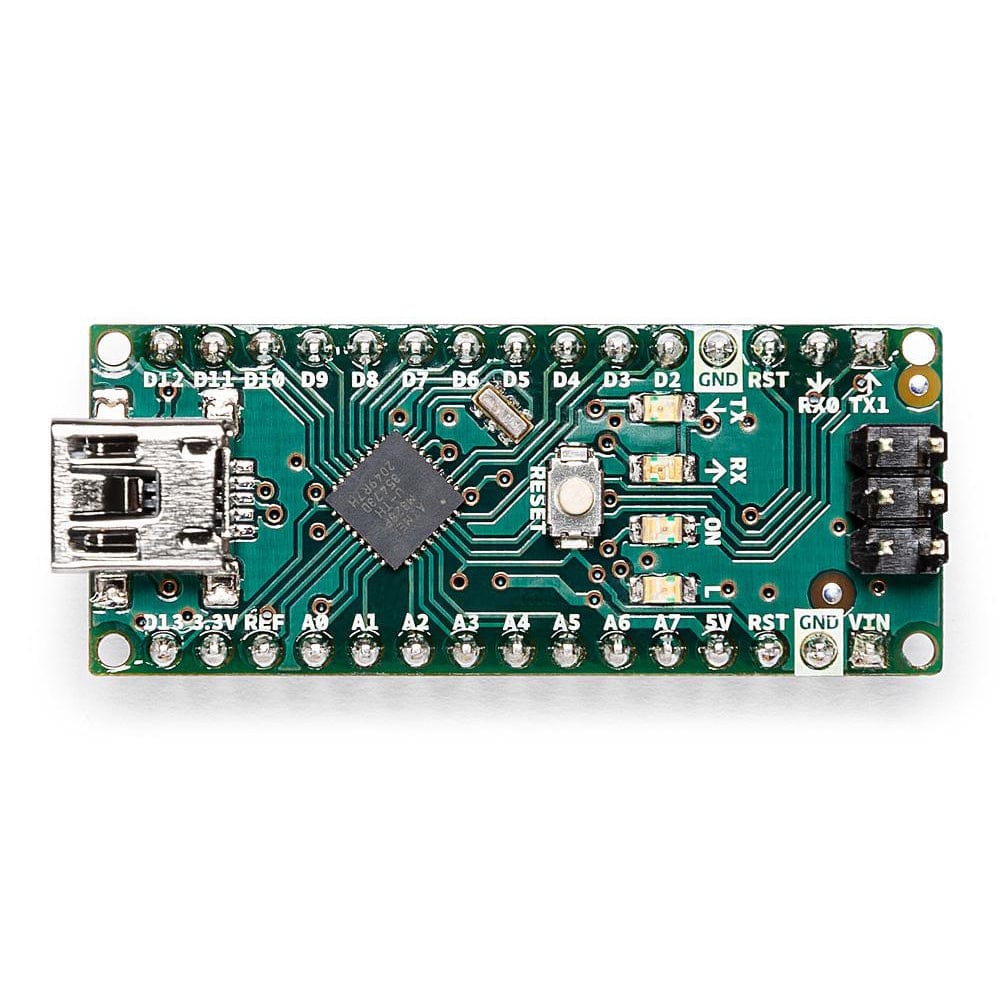

The Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3. x). It has more or less the same functionality as the Arduino Duemilanove but in a different package. It lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one.

If you want an easy way to connect the nano to other boards to expand your project, click here

Getting Started

Find inspiration for your projects with the Nano board from the tutorial platform Project Hub.

You can find in the Getting Started with Arduino Nano section all the information you need to configure your board, use the Arduino Software (IDE), and start tinkering with coding and electronics.

From the Tutorials section, you can find examples from libraries and built-in sketches as well as other useful information to expand your knowledge of Arduino hardware and software.

Resources

• Development Environments
  • Arduino IDE
  • Arduino CLI
  • Arduino Web Editor
  • Arduino IoT Cloud
• Getting Started
• Project Hub
• Arduino IDE Software
• Board Size
• Datasheet
• Arduino Nano Pinout Diagram

Specifications

Microcontroller	ATmega328
Architecture	AVR
Operating Voltage	5 V
Flash Memory	32 KB of which 2 KB used by thebootloader
SRAM	2 KB
Clock Speed	16 MHz
Analog IN Pins	8
EEPROM	1 KB
DC Current per I/O Pins	20 mA (I/O Pins)
Input Voltage	7-12V
Digital I/O Pins	22 (6 of which are PWM)
PWM Output	6
Power Consumption	19 mA
PCB Size	18 x 45 mm
Weight	7g
Product Code	A000005
