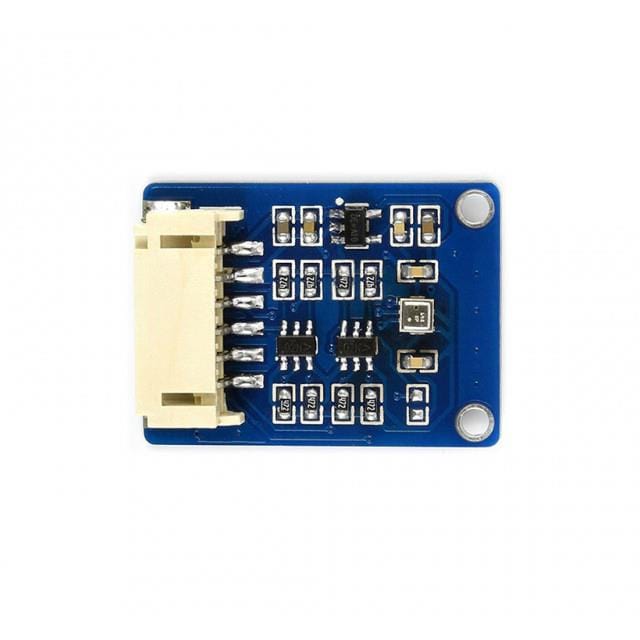

BME280 Environmental Sensor

A tiny sensor breakout with BME280 onboard, sensing environmental temperature, humidity and barometric pressure. It supports both I2C and SPI interfaces and is compatible with 3.3V/5V voltage levels.

Due to its ultra-small form factor, low power consumption, high precision and stability, the BME280 is well-suited for applications such as environment monitoring, weather forecast, altimeter and IoT projects.

The sensor comes with a 20cm PH2.0 6-pin wire.

Features

• Supports I2C (default), configurable slave address
• Supports SPI, switch to SPI via I/O setting
• Onboard voltage level translator, compatible with 3.3V/5V operating voltage
• Comes with online development resources and manual (examples for Raspberry Pi/Arduino/STM32

Specifications

• Operating voltage: 3.3V/5V
• Communication interface: I2C/SPI
• Temperature sensing: -40~85°C (resolution 0.01°C, accuracy ±1°C)
• Humidity sensing: 0~100%RH (resolution 0.008%RH, accuracy ±3%RH, response time 1s, delay ≤2%RH)
• Barometric pressure sensing: 300~1100 hPa (resolution 0.18Pa, accuracy ±1hPa)
• Power consumption: <0.1mA@1Hz (H,P,T)
• Dimension: 27mm x 20mm
• Mounting hole size: 2.0mm

Package Contents

• 1x BME280 Environmental Sensor
• 1x PH2.0 6-pin wire (20cm)

Resources

• Product Wiki and code examples

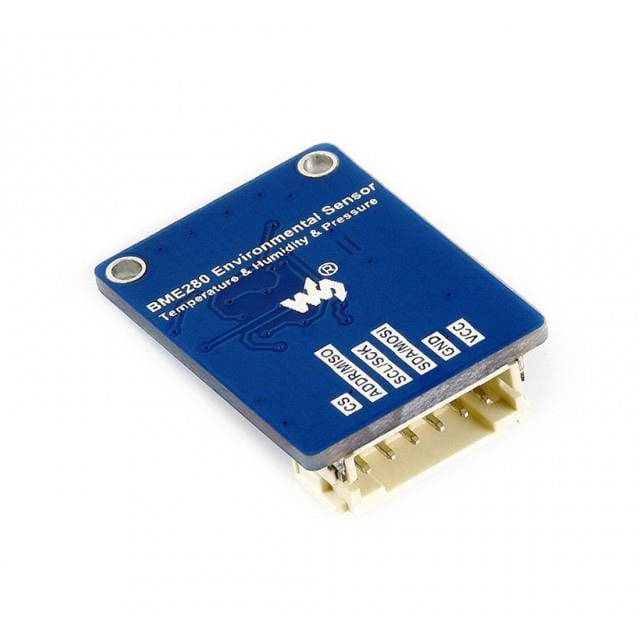

Pinout

PIN	I2C	SPI
VCC	3.3V/5V power supply
GND	Ground
SDA/MOSI	I2C data	SPI data master output/slave input
SCL/SCK	I2C clock	SPI clock input
ADDR/MISO	I2C address chip selection, high level (default) address: 0x77; low level address: 0x76	SPI data master input/slave output
CS	NC	SPI chip selection, low active
