Dust Sensor

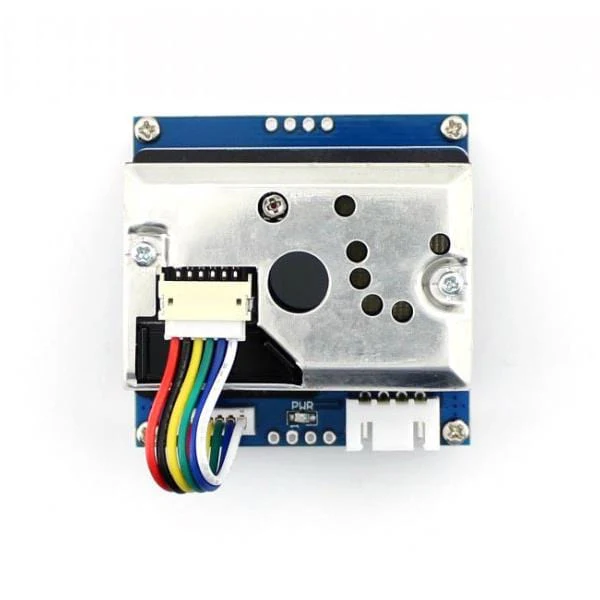

This dust sensor from Waveshare features a Sharp GP2Y1010AU0F sensor, detecting fine particle larger than 0.8μm in diameter. It's great as part of a DIY environmental sensing project.

The sensor features an onboard voltage boost circuit to support a range of power supplies.

Features

• Low power consumption
• Analogue voltage output - output level is linear with dust density
• Embedded voltage boost circuit to support a wide range of power supply
• Note: Pin headers not included

Package Contents

• 1x Dust Sensor
• 1x XH2.54 4-pin wire

Resources

• Product Wiki

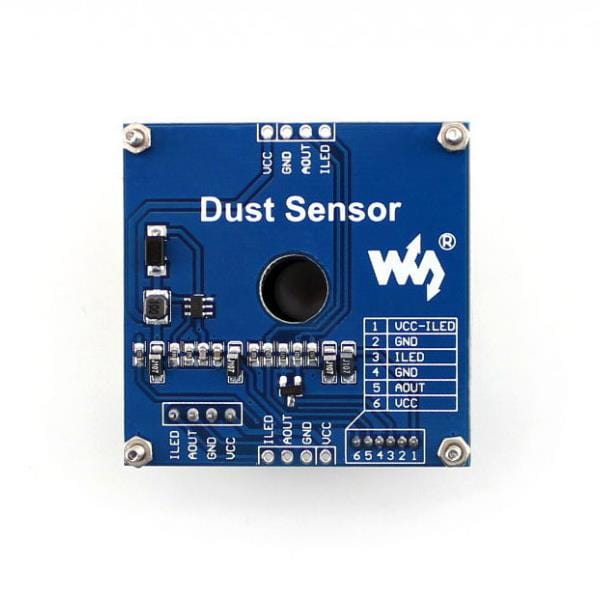

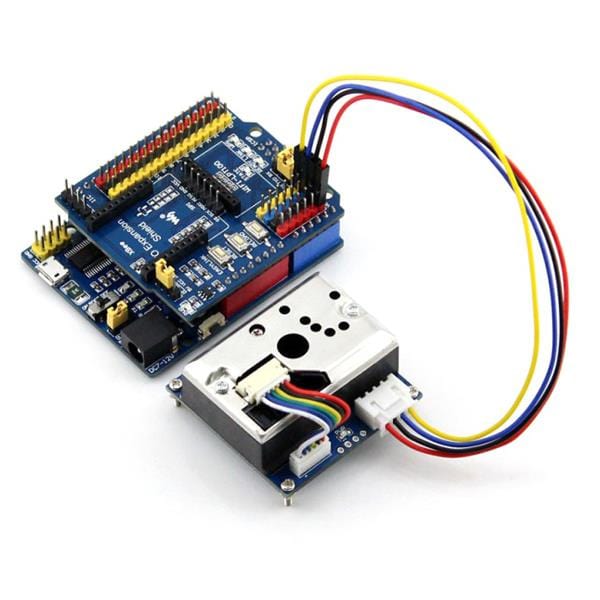

• How to use with an MCU:
  • VCC ↔ 2.5V ~ 5.0V
  • GND ↔ GND
  • AOUT ↔ MCU.IO (analogue output)
  • ILED ↔ MCU.IO (module driving pin)

Specifications

• Sensitivity : 0.5V/(100μg/m3)
• Measurement range: 500μg/m3
• Power: 2.5V~5.5V
• Operating current : 20mA(max)
• Operating temperature: -10℃~65℃
• Storage temperature: -20℃~80℃
• Lifetime: 5 years (warranty 1 year)
• Dimension: 63.2mm×41.3mm×21.1mm
• Mounting holes size: 2.0mm
• Airhole size: 9.0mm
