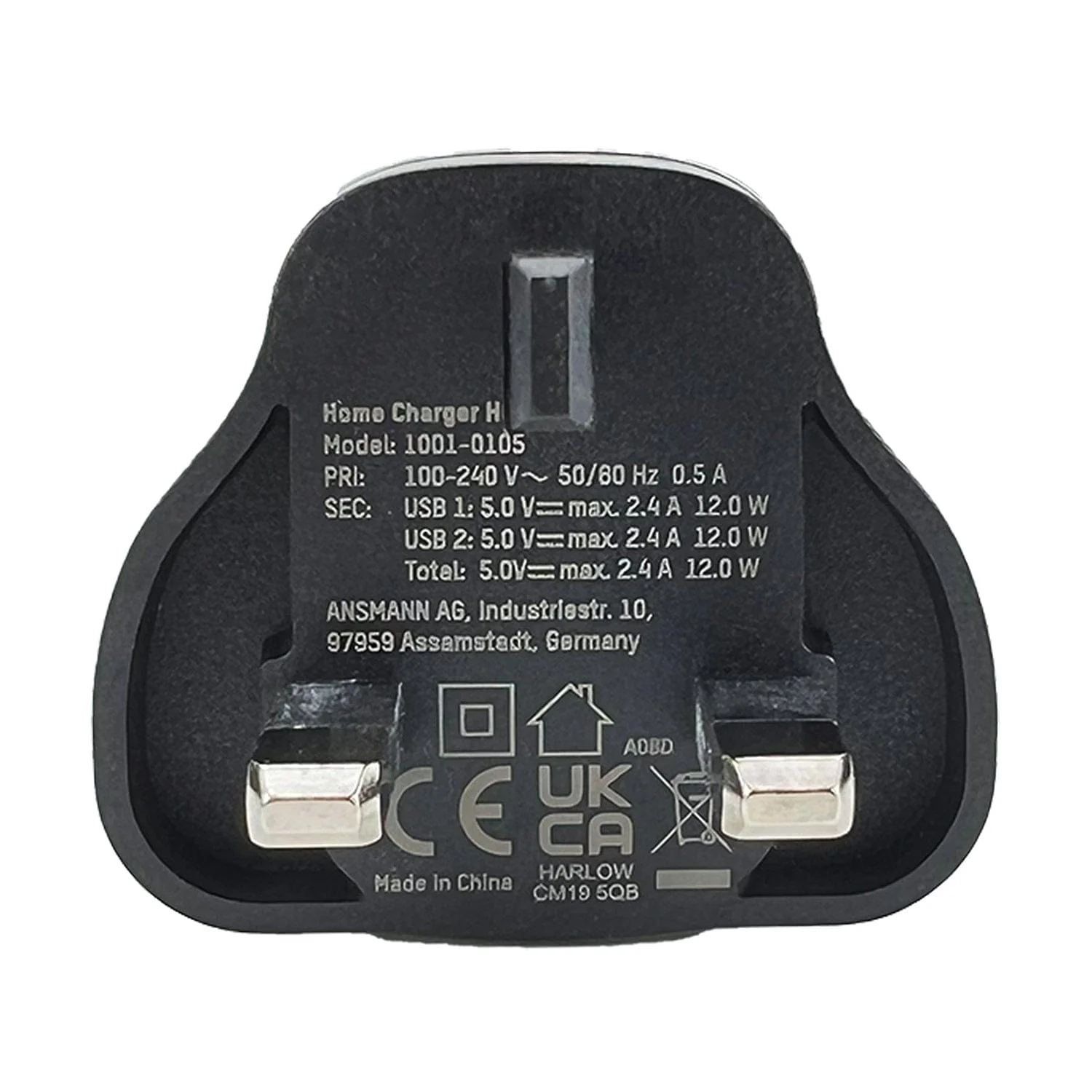

Dual-USB Charger (UK Plug)
This ANSMANN UK USB charger is the perfect power source for development boards and projects that don't have an included/recommended power supply. It'll also charge your smartphone of course - handy!
Great for the Raspberry Pi Pico, Arduino Nano, Adafruit Feather, Teensy, SparkFun Thing Plus boards and other low power microcontrollers. If you want to power your board once it's away from a PC and installed in a project, this is just the job.
We do not recommend this power supply for the Raspberry Pi 5/500/4/400/3/Zero - stick to official Raspberry Pi power supplies.
The two USB ports are regulated to 5V and can offer 2.4A max (per port, and all ports combined). This 12W charger is rated LEVEL VI Efficiency Standard with a maximum mains current use of 0.5A with a no-load power consumption of just 0.08W.
Multiple protection is built-in, with short circuit, over-voltage and over-current protection keeping you and your devices safe.
Features
- 2x USB Port charger
- UK 3-pin plug
- 5V 2.4A output
- Built-in protection against short circuit, over voltage and over current
- LEVEL VI Efficiency Standard
- Quality ANSMANN product
Specification
| Input plug: | UK plug |
| Input voltage: | 100 V - 240 V +10%AC |
| Input current: | Max. 0.5A |
| Input AC frequency: | 60 Hz / 50 Hz |
| Output voltage: | 5.0 V 5% DC regulated |
| Output current: | 2.4 A |
| Output power: | 12W |
| Average active efficiency: | 0.859 |
| Efficiency at low load (10 %): | 0.702 |
| No-load power consumption: | 0.08 W |
| Output connection: | 2x USB standard Type-A socket |
| Output protocol: | Battery Charging Specification R1.2 |
| Protection class: | Il |
| Housing material: | Plastic |
| Housing type: | Plug-in case |
| Operating temperature: | -20 °C - 35°C |
| Approvals: | CE |
| Weight: | 59 g |
| Output protection: | - Short circuit - Overvoltage - Overcurrent |
| Insulation: | 3 kV primary/secondary |
| Storage temperature: | -25 °C - 75°C |
| Shipment: | AC USB power supply - Multilingual operating instruction |
| Package: | White folding box |
| MPN | ANSMANN 1001-0105 |
| EAN | 4013674176519 |
Resources
Revision History
- As of 02/05/2025 - we are now shipping the updated version from ANSMANN. Specification remains the same, however the plug body is now more compact qand rounded.
