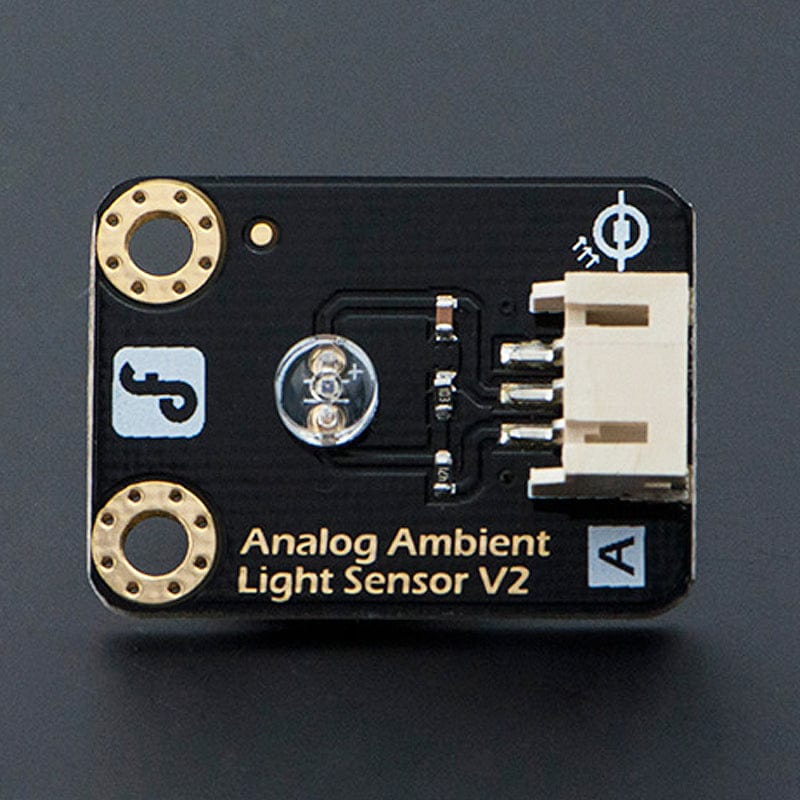

Gravity: Analog Ambient Light Sensor
DFRobot Products
Here comes DFRobot's new Analog Ambient Light Sensor for Arduino or Raspberry Pi, with a brand new design and much more convenient to use. This sensor helps you to detect the light density and reflect the analog voltage signal back to the Arduino controller. You can set the threshold of voltage level to trigger other units on the Arduino project.

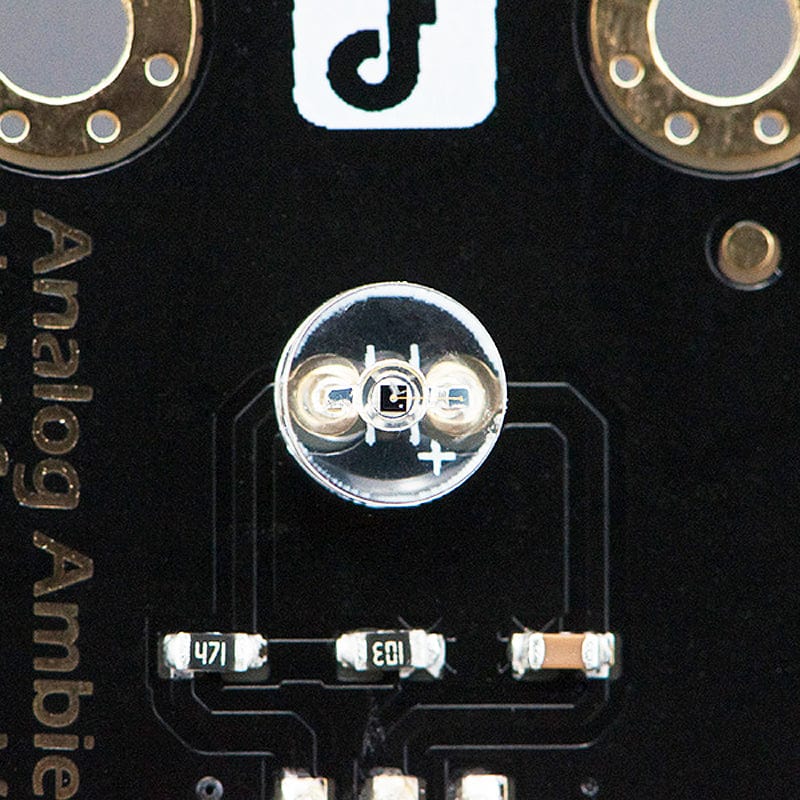

We also use the enviromental PT550 light sensor and it is more sensitive to light than a normal one.
Features
- Wide voltage range from 3.3V to 5V
- Standard assembling structure (two 3mm holes with multiple of 5cm (1.97") as interval)
- Easily recognitive interfaces of sensors ("A" for analog and "D" for digital)
- Icons to simplely illustrate sensor function
- High quality connector
- Immersion gold surface
Connection Example - I/O Expansion Shield V7
Specifications
- Supply Voltage: 3.3V to 5V, compatible with Arduino / ESP32 / micro:bit / Raspberry Pi
- Illumination range: 1 Lux to 6000 Lux
- Responsive time: 15us
- Interface: Analog
- Supports graphical programming platforms such as Mind+ and MakeCode

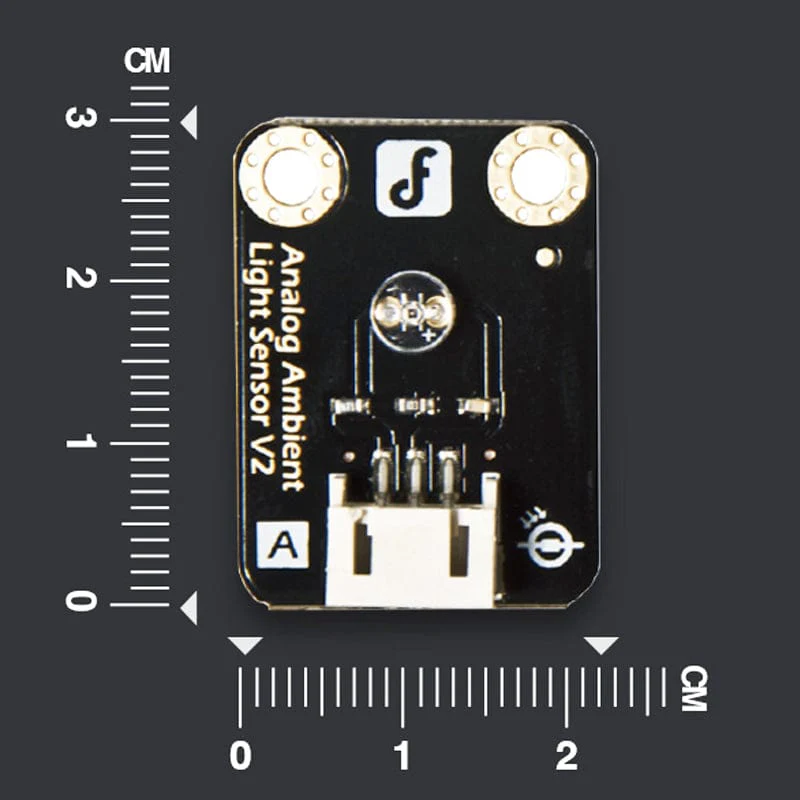

- Size: 22 x 30mm
Resources

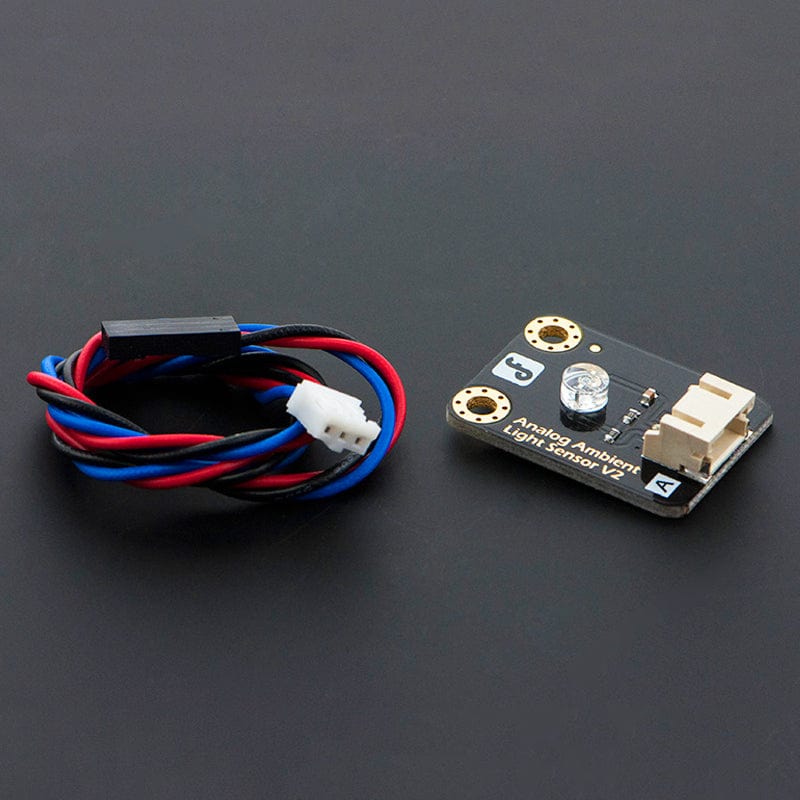

Package Contents
- 1x Analog Ambient Light Sensor
- 1x Analog cable
$1.00
Original: $2.50
-60%Gravity: Analog Ambient Light Sensor—
$2.50
$1.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Here comes DFRobot's new Analog Ambient Light Sensor for Arduino or Raspberry Pi, with a brand new design and much more convenient to use. This sensor helps you to detect the light density and reflect the analog voltage signal back to the Arduino controller. You can set the threshold of voltage level to trigger other units on the Arduino project.
We also use the enviromental PT550 light sensor and it is more sensitive to light than a normal one.
Features
- Wide voltage range from 3.3V to 5V
- Standard assembling structure (two 3mm holes with multiple of 5cm (1.97") as interval)
- Easily recognitive interfaces of sensors ("A" for analog and "D" for digital)
- Icons to simplely illustrate sensor function
- High quality connector
- Immersion gold surface
Connection Example - I/O Expansion Shield V7
Specifications
- Supply Voltage: 3.3V to 5V, compatible with Arduino / ESP32 / micro:bit / Raspberry Pi
- Illumination range: 1 Lux to 6000 Lux
- Responsive time: 15us
- Interface: Analog
- Supports graphical programming platforms such as Mind+ and MakeCode
- Size: 22 x 30mm
Resources
Package Contents
- 1x Analog Ambient Light Sensor
- 1x Analog cable
