Industrial MODBUS RS485 Air Temperature and Humidity Sensor
The air temperature and humidity sensor provides accurate readings from -40–80°C and 0–100%RH, with low power use and long life — ideal for industrial and environmental monitoring applications.
This air temperature and humidity sensor is designed to provide accurate readings across a wide range of conditions.
It uses a built-in algorithm for reliable data collection while keeping power use low. With a high tolerance for tough environments and long operating life, it’s well suited for continuous use with minimal maintenance. Measuring humidity from 0–100%RH and temperature from -40–80°C, it’s a great choice for industrial and environmental monitoring.
It is compatible with SenseCAP LoRaWAN® Data Logger to connect with the LoRaWAN® network, enjoying the benefits of low-power and long-range communication.
Features
- High Performance: High accuracy, fast response, and stability
- Temperature Measurement Range: Can be used in -40~80℃
Specifications
| Signal Output | RS485 Modbus Protocol |
| Power Supply | 3.6-30V/DC |
| Current Consumption | 4mA@24V DC |
| Humidity Measurement Range | 0-100%RH, Resolution 0.01% Accuracy: ±3%RH |
| Temperature Measurement Range | -40~80℃, Resolution: 0.01℃, Accuracy ±0.3℃ |
| IP Rating | IP54 |
| Operating Temperature | -40~85℃ |

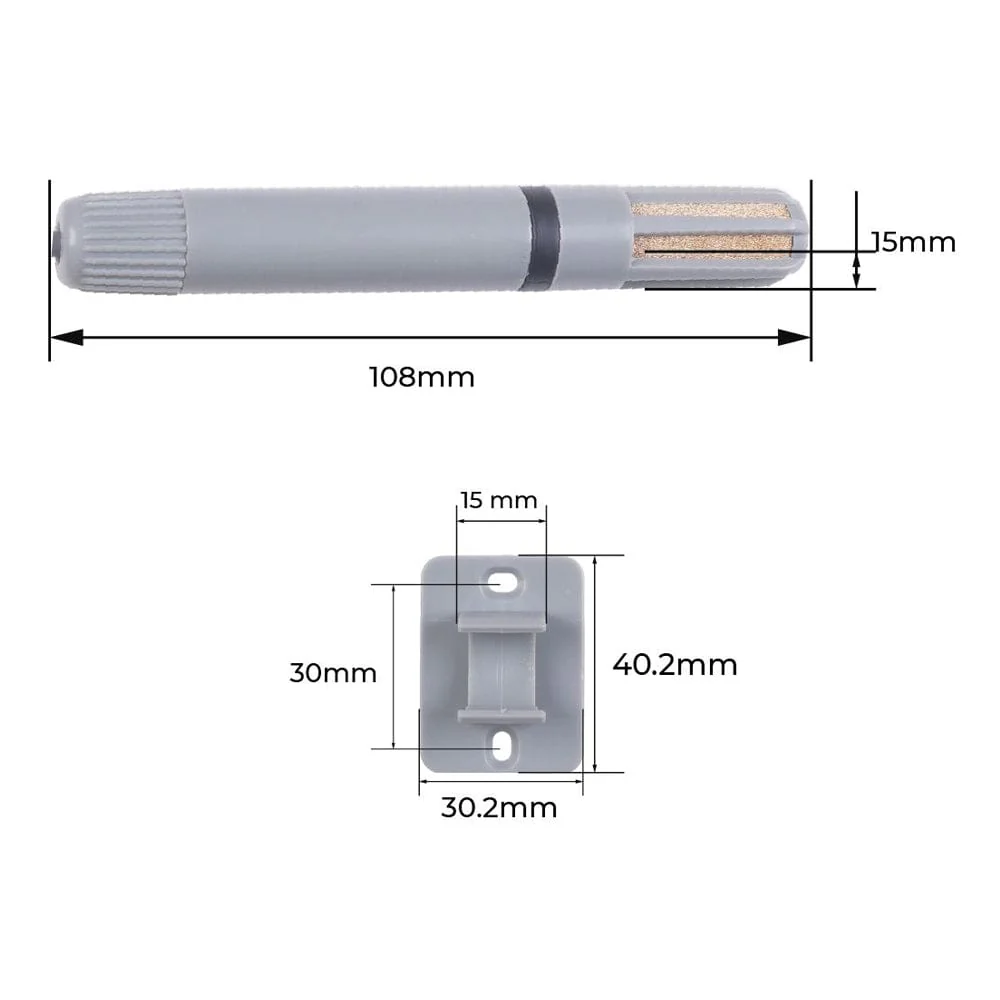

| Installation Methods | Wall-mounted Installation and Tube installation |

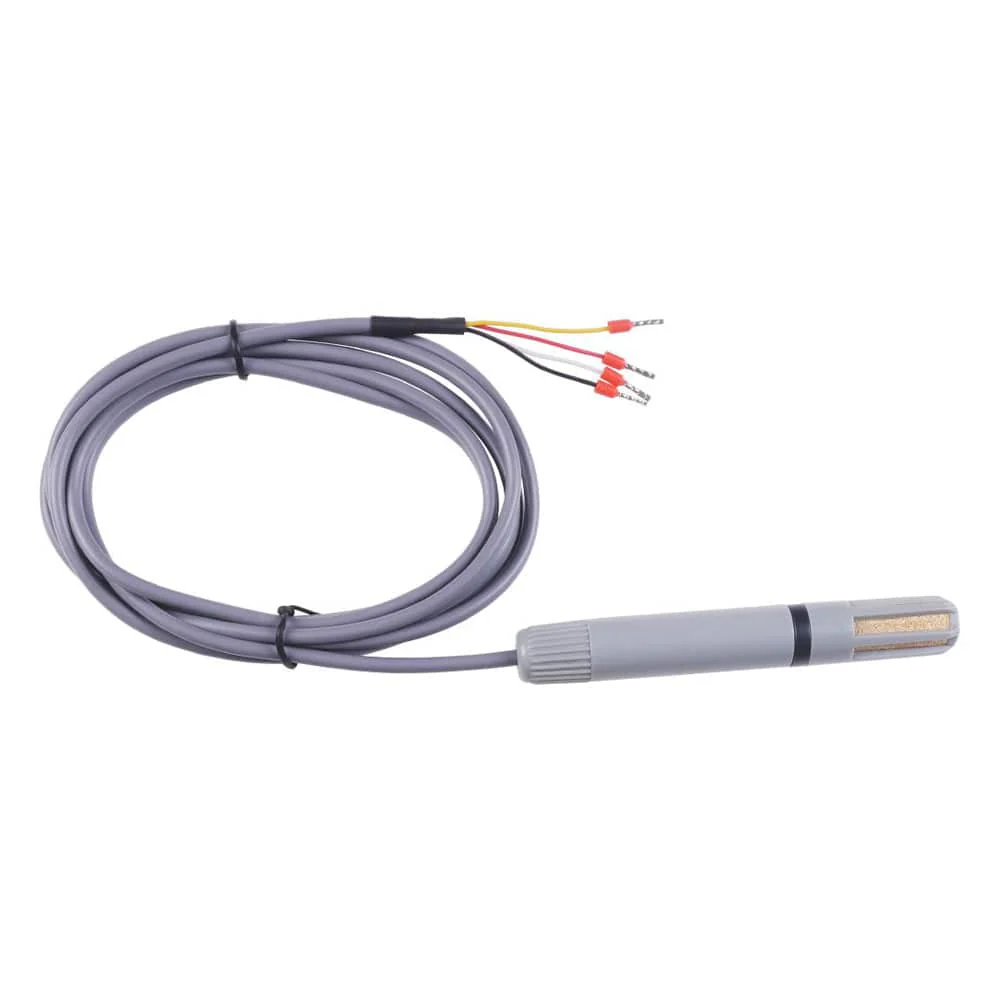

| Cable Length | 2M |
| Connection Methods | Aviation connector and Hook-up wire |
| Supplier Code | 101990881 |
Resources
Package Contents
- 1x Tube Installation Equipment
- 1x Wall-mounted Installation Equipment
- 2x Plastic Screw
- 2x Metal Screw
Original: $47.60
-65%$47.60
$16.66Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The air temperature and humidity sensor provides accurate readings from -40–80°C and 0–100%RH, with low power use and long life — ideal for industrial and environmental monitoring applications.
This air temperature and humidity sensor is designed to provide accurate readings across a wide range of conditions.
It uses a built-in algorithm for reliable data collection while keeping power use low. With a high tolerance for tough environments and long operating life, it’s well suited for continuous use with minimal maintenance. Measuring humidity from 0–100%RH and temperature from -40–80°C, it’s a great choice for industrial and environmental monitoring.
It is compatible with SenseCAP LoRaWAN® Data Logger to connect with the LoRaWAN® network, enjoying the benefits of low-power and long-range communication.
Features
- High Performance: High accuracy, fast response, and stability
- Temperature Measurement Range: Can be used in -40~80℃
Specifications
| Signal Output | RS485 Modbus Protocol |
| Power Supply | 3.6-30V/DC |
| Current Consumption | 4mA@24V DC |
| Humidity Measurement Range | 0-100%RH, Resolution 0.01% Accuracy: ±3%RH |
| Temperature Measurement Range | -40~80℃, Resolution: 0.01℃, Accuracy ±0.3℃ |
| IP Rating | IP54 |
| Operating Temperature | -40~85℃ |
| Installation Methods | Wall-mounted Installation and Tube installation |
| Cable Length | 2M |
| Connection Methods | Aviation connector and Hook-up wire |
| Supplier Code | 101990881 |
Resources
Package Contents
- 1x Tube Installation Equipment
- 1x Wall-mounted Installation Equipment
- 2x Plastic Screw
- 2x Metal Screw
