1.9" IPS Touch LCD Display Module (172x320)

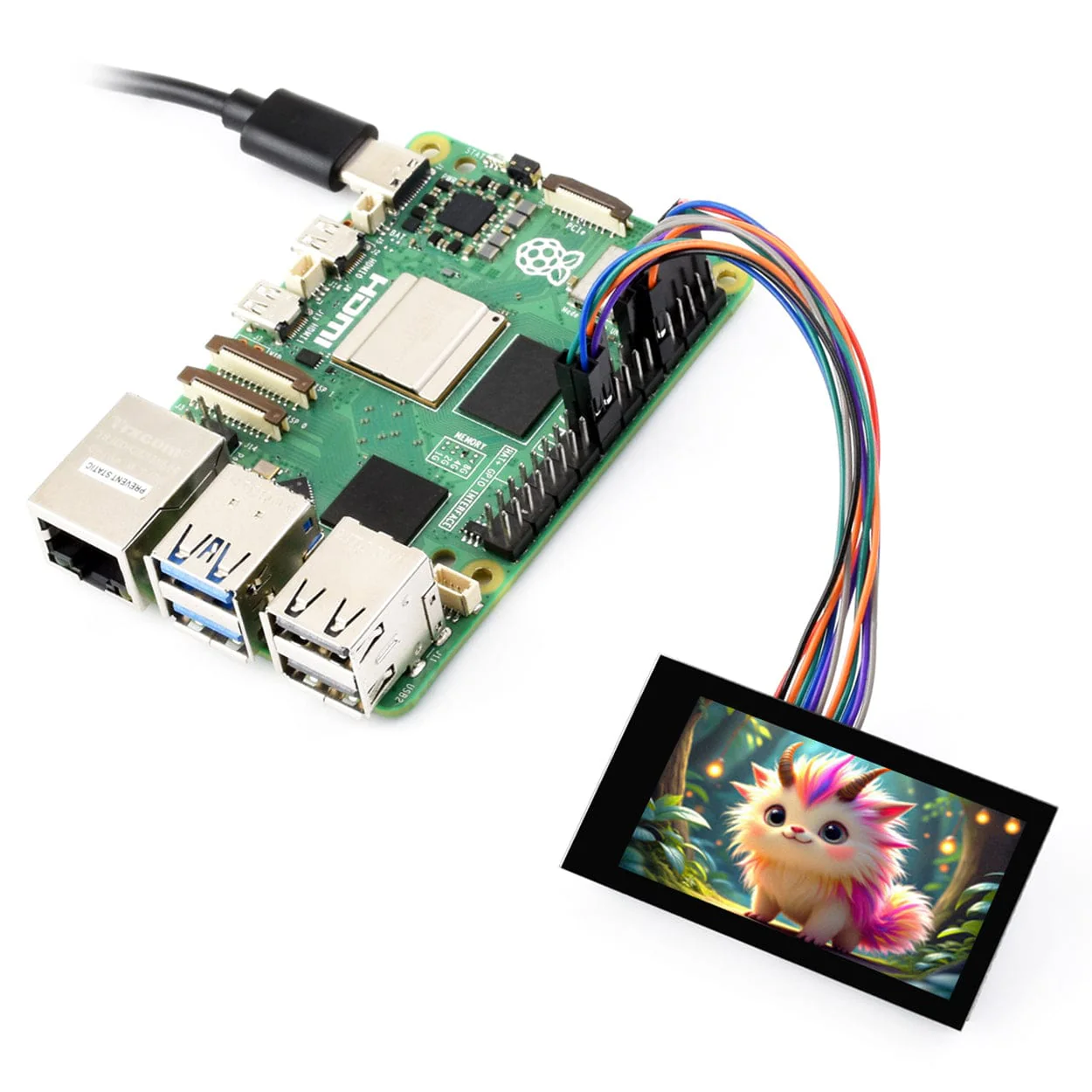

The Waveshare 1.9" Touch LCD display module is a compact IPS display compatible (with examples for) the Raspberry Pi, Pico, Arduino and ESP32.

The display is a 1.9" IPS 172x320 panel with 262k colours and touch input. The module offers 3.3V and 5V operation thanks to the built in voltage translator, with SPI control for the display and I2C communication for touch inputs. Using serial communication reduces the number of pins required from your microcontroller, leaving your GPIO free for the rest of your project.

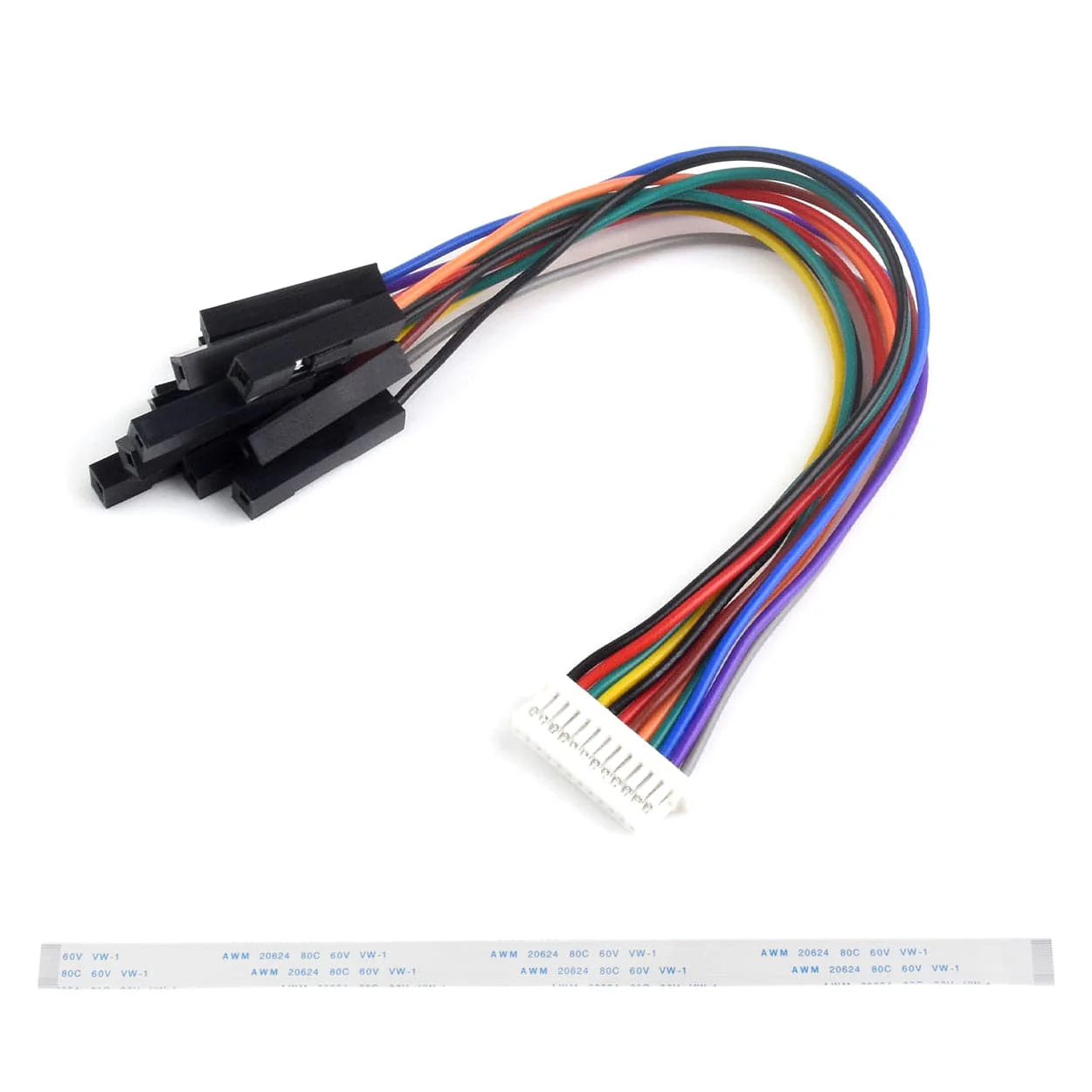

The display comes with a 12-pin cable assembly with female jumper ends, and an FPC cable for connecting to specific Waveshare development boards with this connection (Waveshare 27686 for example).

Waveshare provide online documentation and example code to get you started quickly.

Features

• 1.9" IPS display with 172×320 resolution and 262K colours
• Capacitive touch input with high transmittance, fast response and long lifetime
• 3.3V and 5V operation supported via built‑in voltage translator
• SPI display control for reduced pin usage on your microcontroller
• I2C touch interface using the CST816 touch controller
• ST7789V2 display driver embedded for stable performance
• GPIO‑friendly design thanks to serial communication minimising required IO pins

Specifications

Display Panel	LCD
Display Area	1.9"
Resolution	170 × 320
Colour	262K
Brightness	500 cd/m²
Contrast Ratio	900:1
Communication Interface	SPI
Driver IC	ST7789V2
Touch	Supported
Touch IC	CST816

Resources

• Product Wiki

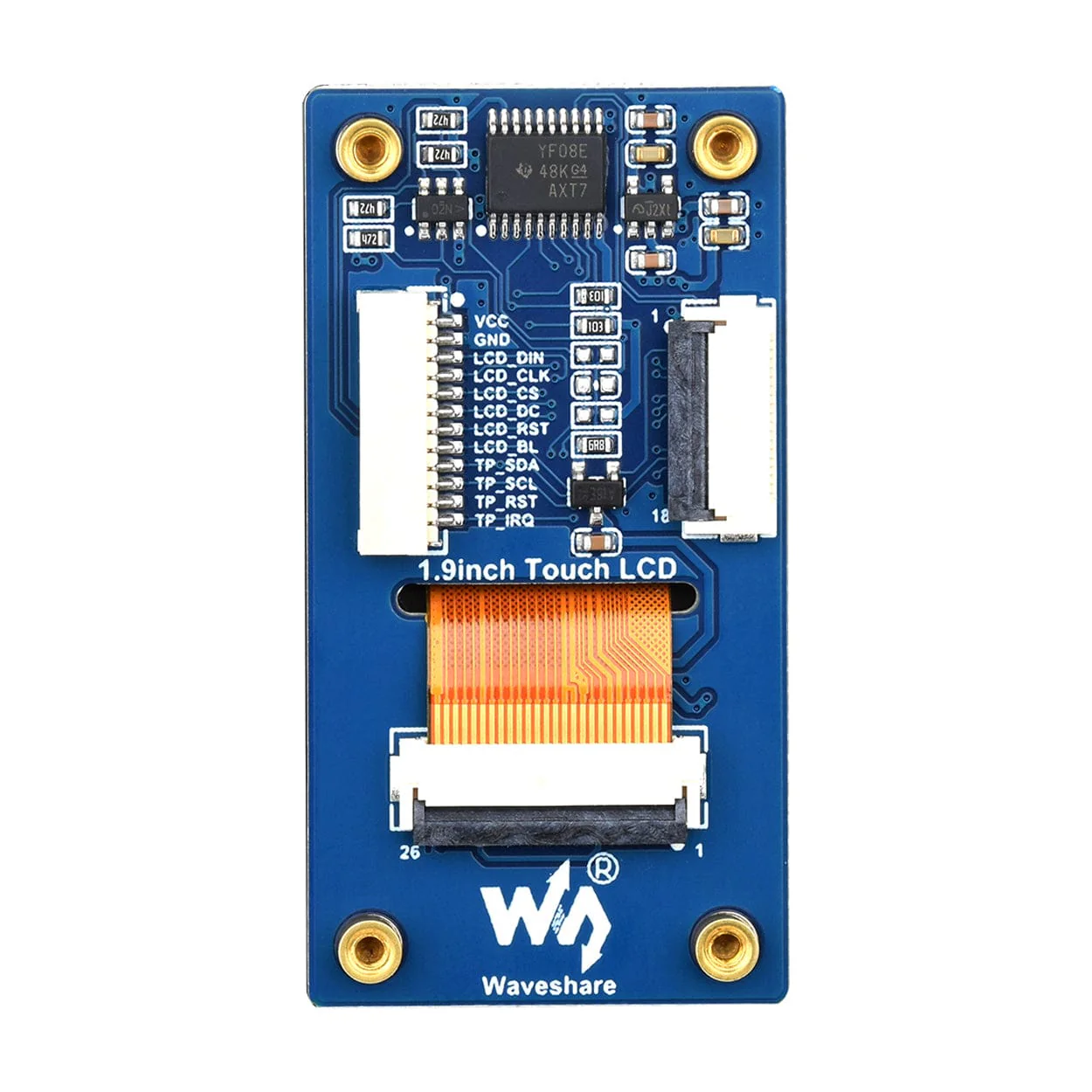

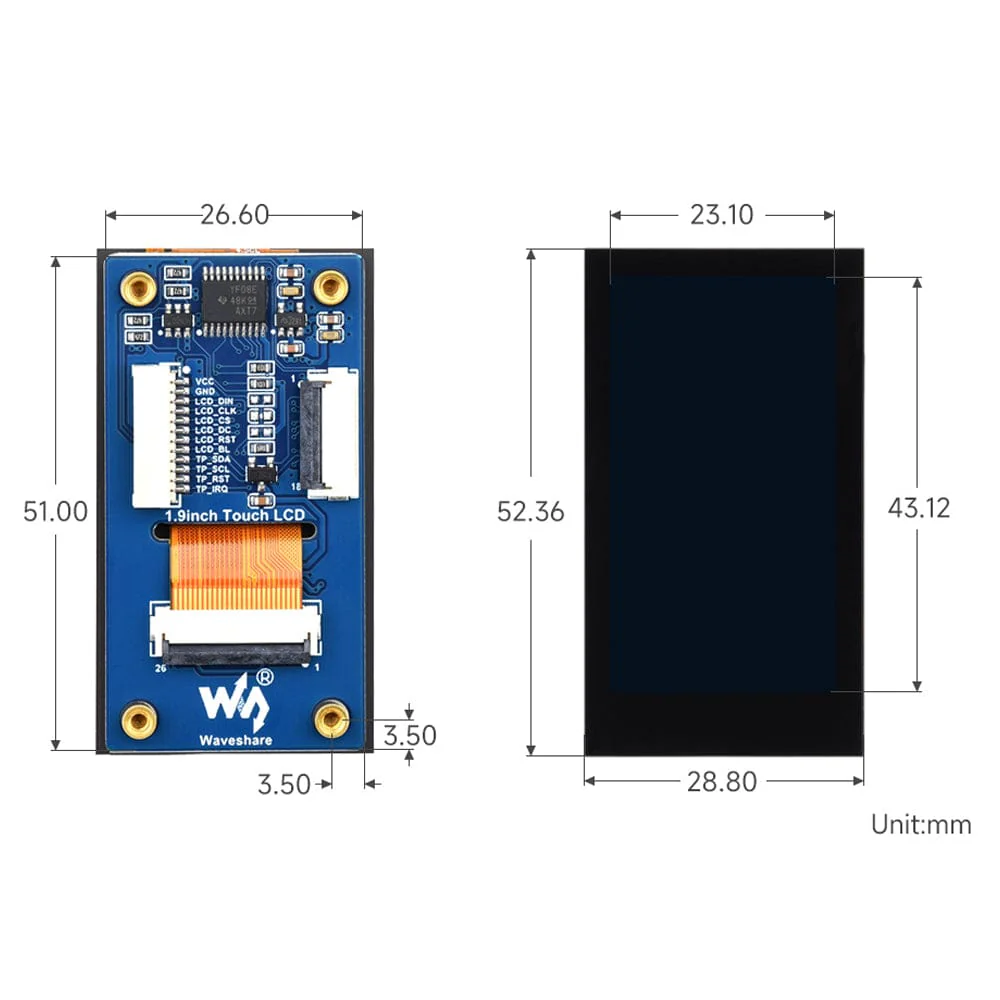

Pinout

VCC	Power (3.3 V / 5 V input)
GND	Ground
LCD_DIN	SPI MISO pin
LCD_CLK	SPI SCLK pin
LCD_CS	LCD chip selection, low active
LCD_DC	LCD data/command selection (high for data, low for command)
LCD_RST	LCD reset, low active
LCD_BL	LCD backlight
TP_SDA	TP data pin
TP_SCL	TP clock pin
TP_RST	TP reset, low active
TP_IRQ	TP interrupt pin

Package Contents

• 1x 1.9" Touch LCD Micro Display Module (172x320)
• 1x 12-pin SH1.0 cable assembly
• 1x FFC cable
