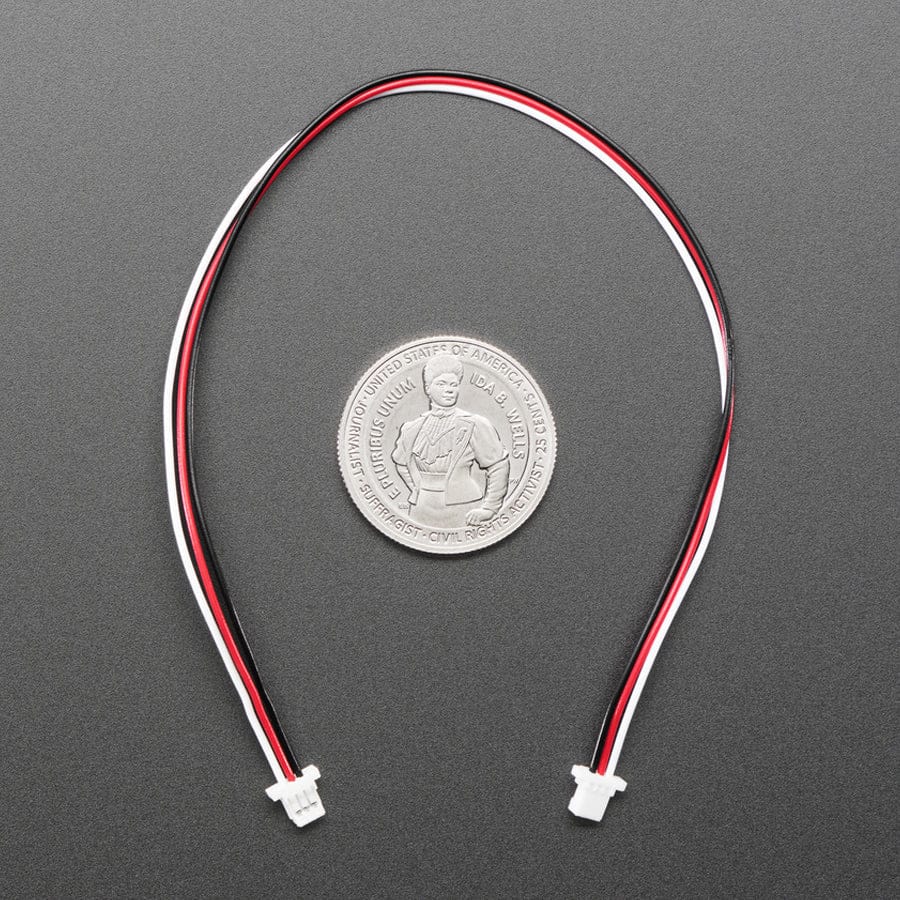

JST SH Compatible 1mm Pitch 3-pin - Plug-Plug Cable - 200mm long
Need to link up boards with JST SH 3-pin connectors? This handy cable is just the thing! With 1mm pitch JST SH connectors on both ends, it’s perfect for chaining boards like the NeoPixel JST Breakout, UPDI Friend, or Sparkle Motion, or for use with the Pico WH and Pico Debug Probe debug ports. Simple, compact, and reliable for digital or analogue I/O connections.
If you fancy connecting to anything else with a JST SH compatible 3-pin connector, this cable will do the trick. For example, our NeoPixel JST Breakout boards, or UPDI Friend, or Sparkle Motion, or other boards we have with JST SH connectors on them for simple digital/analogue IO. It has a 1mm pitch JST SH connector on both ends - perfect for 'chaining' boards together. These can also be used on the debug port on a Pico WH, or the two ports on a Pico Debug Probe.
The colours we got are somewhat matched with our '2mm PH' sized STEMMA cables, so if you are using them for the Debug Probe port, the colours will be as follows:
- White - SWCLK or UART TX
- Red - Ground (yeah, we know this isn't ideal)
- Black - SWDIO or UART RX
Resources
Package Contents
- 1x JST SH Compatible 1mm Pitch 3-pin Plug-Plug Cable - 200mm long
Original: $1.70
-41%$1.70
$1.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Need to link up boards with JST SH 3-pin connectors? This handy cable is just the thing! With 1mm pitch JST SH connectors on both ends, it’s perfect for chaining boards like the NeoPixel JST Breakout, UPDI Friend, or Sparkle Motion, or for use with the Pico WH and Pico Debug Probe debug ports. Simple, compact, and reliable for digital or analogue I/O connections.
If you fancy connecting to anything else with a JST SH compatible 3-pin connector, this cable will do the trick. For example, our NeoPixel JST Breakout boards, or UPDI Friend, or Sparkle Motion, or other boards we have with JST SH connectors on them for simple digital/analogue IO. It has a 1mm pitch JST SH connector on both ends - perfect for 'chaining' boards together. These can also be used on the debug port on a Pico WH, or the two ports on a Pico Debug Probe.
The colours we got are somewhat matched with our '2mm PH' sized STEMMA cables, so if you are using them for the Debug Probe port, the colours will be as follows:
- White - SWCLK or UART TX
- Red - Ground (yeah, we know this isn't ideal)
- Black - SWDIO or UART RX
Resources
Package Contents
- 1x JST SH Compatible 1mm Pitch 3-pin Plug-Plug Cable - 200mm long
