LoRa Antenna with Pigtail - 868MHz Black

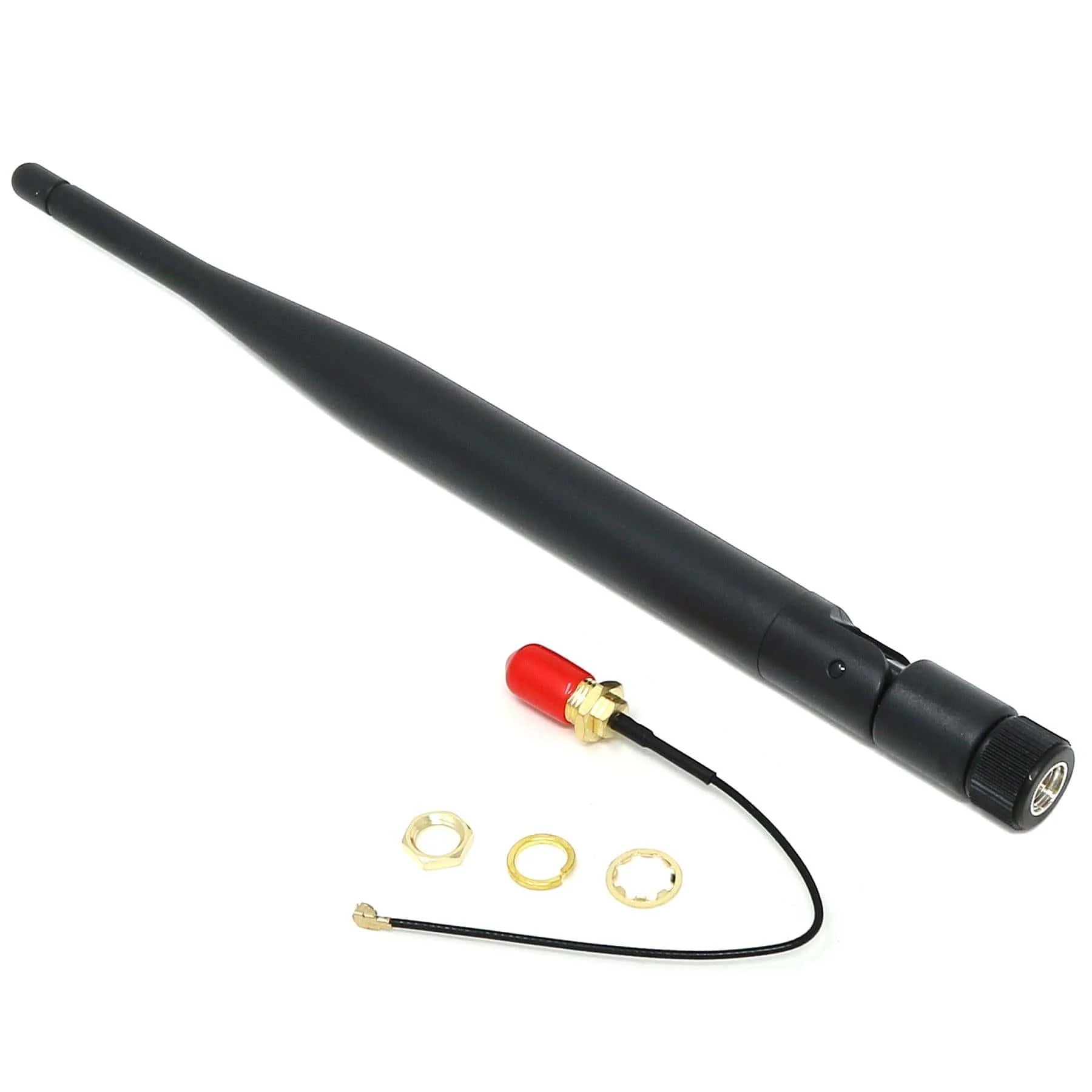

This is a 170mm black 868MHz 50ohm antenna kit tested and recommended by iLabs for use with their LoRa products, such as the Challenger RP2040 LoRa. They can also be used with any other LoRa board requiring an 868MHz U.FL antenna solution.

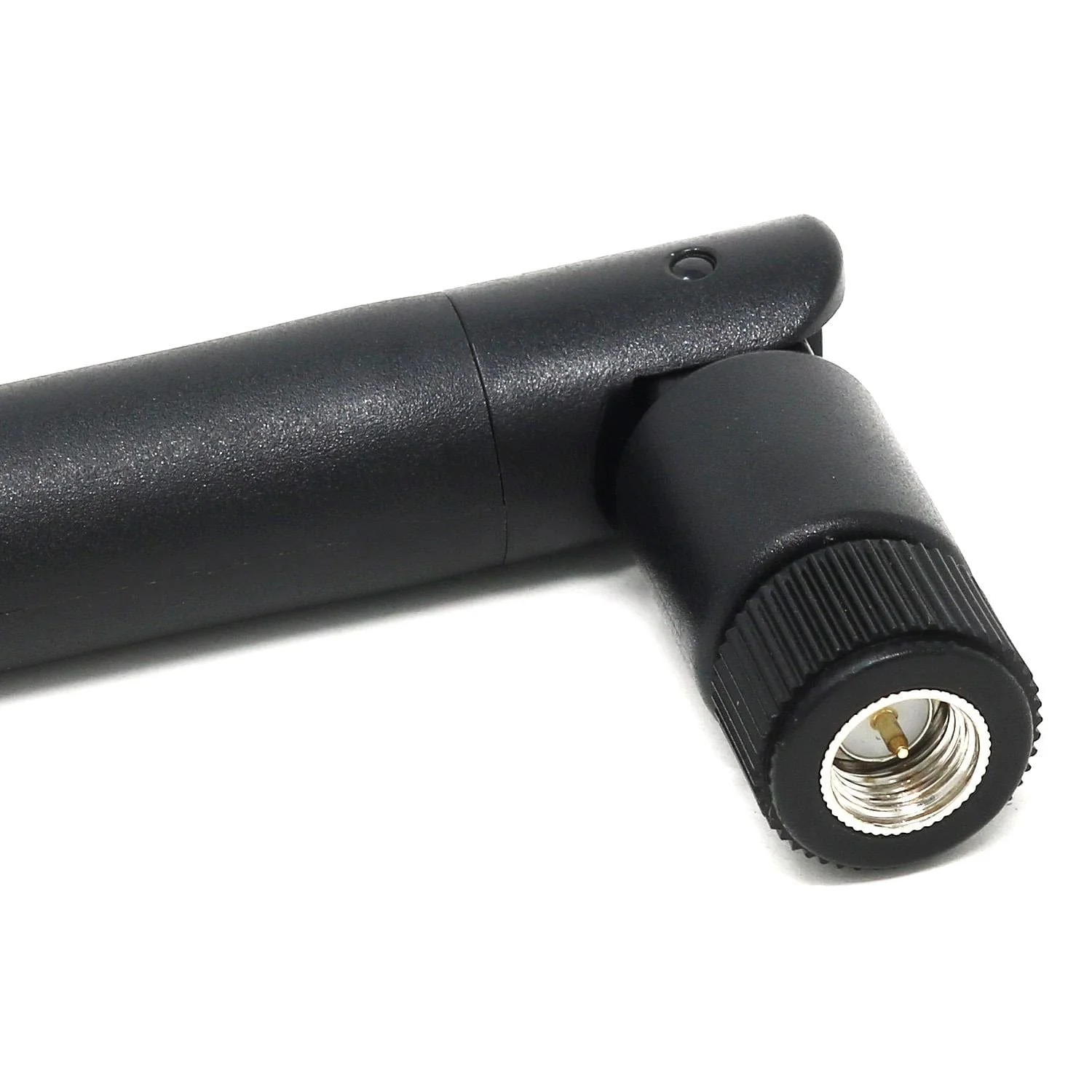

The antenna can tilt and swivel making it easy to install it in various applications.

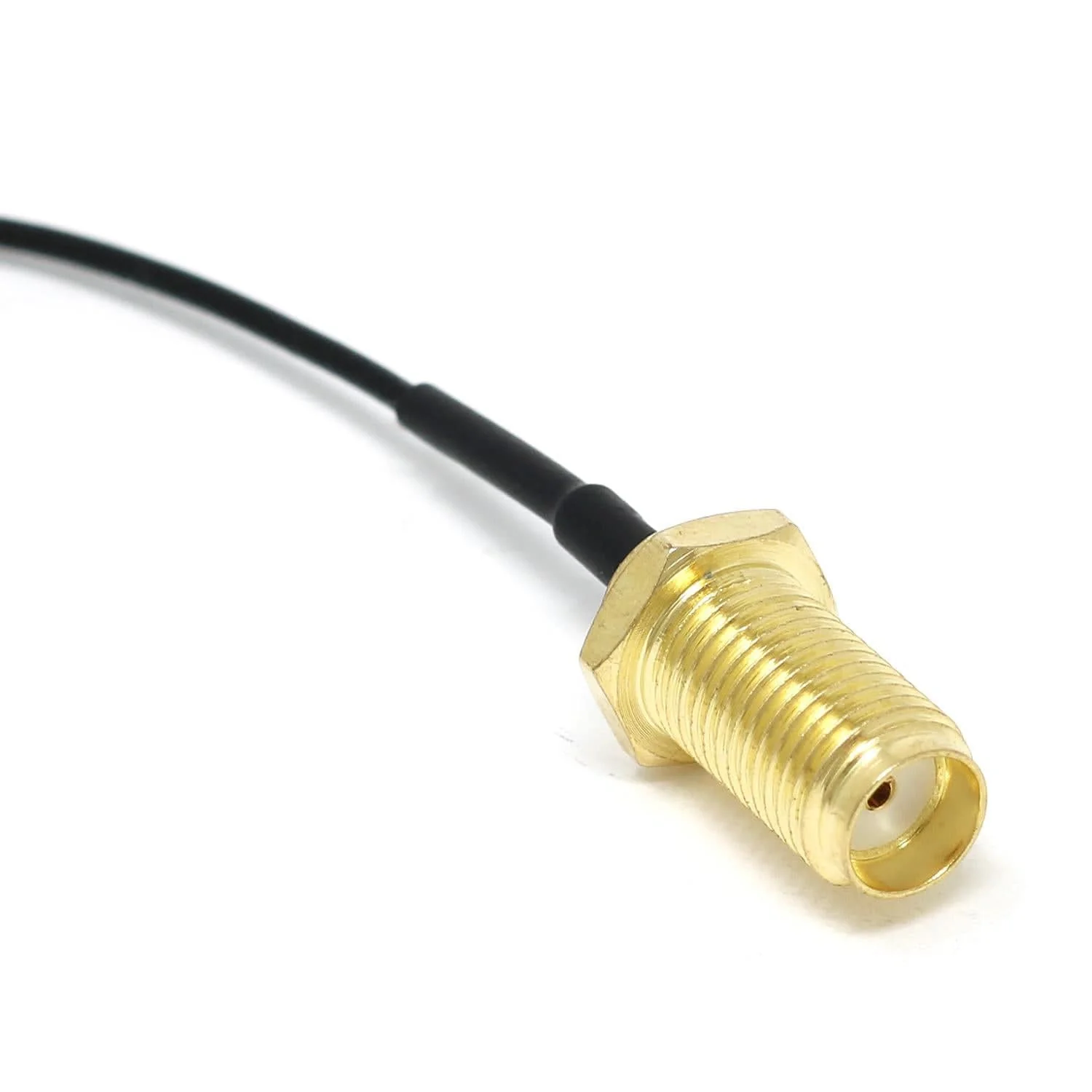

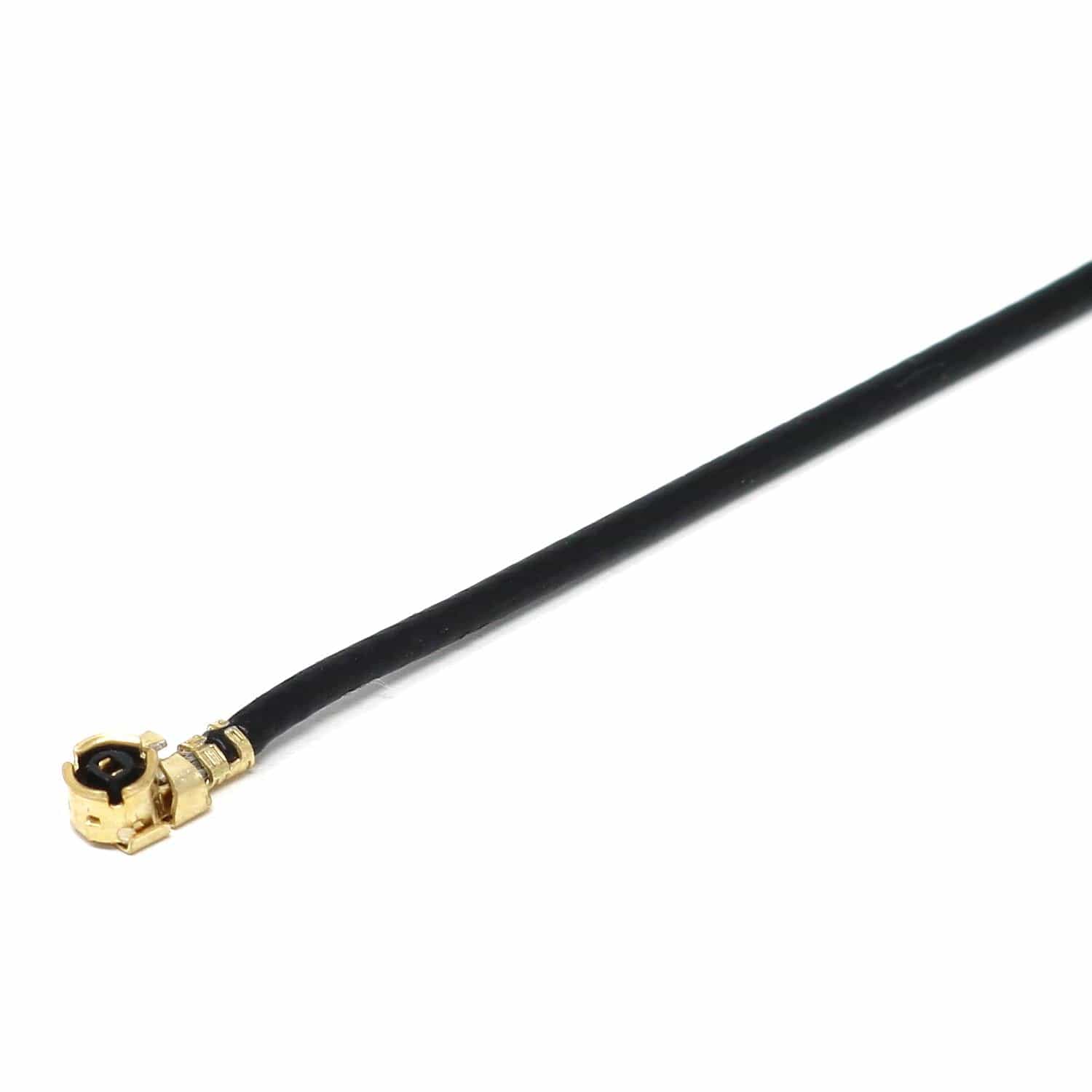

The kit comes with an RF cable assembly containing an RP-SMA (Female) and JK-IPEX/MHF/U.FL for connection to the PCB. The coax uses a 1-13mm 50Ohm cable and is 100 mm long. Weight: 0.023kg
Also available in white, or a 915MHz version!
Specifications
- Peak realized gain: 5 dBi @ target band (typ. 3–5 dBi)
- Measurement setup: reference ground plane (250 x 250 mm)
- Radiation: omnidirectional (azimuth)
- VSWR: < 1.8:1
Performance
Return loss diagram
Smith diagram
Package Contents
- 1x LoRa 868MHz Antenna (black)
- 1x RP-SMA (female) to U.FL pigtail cable assembly
