M5Stack Din Base with 500mAh Battery

The Din Base is a 5x5cm series base specially designed for Din Rail rail fixing.

It is suitable for the M5Core, and the built-in 500mAh lithium battery can be externally input with a DC power supply (support 9~24V). There is an onboard power switch to completely shut down the external power and battery.

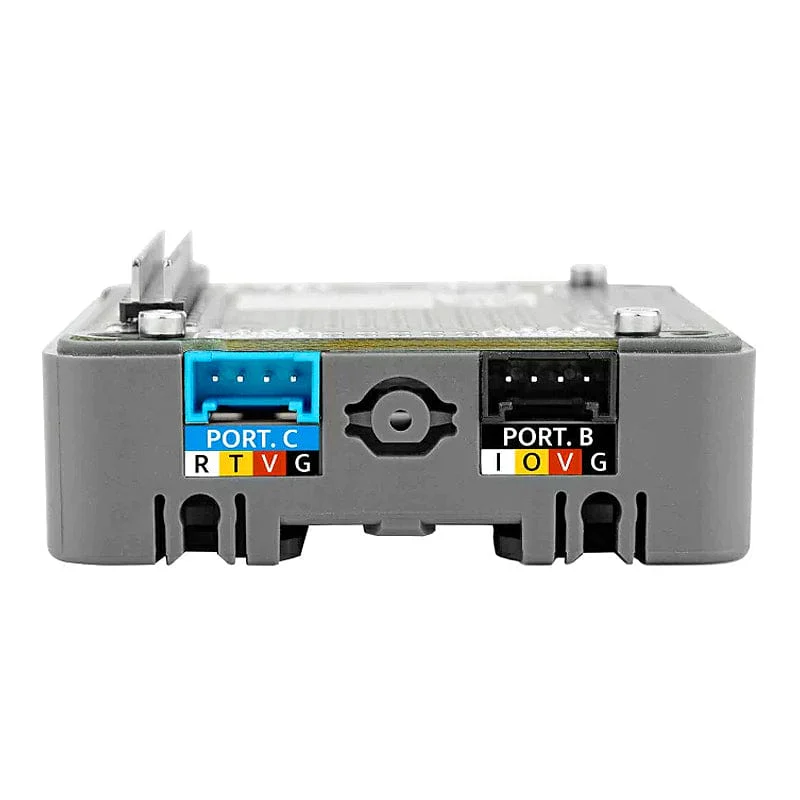

Reserved Port B and Port C interfaces. Lego mounting holes on the lower side for easy fixing, and the bottom supports standard 35mm Dinrails. In addition, four plug-in ears are provided to support a variety of fixing methods. The DinBase has a number of proto pads reserved on the internal PCB for easy DIY.

---

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?

---

Features

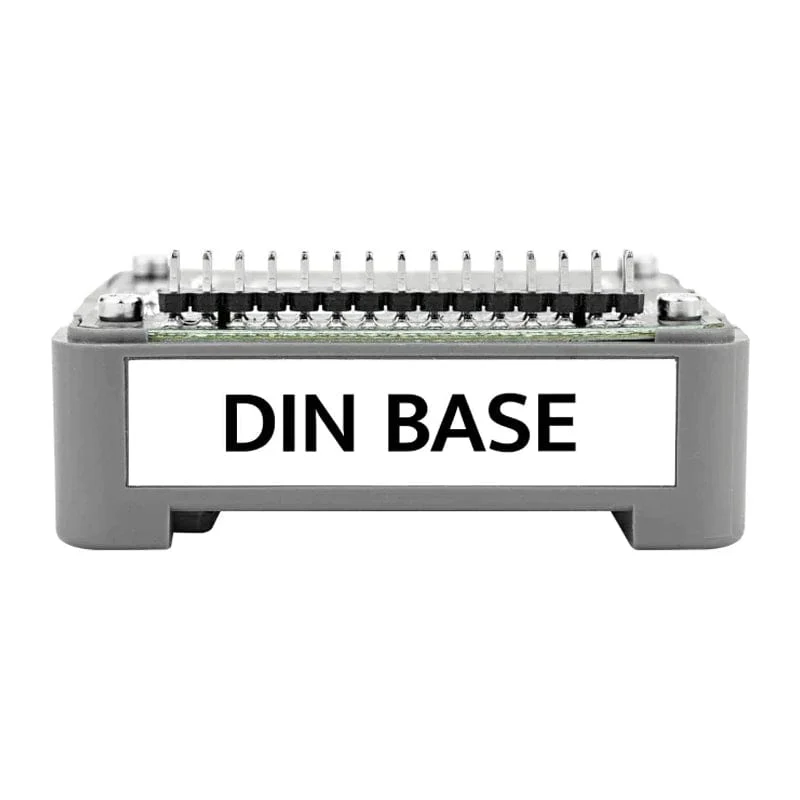

• 1X12P 2.54 interface
• Port B, Port C interface

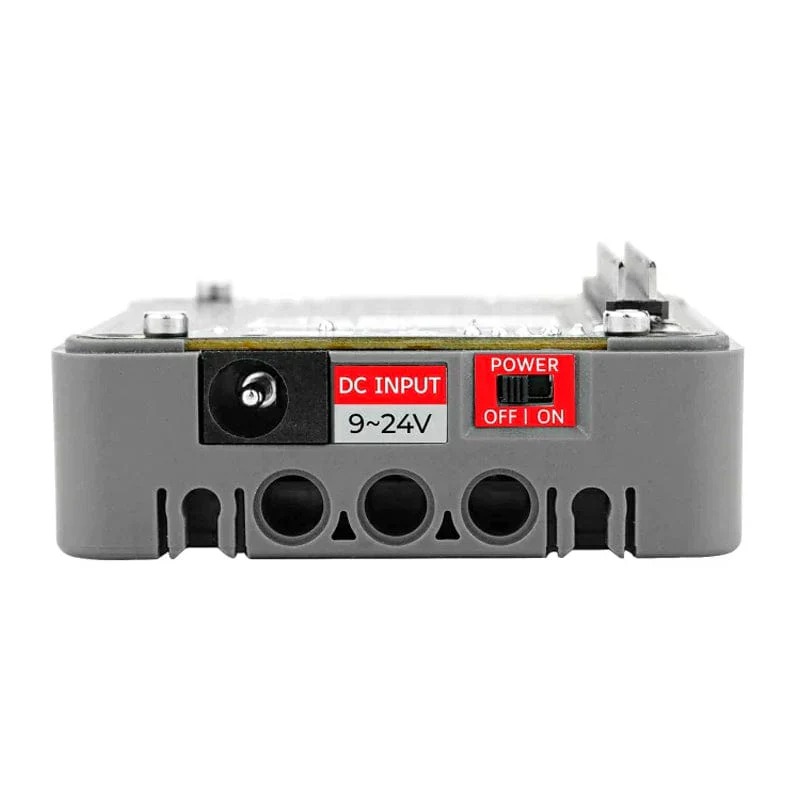

• Power supply mode:
  • DC power supply (9-24V),
  • 500mAh lithium battery
• Power switch

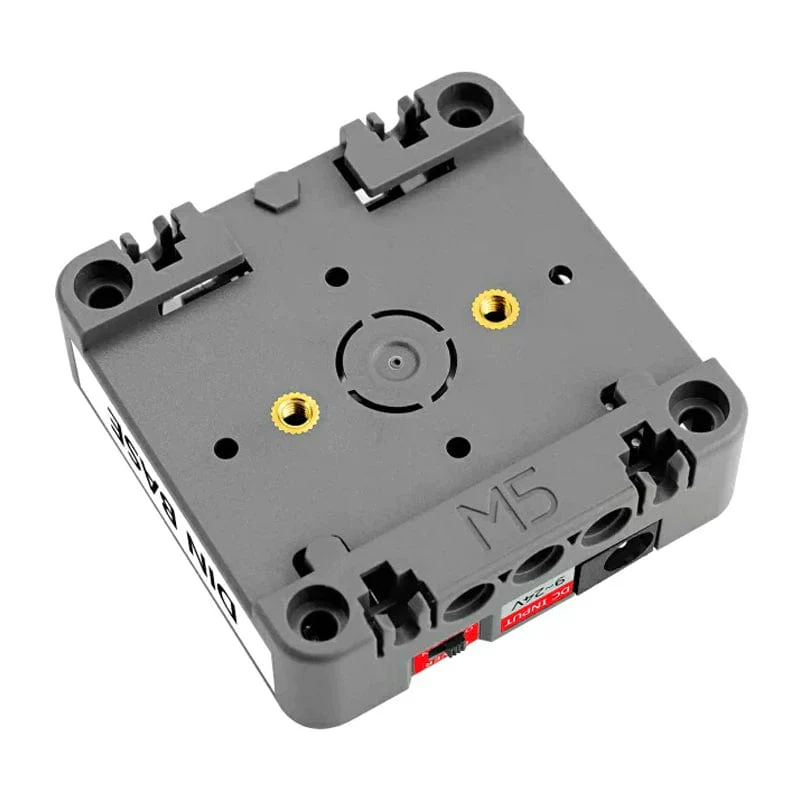

• Multiple mounting options:
  • DinRail
  • Hanging ears
  • Two copper nuts embedded in the bottom
  • Three LEGO fixing holes on the sides

Specifications

Resources	Parameters
DCDC buck chip	SY8303AIC
Lithium battery charging chip	TP4057
DC External power supply	DC9-24V
Product Size	54x54x19mm
Package Size	95x65x21mm
Product Weight	45g
Package Weight	64.2g

Resources

• Product Wiki

Package Contents

• 1x DinBase
• 4x Hanger
• 1x Snap
• 1x Hex key
• 2x Nut (2x25mm for Core2/CoreS3)
• 2x Nut (2x22mm for Core1)
• 2x Nut (2x20mm for Core2/CoreS3)
