M5Stack M5StickC 18650C

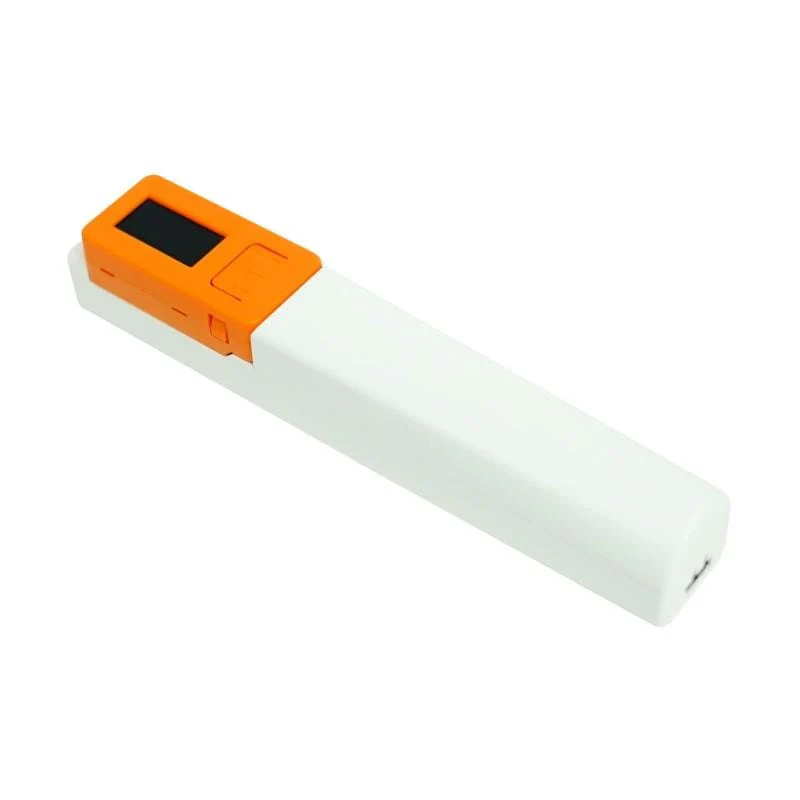

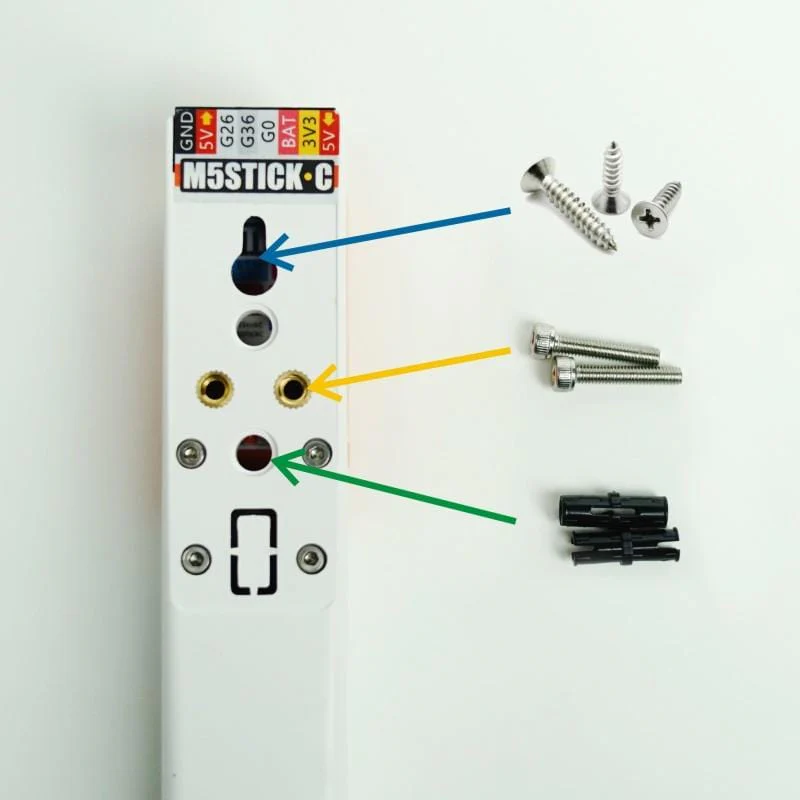

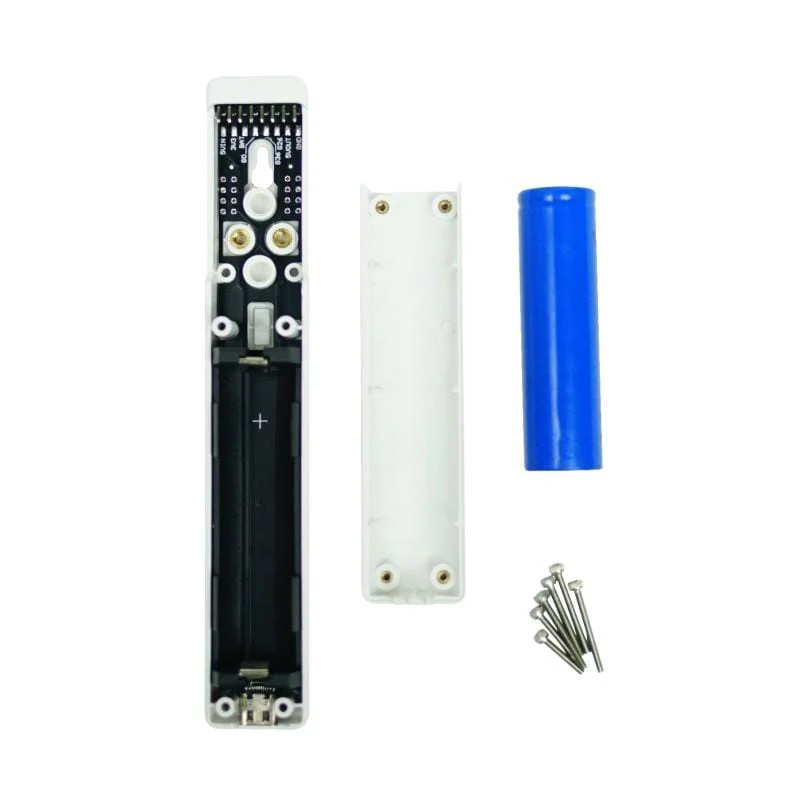

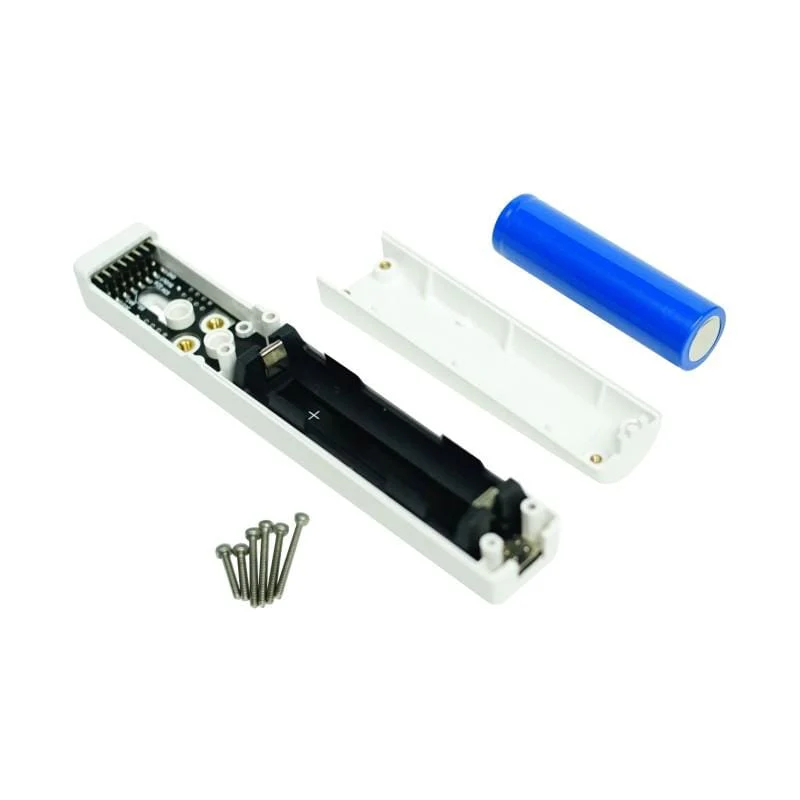

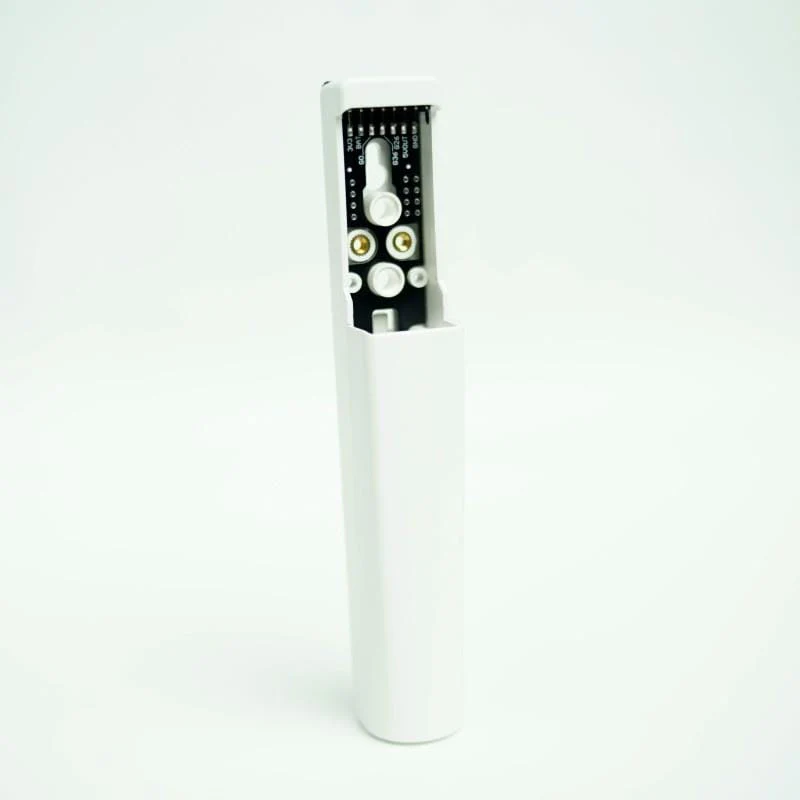

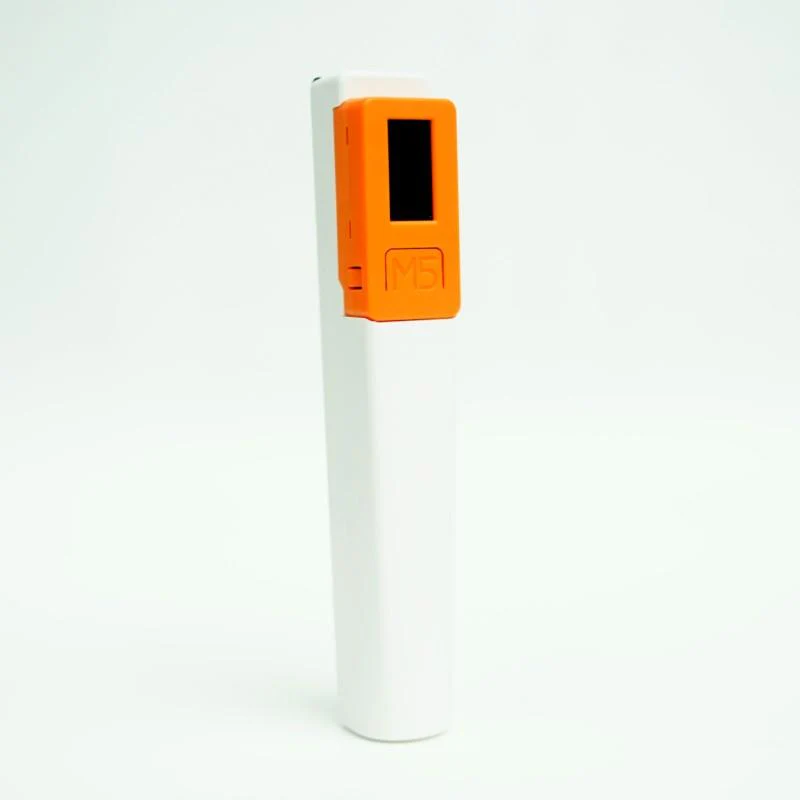

The 18650C HAT is a rechargeable battery base designed for M5SticKC with a built-in 18650 large capacity rechargeable lithium battery. It provides long-term endurance for the equipment. The base is designed with the plug-in structure of the HAT series, which can be used to maintain reliable connection with the M5StickC. The bottom is equipped with a USB interface charging interface, which is convenient and quick for the battery. The USB port of the battery base is only used as a charging interface, and does not have UART function. There are many types of mounting holes on the back of the base, which can be easily installed.

Note: The M5StickC produced after October 2019 has a new fixing hole design. If your M5StickC is an old device (no fixing hole), you cannot use screws to fix it to the 18650CHAT, but this does not affect functional use of modules.

---

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?

---

Features

• Chargable
• Battery replaceable
• 2200mAh rechargeable battery

Package Contents

• 1x 18650 HAT (include 2200mAh battery)

Specifications

Resources	Parameter
Net weight	90g
Gross weight	94g
Product Size	150 x 24 x 24mm
Package Size	170 x 20 x 24mm
