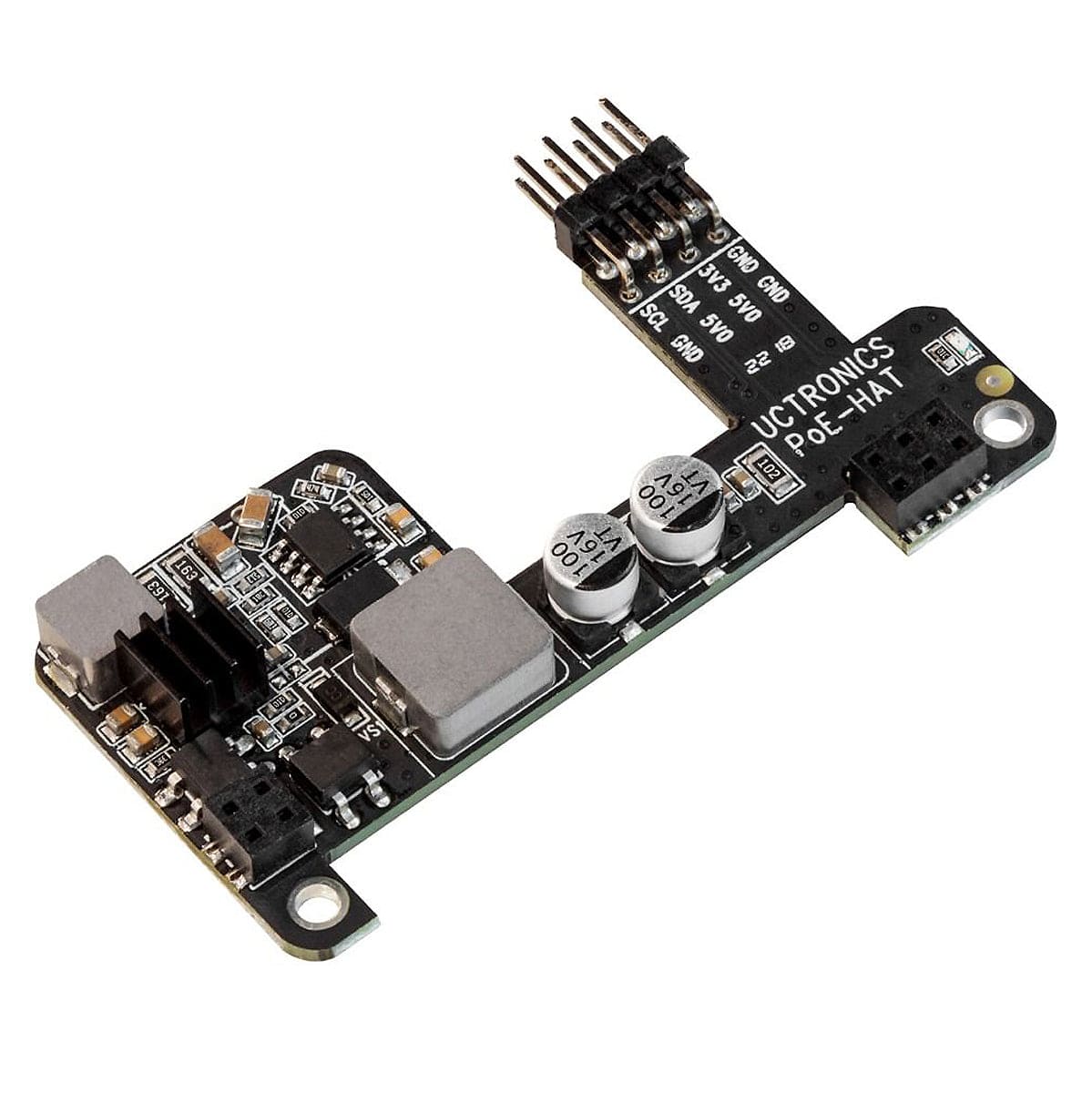

Mini Power over Ethernet (PoE) HAT for Raspberry Pi 4 - No Fan

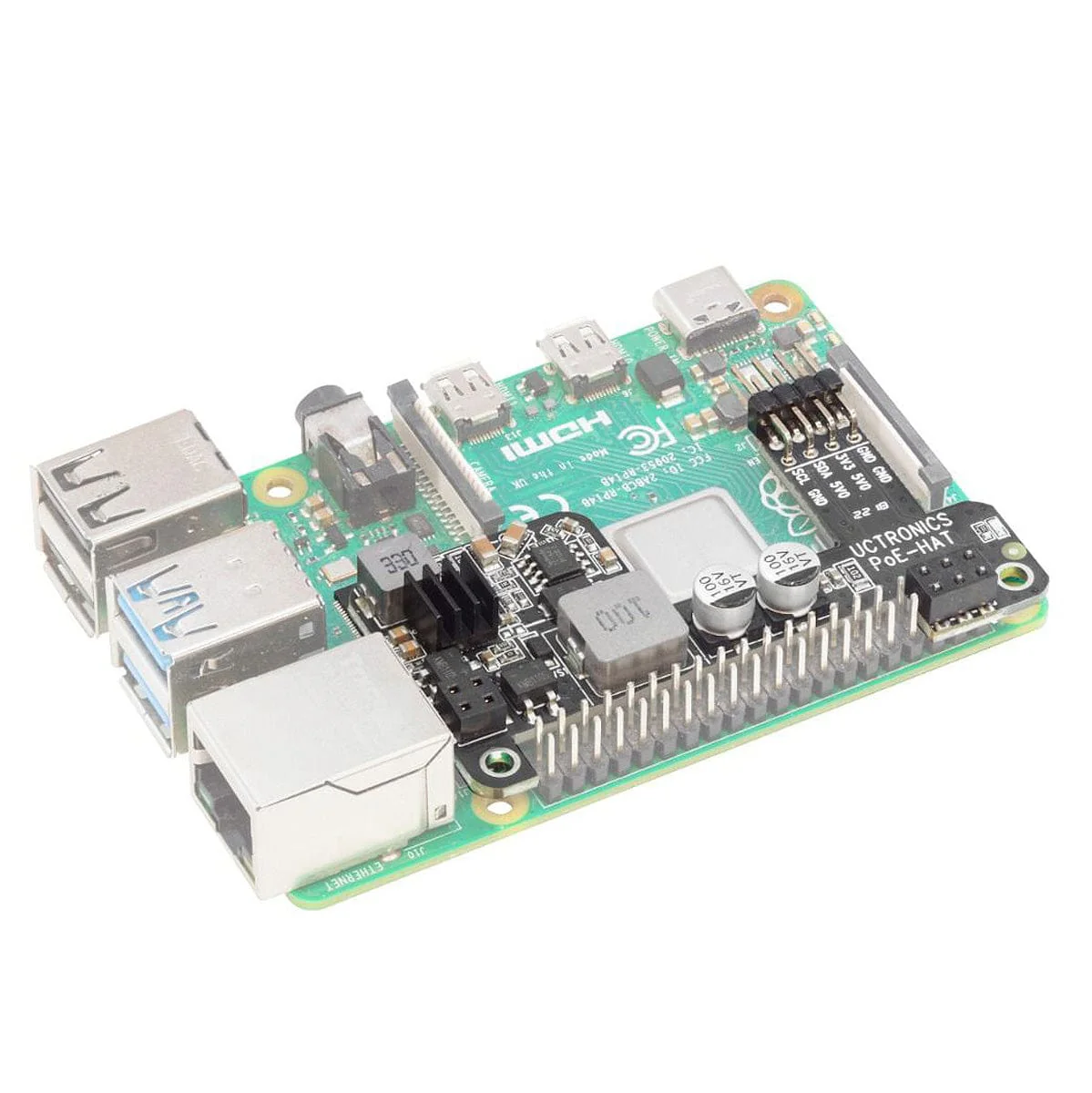

This PoE (Power over Ethernet) HAT for the Raspberry Pi 4/3B+ allows you to power the Raspberry Pi with a single power-injected Ethernet cable and can be used with both the Raspberry Pi 4 and the Raspberry Pi 3B+.

Not compatible with Raspberry Pi 5.

The mini size does not occupy the main 40-pin GPIO header and allows it to be housed inside more compact enclosures. The HAT offers your Raspberry Pi 5V 2.5A with a total power budget of 12.5W.

You will need Power Supply Equipment (PSE) to supply the PoE signal to the Raspberry Pi via the Ethernet cable, such as a PoE switch or injector.

A heatsink is included which should be applied to the board as pictured. It is normal for the board to get hot during normal operating - ensure adequate ventilation to allow the heatsink to do its thang!

Updated Model!

Following customer feedback, Uctronics have updated this PoE HAT to make it compatible with a wider range of switch brands as well as making it compatible with non-standard 48V PoE power supplies (through 45+, 78-), PoE input 40-57V with multiple protection circuits.

Features

• Standard: IEEE 802.3af
• Input: IEEE 802.3af compliant PoE
• Output Power: 5V 2.5A Max

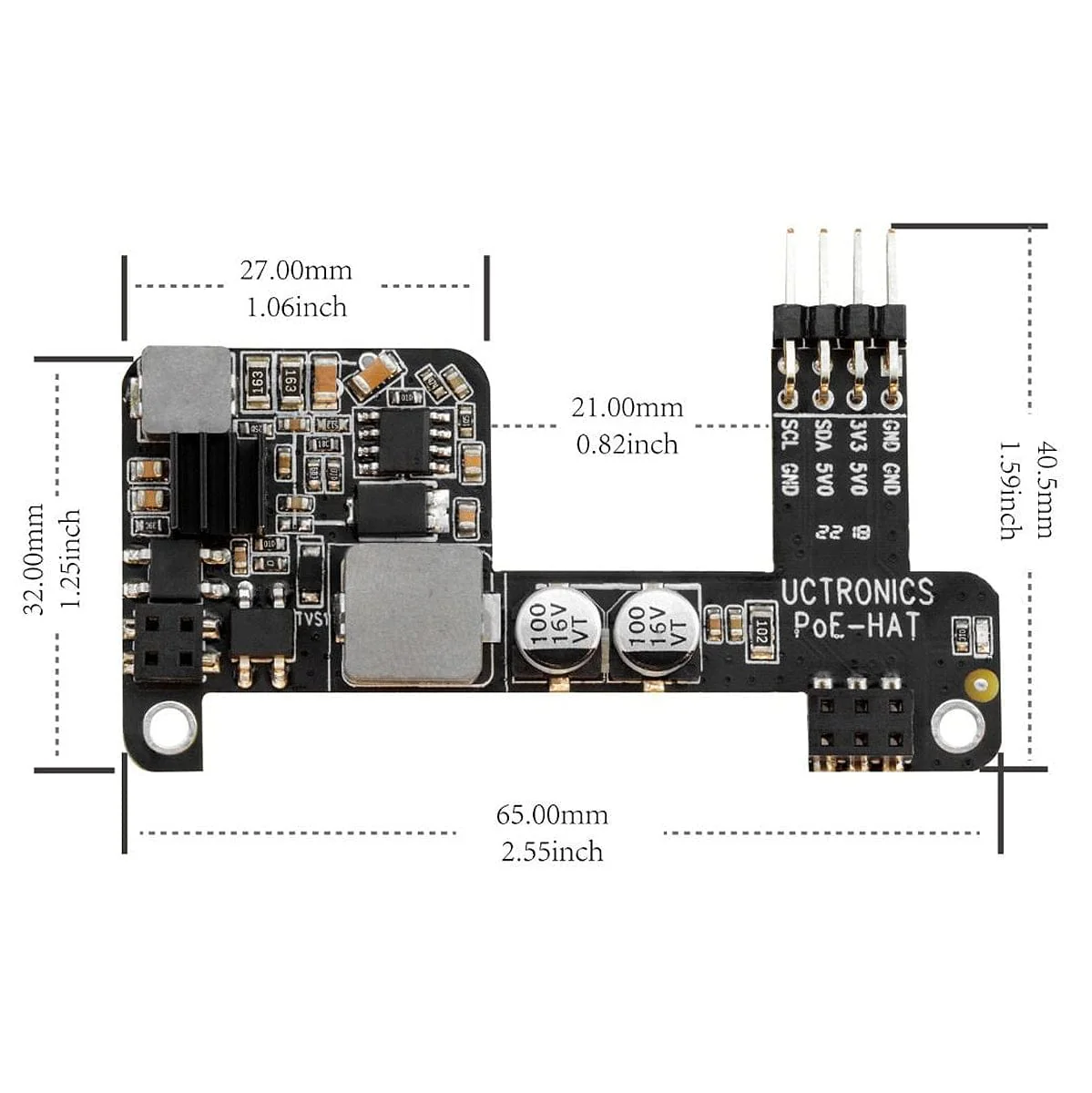

• Dimensions: 65mm x 40mm x 8mm
• Weight: 10g

Package Contents

• 1x Mini PoE HAT for Raspberry Pi (no fan)
• 1x Heatsink

• 1x Printed booklet

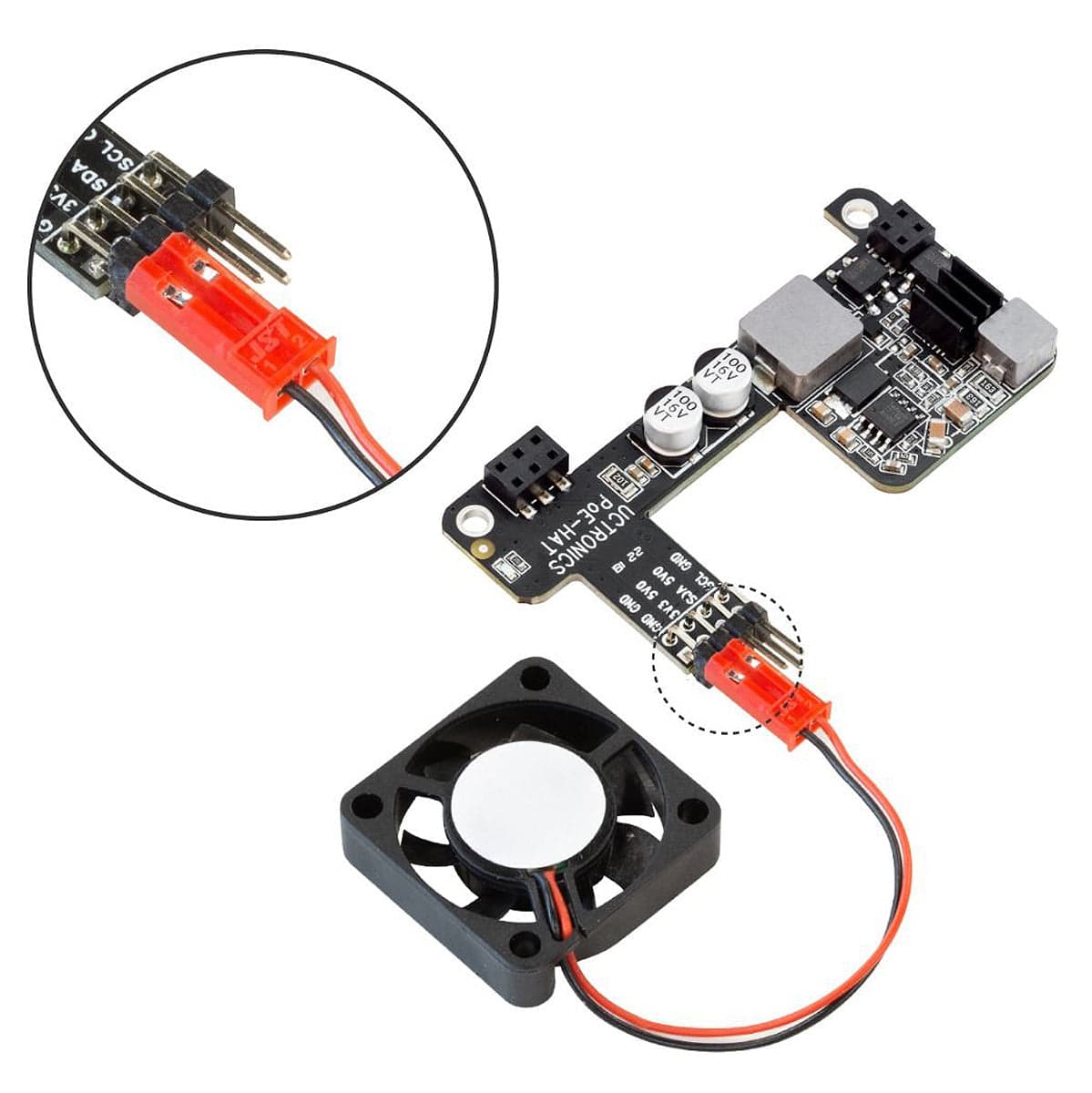

Raspberry Pi and fan not included

Resources

• Manual

Note

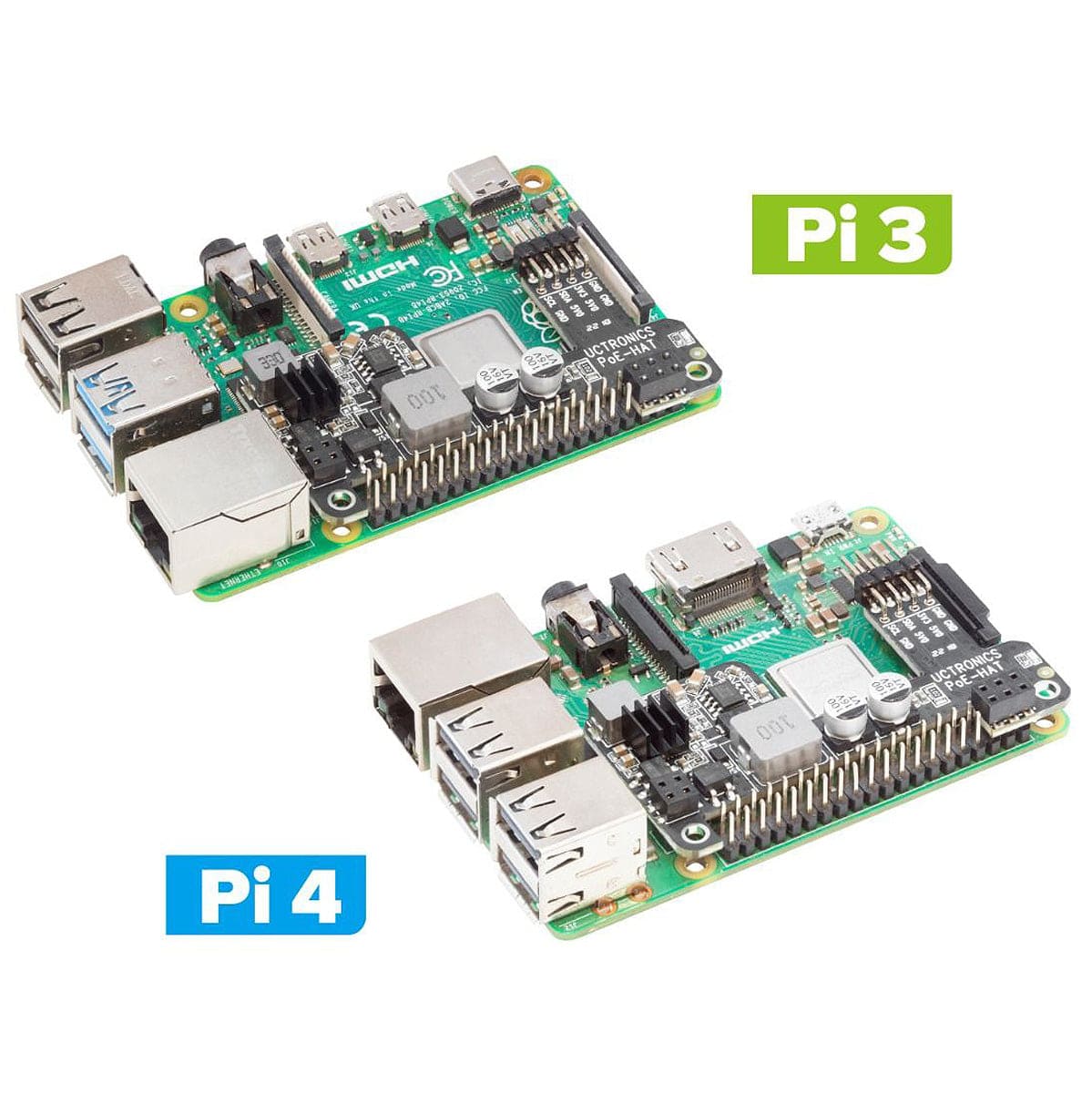

• Only compatible with the Raspberry Pi 3B+ and Raspberry Pi 4
• You will need IEEE 802.3af compatible PSE (Power Supply Equipment) to supply PoE signal to the Raspberry Pi, such as a PoE switch or injector
• This HAT only supports CAT 5E and CAT 6E network cable
• Output power is 2.5A max - calculate/measure your project's power usage before purchasing


Revision History

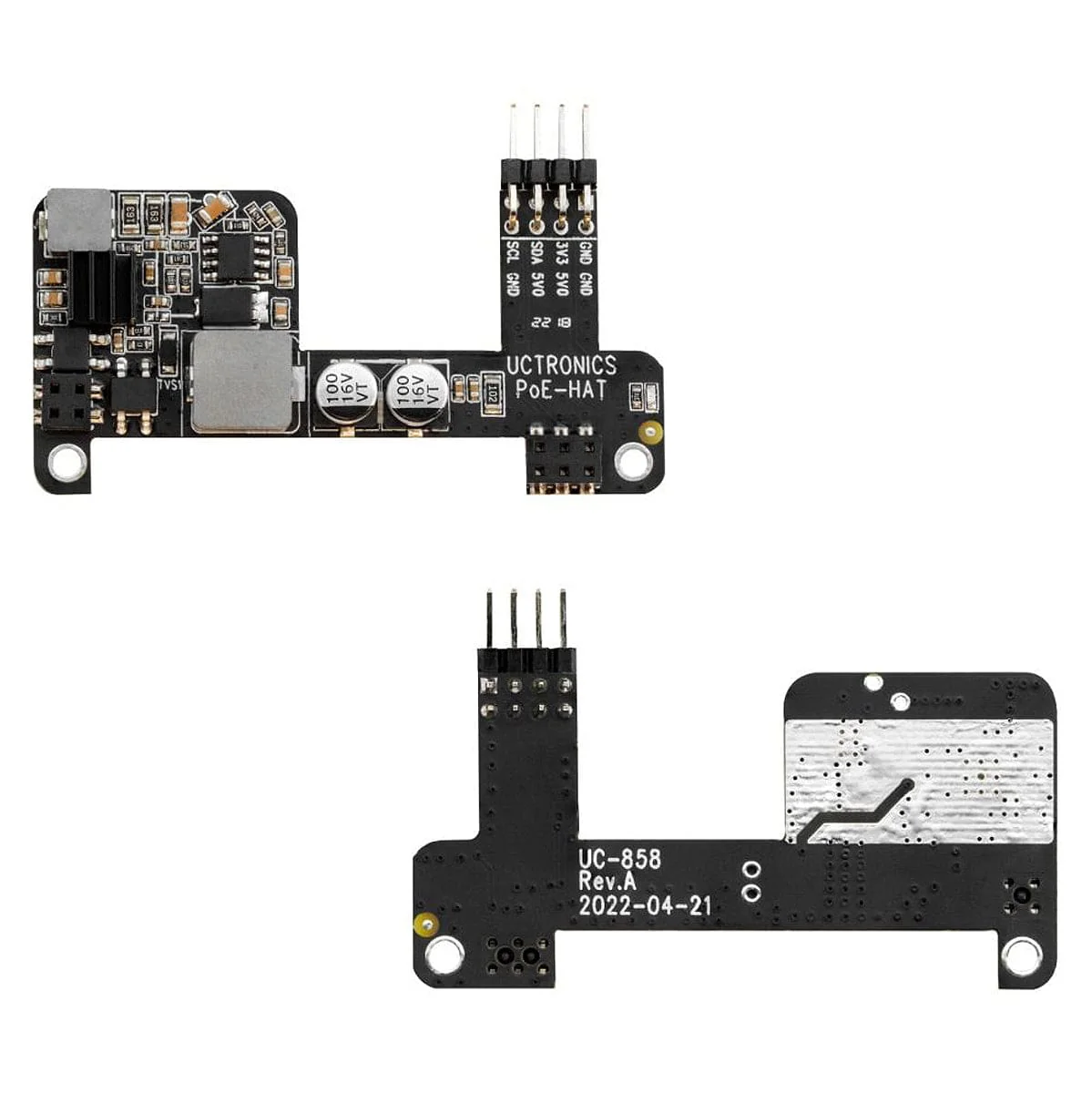

• As of 27/07/2022: After a long gap in stock availability, we are now stocking an updated model compatible with a wider range of switch brands as well as making it compatible with non-standard 48V PoE power supplies (through 45+, 78-), PoE input 40-57V with multiple protection circuits.
