Neco Unit with LED (WS2812C)

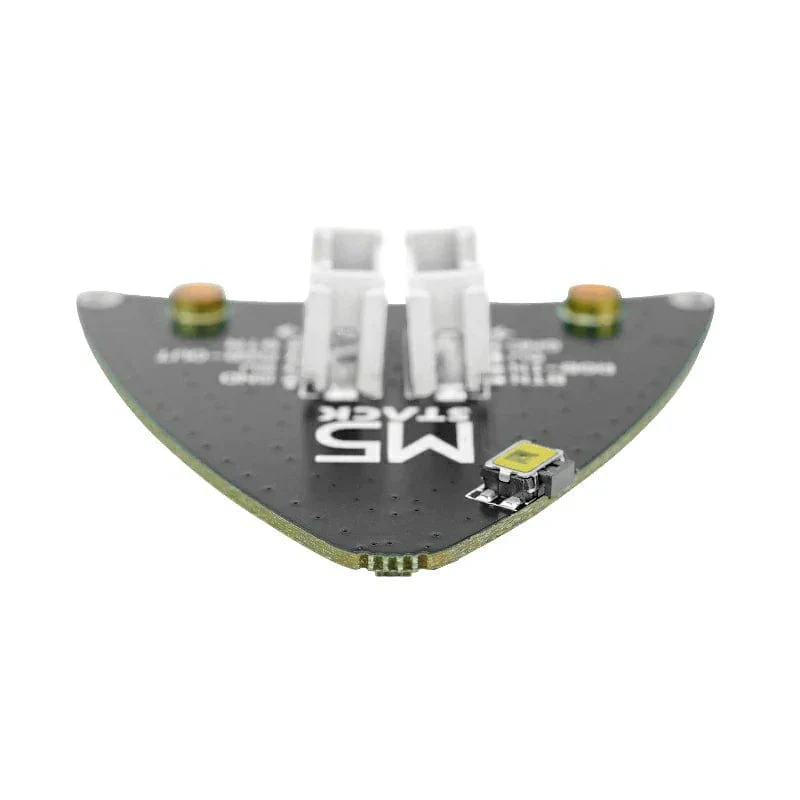

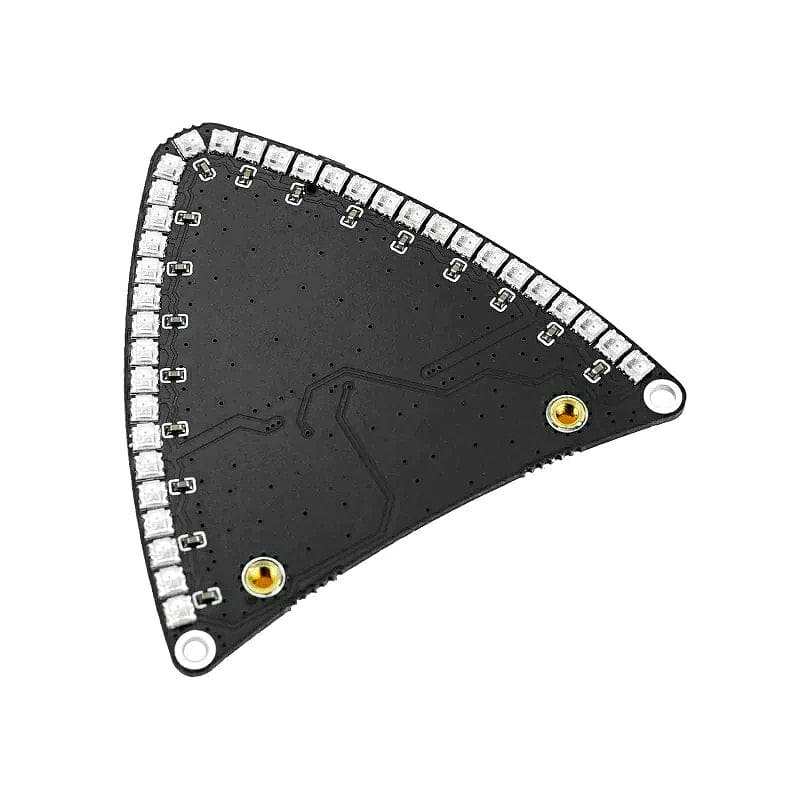

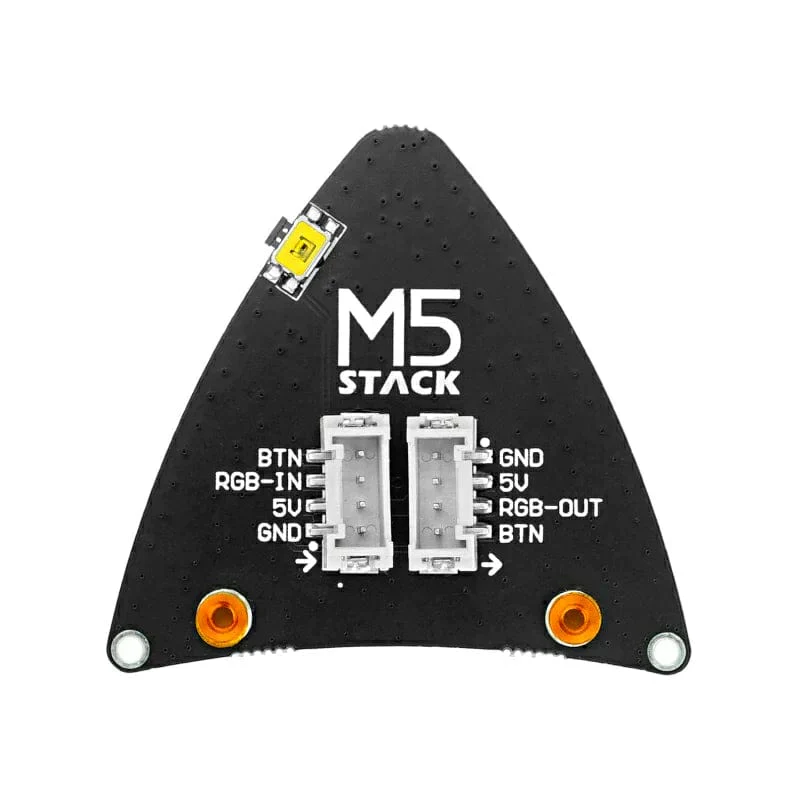

The Neco Unit is an RGB light board unit with a cat ear shape, including 35x WS2812C-2020 RGB lamp beads. It is equipped with two 4-pin grove ports for connecting the M5Stack host and expanding more units. In addition, there is a button to interact with the host and switch between different lighting effects. It is suitable for home decoration, stage performances and many other scenarios!

Note: If it is set to full brightness for a long time, it will cause the lamp bulbs to burn out, it is recommended to set the brightness to around 20.

Features

• WS2812C-2020 RGB lamp bead
• HY2.0-4P
• Compatible with multi-platform development:
  • UIFlow
  • Arduino

Specifications

Resources	Parameters
RGB lamp bead	WS2812C-2020
Consumes current	5mA（each RGB lamp bead）
Brightness level	256 levels of brightness display
Connection method	Serial cascade interface
Operating temperature	0-85°C
Number of colors	16777216 colors
Product Size	41 x 46 x 1mm
Package Size	95 x 65 x 25mm
Product Weight	9.2g
Package Weight	34.7g

Resources

• Product Wiki

Package Contents

• 2x Neco Unit
• 2x Grove cable (20cm\100cm）
• 2x Plastic-coated iron wire
