SparkFun RGB LED Breakout - WS2812B

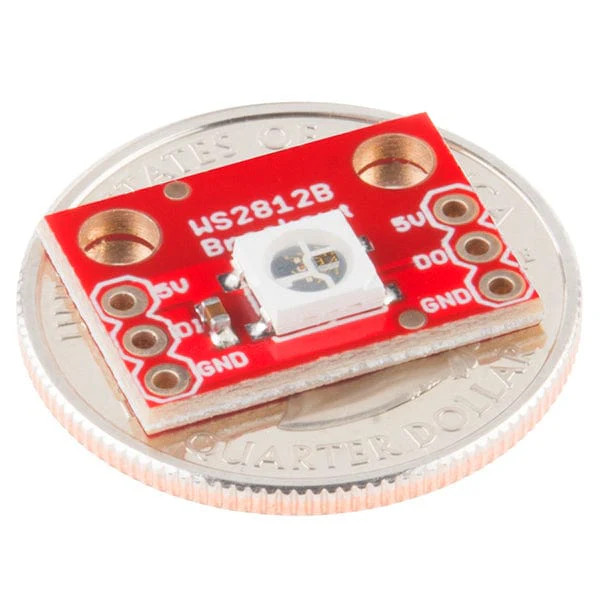

This is a breakout board for the WS2812B RGB LED. The WS2812B (or "NeoPixel") is actually an RGB LED with a WS2811 built right into the LED!

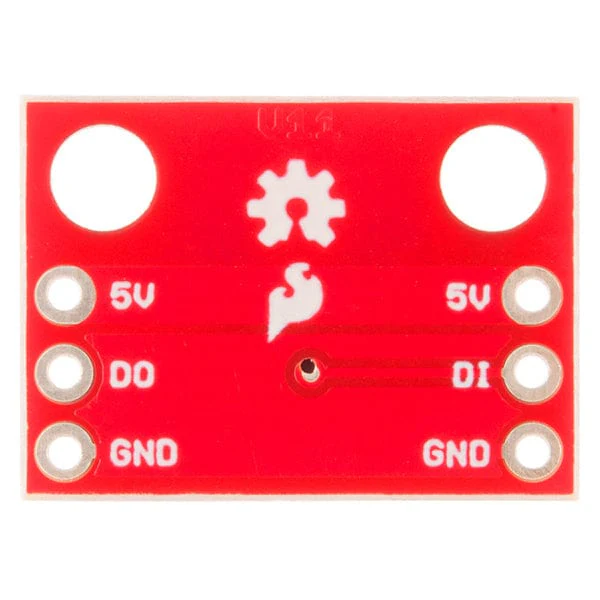

All the necessary pins are broken out to 0.1" spaced headers for easy bread-boarding. Several of these breakouts can even be chained together to form a display or an addressable string.
Get started with the SparkFun RGB LED Breakout WS2812B hookup guide!
Resources
- Schematic
- Eagle Files
- Hookup Guide
- All About LEDs
- Datasheet (WS2812B)
- GitHub (Design Files & Example Code)
Original: $1.50
-33%$1.50
$1.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This is a breakout board for the WS2812B RGB LED. The WS2812B (or "NeoPixel") is actually an RGB LED with a WS2811 built right into the LED!
All the necessary pins are broken out to 0.1" spaced headers for easy bread-boarding. Several of these breakouts can even be chained together to form a display or an addressable string.
Get started with the SparkFun RGB LED Breakout WS2812B hookup guide!
Resources
- Schematic
- Eagle Files
- Hookup Guide
- All About LEDs
- Datasheet (WS2812B)
- GitHub (Design Files & Example Code)
